SFC44S30-15L488Z datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> SFC44S30-15L488Z

SFC44S30-15L488Z: DescriptionCAPACITOR, METALLIZED FILM, POLYPROPYLENE, 30uF, CHASSIS MOUNT; CategoryPassive components capacitor; File Size44KB，3 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric View All

SFC44S30-15L488Z Overview

CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 30uF, CHASSIS MOUNT

SFC44S30-15L488Z Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	RATED AC VOLTAGE (V): 440, MINIMUM CAPACITANCE IS 15 MICRO FARAD
capacitance	30 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
Manufacturer's serial number	SF
Installation features	CHASSIS MOUNT
negative tolerance	3%
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
positive tolerance	3%
surface mount	NO
Terminal shape	LUG
Base Number Matches	1

Preview

Download Datasheet

View All

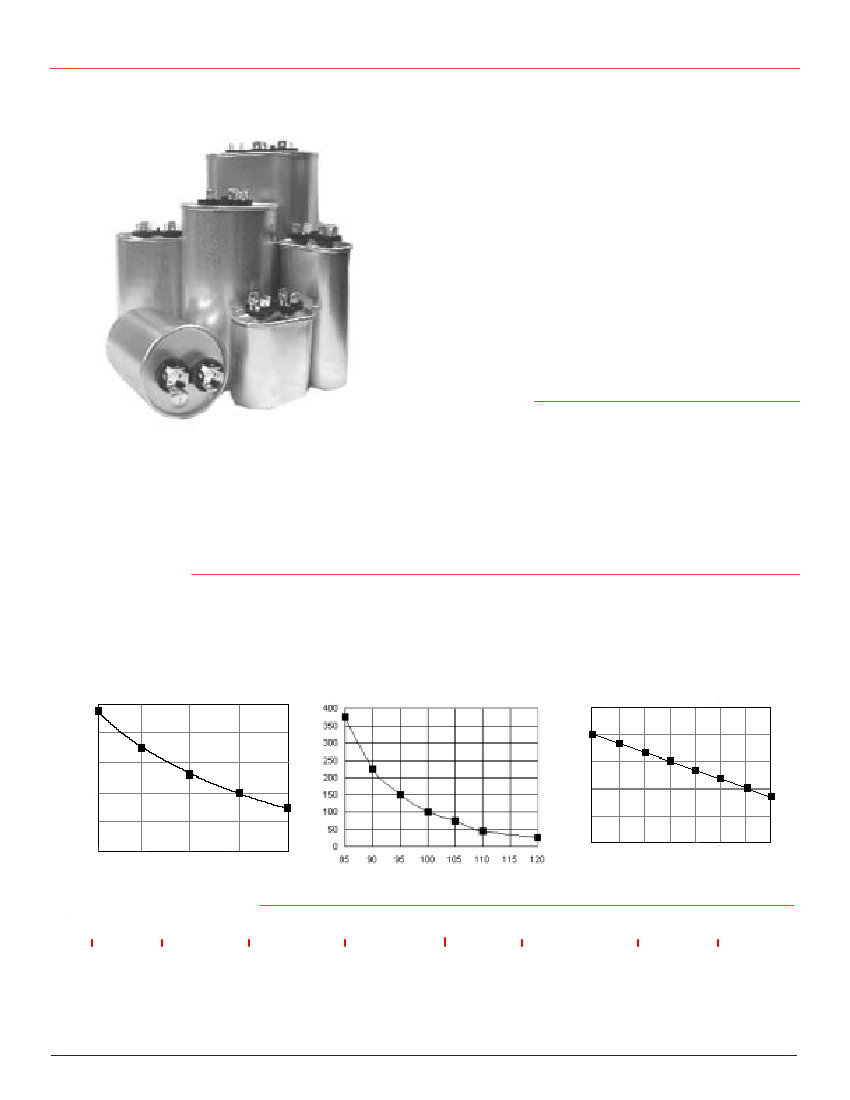

Type SF

Dual, Round & Oval, Oil-Filled Motor Run Capacitors

Metallized Polypropylene

Type SF dual rated oil filled motor run capacitors made with

self-healing metallized polypropylene film are commonly used

in air conditioning, motors and compressor applications. The

dual ratings in a single can provide two capacitors - one may

be used as a fan capacitor and the other as a compressor or

motor run capacitor. Three terminals allow one terminal to

act as a common while the other two are connected to the

individual capacitors.

The service life objective for the series is 60,000 hours of

operating life with a 94% survival rate when operated at full

voltage, 60 Hz, and rated ambient temperature. AC ca-

pacitors are frequently used at voltages and ambient tem-

peratures other than rated conditions. Service life may be

estimated under specific conditions of temperature and volt-

age by using the curves below.

Highlights

♦

Specifications

Capacitance Range:

Voltage Range:

Capacitance Tolerance

Temperature Range:

Life vs. Temperature

100000

% of Rated Life

Fault current protection up to 10,000 A

Low energy consumption — <0.1% DF

Self healing

UL recognized under E71645

Meets EIA Standard EIA-456-A

CSA File Number 223507

CUL File Number CYWT8

60,000 hours life

15–5 µF to 80–10 µF

370 Vac and 440 Vac

±10% standard (±6% and ±3% available)

–40 ºC to +70 ºC

Life vs. Voltage

Capacitance vs. Temperature

Capacitance Change %

% of Rated Life

10000

1000

100

–2

–4

–6

–40 –20

60 80

100

% of Rated Temperature

125

% of Rated Voltage

Temperature °C

Part Numbering System

Se rie s

Ca se

= 1 3/4" Ov al

= 2.0"

Ov al

Round

AC Volt

= 370 Vac

= 440 Vac

= Other

= Steel

Ca se Ma te ria l

= Aluminum w ith

steel cov er

= All Aluminum

15-5

Ca p

15-5

= 15-5 µF

30-20

= 33-20 µF

50-7.5

= 50-7.5 µF

Tol. ±%

= ±3%

= ±6%

= ±10%

= Special

291

Can Height

300

= 3.00"

400

= 4.00"

388

= 3 7/8"

475

= 4 3/4"

VAR

= Dual 2,3,4 70 °C

= Other

= 2 1/2" Round

Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02744

•

Phone: (508)996-8564

•

Fax: (508)996-3830

•

www.cde.com
