NT
Features
n
Size: 11.8 mm diameter,
12 mm length
n
60 kA surge rating
n
High power handling
n
Low leakage
n
RoHS compliant*
n
UL Recognized
Applications
n
Telecommunications equipment
n
Industrial equipment/electronics
*R
oH
S
C
OM
PL
IA
LE
AD
F
RE
E

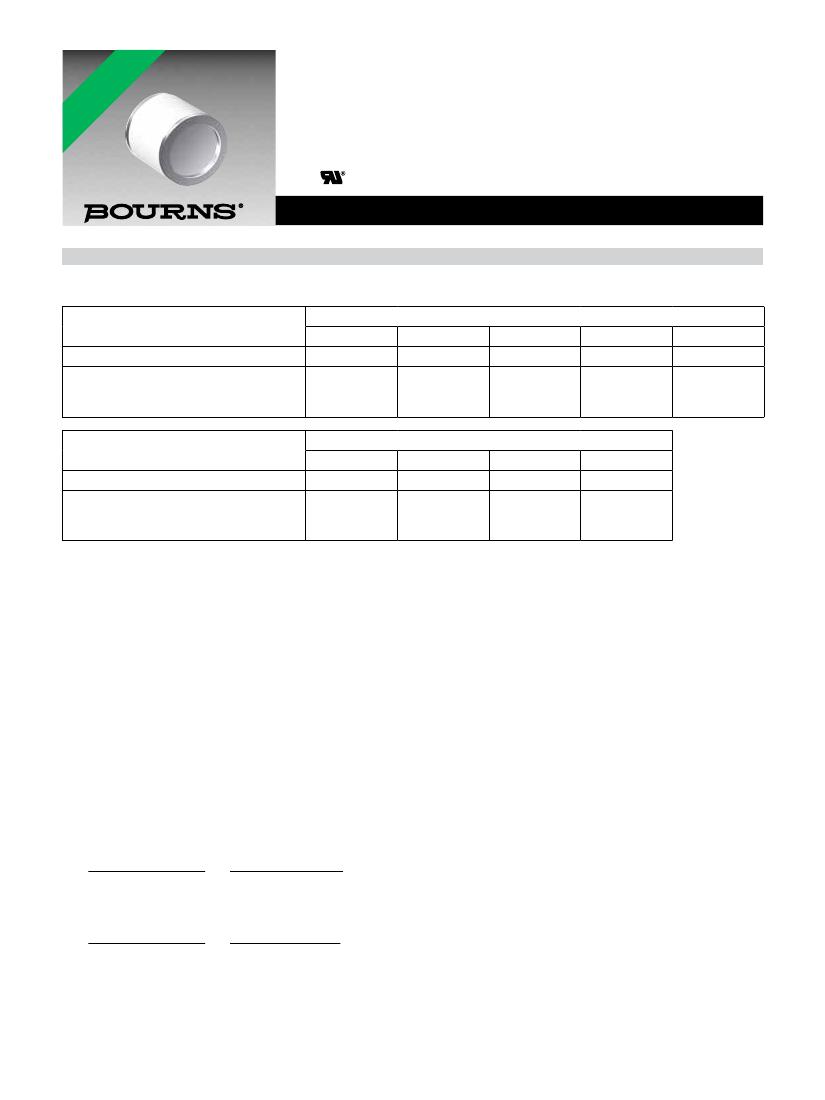

2061 Series
High-Current 2-Electrode Gas Discharge Tube
Characteristics
Ro VE LEA
HS RS D
C ION FRE
OM S E
PL AR
IA E
NT
*
Test Methods per ITU-T K.12 and IEC 61643-311.
Characteristic
DC Sparkover ±20 % @ 100 V/s
Impulse Sparkover
(1)
100 V/µs
1000 V/µs
Characteristic
DC Sparkover ±20 % @ 100 V/s
Impulse Sparkover
(1)
100 V/µs
1000 V/µs
(1)
Model No.
2061-25
250 V
< 600 V
< 700 V
2061-30
300 V
< 700 V
< 800 V
2061-35
350 V
< 800 V
< 900 V
2061-42
420 V
< 900 V
< 1000 V
230 V
2061-23
< 600 V
< 700 V
Model No.
2061-47
470 V
< 900 V
< 1100 V
2061-60
600 V
< 1100 V
< 1300 V
2061-70
700 V
< 1200 V
< 1400 V
2061-80
800 V
< 1300 V
< 1500 V
Impulse Sparkover voltage is defined as typical values of distribution.
Insulation Resistance (IR)
(2)
....................................100 / 250 Vdc ........................................................ > 1 GW
Glow Voltage ...........................................................10 mA ..................................................................... ~ 70 V
Arc Voltage ..............................................................1 A .......................................................................... ~ 10 V
Glow-Arc Transition Current .................................................................................................................... < 1 A
Maximum Capacitance ............................................1 MHz ..................................................................... < 10 pF
Maximum Impulse Discharge Current .....................60,000 A, 8/20 µs .................................................. 1 operation
40,000 A, 8/20 µs ................................................... 5 operations
Nominal Alternating Discharge Current ...................40 A, 50 Hz, 1 second ............................................ 1 operation
200 A, 9 cycles ...................................................... 1 operation
Impulse Life ............................................................500 A, 10/1000 µs .................................................. > 400 operations
DC Holdover Voltage
(3)
........................................................................................................................... < 150 ms
Operating Temperature............................................................................................................................ -30 to +85 ºC
Storage Temperature ............................................................................................................................... -40 to +115 °C
Climatic Category (IEC 60068-1)............................................................................................................. 40 / 90 / 21
Notes:
• The 2061 Series is NOT intended for use as a surface mount component.
• UL Recognized component, UL File E313168.
• At delivery AQL 0.65, level II DIN ISO 2859
(2)
DC Sparkover Voltage
230–400 V
420–800 V
Network Applied
DC Sparkover Voltage
230–250 V
300–800 V
IR Measuring Voltage
100 V
250 V
DC Holdover Voltage
135 V
150 V
(3)
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
2061 Series
High-Current 2-Electrode Gas Discharge Tube
Product Dimensions
How to Order
2061 - xx - A __ LF
Model Number Designator
Voltage (Divided by 10)
23 = 230 V
47 = 470 V
25 = 250 V
60 = 600 V
30 = 300 V
70 = 700 V
35 = 350 V
80 = 800 V
42 = 420 V
12.0 ± 0.3
(.472 ± .012)
Leads
A = No Leads
Packaging
(Blank) = Bulk Packaging - 60 pcs./tray (Standard)
RoHS Compliancy
LF = RoHS Compliant Product
11.8 ± 0.2
(.465 ± .008)
Packaging Specifications
Model 2061 ships standard bulk, 60 pcs. per tray.; 180 pcs. per box.
DIMENSIONS:
MM
(INCHES)
REV. F 07/16
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
