Type 2 surge protection device - VAL-MS 1000DC/2+V - 2805091
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

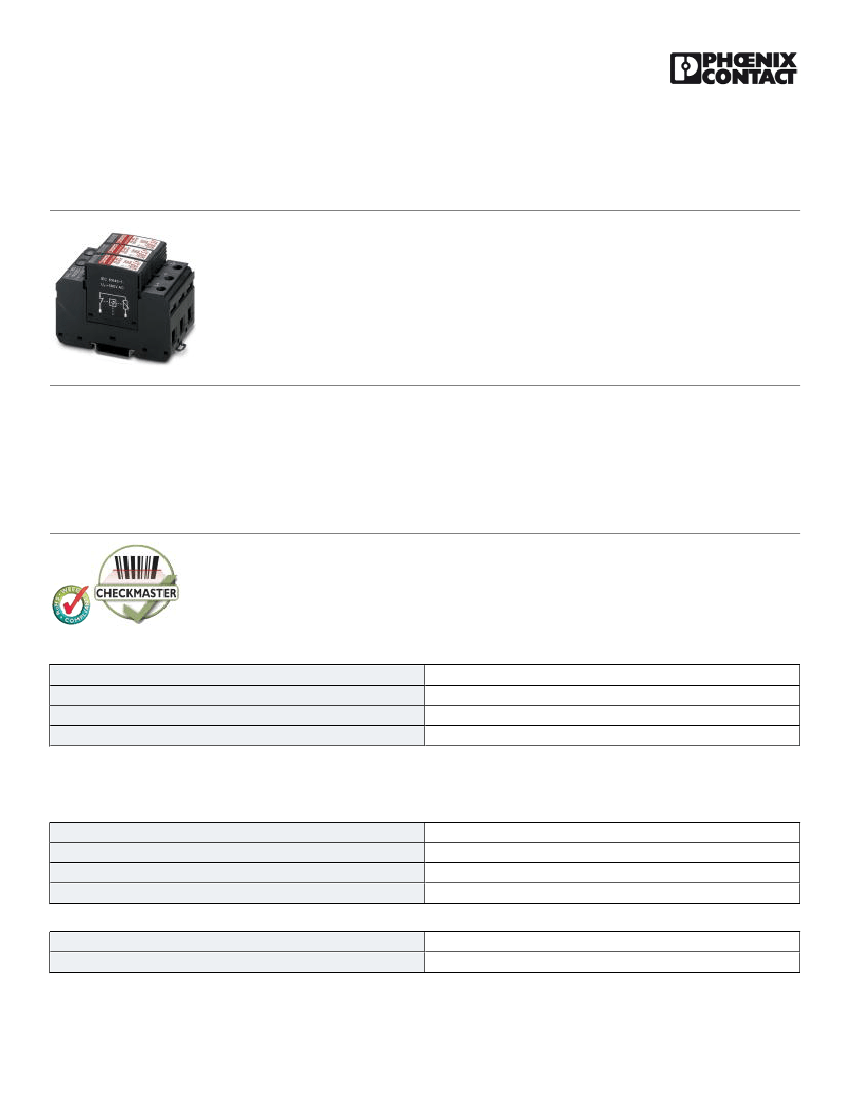

Surge arrester for 2-pos. isolated and grounded DC voltage systems 1000 V DC, for DIN rail mounting, 3-
pos. base element (L+, L-, ground), three pluggable temperature-monitored varistors, status message on each
connector.
Product Features
■
■
■
■
■
Plugs can be checked with CHECKMASTER
With or without floating remote indication contact
Optical, mechanical status indication for the individual arresters
Type 2 consistent plug-in surge arresters
Mechanical coding of all slots
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
360.0 g
85363010
Germany
Technical data
Dimensions
Height
Width
Depth
Horizontal pitch
90 mm
53.4 mm
65.5 mm
3 Div.
Ambient conditions
Degree of protection
Ambient temperature (operation)
IP20
-40 °C ... 80 °C
04/18/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/2805091
Type 2 surge protection device - VAL-MS 1000DC/2+V - 2805091
Technical data
General
Housing material
Flammability rating according to UL 94
Color
Standards for cearances and creepage distances
Mounting type
Type
Number of positions
Surge protection fault message
Direction of action
PBT / PA
V0
black
DIN EN 60664-1
DIN EN 61643-11
DIN rail: 35 mm
DIN rail module, two-section, divisible
3
optical
(L+)-PE & (L-)-PE & (L+)-(L-)
Protective circuit
IEC test classification
EN type
Maximum continuous operating voltage U
C
Rated load current I
L
Residual current I
PE
Standby power consumption P
C
Max. discharge current I
max
(8/20) µs
Nominal discharge current I
n
(8/20) µs
Voltage protection level U
p
Voltage protection level U
p
(L+) - (L-)
Voltage protection level U
p
(L+/L-) - PE
Residual voltage
II
T2
T2
1000 V DC
≤ 80 A DC
≤ 20 µA
≤ 20 mW
30 kA
15 kA
≤ 5 kV
≤ 5 kV
≤ 5 kV
≤ 5 kV
≤ 4.5 kV (at 10 kA)
≤ 4 kV (at 5 kA)
Residual voltage (L+) - (L-)
≤ 5 kV
≤ 4.5 kV (at 10 kA)
≤ 4 kV (at 5 kA)
Residual voltage (L+/L-) - PE
≤ 5 kV
≤ 4.5 kV (at 10 kA)
≤ 4 kV (at 5 kA)
Response time t
A
≤ 25 ns
PV protective circuit DC side
Short-circuit current rating I
SCPV
80 A
04/18/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/2805091
Type 2 surge protection device - VAL-MS 1000DC/2+V - 2805091
Technical data
Connection, protective circuit
Connection method
Connection type IN
Connection type OUT
Connection method
Screw thread
Tightening torque
Stripping length
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section AWG
Screw connection
Biconnect screw terminal block
Biconnect screw terminal block
Biconnect terminal block
M5
4.5 Nm
30 lb
f
-in. (UL)
16 mm
1.5 mm²
25 mm²
1.5 mm²
35 mm²
15
2
10 ... 2 (UL)
Standards and Regulations
Standards/regulations
DIN EN 61643-11 2002
IEC 61643-1 2005
IEC 60364-7-712 2002
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27140201
27130801
27130801
27130801
27130805
27130805
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000941
EC000941
EC000941
EC000941
04/18/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/2805091
Type 2 surge protection device - VAL-MS 1000DC/2+V - 2805091
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30212010
39121610
39121610
39121610
39121620
Accessories
Accessories
Bridge

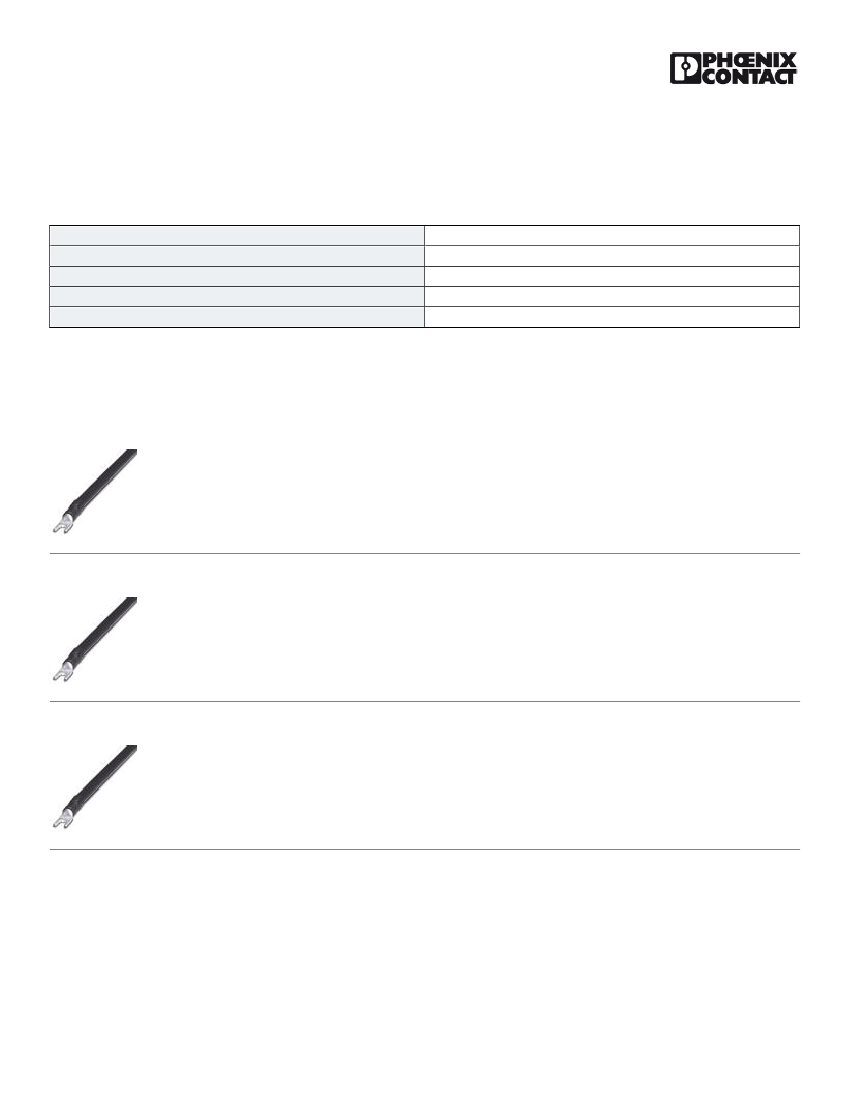

Wiring bridge - MPB F200X16/ 1GS - 2818339
Wiring bridge flexible, diameter 16 mm², with a fork-type cable lug on one side, length: 200 mm
Wiring bridge - MPB F400X16/ 1GS - 2818342
Wiring bridge flexible, diameter 16 mm², with a fork-type cable lug on one side, length: 400 mm
Wiring bridge - MPB F600X16/ 1GS - 2818355
Wiring bridge flexible, diameter: 16 mm², with a fork-type cable lug on one side, length: 600 mm
Device marking
04/18/2016 Page 4 / 6
https://www.phoenixcontact.com/us/products/2805091
Type 2 surge protection device - VAL-MS 1000DC/2+V - 2805091
Accessories

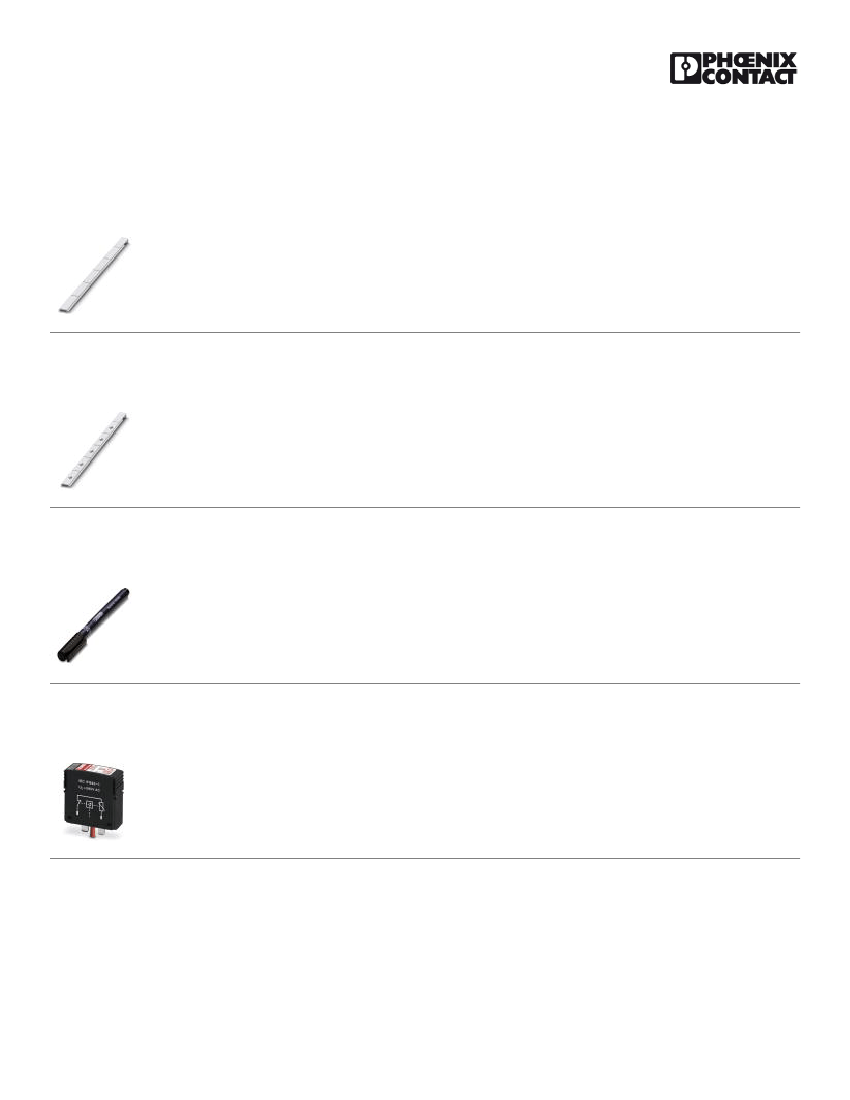

Zack marker strip - ZBN 18:UNBEDRUCKT - 2809128
Zack marker strip, Strip, white, unlabeled, can be labeled with: Plotter, Mounting type: Snap into tall marker groove, for
terminal block width: 18 mm, Lettering field: 18 x 5 mm
Labeled device marker
Marker for terminal blocks - ZBN 18,LGS:ERDE - 2749589
Marker for terminal blocks, Strip, white, labeled, Horizontal: Grounding symbol, Mounting type: Snap into tall marker
groove, for terminal block width: 18 mm, Lettering field: 18 x 5 mm
Marker pen
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Spare parts
Type 2 surge protection plug - VAL-MS 1000PV ST - 2805185
Replacement plug for PV arrester combinations of the VAL-MS 1000 DC... product range
Drawings
04/18/2016 Page 5 / 6
