Surge Protection Made Simple
™
for IEC Applications
IEC Class I Combined Lightning, Current and Surge Arresters for
230 Volt, 2-Pole TN & TT Systems
Description
The Cooper Bussmann
®
IEC Class I 230 Volt, two-pole, modular combined
lightning, current and surge arresters feature local,
easy
ID™ visual indication
and optional remote contact signaling. The unique module locking system
fixes the protection module to the base part. Modules can be easily replaced
without tools by simply depressing the release buttons. Integrated mechanical
coding between the base and protection module ensures against installing an
incorrect replacement module.
230 Volt models are offered with MCOV rating of 255 volts.
BSPS2255TN(R)
BSPS2255TT(R)
TN System Arresters
The features of these two-pole devices are for use as a modular combined
lightning and current arrester and surge arrester for use in single TN- systems
(“2-0” circuit).
TT System Arrester
Provides a current arresting means for use in single TT- systems
(“1-1” circuit).
Visual Status Indication
Remote Signal
Contact Available
Remote Signaling Contact
The three-pole terminal remote signaling contact versions have a floating
changeover contact for use as a break or make contact, according to circuit
concept.
Creepage Discharge Spark Gap

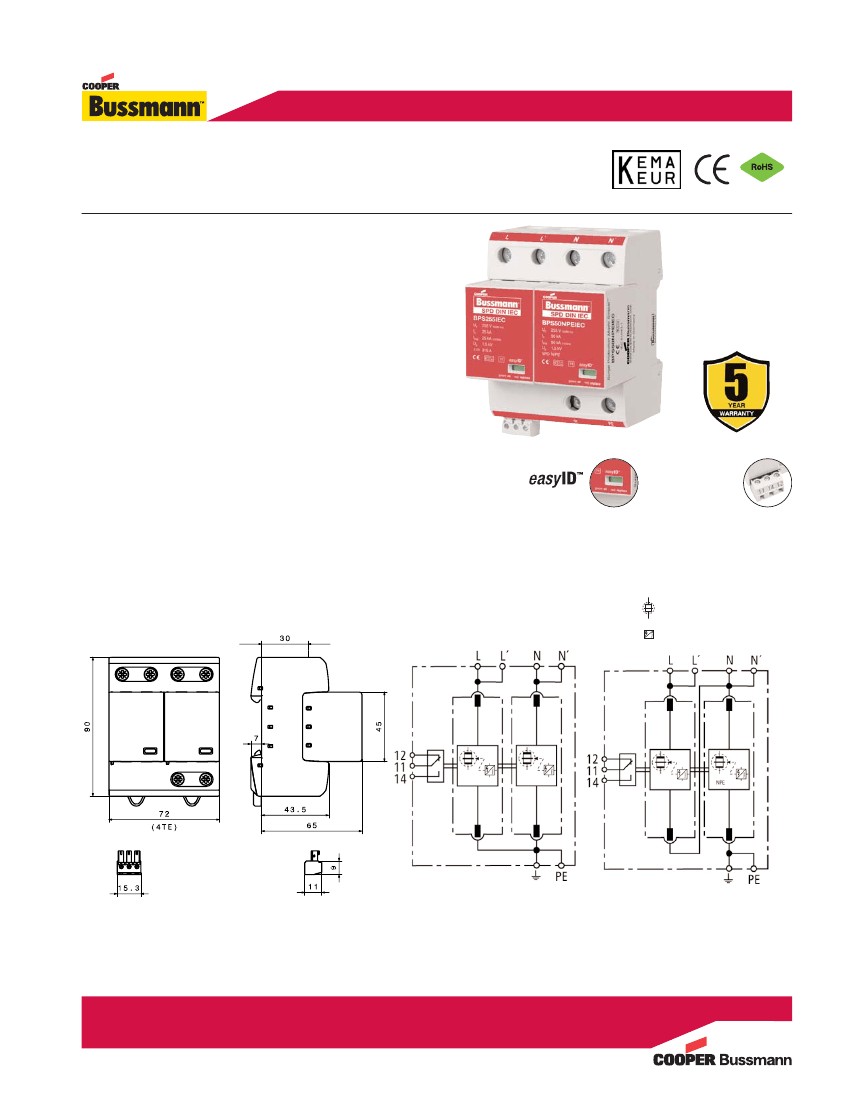

Dimensions - mm
Circuit Diagrams
Spark Gap Trigger
Shown with optional
remote contact signaling
BSPS2255TNR
Shown with optional
remote contact signaling
BSPS2255TTR
Shown with optional
remote contact signaling
www.cooperbussmann.com/Surge
1210
BU-SB101429
Page 1 of 2
Data Sheet 1163
This Product Is Obsolete
No recommended replacement is available
Ordering Information
System Voltage/Poles
Max. Continuous operating AC voltage (MCOV) [U
C
]
Catalog Numbers:
Without Remote Signaling
With Remote Signaling
Replacement Modules (Spark Gap technology):
230V/2
255V
BSPS2255TN
BSPS2255TNR
(2X) BPS255IEC
--
625.00 kJ/ohms
25kA
156.25 kJ/ohms
< 1.5 kV/< 1.5 kV
_
_
--
50kA rms
--
--
230V/2
255V
BSPS2255TT
BSPS2255TTR
(1X) BPS255IEC
(1X) BPS50NPEIEC*
--
25/50kA Is [L-N]/[N-PE]
156.25kJ/ohms/
625.00 kJ/ohms
--
< 1.5kV/< 1.5kV
_
_
--
50kA rms/100A rms
1200V/200 ms
Specifications
Specific energy [L+N-PE] [W/R]
Lightning impulse current (10/350 µs) [L, N-PE] [I
imp
]
Specific energy [L,N-PE] [W/R]
Voltage protection level [L-PE]/[N-PE] [U
P
]
Voltage protection level [L-N]/[N-PE] [U
P
]
Follow current extinguishing capability AC [I
fi
]
Follow current extinguishing capability [L-N]/[N-PE] [I
fi
]
Temporary overvoltage (TOV) [N-PE] [U
T
]
SPD according to EN 61643-11/... IEC 61643-1
Energy-coordinated protection effect with regard to the terminal equipment
Energy-coordinated protection effect with regard to the terminal equipment (< 5m)
_
Nominal AC voltage [U
N
]
Lightning impulse current (10/350 µs) [L+N-PE] [I
total
]
Nominal discharge current (8/20 µs) [I
n
]
Follow current limitation/Selectivity
Response time [t
A
]
Max. Backup fuse (L) up to I
K
< 50kA rms
_
Max. Backup fuse (L) for I
K
> 50kA rms
Max. Backup fuse (L-L´)
Temporary overvoltage (TOV) [L-N] [U
T
]
TOV characteristics
Operating temperature range (parallel connection) [TU
P
]
Operating temperature range (series connection) [TU
S
]
Operating temperature range [parallel]/[continuity] [TU]
Operating state/fault indication
Number of ports
Cross-sectional area (L, L´, N, N´, PE,
Cross-sectional area (L, N, PE) [max.]
Cross-sectional area (L´, N´,
For mounting on
Enclosure material
Location category
Degree of protection
Capacity
Standards Information
Product Warranty
) [max.]
) [min.]
Type 1/Class I
Type 1 + Type 2
Type 1 + Type 2 + Type 3
230V
50kA
25/50kA
no tripping of a 20A gL/gG fuse up to 50kA rms (prosp.)
< 100 ns
_
315A gL/gG
200A gL/gG
125A gL/gG
440V/5 sec.
withstand
-40°C to +80°C
-40°C to +60°C
-40°C to +80°C/-40°C to +60°C
green (good)/red (replace)
1
10mm
2
solid/flexible
50mm
2
/1AWG stranded-35mm
2
/2AWG flexible
35mm
2
/2AWG stranded-25mm
2
/4AWG flexible
35mm DIN Rail per EN 60715
Thermoplastic, UL 94V0
Indoor
IP20
4 mods., DIN 43880
KEMA
Five Years**
Remote Contact Signaling
Remote Contact Signaling Type
AC Switching Capacity (Volts/Amps)
DC Switching Capacity (Volts/Amps)
Conductor Ratings and Cross-Sectional Area for Remote Contact Signal Terminals
Ordering Information
Recommended Cooper Bussmann NH DIN Size Back Up Fuses
Size NH Fuse Part Number
Size NH Fuse Part Number
00
125NHG00B (max L-L)
02
125NHG02B (max L-L)
0
125NHG0B (max L-L)
02
200NHG02B (max L Ik >50kA)
01
125NHG01B (max L-L)
2
315NHG2B (max L <50kA)
_
1
200NHG1B (max L Ik >50kA)
03
315NHG03B (max L <50kA)
_
Changeover Contact
250V/0.1A
250V/0.1A; 125V/0.2A; 75V/0.5A
60/75°C Max. 1.5mm
2
/14AWG Solid/Flexible
Order from Catalog Numbers Above
* N-PE Surge arrester for location between neutral conductor and protective conductor
in TT systems.
** See Cooper Bussmann SPD Limited Warranty Statement (3A1502) for details at
www.cooperbussmann.com/surge.
