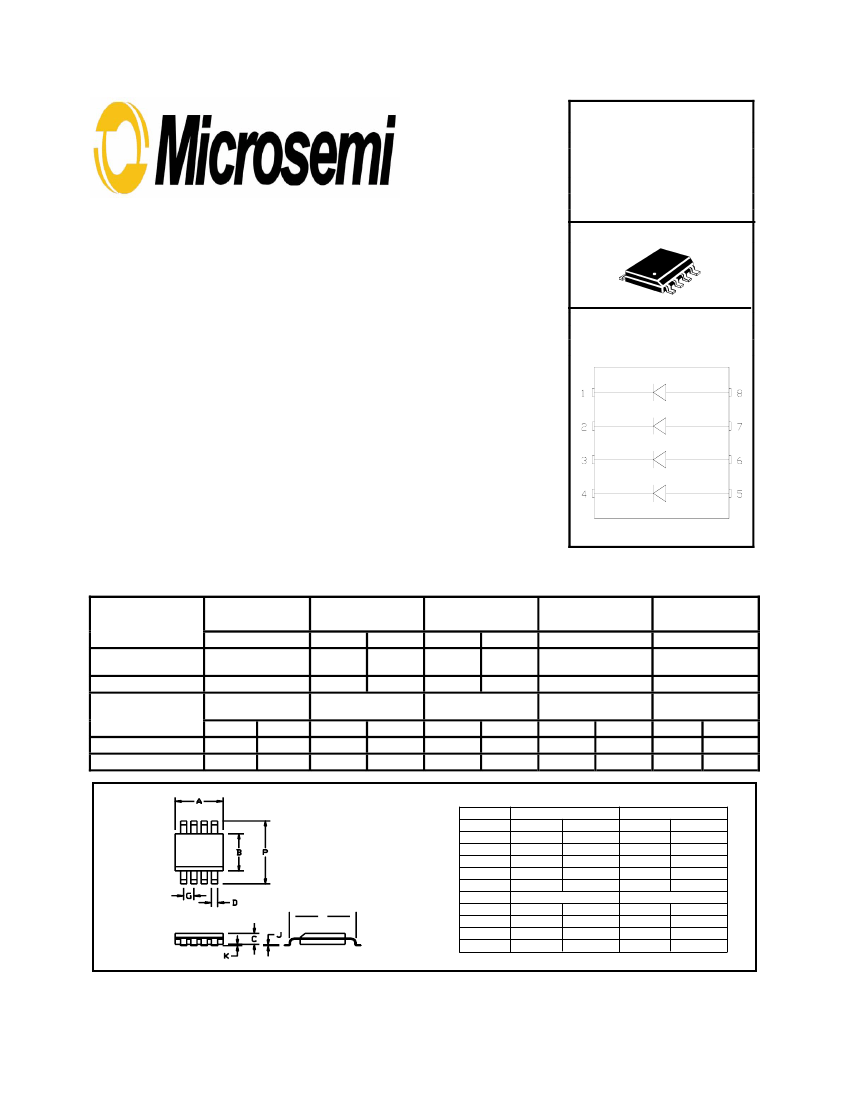

S8-4148, e3

8700 E. Thomas Road

Scottsdale, AZ 85251

Tel: (480) 941-6300

Fax (480) 947-1503

and

S8-4150, e3

Switching Diode Array

FEATURES

•

4 Diode Array

SOIC 8 pin Surface Mount Package

UL 94V-0 Flammability Classification

RoHS compliant by adding “e3” suffix (S8-4148e3 or S8-4150e3)

MECHANICAL and PACKAGING

•

Molded SOIC 8 Pin

Terminals: Tin-Lead or RoHS compliant annealed matte Tin

Weight: 0.066 grams (approximate)

Marking: Logo, device part number, date code

Pin #1 defined by DOT on top of package

Tape & Reel option: Standard per EIA-481-B

13 inch reel 5000 pieces (add “TR” suffix to part number)

Carrier tube option: 95 pcs per tube

CIRCUIT DIAGRAM

MAXIMUM RATINGS

•

Operating Temperatures: -55 C to +150 C

0

Storage Temperature: -55 C to +150 C

Forward Surge Current: 2.0 Amps (8.3 ms)

Working Peak Reverse voltage V

RWM

: 75 V for S8-4148 and 50 V for S8-4150

Continuous forward current I

F

: 400 mA (each diode)

Power dissipation (P

D

): 1000 mW (total package)

0

ELECTRICAL CHARACTERISTICS @ 25

0

C Unless otherwise specified

Part Number

V

BR

@ I

BR

=100µA

V MIN

I

R

+25ºC

µA MAX

.025

.500

.1

@V

R

20

75

50

I

R

150ºC

µA MAX

50

100

@V

R

20

50

CAP

@ 0V

pF

MAX pF

4.0

2.5

V

F

@ I

F

= 100mA

V MIN

------

0.82

V MAX

1.20

0.92

t

rr

MAX (nS)

5.0

4.0

V

F

@ I

F

= 200mA

V MIN

------

0.87

V MAX

------

1.00

S8-4148

S8-4150

Part Number

S8-4148

S8-4150

90

75

V

F

@ I

F

= 1.0mA

V MIN

------

0.54

V MAX

------

0.62

V

F

@ I

F

= 10mA

V MIN

------

0.66

V MAX

100

0.74

V

F

@ I

F

= 50mA

V MIN

------

0.76

V MAX

------

0.86

INCHES

DIM

A

B

C

D

F

G

J

K

L

P

MIN

0.188

0.150

0.053

0.011

0.016

0.050 BSC

0.006

0.004

0.189

0.228

0.010

0.008

0.206

0.244

MAX

0.197

0.158

0.069

0.021

0.050

MILLIMETERS

MIN

4.77

3.81

1.35

0.28

0.41

1.27 BSC

0.15

0.10

4.80

5.79

0.25

0.20

5.23

6.19

MAX

5.00

4.01

1.75

0.53

1.27

MSC0881.PDF

ISO 9001 CERTIFIED

REV A 7/20/2005
