0673800MXEP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 0673800MXEP

0673800MXEP: DescriptionCartridge Fuses .8A Glass Body Slo-Blo; CategoryCircuit protection; File Size37KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

0673800MXEP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0673800MXEP	-	-	View	Buy Now

0673800MXEP Overview

Cartridge Fuses .8A Glass Body Slo-Blo

0673800MXEP Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Littelfuse
Product Category	Cartridge Fuses
RoHS	Details
Product	Glass Fuse
Current Rating	800 mA
Fuse Type	Time Delay / Slow Blow
Fuse Size / Group	3.6 mm x 10 mm
Voltage Rating AC	250 VAC
Mounting Style	Board Mount
Termination Style	Axial
Packaging	Bulk
Body Style	Cylindrical Leaded
Diameter	3.6 mm
Indicator Style	Without Indicator
Length	10 mm
Factory Pack Quantity	1000
Unit Weight	0.021164 oz

Preview

Download Datasheet

View All

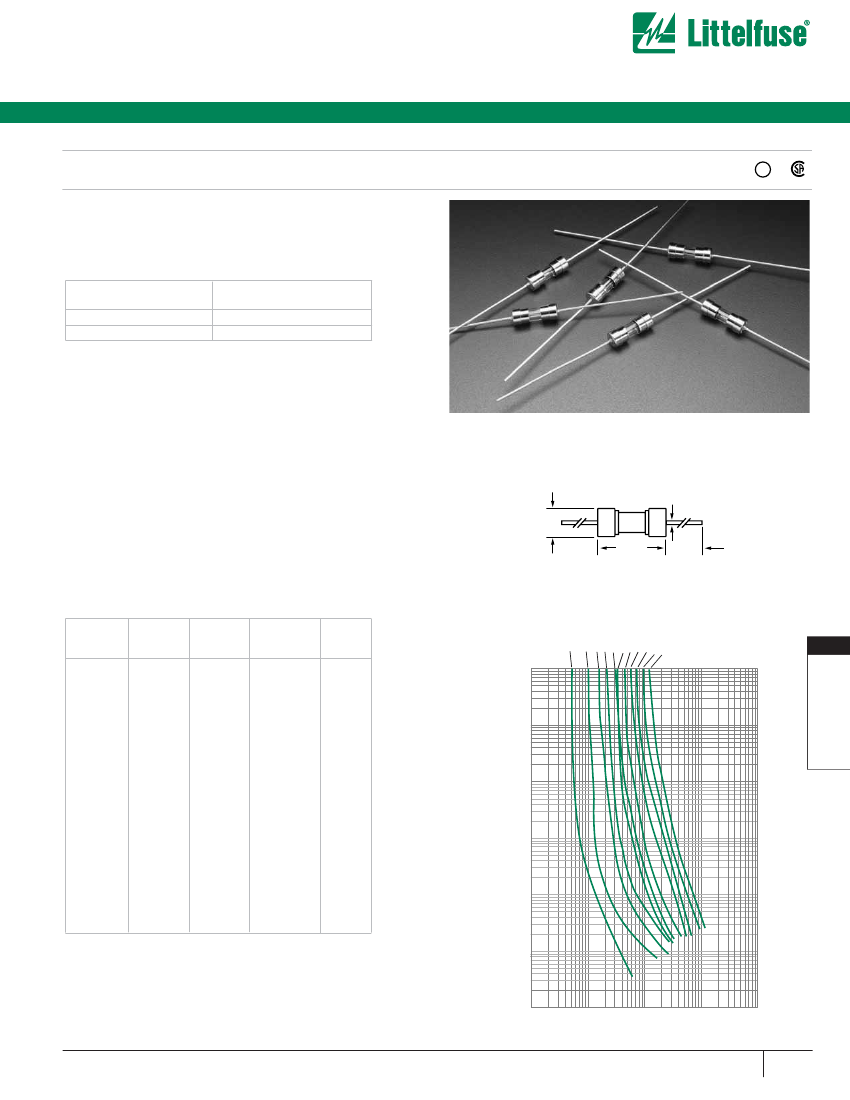

Axial Lead and Cartridge Fuses

Glass Body

3.6 x 10 mm

Slo-Blo

Fuse 673 Series

• Designed to UL/CSA 248 Standard.

• Slo-Blo, glass body fuse in a compact package.

• This space saving fuse is ideally suited for lighting, power supply,

and adapter applications.

ELECTRICAL CHARACTERISTICS:

% of Ampere

Opening

Rating

Time

100%

200%

4 hours, Minimum

60 seconds, Max.

AGENCY APPROVALS:

Listed by Underwriters

Laboratories and Certified by CSA from 0.050 through

10 Amps.

INTERRUPTING RATING:

50A@250V AC

PACKAGING OPTIONS:

Please refer to the following suffixes when ordering:

Bulk (1000 pieces): Add MXE suffix to the catalog part number.

Tape and Reel (1500 pieces): Add DRT4 suffix to the catalog

part number.

673

000

Series

3.9 (.153")

0.6 (.024") ( 0.1 -5A)

0.8 (.031") (6 -7A)

1.0 (.039") (8 -10A)

TAPE AND REEL SPECIFICATIONS:

Per EIA-296 with 10mm pitch and 56.5mm inside

tape spacing.

11.0

(.433")

30.0

(1.181") TYP.

Axial Lead Material: Solder coated copper.

ORDERING INFORMATION:

Catalog

Number

0673.100

0673.125

0673.200

0673.250

0673.300

0673.400

0673.500

0673.600

0673.800

0673

001

0673

01.5

0673

01.6

0673

002.

0673

02.5

0673

003.

0673

004.

0673

005.

0673

006.

0673

007.

0673

008.

0673

010.

Ampere

Rating

.100

.125

.200

.250

.300

.400

.500

.600

.800

1.00

1.50

1.60

2.00

2.50

3.00

4.00

5.00

6.00

7.00

8.00

10.0

Voltage

Rating

250

Nominal

Resistance Melting i

Cold mOhms A

Sec.

7.5300

0.00250

2.9850

0.00370

2.5280

0.0161

1.7700

0.0252

1.1880

0.0332

0.3140

0.0735

0.2250

0.137

0.1550

0.482

0.1120

0.949

0.0940

1.22

0.0515

3.52

0.0494

3.75

0.0410

6.56

0.0344

9.19

0.0247

18.4

0.0191

28.6

0.0114

58.6

0.0095

77.2

0.0084

94.7

0.0077

114.0

0.0070

224.0

Average Time Current Curves

500mA

1.6A

3.15A

10A

AXIAL LEAD AND

CARTRIDGE FUSES

1000

100

TIME IN SECONDS

0.1

0.01

0.001

0.1

100

CURRENT IN AMPERES

1000

w w w. l i t t e l f u s e . c o m

433
