3.0mmx2.5mm SURFACE MOUNT LED LAMP
APB3025EYC
HIGH EFFICIENCY RED / YELLOW
Features
!
3.0mmx2.5mm
!
BI
Description
SMT LED, 1.1mm THICKNESS.
The High Efficiency Red source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Orange
Light Emitting Diode.
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
-COLOR,LOW POWER CONSUMPTION.
VIEWING ANGLE.
FOR BACKLIGHT AND INDICATOR.
COLORS AND LENS TYPES AVAILABLE.
: 2000PCS / REEL.
!
WIDE
!
IDEAL
!
VARIOUS
!
PACKAGE

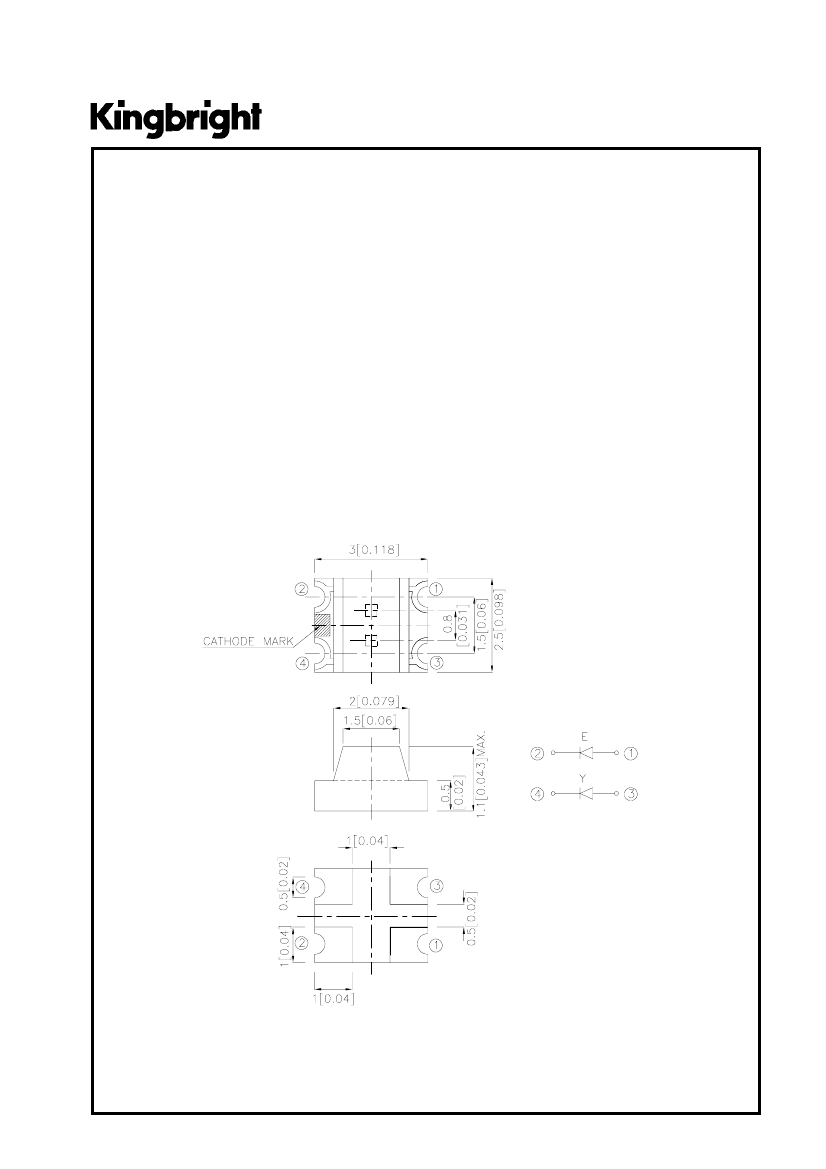

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.2(0.0079")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAD1096
APPROVED: J.Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: MAR/19/2003
DRAWN: K.ZHANG
PAGE: 1 OF 4
Selection Guide
Par t No .
Dic e
HIGH EFFICIENCY RED (GaAsP/GaP)
YELLOW (GaAsP/GaP)
L en s Ty p e
4
2.6
Iv (m c d )
@ 20 m A
Min .
APB3025EYC
WATER CLEAR
Ty p .
12
8
V i ew i n g
An g l e
2θ1/2
12 0 °
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
I
R
Par am et er
Peak Wavelength
Dominate Wavelength
Spectral Line Halfwidth
Capacitance
Forward Voltage
Reverse Current
D ev i c e
High Efficiency Red
Yellow
High Efficiency Red
Yellow
High Efficiency Red
Yellow
High Efficiency Red
Yellow
High Efficiency Red
Yellow
All
Ty p .
627
590
625
588
45
35
15
20
2.0
2.1
2.5
2.5
10
Max .
Un it s
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
)
=25°C
°
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
H i g h E f f i c i en c y R ed
105
30
160
5
Yello w
105
30
140
5
-40
°
C To +85
°C
Un it s
mW
mA
mA
V
SPEC NO: DSAD1096
APPROVED: J.Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: MAR/19/2003
DRAWN: K.ZHANG
PAGE: 2 OF 4

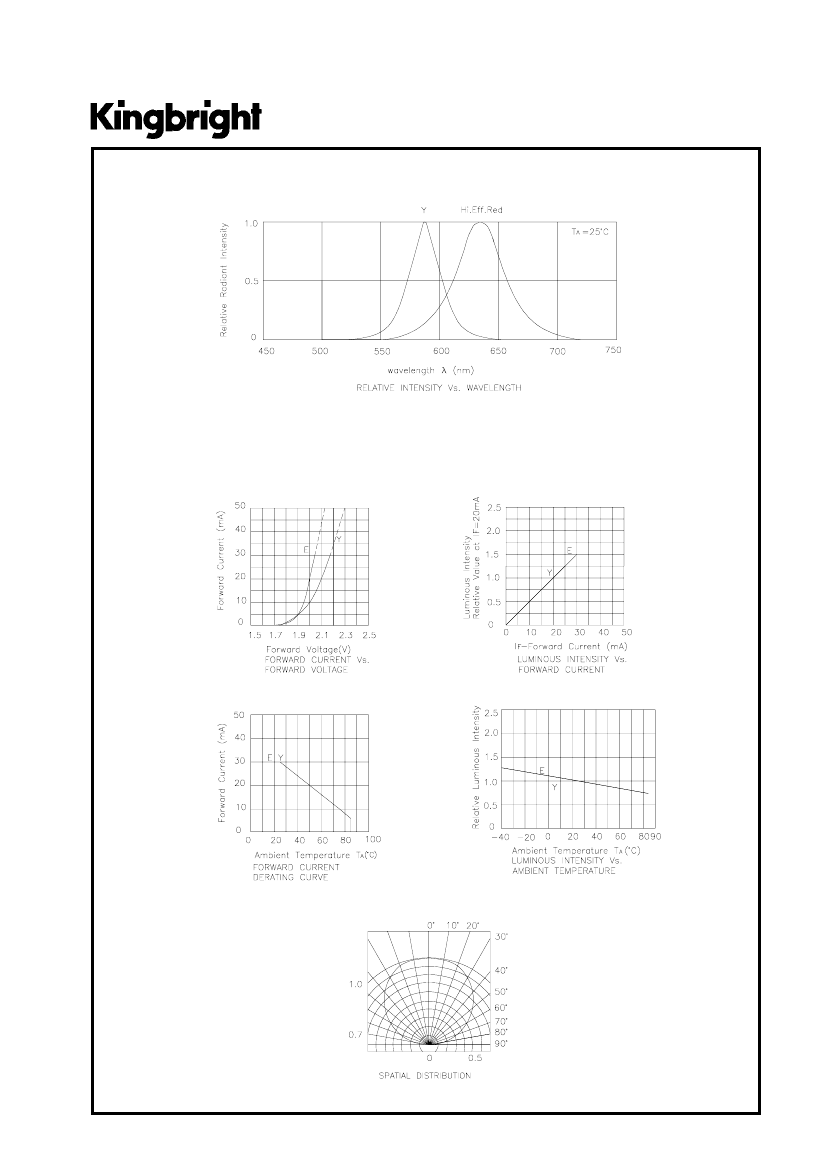

High Efficiency Red / Yellow
APB3025EYC
SPEC NO: DSAD1096
APPROVED: J.Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: MAR/19/2003
DRAWN: K.ZHANG
PAGE: 3 OF 4
APB3025EYC

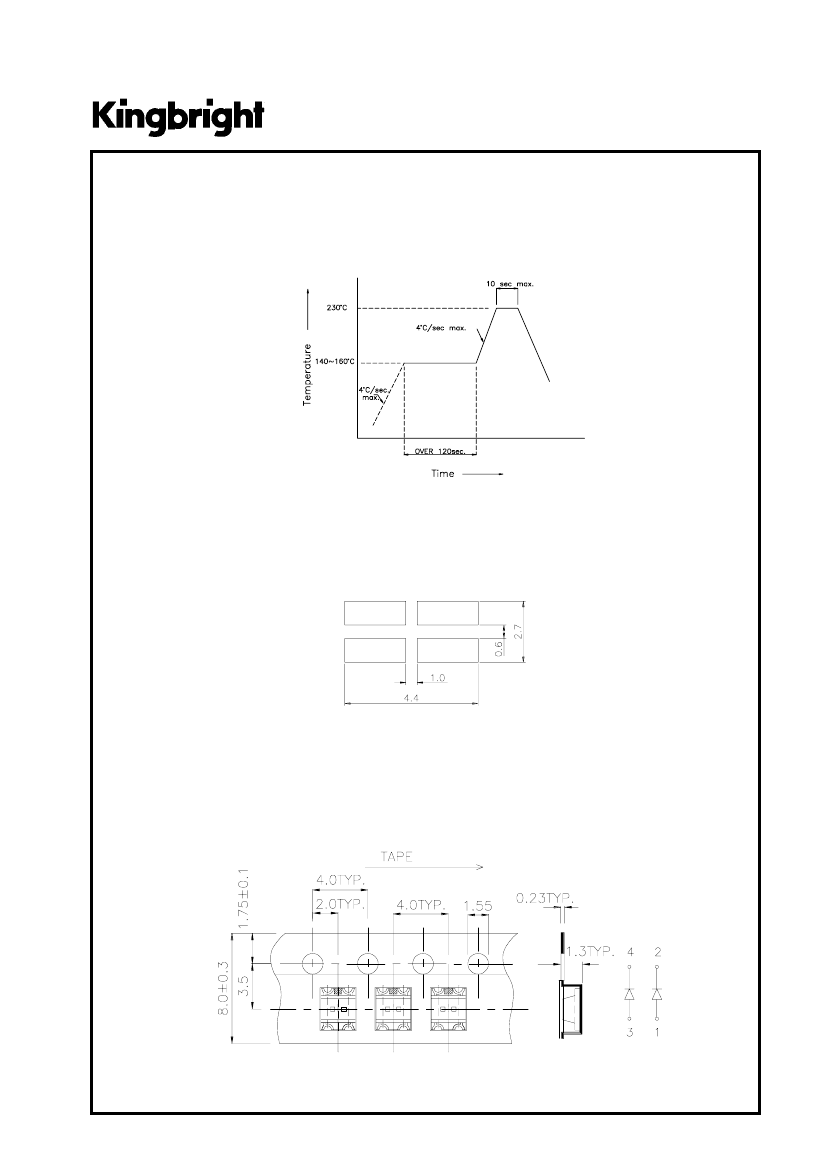

SMT Reflow Soldering Instruction
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process.
Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
SPEC NO: DSAD1096
APPROVED: J.Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: MAR/19/2003
DRAWN: K.ZHANG
PAGE: 4 OF 4
