8822E-040-171 datasheet, PDF - EEWORLD Datasheet

8822E-040-171: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, Latch, Black Insulator, Plug; CategoryThe connector The connector; File Size309KB，2 Pages; ManufacturerKEL Corporation

Download Datasheet Parametric Compare View All

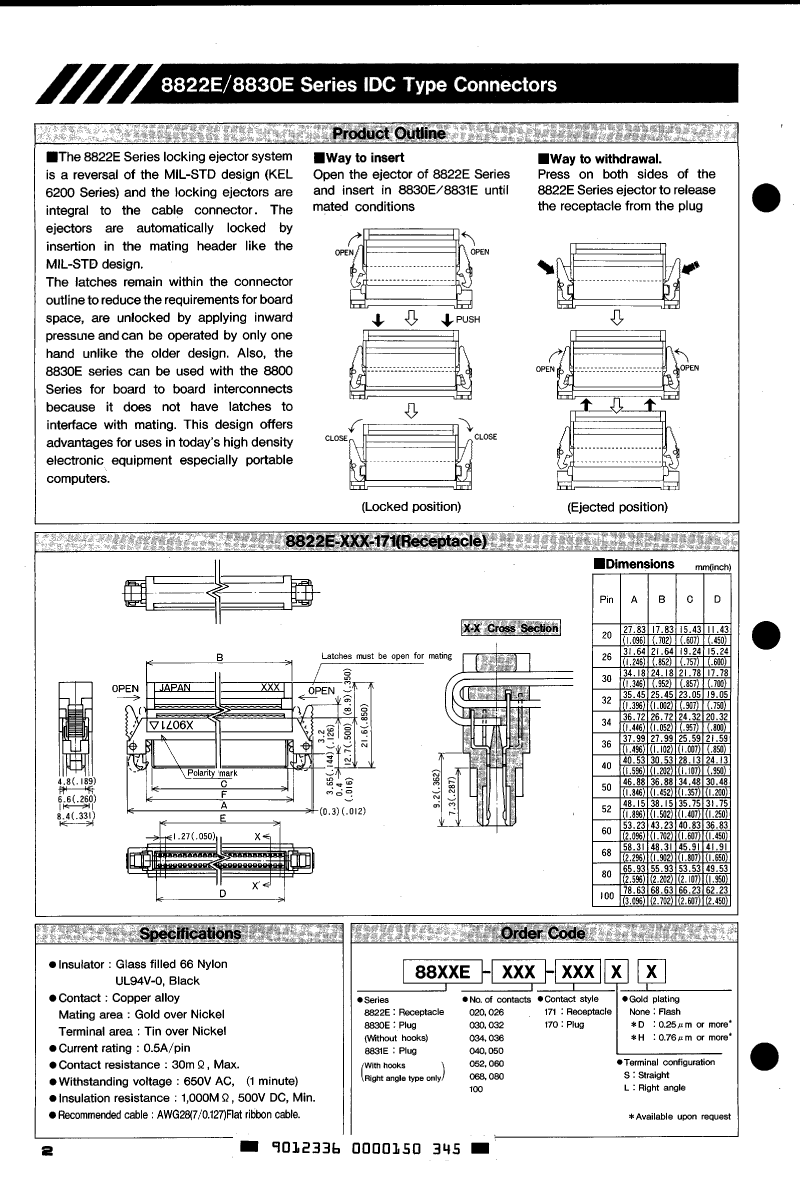

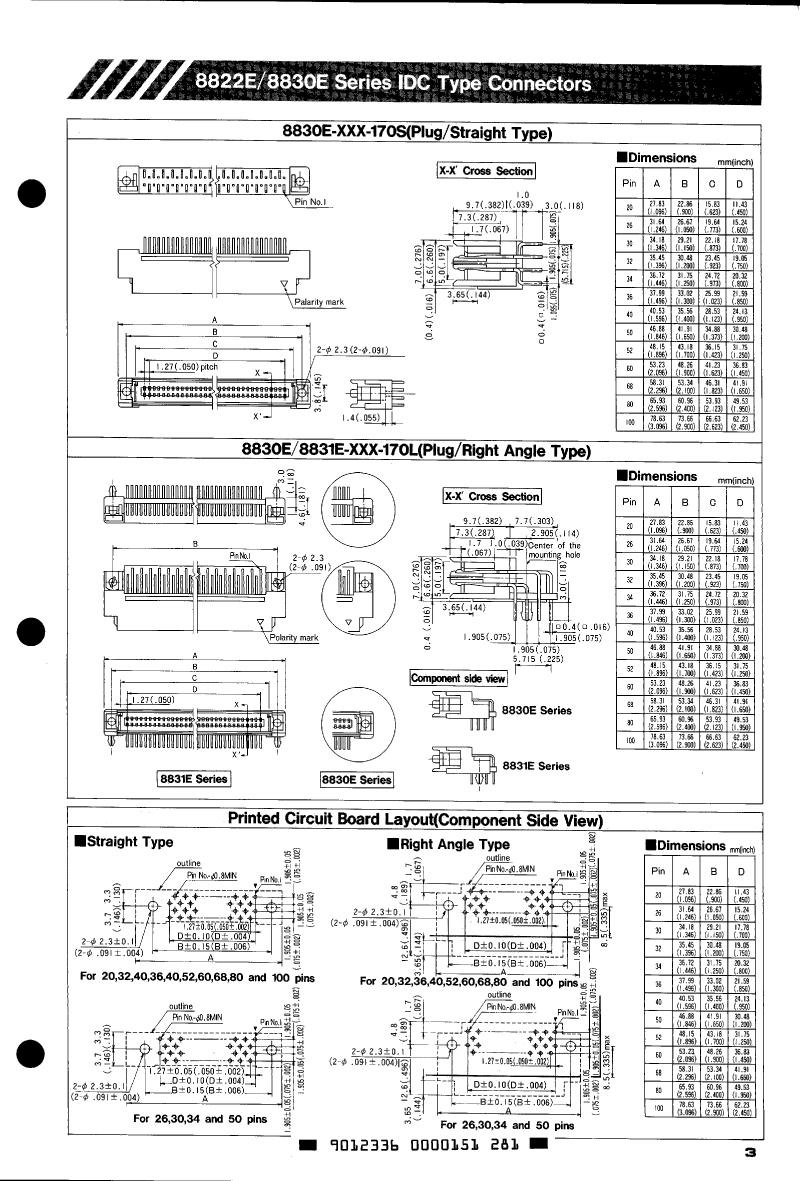

8822E-040-171 Overview

Board Connector, 40 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, Latch, Black Insulator, Plug

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	KEL Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ONE-TOUCH LOCKING EJECTOR SYST
body width	0.331 inch
subject depth	0.85 inch
body length	1.596 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	LEAF
Dielectric withstand voltage	650VAC V
maximum insertion force	LIF N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYCARBONATE
Manufacturer's serial number	8822E
Plug contact pitch	0.05 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Number of rows loaded	2
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	40
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	LIF N
Base Number Matches	1

	8822E-040-171	8822E-032-171
Description	Board Connector, 40 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, Latch, Black Insulator, Plug	Board Connector, 32 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, Latch, Black Insulator, Plug
Is it Rohs certified?	incompatible	incompatible
Maker	KEL Corporation	KEL Corporation
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	ONE-TOUCH LOCKING EJECTOR SYST	ONE-TOUCH LOCKING EJECTOR SYST
body width	0.331 inch	0.331 inch
subject depth	0.85 inch	0.85 inch
body length	1.596 inch	1.396 inch
Body/casing type	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ
Contact style	LEAF	LEAF
Dielectric withstand voltage	650VAC V	650VAC V
maximum insertion force	LIF N	LIF N
Insulation resistance	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK
insulator material	GLASS FILLED POLYCARBONATE	GLASS FILLED POLYCARBONATE
Manufacturer's serial number	8822E	8822E
Plug contact pitch	0.05 inch	0.05 inch
Installation option 1	LATCH	LATCH
Installation option 2	LOCKING	LOCKING
Number of rows loaded	2	2
Plating thickness	FLASH inch	FLASH inch
Rated current (signal)	0.5 A	0.5 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Total number of contacts	40	32
Maximum wire diameter	28 AWG	28 AWG
Minimum wire diameter	28 AWG	28 AWG
Evacuation force-minimum value	LIF N	LIF N
Base Number Matches	1	1
