DTA114GKA: DescriptionDigital Transistors (Built-in Resistor); CategoryDiscrete semiconductor The transistor; File Size44KB，1 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DTA114GKA Overview

Digital Transistors (Built-in Resistor)

DTA114GKA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	compli
ECCN code	EAR99
Other features	DIGITAL, BUILT IN BIAS RESISTOR
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	30
JESD-30 code	R-PDSO-G3
JESD-609 code	e1
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.2 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
transistor applications	SWITCHING
Transistor component materials	SILICON

Preview

Download Datasheet

View All

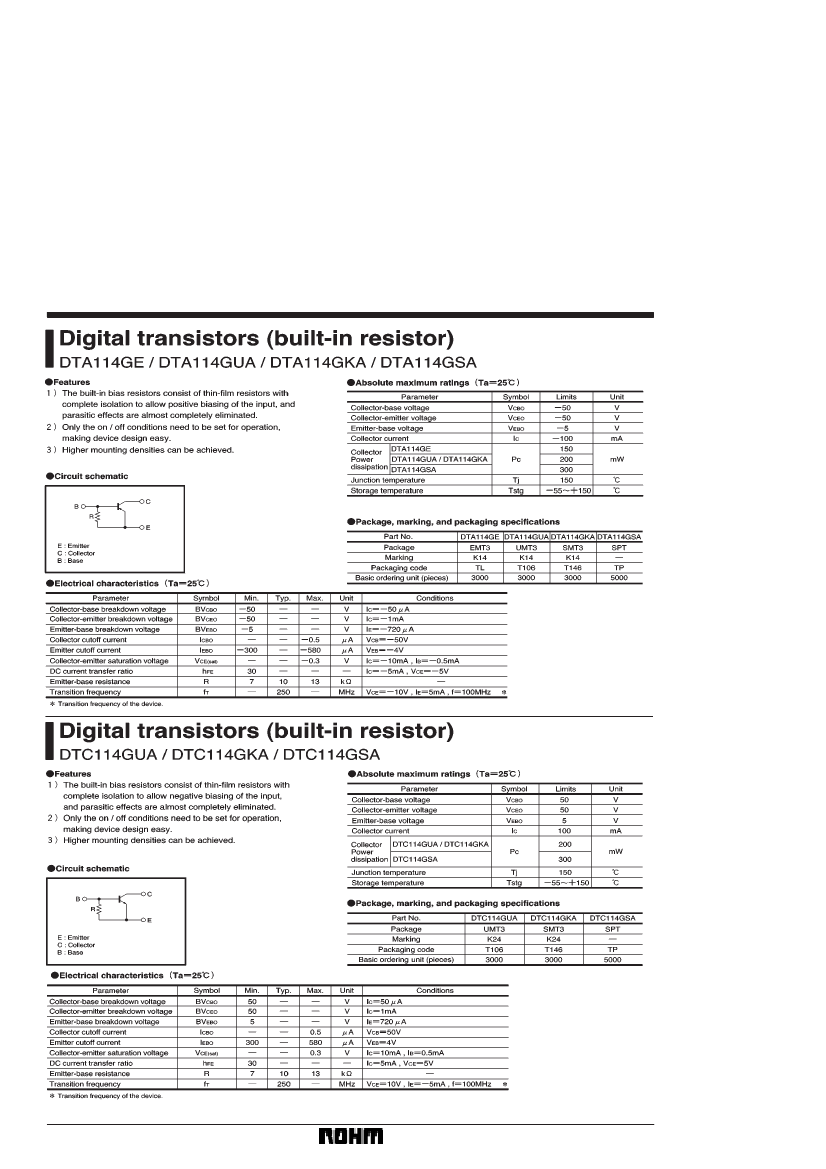

Transistors

DTA114GE / DTA114GUA / DTA114GKA / DTA114GSA

DTC114GUA / DTC114GKA / DTC114GSA

(94S-510-A114G)

(94S-629-C114G)

468

DTA114GKA Related Products

	DTA114GKA	DTA114GE	DTA114GSA	DTA114GUA	DTC114GSA
Description	Digital Transistors (Built-in Resistor)	Digital Transistors (Built-in Resistor)	Digital Transistors (Built-in Resistor)	Digital Transistors (Built-in Resistor)	Digital Transistors (Built-in Resistor)
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	IN-LINE, R-PSIP-T3	SMALL OUTLINE, R-PDSO-G3	IN-LINE, R-PSIP-T3
Reach Compliance Code	compli	compli	compli	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	DIGITAL, BUILT IN BIAS RESISTOR	DIGITAL, BUILT IN BIAS RESISTOR	DIGITAL	DIGITAL, BUILT IN BIAS RESISTOR	DIGITAL
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Collector-emitter maximum voltage	50 V	50 V	50 V	50 V	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	30	30	30	30	30
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PSIP-T3	R-PDSO-G3	R-PSIP-T3
JESD-609 code	e1	e1	e1	e1	e1
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260
Polarity/channel type	PNP	PNP	PNP	PNP	NPN
Maximum power dissipation(Abs)	0.2 W	0.15 W	0.3 W	0.2 W	0.3 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	NO	YES	NO
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)	TIN SILVER COPPER	TIN SILVER COPPER	Tin/Silver/Copper (Sn/Ag/Cu)	TIN SILVER COPPER
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	SINGLE	DUAL	SINGLE
Maximum time at peak reflow temperature	10	10	10	10	10
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	-
