4
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
-
ALL RIGHTS RESERVED.
2011
3
2
LOC
DIST
1
C
COPYRIGHT
2011
FT
0
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
A2
REVISED PER ECO-14-012607
28AUG2014
NK
MM
D
10.2
[ 0.40 ]
L=D+5.08
[D+.20]
5.16
[ 0.203 ]
LEVER
CONTACT SPRING
HOUSING
12.5
[ 0.49 ]
D
9.5
[ 0.37 ]
7.2
[ 0.28 ]
C
C
1.5
[ 0.06 ]
3.58
[ 0.141 ]
12.45
[ 0.490 ]
D=3.5x(POS-1)
[.14x(POS-1)]
NOTE
MATERIALS:
HOUSING-POLYAMIDE, COLOR-GREEN
COVER-POLYAMIDE, COLOR-GREEN
LEVER-POLYAMIDE, COLOR-ORANGE
SPRING-STAINLESS STEEL-TIN PLATED
MECHANICAL
INSERTION FORCE-2.5 N/POLE
WITHDRAW FORCE-4.5 N/POLE
STRIP LENGTH-8.5 - 10 MM
OPERATING TEMPERATURE--40°C TO +110°C
ELECTRICAL
WIRE RANGE- 20 TO 16 AWG, SOLID OR STRANDED
VOLTAGE RATING- 150 VOLTS
CURRENT RATING-2 AMP
CONTACT RESISTANCE-15 MILLOHM MAX
9
INSULATION RESISTANCE-10
OHMS MIN (500V DC)
1.4
[ 0.06 ]
B
3.5
[ 0.14 ]
2.18
[ 0.086 ]
B
17.0
[ 0.67 ]
1.6
[ 0.06 ]
-6 AS SHOWN
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
DIMENSIONS:
A
COVER
MM [INCH]
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.20[.008]
0.20[.008]
-
-
1 $
09NOV2011
SARVER MICHAEL
APVD
09NOV2011
SARVER MICHAEL
PRODUCT SPEC
APPLICATION SPEC
YASHKUMAR
09NOV2011
NAME
DIM D
24.50
21.00
17.50
14.00
10.50
7.00
3.50
DIM L
29.58
26.08
22.58
19.08
15.58
12.08
8.58
POS
8
7
6
5
4
3
2
1986716-8
1986716-7
1986716-6
1986716-5
1986716-4
1986716-3
1986716-2
PART NO
TE Connectivity
A
-

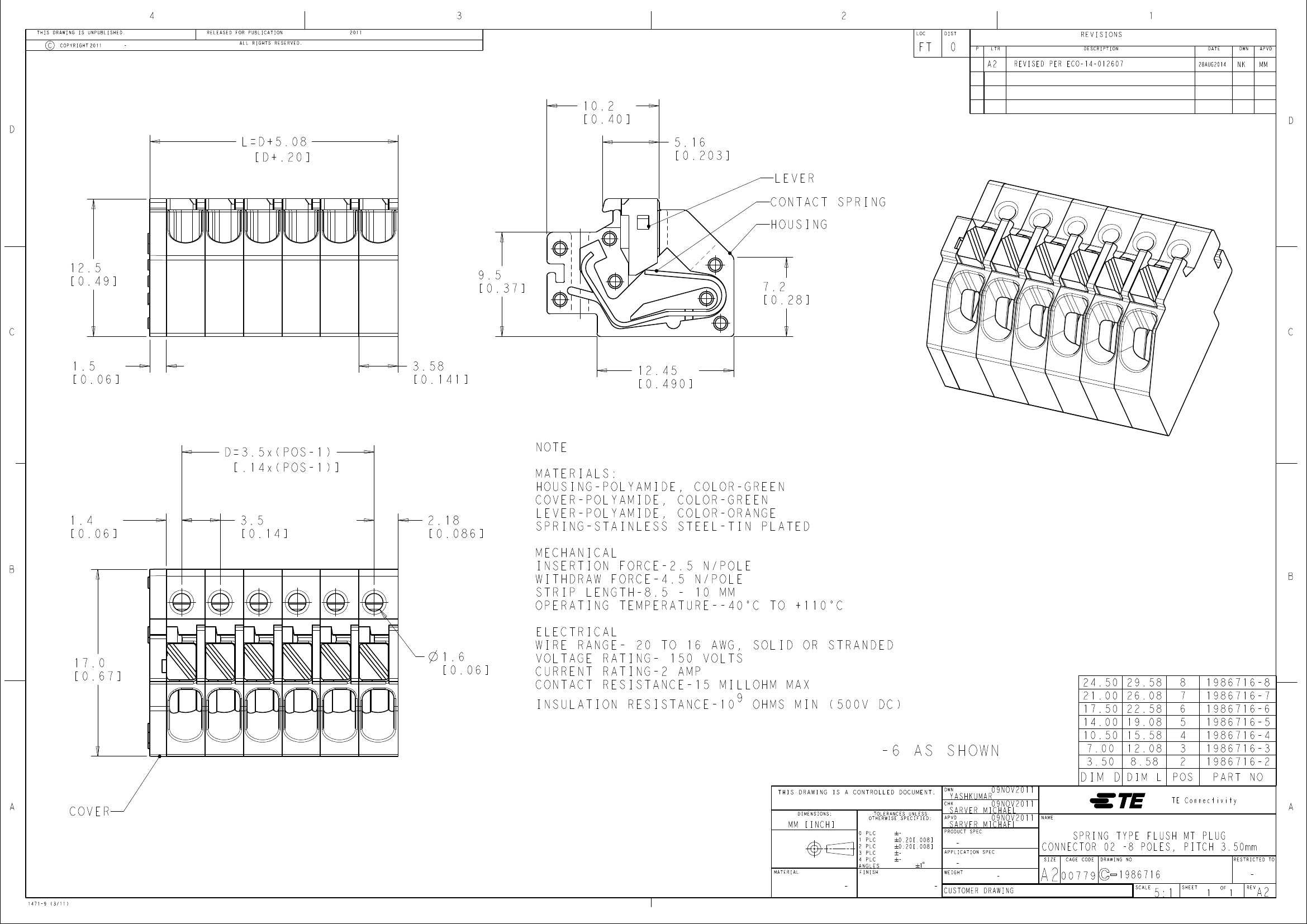

SPRING TYPE FLUSH MT PLUG
CONNECTOR 02 -8 POLES, PITCH 3.50mm
WEIGHT
-
-
1471-9 (3/11)
-
CUSTOMER DRAWING
-
A2
00779
SIZE
CAGE CODE
DRAWING NO
RESTRICTED TO
1986716
SCALE
5:1
SHEET
1
OF
1
REV
-
A2
