5-1971800-1: DescriptionPCB Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Natural Insulator; CategoryThe connector The connector; File Size326KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-1971800-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1971800-1	-	-	View	Buy Now

5-1971800-1 Overview

PCB Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Natural Insulator

5-1971800-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8003322186
Reach Compliance Code	compliant
Factory Lead Time	15 weeks 6 days
Samacsys Description	Body Features: Primary Product Color Natural \| Connector & Keying Code A \| Configuration Features: PCB Mount Orientation Vertical \| Number of Rows 1 \| Number of Positions 5 \| Contact Features: Contact Underplating Material Thickness 50 MICIN \| PCB Contact Termination Area Plating Material Thickness 39.37 MICIN \| Contact Mating Area Plating Material Thickness 39.37 MICIN \| Mating Square Post Dimension .5 MM \| Mating Tab Width .5 MM \| Contact Underplating Material Nickel \| Mating Tab Width .02 INCH \| Contact
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2024-04-04 10:57:02
Board mount options	LOCATING POST
body width	0.29 inch
subject depth	0.34 inch
body length	0.59 inch
Connector type	PCB CONNECTOR
Contact to complete cooperation	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT APPLICABLE
contact mode	RECTANGULAR
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulator color	NATURAL
insulator material	POLYAMIDE
MIL compliance	NO
Power Connector Ratings	3A
Mixed contacts	NO
Installation option 2	LATCHING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Plating thickness	39.37u inch
polarization key	POLARIZED
Rated current (signal)	3 A
Rated voltage	50 V
Guideline	UL
Terminal length	0.118 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

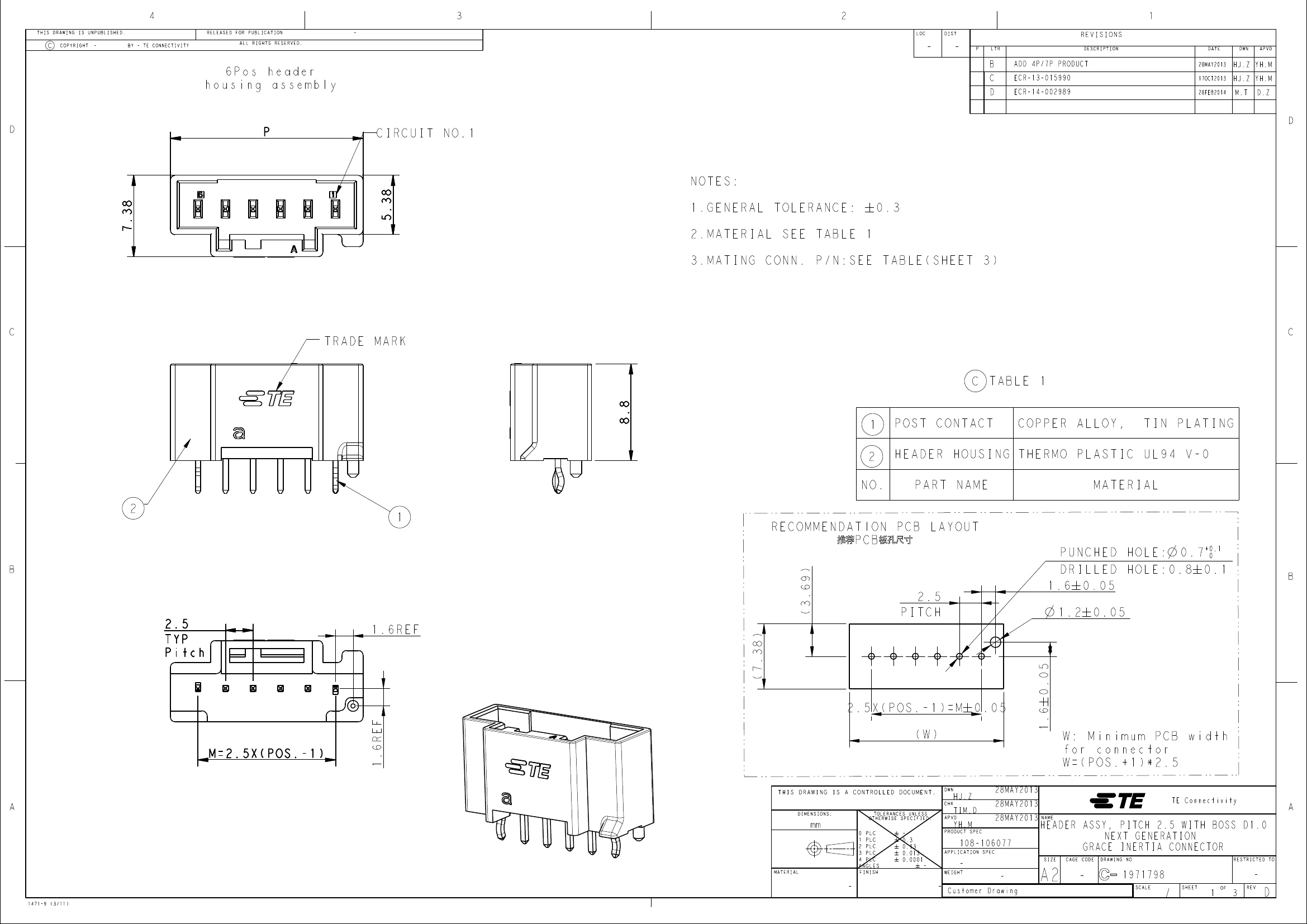

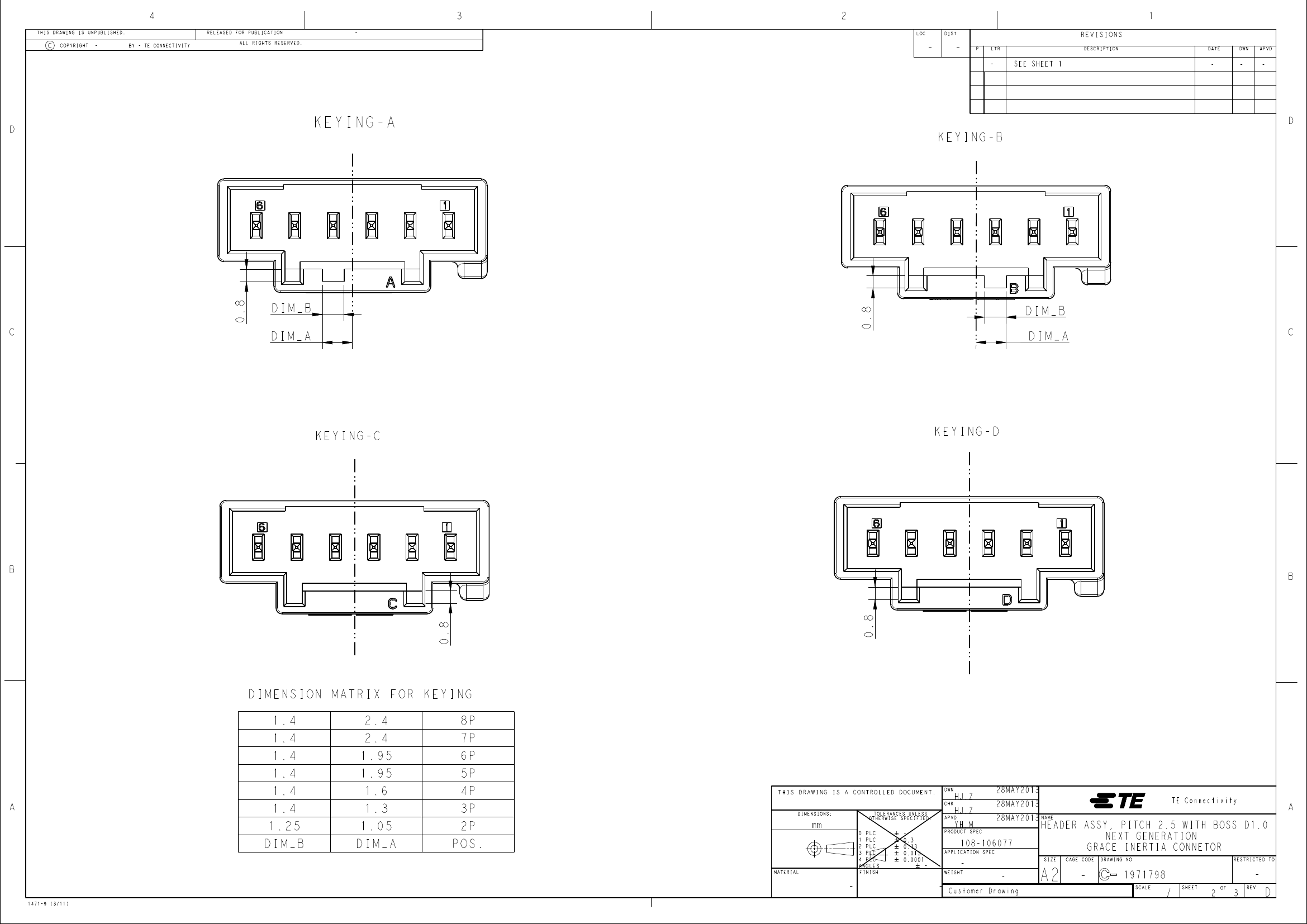

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY - TE CONNECTIVITY

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

6Pos header

housing assembly

ADD 4P/7P PRODUCT

ECR-13-015990

ECR-14-002989

28MAY2013

17OCT2013

28FEB2014

HJ.Z

M.T

YH.M

D.Z

CIRCUIT NO.1

NOTES:

5.38

7.38

1.GENERAL TOLERANCE:

2.MATERIAL SEE TABLE 1

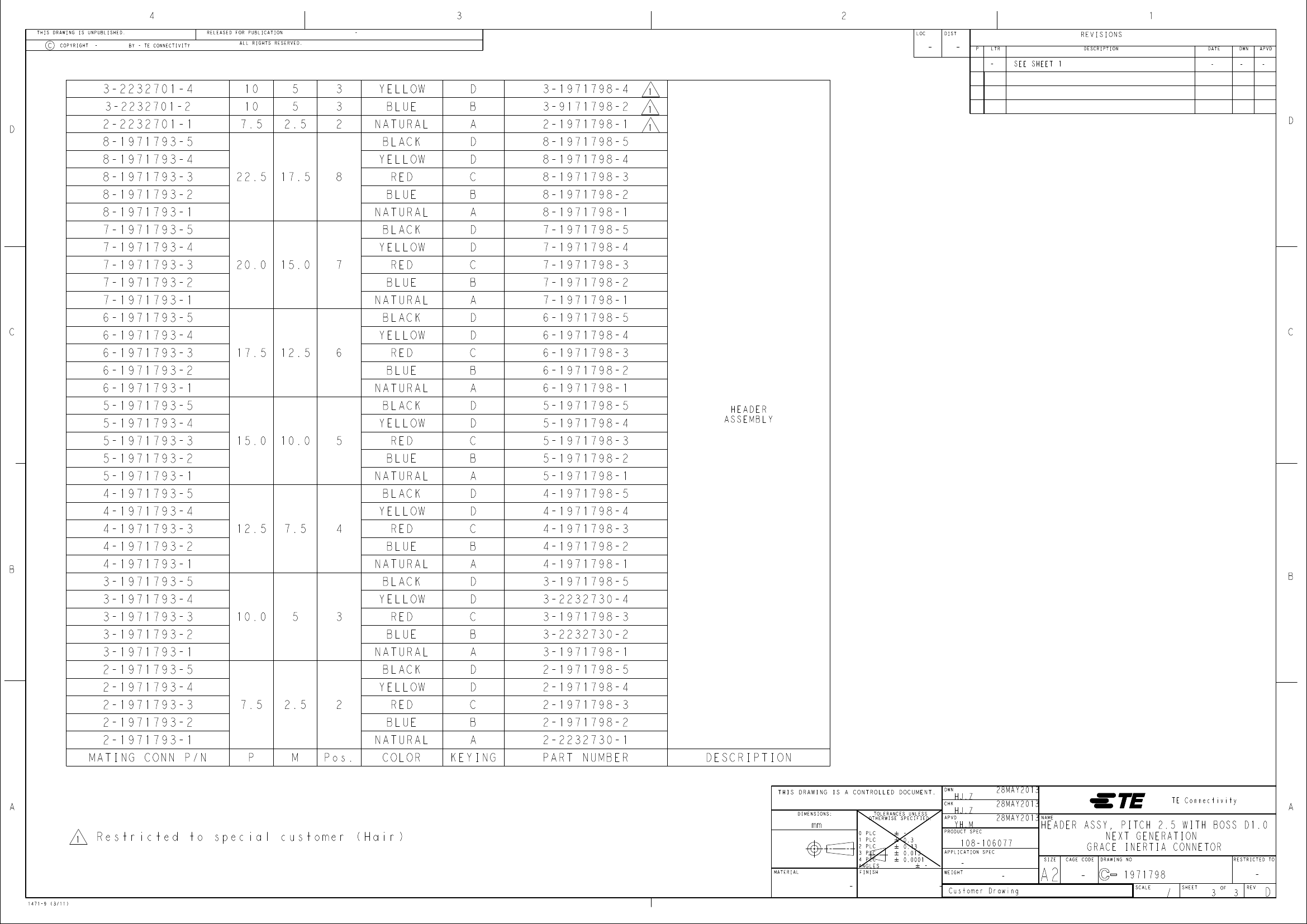

3.MATING CONN. P/N:SEE TABLE(SHEET 3)

# 0.3

TRADE MARK

C TABLE 1

8.8

NO.

POST CONTACT

HEADER HOUSING

PART NAME

COPPER ALLOY,

TIN PLATING

THERMO PLASTIC UL94 V-0

MATERIAL

RECOMMENDATION PCB LAYOUT

PCB

( 3.69 )

( 7.38 )

2.5

TYP

Pitch

1.6 REF

2.5

PITCH

PUNCHED HOLE:

0.7

+0.1

DRILLED HOLE:0.8 # 0.1

1.6 0.05

1.2

0.05

1.6 REF

M=2.5X(POS.-1)

(W)

1.6

28MAY2013

NAME

2.5X(POS.-1)=M # 0.05

0.05

W: Minimum PCB width

for connector

W=(POS.+1)*2.5

TE Connectivity

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

HJ.Z

TIM.D

YH.M

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.3

0.13

0.013

0.0001

PRODUCT SPEC

APPLICATION SPEC

108-106077

HEADER ASSY, PITCH 2.5 WITH BOSS D1.0

NEXT GENERATION

GRACE INERTIA CONNECTOR

WEIGHT

1471-9 (3/11)

Customer Drawing

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

1971798

SCALE

SHEET

REV
