Part Number

Search

3-338168-2

Description
9POL HDP20 PLUGASSY
CategoryThe connector    The connector
File Size122KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

3-338168-2 Online Shopping

Suppliers Part Number Price MOQ In stock
3-338168-2 - - View Buy Now

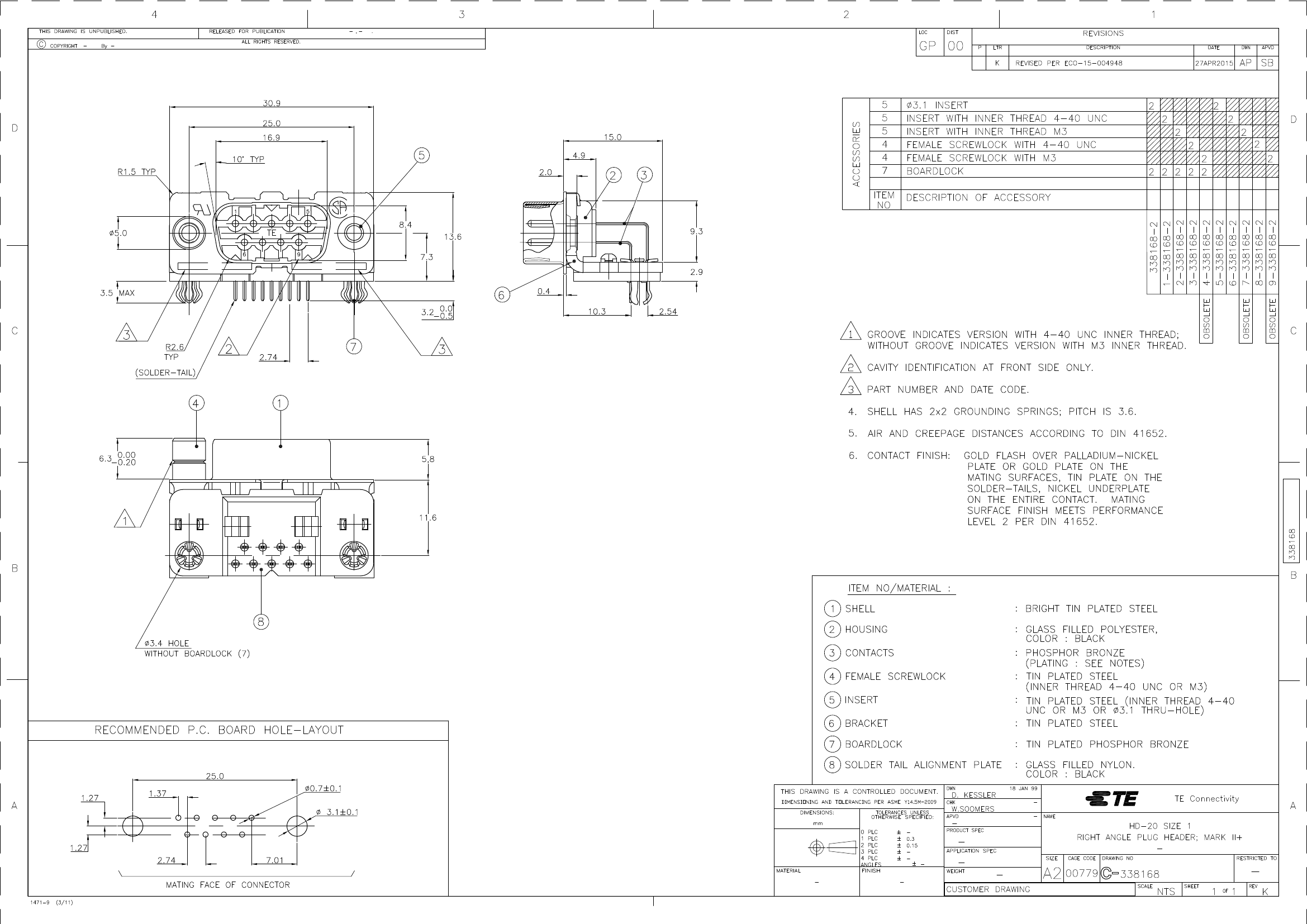

3-338168-2 Overview

9POL HDP20 PLUGASSY

3-338168-2 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codenot_compliant
ECCN codeEAR99
Factory Lead Time13 weeks
Other featuresAMPLIMITE
body width0.535 inch
subject depth0.591 inch
body length1.217 inch
Body/casing typePLUG
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeSTAGGERED
Contact resistance30 mΩ
Contact styleRND PIN-SKT
DIN complianceYES
Dielectric withstand voltage1000VAC V
empty shellNO
Filter functionNO
IEC complianceNO
maximum insertion force2.224 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
MIL complianceNO
Mixed contactsNO
Installation option 1#4-40
Installation option 2BOARDLOCK
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing2.54 mm
Plating thickness30u inch
Rated current (signal)6 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Housing size1/E
Terminal length0.126 inch
Terminal pitch2.7432 mm
Termination typeSOLDER
Total number of contacts9
UL Flammability Code94V-0
Evacuation force-minimum value.2085 N
Base Number Matches1
