T4171110405-001 datasheet, PDF

Datasheet> All Categories > The connector> T4171110405-001

T4171110405-001: DescriptionM12,REAR MOUNTING,FEMALE,B,5P,0.2M WIRE; CategoryThe connector; File Size283KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

T4171110405-001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T4171110405-001	-	-	View	Buy Now

T4171110405-001 Overview

M12,REAR MOUNTING,FEMALE,B,5P,0.2M WIRE

T4171110405-001 Parametric

Parameter Name	Attribute value
Component type	electrical connector
Connector System	line to panel, line to panel
Sealable	yes
Connectors and terminals terminate to	A printed circuit board
Housing size	18
shield	no
Connector type	female end, female end
Housing type	Metal
pre-wired	yes
Attachment color	black
Number of Positions	5
Number of power supply locations	0
Number of signal positions	5
Pre-installed	yes
position keying	B
keying	B
Factory installed rear case	no
Operating voltage (VAC)	60
Shell plating material	nickel
Shell material	copper alloy
Insulation Materials	Polyamide
O-ring material	Silica gel
Perimeter sealing material	Silica gel
Environmental protection type	seal
Contact Current Rating (Max) (A)	4
reverse polarity	reverse
Terminal type	Female terminal
polar code	B
Joint alignment type	keying
flange	Without
Cable size	.34 – .5 mm² [ 22 – 20 AWG ]
Working group temperature range	-40 – 85 °C [ -40 – 185 °F ]
IP waterproof sealing rating	IP67
Circuit Application	Signal
Package quantity	1
On-site repair	no

Preview

Download Datasheet

View All

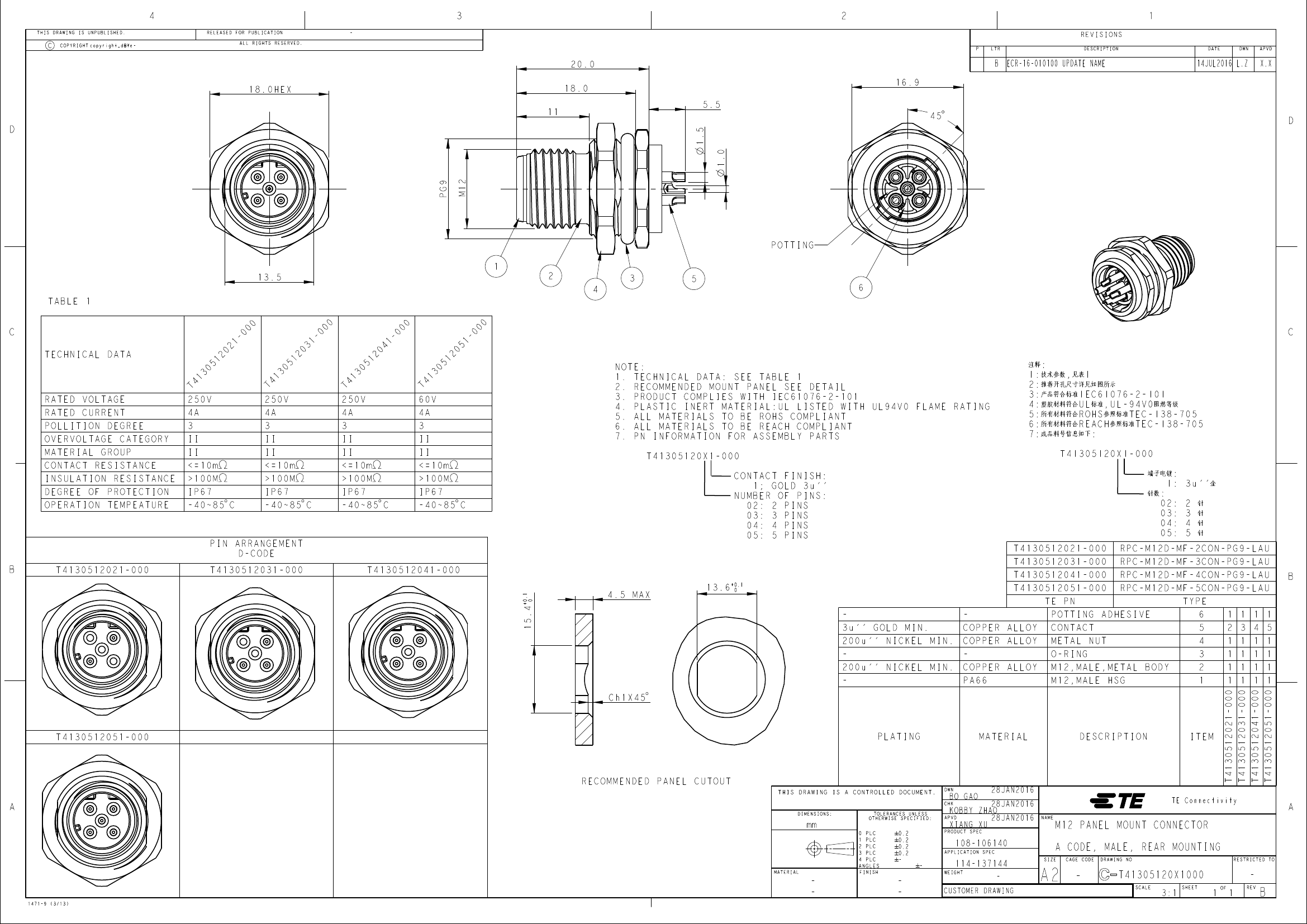

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

copyright_date -

20.0

18.0 HEX

18.0

5.5

1.5

16.9

45 $

B ECR-16-010100 UPDATE NAME

14JUL2016 L.Z

X.X

PG9

M 12

1.0

POTTING

13.5

TABLE 1

TECHNICAL DATA

NOTE:

1. TECHNICAL DATA: SEE TABLE 1

2. RECOMMENDED MOUNT PANEL SEE DETAIL

3. PRODUCT COMPLIES WITH IEC61076-2-101

4. PLASTIC INERT MATERIAL:UL LISTED WITH UL94V0 FLAME RATING

5. ALL MATERIALS TO BE ROHS COMPLIANT

6. ALL MATERIALS TO BE REACH COMPLIANT

7. PN INFORMATION FOR ASSEMBLY PARTS

T41305120X1-000

CONTACT FINISH:

1; GOLD 3u''

NUMBER OF PINS:

02: 2 PINS

03: 3 PINS

04: 4 PINS

05: 5 PINS

RATED VOLTAGE

RATED CURRENT

POLLITION DEGREE

MATERIAL GROUP

250V

<=10m ^

>100M ^

IP67

-40~85 $ C

250V

<=10m ^

>100M ^

IP67

-40~85 $ C

250V

<=10m ^

>100M ^

IP67

-40~85 $ C

60V

<=10m ^

>100M ^

IP67

-40~85 $ C

OVERVOLTAGE CATEGORY

CONTACT RESISTANCE

IEC61076-2-101

UL ,UL-94V0

ROHS

TEC-138-705

REACH

TEC-138-705

T41305120X1-000

1: 3u''

INSULATION RESISTANCE

DEGREE OF PROTECTION

OPERATION TEMPEATURE

PIN ARRANGEMENT

D-CODE

02:

03:

04:

05:

T4130512021-000

T4130512031-000

T4130512041-000

T4130512051-000

TE PN

POTTING ADHESIVE

RPC-M12D-MF-2CON-PG9-LAU

RPC-M12D-MF-3CON-PG9-LAU

RPC-M12D-MF-4CON-PG9-LAU

RPC-M12D-MF-5CON-PG9-LAU

TYPE

1 1 1 1

T4130512021-000

T4130512031-000

T4130512041-000

+0.1

4.5 MAX

13.6

+0.1

15.4

Ch1X45 $

200u'' NICKEL MIN.

3u'' GOLD MIN.

PA66

COPPER ALLOY

M12,MALE HSG

M12,MALE,METAL BODY

O-RING

METAL NUT

CONTACT

1 1 1 1

T4130512021-000

T4130512031-000

T4130512041-000

1 1 1 1

2 3 4 5

T4130512051-000

PLATING

MATERIAL

DESCRIPTION

ITEM

RECOMMENDED PANEL CUTOUT

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

BO GAO

KOBBY ZHAO

28JAN2016

NAME

TE Connectivity

T4130512051-000

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.2

PRODUCT SPEC

XIANG XU

M12 PANEL MOUNT CONNECTOR

A CODE, MALE, REAR MOUNTING

CAGE CODE

DRAWING NO

RESTRICTED TO

APPLICATION SPEC

108-106140

SIZE

1471-9 (3/13)

114-137144

WEIGHT

CUSTOMER DRAWING

T41305120X1000

SCALE

3:1

SHEET

REV
