32H6810B-CGT datasheet, PDF - EEWORLD Datasheet

32H6810B-CGT: DescriptionDisk Drive Motor Controller, 1A, CMOS, PQFP48; CategoryOther integrated circuit (IC) The signal circuit; File Size458KB，12 Pages; ManufacturerSilicon Systems Inc.

Download Datasheet Parametric Compare View All

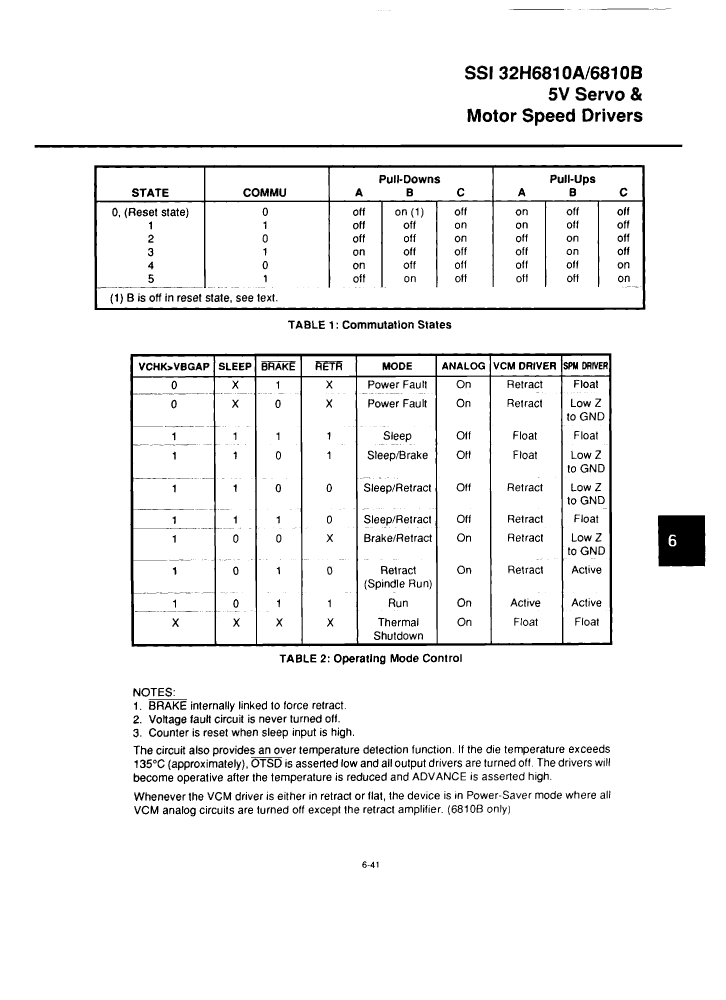

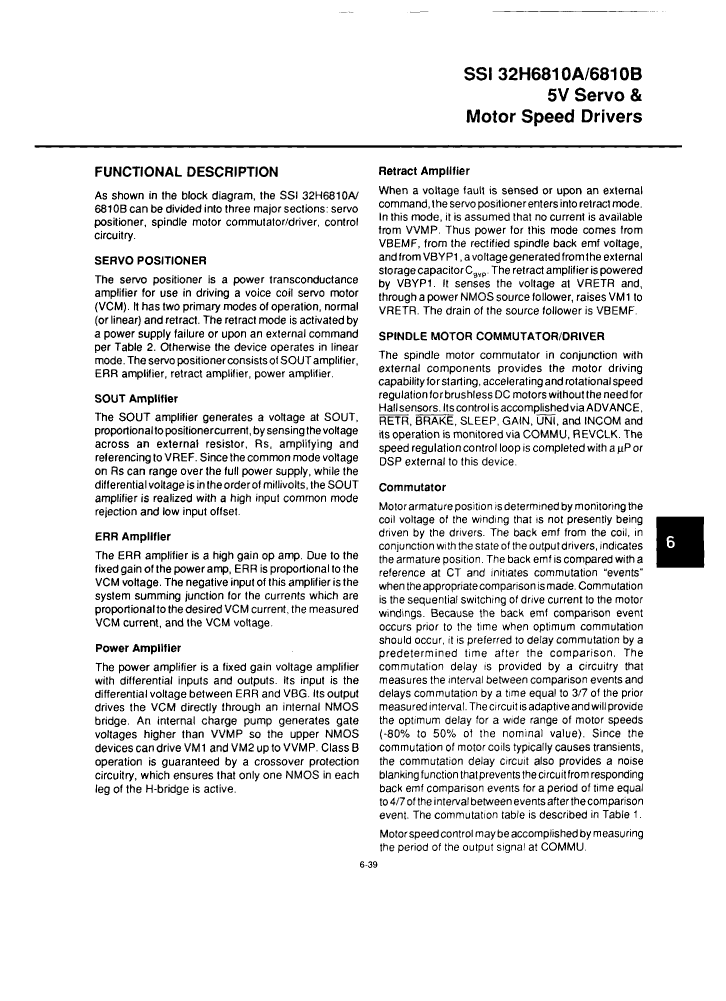

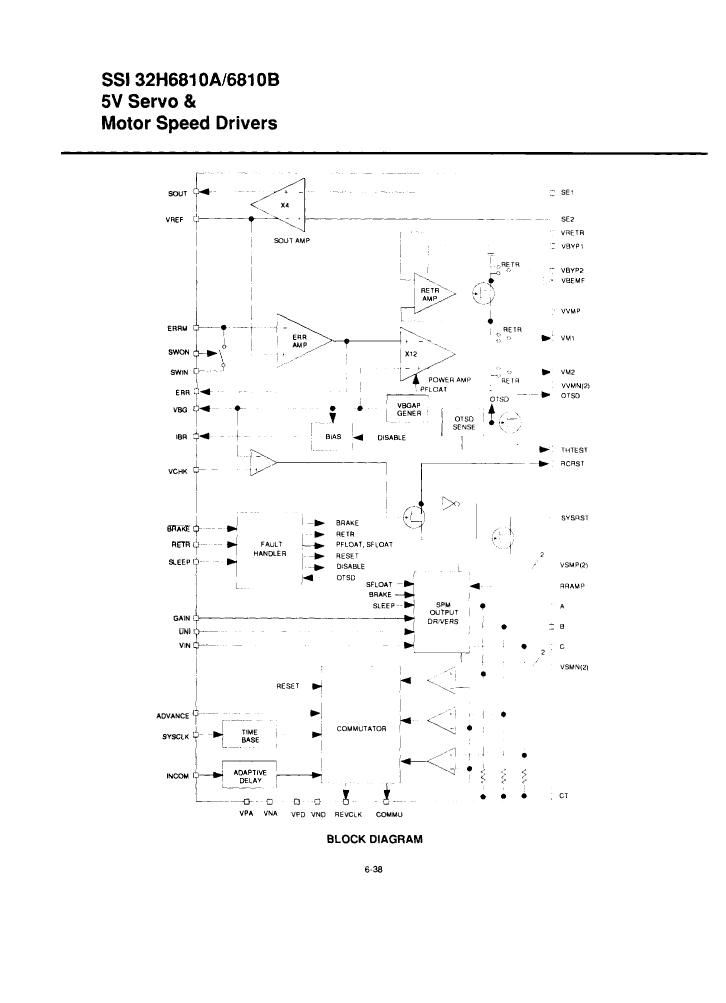

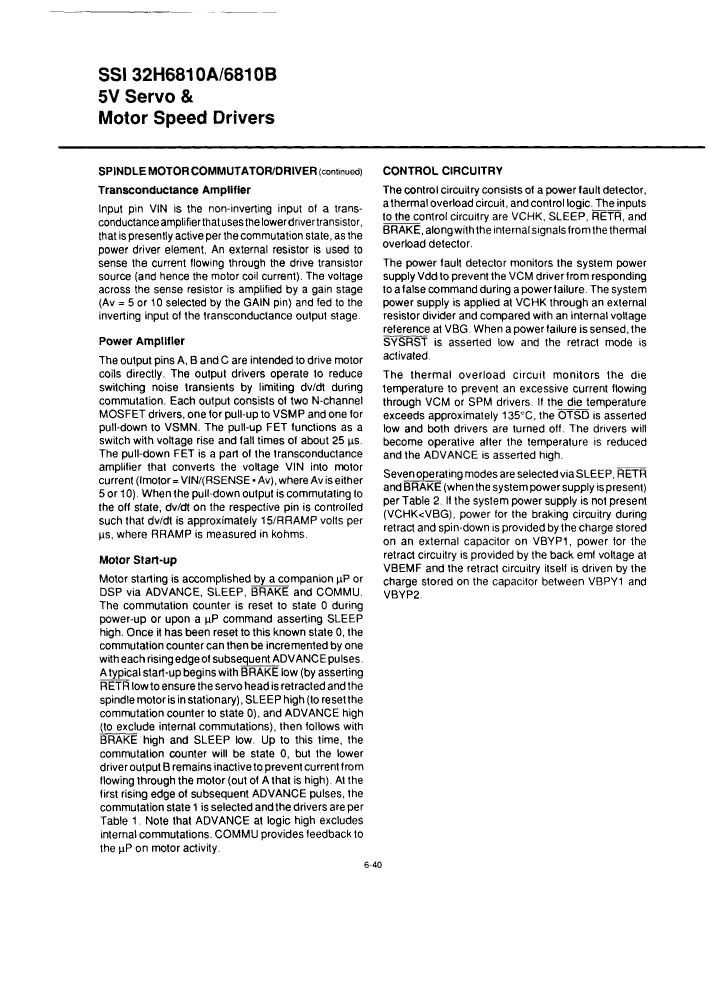

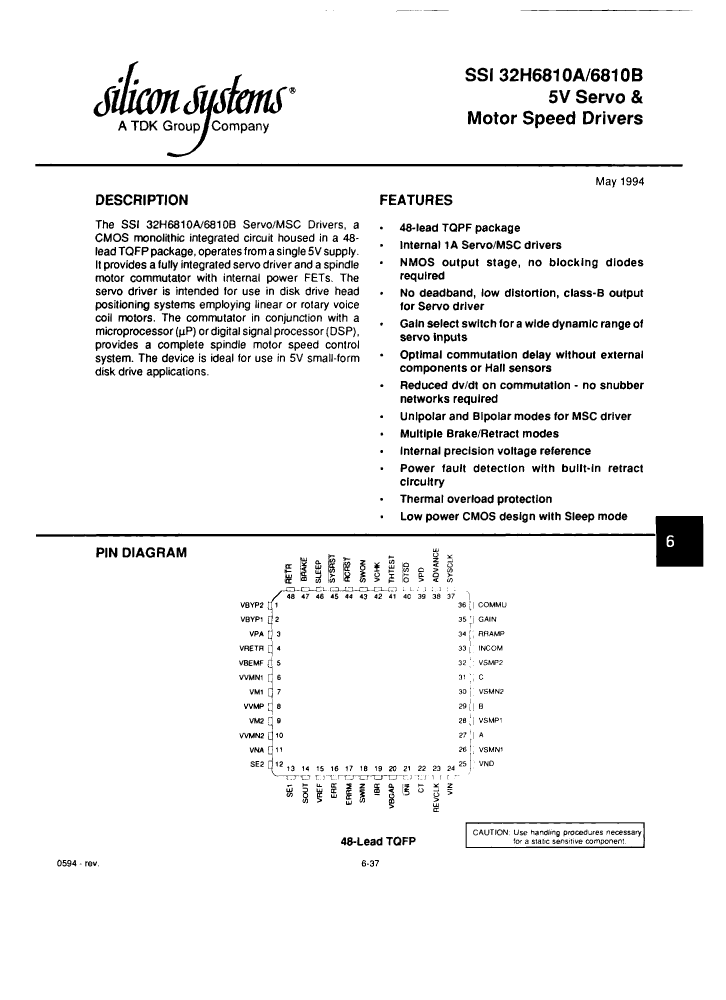

32H6810B-CGT Overview

Disk Drive Motor Controller, 1A, CMOS, PQFP48

Parameter Name	Attribute value
Maker	Silicon Systems Inc.
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DISK DRIVE MOTOR CONTROLLER
JESD-30 code	S-PQFP-G48
Number of functions	1
Number of terminals	48
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Maximum supply current (Isup)	20 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	QUAD
Base Number Matches	1

	32H6810B-CGT	32H6810A-CGT
Description	Disk Drive Motor Controller, 1A, CMOS, PQFP48	Disk Drive Motor Controller, 1A, CMOS, PQFP48
Maker	Silicon Systems Inc.	Silicon Systems Inc.
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	DISK DRIVE MOTOR CONTROLLER	DISK DRIVE MOTOR CONTROLLER
JESD-30 code	S-PQFP-G48	S-PQFP-G48
Number of functions	1	1
Number of terminals	48	48
Maximum operating temperature	70 °C	70 °C
Maximum output current	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	20 mA	20 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal location	QUAD	QUAD
Base Number Matches	1	1
