Corcom
EMI/RFI Filter Product Overview
TE Connectivity offers over 300 solutions for EMI/RFI problems associated with
susceptibility, as well as compliance with international emissions standards. Corcom filters
are available in a wide range of single and 3-phase designs as well as IEC inlet and power
entry modules which can combine several functions to reduce cost, space and labor.
Solutions are also available for DC applications and applications requiring extremely high
performance with feedthrough filters and capacitors for a wide range of applications.
TE Connectivity

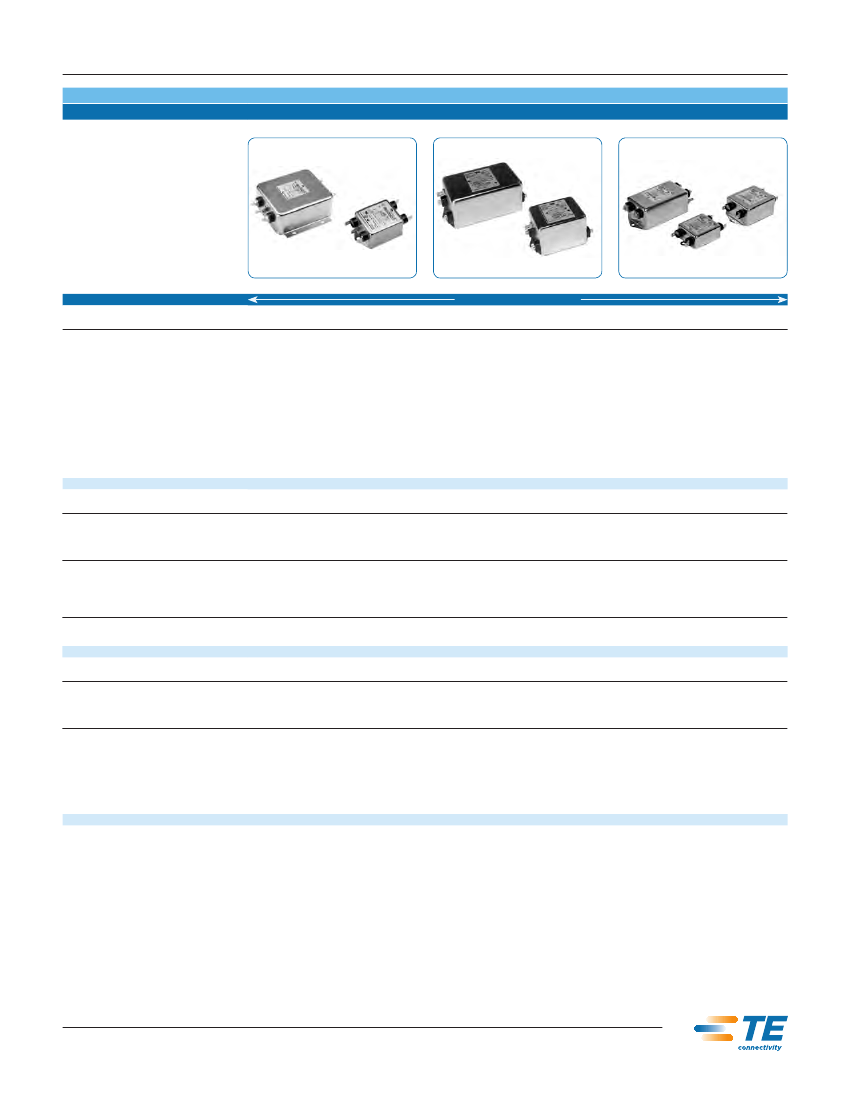

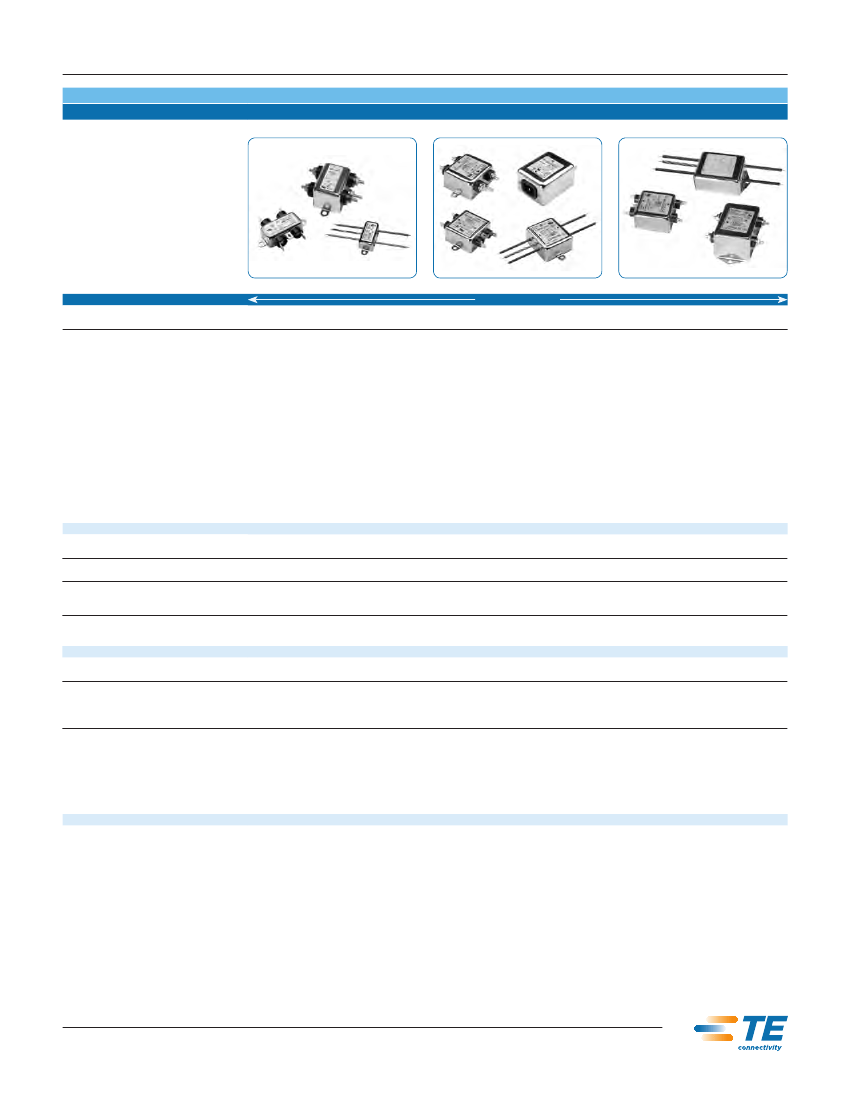

FILTER TYPE
SERIES
Corcom Filter Products
POWER LINE FILTERS
B Series
K Series
DK Series
PERFORMANCE
Approvals
Features
UL / CSA / VDE
General purpose RFI Filters for high
impedance load / low current
General Purpose
UL / CSA / VDE
General purpose RFI power line
filters for high impedance loads
UL / CSA / VDE
Enhanced differential mode
performance K Series RFI line filters
•
General purpose
•
Wide variety of termination options
•
Meets low leakage current
requirements of VDE portable
equipment and non-patient medical
equipment
•
Well suited to applications
where pulsed, continuous and/
or intermittent RFI interference is
present
leakage current requirements for
VDE portable equipment and non-
patient care medical equipment
(choke)
•
Higher performance line to line
attenuation than the K Series
•
E version meets the very low
•
EK models meet the very low
leakage current requirements for
VDE portable equipment and non-
patient care medical equipment
performance with more
cost-effective design
•
V version features same high
•
Available with ground line inductor
ELECTRICAL PARAMETERS
Max. voltage
Current Ratings
Leakage current each Line to Ground
@ 120VAC 60Hz / 250VAC 50Hz
Electrical Setup
250 VAC
1, 2, 3, 5, 10, 20 or 30A
VB Models: .4 mA / .7 mA
EB Models: .21 mA / .36 mA
Single stage
250 VAC
1, 2, 3, 5, 10, 20, 30, 40 or 60A
VK Models: .5 mA / 1.0 mA
EK Models: .21 mA / .36 mA
Single stage
250 VAC
1, 3, 6, 10 or 20A
VDK Models: .4 mA / .7 mA
EDK Models: .22 mA / .38 mA
Dual stage
MECHANICAL PARAMETERS
Mounting features
Termination inputs
Screw mounting
.25 [6.3] spade terminals,
8-32 terminal bolt & nut or
wire leads
.25 [6.3] spade terminals,
8-32 terminal bolt & nut or
wire leads
Screw mounting (flange or panel)
.25 [6.3] spade terminals,
8-32 terminal bolt & nut,
wire leads or IEC 60320-1 C14 or C20
.25 [6.3] spade terminals,
8-32 terminal bolt & nut or
wire leads
Screw mounting
.25 [6.3] spade terminals,
8-32 terminal bolt & nut or
wire leads
.25 [6.3] spade terminals,
8-32 terminal bolt & nut or
wire leads
Termination outputs
TYPICAL APPLICATIONS
Wide band RFI suppression
for applications requiring low
attenuation including:
Universal filter for applications
requiring mid-range attenuation
including:
Universal filter for applications
requiring improved attenuation
including:
•
HVAC
•
TV / Audio / Video
•
Computing & accessories
•
Home appliances
•
Medical equipment
•
Battery charging systems
•
Exercise equipment
•
TV / Audio / Video
•
Computing & accessories
•
Home appliances
•
Medical equipment
•
Gaming machines
•
Exercise equipment
•
Test measurement equipment
•
TV / Audio / Video
•
Computing & accessories
•
Home appliances
•
Medical equipment
•
Gaming machines
•
Exercise equipment
corcom.com
TE Connectivity

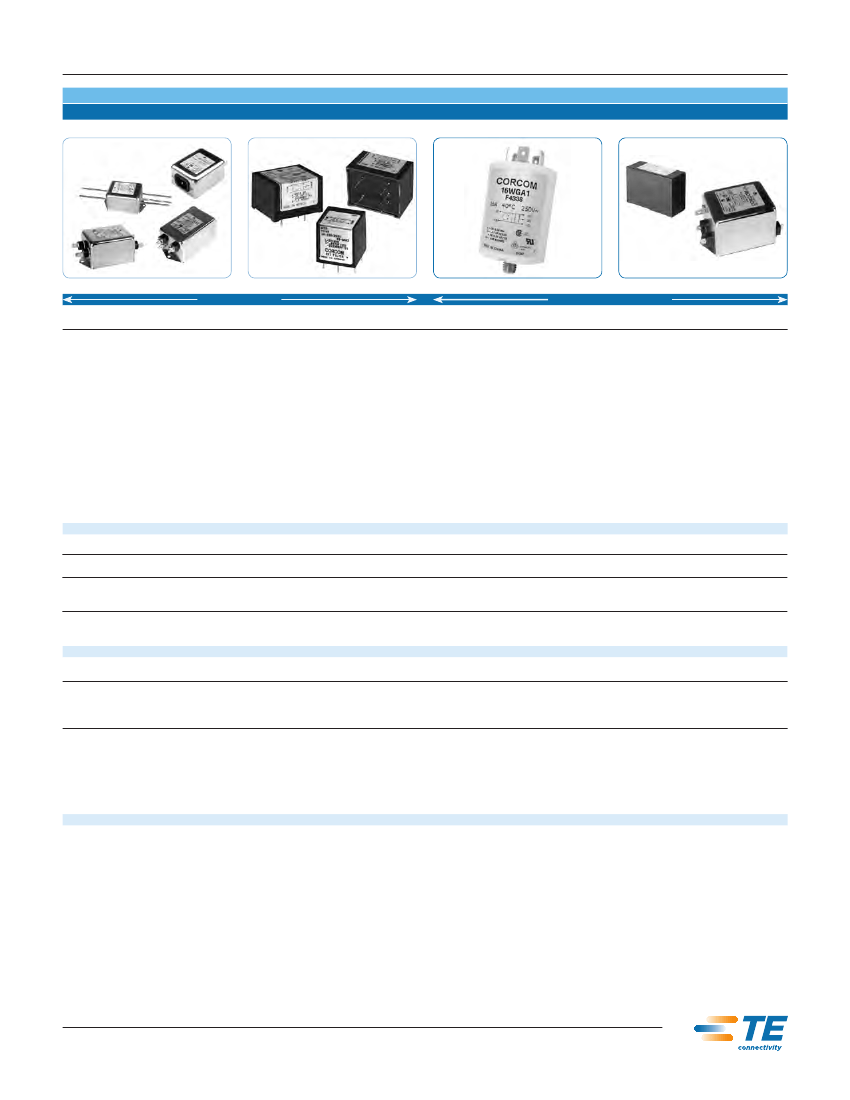

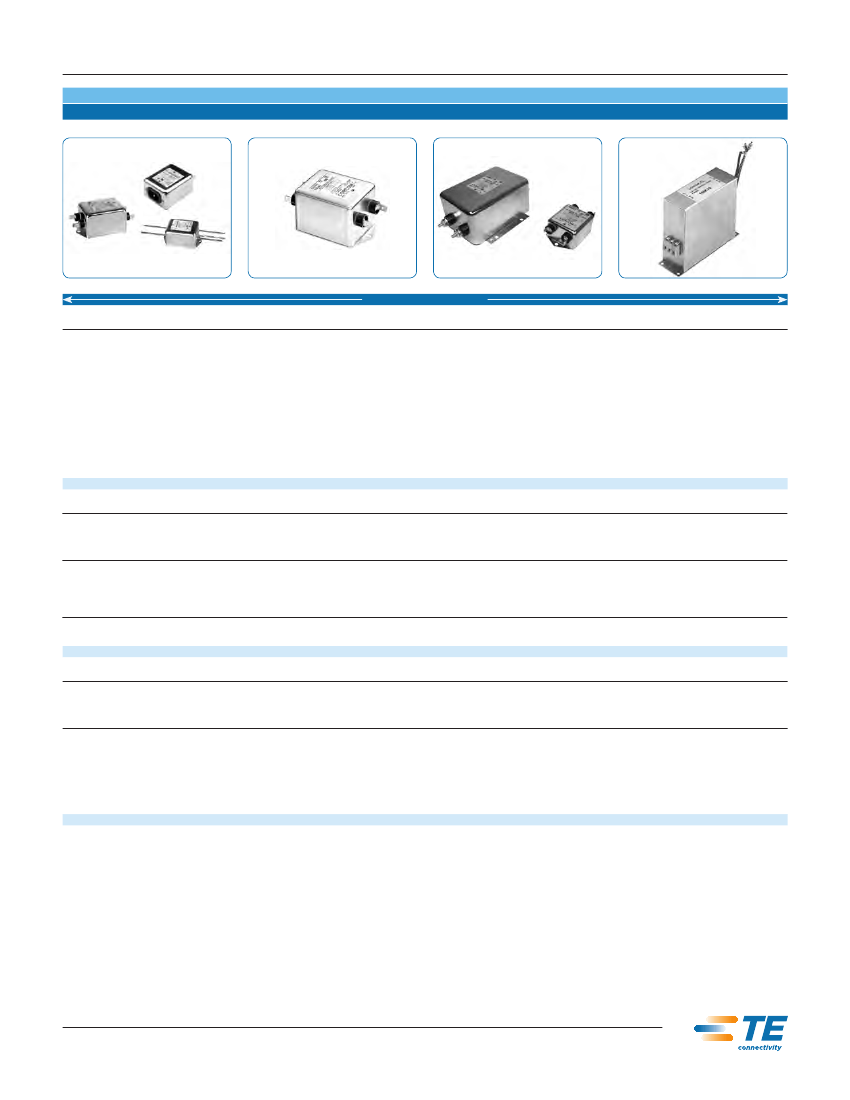

POWER LINE FILTERS
(Continued)
R Series
EBP, EDP, EOP Series
WG Series
Corcom Filter Products
X, Y & Z Series
General Purpose
UL / CSA / VDE
Two-stage general purpose RFI
power line filter
UL / CSA / VDE
PC board mountable general
purpose RFI filters
UL / CSA / VDE
Wide Range Performance
UL / CSA / VDE
Chassis or PC Board Mountable
Power Line Filters for Emission
Control
High performance, low cost filter
ideal for appliance equipment
•
Dual T section RFI filter provides
premium performance
•
General purpose
•
Low leakage current
•
Cost-effective
•
Compact size
•
EDP model features enhanced
differential mode performance
(less than 1” square)
•
Cost effective
•
Tubular design
•
WGD, WGE and WGF versions
designed to comply with leakage
current requirements for appliances
which may be easily moved from
one place to another
•
Compact chassis or PC board
mountable
•
Well suited for low impedance
loads where noisy RFI
environments are present
intermittent interference
•
Three levels of performance
•
Complete filtering solution in
minimal size
•
Controls pulsed, continuous and/or
•
ER model offers low leakage
current without deterioration of
insertion loss
•
EBP model features compact size
•
Available in a variety of styles
•
X Series for FCC Part 15J, Class B
•
Y Series for EN55022, Level A
•
Z Series for EN55022, Level B
•
Medical version available in the
HZ Series
250 VAC
1, 2, 3, 5, 10 or 20A
VR Models: .4 mA / .7 mA
ER Models: .21 mA / .36 mA
Single stage
250 VAC
1, 3, 6 or 10A
EDP/EOP Models: .22 mA / .38 mA
EBP Models: .13 mA / .21 mA
Single stage
250 VAC
16A
A, B & C Models: .76 mA / 1.27 mA
D, E & F Models: .10 mA / .20 mA
Single stage
250 VAC
1, 2, 3, 4 or 6A
.3 mA / .5 mA
Single stage
Screw mounting (flange or panel)
.25 [6.3] spade terminals,
8-32 terminal bolt & nut,
wire leads or IEC 60320-1 C14
.25 [6.3] spade terminals,
8-32 terminal bolt & nut or
wire leads
PC board pins
PCB pins .025 [.635] square
Screw-in mounting stud
.25 [6.3] spade terminals,
wire leads or
RAST 5 header interface
.25 [6.3] spade terminals,
wire leads or
RAST 5 header interface
Screw mount or PC board pins
.25 [6.3] spade terminals or
PCB pins .065[1.65] diagonal
PCB pins .025 [.635] square
.25 [6.3] spade terminals or
PCB pins .065[1.65] diagonal
Universal filter for applications with
low impedance loads including:
Designed for PCB mounting for a
wide range of applications including:
•
Motors
•
Semiconductor actuators
•
Home appliances
•
Gaming machines
•
Exercise equipment
•
Security systems
•
Industrial equipment & controls
•
Gaming machines
•
Cash terminals
•
Office equipment
•
Small consumer electronics
•
TV / Audio / Video
•
Computing & accessories
Specially designed for the white
goods / appliance market. Offers
wide band RFI suppression for many
applications including:
•
Washing machines / dryers
•
Dishwashers
•
Refrigerators & freezers
•
Coffee Machines
•
Hand held appliances & tools
•
Ovens & ranges
RFI filter designed to bring most
digital equipment (including those
with switching power supplies) into
compliance with EN55022, Level
A or B and FCC Part 15J, Class B
conducted emission limits. Ideal for
all applications with limited space
including:
•
Switching Power Supplies
•
Industrial single phase applications
corcom.com
TE Connectivity
FILTER TYPE
SERIES
Corcom Filter Products
POWER LINE FILTERS
(Continued)
S, V & W Series
G & N Series
SB Series
PERFORMANCE
Approvals
Features
UL / CSA / VDE
Multipurpose Power Line RFI Filter
for Emission Control
Wide Range Performance
UL / CSA / VDE
High Performance RFI Filters for
Switching Power Supplies For
increased filtering requirements
UL / CSA / VDE
High Performance B Series RFI Line
Filters
•
Effective when used to control
emissions in equipment using SCR
and T2L circuits
impedance frequencies
impedance frequencies
MV Series
•
Designed to provide excellent
•
Enhanced performance version
•
S & W Series designed for high
•
V Series designed for low
•
Medical version available in the
ELECTRICAL PARAMETERS
Max. voltage
Current Ratings
attenuation for most digital
electronics equipment and help
comply with EN55022 Level A and
FCC Part 15J Class B
performance from 20kHz to 30MHz
of our popular B Series of RFI line
filters
performance
30A filters
•
Small size with enhanced
•
30A version half the size of other
•
Low leakage version available
•
Broad frequency range of
•
Size and cost-effective solution
250 VAC
6 & 10A
250 VAC
3, 6, 10, 20 & 60A
(60A S Series only)
250 VAC
6, 10, 20 & 30A
Leakage current each Line to Ground
@ 120VAC 60Hz / 250VAC 50Hz
.4 mA / .7 mA
(S Series 3-10A)
.75 mA / 1.25 mA
(S Series 60A)
.5 mA / .82 mA
(V & W Series)
.07 mA / .13 mA
(MV Series)
Dual stage
.3 mA / .5 mA
(EG models)
1.2 mA / 2.0 mA
(VG & N models)
.75 mA / 1.25 mA
(VSB models)
.22 mA / .36 mA
(ESB models)
Electrical Setup
Single stage
(6A models)
Dual stage
(10A models)
Single stage
MECHANICAL PARAMETERS
Mounting features
Termination inputs
Screw mounting
.25 [6.3] spade terminals or
terminal bolt & nut
Screw mounting
.25 [6.3] spade terminals
Screw mounting
.25 [6.3] spade terminals or
8-32 terminal bolt & nut
Termination outputs
.25 [6.3] spade terminals or
terminal bolt & nut
.25 [6.3] spade terminals
.25 [6.3] spade terminals or
8-32 terminal bolt & nut
TYPICAL APPLICATIONS
Multipurpose power line RFI filter
for emission control and high
noise industrial environments and
applications that require compliance
with FCC Part 15, Subpart J and
EN55022, Level A, down to 150kHz
including:
Specifically designed for most digital
electronic equipment requiring a high
range of symmetric and asymmetric
attenuation including:
Wide band RFI suppression for
applications requiring enhanced
performance including:
•
Switching power supplies
•
Motor drives
•
Small machine tools
•
Industrial single-phase applications
•
TV / Audio / Video
•
Computing & accessories
•
Home appliances
•
Medical equipment
•
Gaming machines
•
Exercise equipment
•
Consumer electronics
•
Small machine tools
•
Food service equipment
•
Measurement & Instrumentation
corcom.com
TE Connectivity
POWER LINE FILTERS
(Continued)
SK Series
RK Series
EMC Series
Corcom Filter Products
IK Series
Wide Range Performance
UL / CSA / VDE
High Performance K Series RFI Line
Filters for SMPS Emission Control
UL / CSA / VDE
High Performance Compact Power
Line Filter
UL / CSA / VDE
Compact and Cost-effective Dual
Stage RFI Power Line Filters
Single and 2-phase RFI Filters for
Industrial Applications
•
Designed to reduce conducted
noise to acceptable limits for
equipment that must comply with
FCC / EN specifications
values than the general purpose K
Series
separate ground circuit inductor
•
Compact
•
Single stage
•
Significant differential mode
performance
•
Compact dual stage filter series
•
Current rating up to 30A
•
High differential mode attenuation
in the lower frequency range
•
Excellent performance for
applications with high interference
levels
applications
•
Utilizes significantly higher element
•
Designed for single or two-phase
•
Available touch safe terminals
provide easy connections and
prevent inadvertent contact
•
Suitable for industrial machinery
•
Low input leakage current makes it
suitable for portable equipment
•
High common mode performance
•
Ideal for switching mode power
supplies
•
ESK6C and VSK6C incorporate
250 VAC
3, 6, 10, 20, 30 & 40A
250 VAC
3, 6, 10, 15 & 20A
250 VAC
3, 6, 10, 15, 20 & 30A
500 VAC MAX. Line to Ground
1, 6, 16, 35, 50 & 80A
.4 mA / .7 mA
(3-10A VSK models)
.21 mA / .36 mA
(3-10A ESK models)
.75 mA / 1.25 mA
(3-10A VSK models)
.3 mA / .5 mA
(3-10A ESK models)
Single stage
.16 mA / .26 mA
.21 mA / .43 mA
(3-10A models)
.73 mA / 1.52 mA
(15-30A models)
.06 mA / 1.2 mA*
(1 & 6A models)
1.7 mA / 3.2 mA*
(16 - 50A models)
5.2 mA / 9.9 mA*
(80A model)
* 1A @ 289 VAC, 16-80A @ 277 VAC 50Hz
Single stage
Dual stage
Dual stage
(6-80A models)
Dual stage + ground choke
(1A only)
Screw mounting (flange or panel)
.25 [6.3] spade terminals,
terminal bolt & nut,
wire leads or IEC 60320-1 C14
.25 [6.3] spade terminals,
terminal bolt & nut or
wire leads
Screw mounting
.25 [6.3] spade terminals
Screw mounting
.25 [6.3] spade terminals,
8-32 terminal bolt & nut or
wire leads
.25 [6.3] spade terminals,
8-32 terminal bolt & nut or
wire leads
Screw mounting
.25 [6.3] spade terminals or
DIN type terminal block and bolt/nut
.25 [6.3] spade terminals
.25 [6.3] spade terminals,
wire leads or
DIN type terminal block and bolt/nut
Universal filter for consumer
electronic applications requiring
a premium range of attenuation
including:
Wide band RFI suppression
for applications requiring high
attenuation level including:
Wide band RFI suppression
for applications requiring high
attenuation levels including:
•
TV / Audio / Video
•
Computing & accessories
•
Home appliances
•
Medical equipment
•
Industrial equipment & controls
•
Exercise equipment
•
Consumer electronics
•
Industrial machinery equipment
•
Small machine tools
•
Home appliances
•
Power supplies
•
Consumer electronics
•
Single phase industrial equipment
•
Inverters
•
Switching power supplies
Wide band RFI filter for small to
medium sized industrial equipment,
power converters and variable speed
motors. Provides suppression of
industrial 2-phase applications with
high RFI emissions including:
•
Transportation vehicles
•
Site applications
•
Small construction machinery
corcom.com
京公网安备 11010802033920号
EEWORLD
