1-480305-0 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 1-480305-0

Preview

1-480305-0: Description03P CMNL CAP HSG F/H NATL; CategoryThe connector The connector; File Size112KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1-480305-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-480305-0	-	-	View	Buy Now

1-480305-0 Overview

03P CMNL CAP HSG F/H NATL

1-480305-0 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Is Samacsys	N
Other features	MATE-N-LOK
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Termination type	CRIMP
Total number of contacts	3
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

4

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

-

20

3

LOC

2

DIST

1

C

COPYRIGHT

20

CM

00

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

R1

R2

REVISED PER ECO-11-005294

REVISED PER ECR-14-015591

06APR2011

13NOV2014

RK

AV

HMR

KD

D

16.01 -16.20

[ .630 -.638 ]

18.16

[ .715 ]

16.13

[ .635 ]

20.57

[ .810 ]

C

6.35 -6.47

[ .250 -.255 ]

23.62

[ .930 ]

8.26 -8.50

[ .325 -.335 ]

1. MATES WITH HOUSING 480303 OR 480304.

B

BLACK

RED

NATURAL

THIS DRAWING IS A CONTROLLED DOCUMENT.

B

1- 480305 -9

1- 480305 -2

1- 480305 -0

PART NUMBER

TE Connectivity

NAME

DIMENSIONS:

mm[INCHES]

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

A

SCALE

1470-19 (3/11)

2:1

0

1

2

3

4

MATERIAL

ANGLES

PLC

UL94V-2

NYLON,

FINISH

-

0.13[.005]

-

0 $ 30'

19APR2002

K. WHITAKER

CHK

19APR2002

D. COLEY

APVD

19APR2002

D. COLEY

DWN

PRODUCT SPEC

APPLICATION SPEC

COLOR

-

WEIGHT

-

CUSTOMER DRAWING

A3

00779

SIZE

CAGE CODE

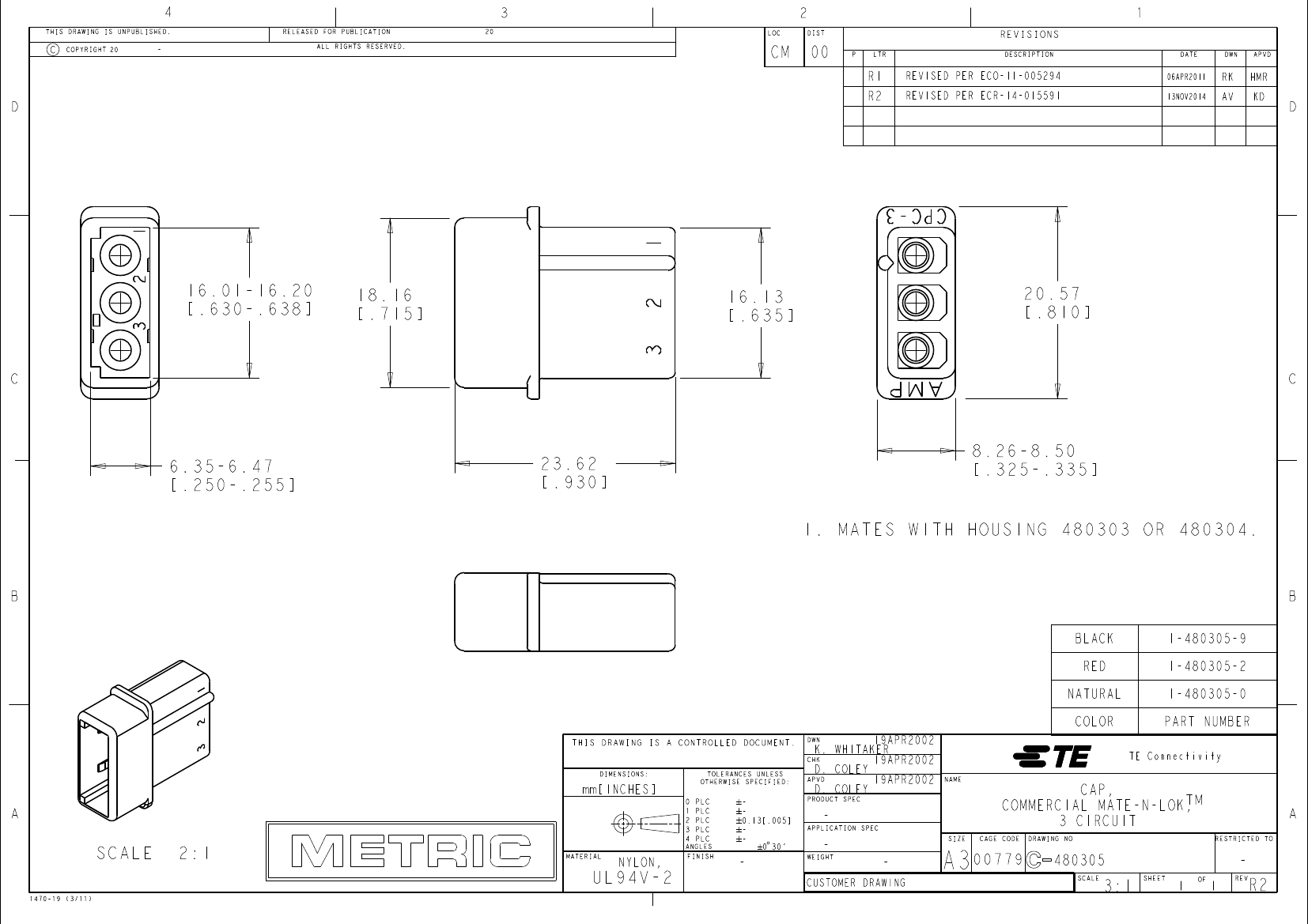

CAP,

COMMERCIAL MATE-N-LOK,

3 CIRCUIT

DRAWING NO

TM

RESTRICTED TO

A

480305

SCALE

3:1

SHEET

1

OF

1

REV

-

R2
