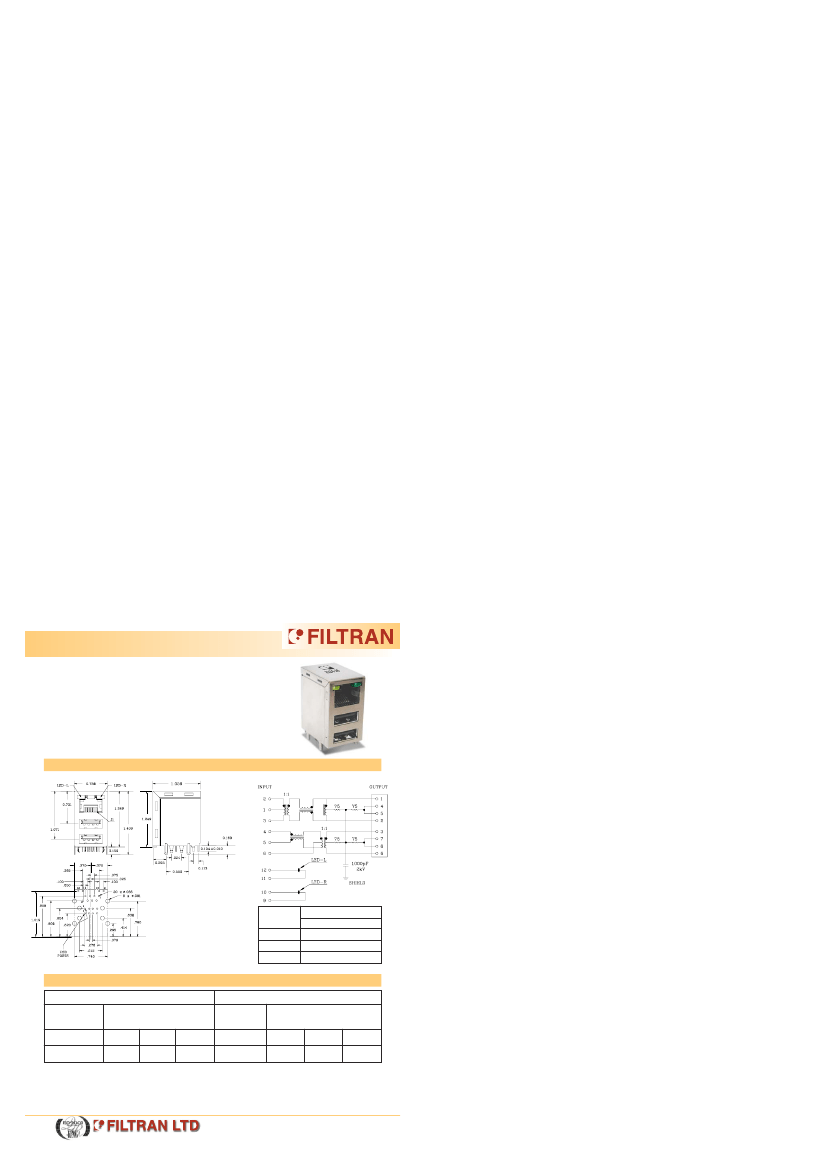

RJ-45/USB
10/100 BASE-T Module
with Dual USB
8324-8326
• Complies with IEEE standards and all 10/100 Ethernet specifications
including 350µH with 8mA DC bias
• Various turns ratio options available
• Integrated Mag-modular design provides higher reliability and conserves
minimizing PCB space
• Various LED options available
• Single port shield RJ-45 with dual USB
• Operating temperature: -40°C to +85°C
Mechanical and Schematic
(All dimensions in inches)
SCHEMATIC
PCB LAYOUT
(component side view)
Part
Number
8324
8325
8326
Description
LED-L
Yellow
Green
Green
LED-R
Green
Yellow
Green
ELECTRICAL SPECIFICATION @ 25˚C
Transmitter Filter
8324-8326
Receiver Filter
Insertion Loss
dB MAX
1-100 MHz
-1.0
Insertion Loss
dB MAX
1-100 MHz
-1.0
•
•
•
•
Return Loss
dB MIN (load 100
Ω)
1-30 MHz
-20
30-60 MHz
-15
60-80 MHz
-11
Return Loss
dB MIN (load 100
Ω)
1-30 MHz
-20
30-60 MHz
-17
60-80 MHz
-15
ISSUE: D
03/06/03
Common Mode Rejection @1-100 MHz : -30dB MIN
Crosstalk @1-100 MHz : -30dB MIN
Primary Inductance @100kHz, 0.1Vrms, 8mA DC Bias (2-3), (4-5): 350µH MIN
Hipot:
Input(2-3) to Output(1-2): 1500Vrms, 1.0mA, 1sec
Input(4-5) to Output(3-6): 1500Vrms, 1.0mA, 1sec
229 Colonnade Road, Ottawa, Ontario, Canada K2E 7K3
Tel: (613) 226-1626 Fax: (613) 226-7124
www.filtran.com
An ISO 9001 Registered Company
