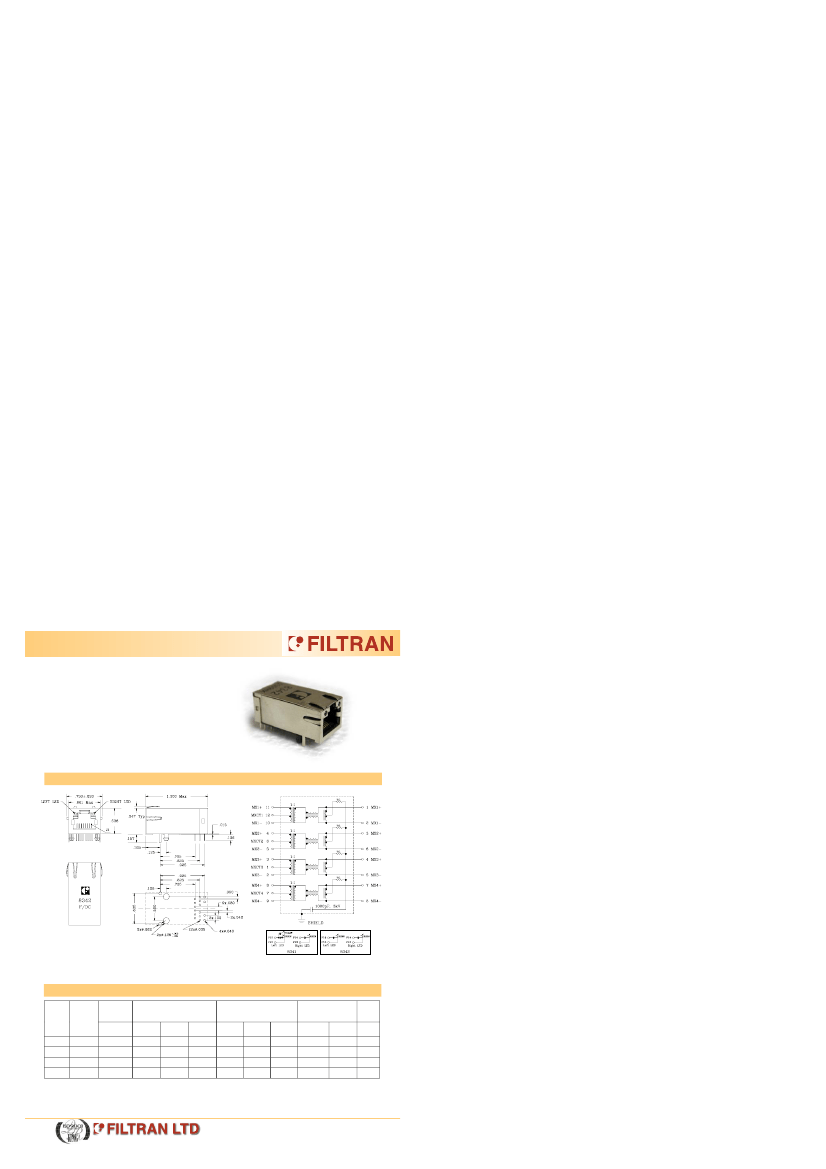

RJ-45

Single Port Connector with LEDs

Intergrated Magnetics 1000 Base-T

8341-8344

• Exceeds IEEE 802.3ab standard for 1000 Base-T

• Meets OCL specifications of 350µH Min with 8mADC Bias

• Contact Plating: 6µ-inch gold flashed

• Available with or without LEDs

MECHANICAL AND SCHEMATIC

(All dimensions in inches)

PCB

(PHY/IC SIDE)

RJ-45

Suggested PCB Layout

(component side view)

UNLESS OTHERWISE SPECIFIED, ALL TOLERANCES ARE ±0.010

PCB LAYOUT DIMENSIONS TO BE ±0.005

SCHEMATIC

ELECTRICAL SPECIFICATION @ 25˚C

8341-8344

Part

Number

8341

8342

8343

8344

LEDs

L/R

Y-G/G

G/G

NONE

03/06/03

Insertion

Loss

(dB Typ)

1-100

MHz

-1.2

Return Loss

(dB Typ)

Load 100Ω ±15Ω

1-10

60-80

MHz

-20

-16

-12

-20

-16

-12

Crosstalk

(dB Typ)

1-10

MHz

-40

30-60

MHz

-35

60-100

MHz

-30

Common Mode Rejection

(dB Typ)

1-50

MHz

-30

50-130

MHz

-20

Hi-pot

(Vrms)

1mA,

1Sec

1500

ISSUE: A

1. LEDs Left/Right: G = Green, Y = Yellow, Y-G = Yellow-Green

229 Colonnade Road, Ottawa, Ontario, Canada K2E 7K3

Tel: (613) 226-1626 Fax: (613) 226-7124

www.filtran.com

An ISO 9001 Registered Company
