3-794632-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-794632-8

3-794632-8: Description08P MICRO MNL ASSY,VRT,HDR,LF; CategoryThe connector The connector; File Size187KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-794632-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-794632-8	-	-	View	Buy Now

3-794632-8 Overview

08P MICRO MNL ASSY,VRT,HDR,LF

3-794632-8 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
body width	0.341 inch
subject depth	0.364 inch
body length	0.63 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	150 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.9972 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYAMIDE
Terminal length	0.125 inch
Terminal pitch	2.9972 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Evacuation force-minimum value	.6672 N
Base Number Matches	2

Preview

Download Datasheet

View All

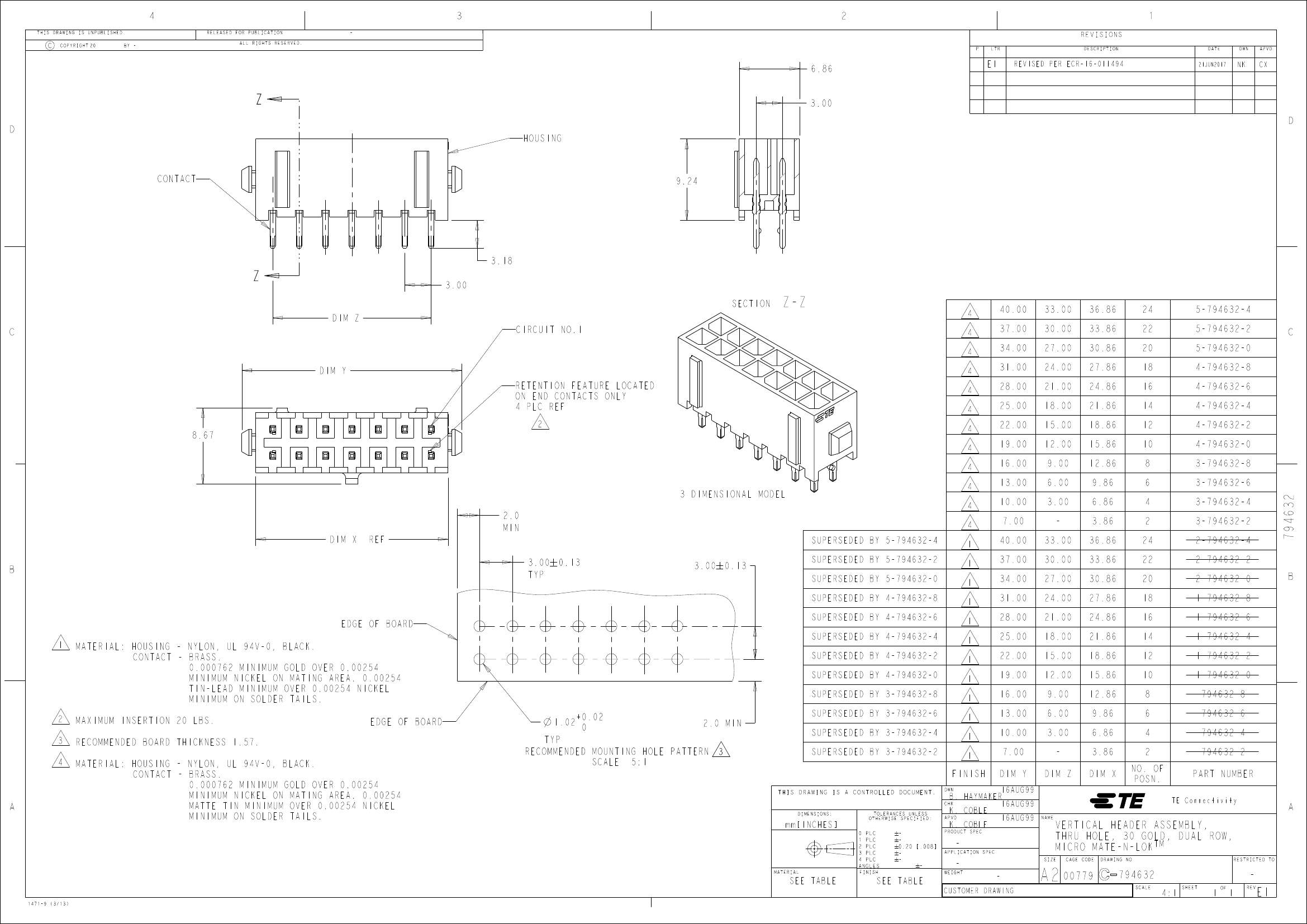

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

6.86

3.00

REVISED PER ECR-16-011494

21JUN2017

HOUSING

CONTACT

9.24

3.18

3.00

DIM Z

SECTION

CIRCUIT NO.1

Z-Z

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

DIM Y

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM Z

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

DIM X

NO. OF

POSN.

5-794632-4

5-794632-2

5-794632-0

4-794632-8

4-794632-6

4-794632-4

4-794632-2

4-794632-0

3-794632-8

3-794632-6

3-794632-4

3-794632-2

2-794632-4

2-794632-2

2-794632-0

1-794632-8

1-794632-6

1-794632-4

1-794632-2

1-794632-0

794632-8

794632-6

794632-4

794632-2

PART NUMBER

TE Connectivity

DIM Y

RETENTION FEATURE LOCATED

ON END CONTACTS ONLY

4 PLC REF

8.67

DIM X

REF

2.0

MIN

3.00 0.13

TYP

3.00 0.13

SUPERSEDED BY 5-794632-4

SUPERSEDED BY 5-794632-2

SUPERSEDED BY 5-794632-0

SUPERSEDED BY 4-794632-8

EDGE OF BOARD

SUPERSEDED BY 4-794632-6

SUPERSEDED BY 4-794632-4

SUPERSEDED BY 4-794632-2

SUPERSEDED BY 4-794632-0

SUPERSEDED BY 3-794632-8

MATERIAL: HOUSING - NYLON, UL 94V-0, BLACK.

CONTACT - BRASS.

0.000762 MINIMUM GOLD OVER 0.00254

MINIMUM NICKEL ON MATING AREA. 0.00254

TIN-LEAD MINIMUM OVER 0.00254 NICKEL

MINIMUM ON SOLDER TAILS.

MAXIMUM INSERTION 20 LBS.

RECOMMENDED BOARD THICKNESS 1.57.

MATERIAL: HOUSING - NYLON, UL 94V-0, BLACK.

CONTACT - BRASS.

0.000762 MINIMUM GOLD OVER 0.00254

MINIMUM NICKEL ON MATING AREA. 0.00254

MATTE TIN MINIMUM OVER 0.00254 NICKEL

MINIMUM ON SOLDER TAILS.

EDGE OF BOARD

+0.02

1.02

2.0 MIN

TYP

RECOMMENDED MOUNTING HOLE PATTERN

SCALE 5:1

SUPERSEDED BY 3-794632-6

SUPERSEDED BY 3-794632-4

SUPERSEDED BY 3-794632-2

FINISH

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

mm[INCHES]

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.20 [.008]

16AUG99

B. HAYMAKER

CHK

16AUG99

K. COBLE

APVD

16AUG99

K. COBLE

PRODUCT SPEC

APPLICATION SPEC

NAME

SEE TABLE

WEIGHT

CUSTOMER DRAWING

00779

SIZE

VERTICAL HEADER ASSEMBLY,

THRU HOLE, 30 GOLD, DUAL ROW,

MICRO MATE-N-LOK

CAGE CODE

DRAWING NO

RESTRICTED TO

794632

SCALE

1471-9 (3/13)

4:1

SHEET

REV

794632

3 DIMENSIONAL MODEL
