TLA6821-1: DescriptionAudio Line Matching Transformer; File Size109KB，1 Pages; ManufacturerFILTRAN; Websitehttp://www.filtran.com/

Download Datasheet View All

TLA6821-1 Overview

Audio Line Matching Transformer

Preview

Download Datasheet

View All

Audio

Line Matching Transformer

Applications:

Interfacing subscriber equipment to

a 600Ω 2-wire subscriber line, and

where DC handling capability is

required.

TLA6821-1

TLA6821-1 is a split winding Line Matching

Transformer with the following features:

•

Good magnetic shielding.

High Longitudinal Balance.

DC capability, 100 mA.

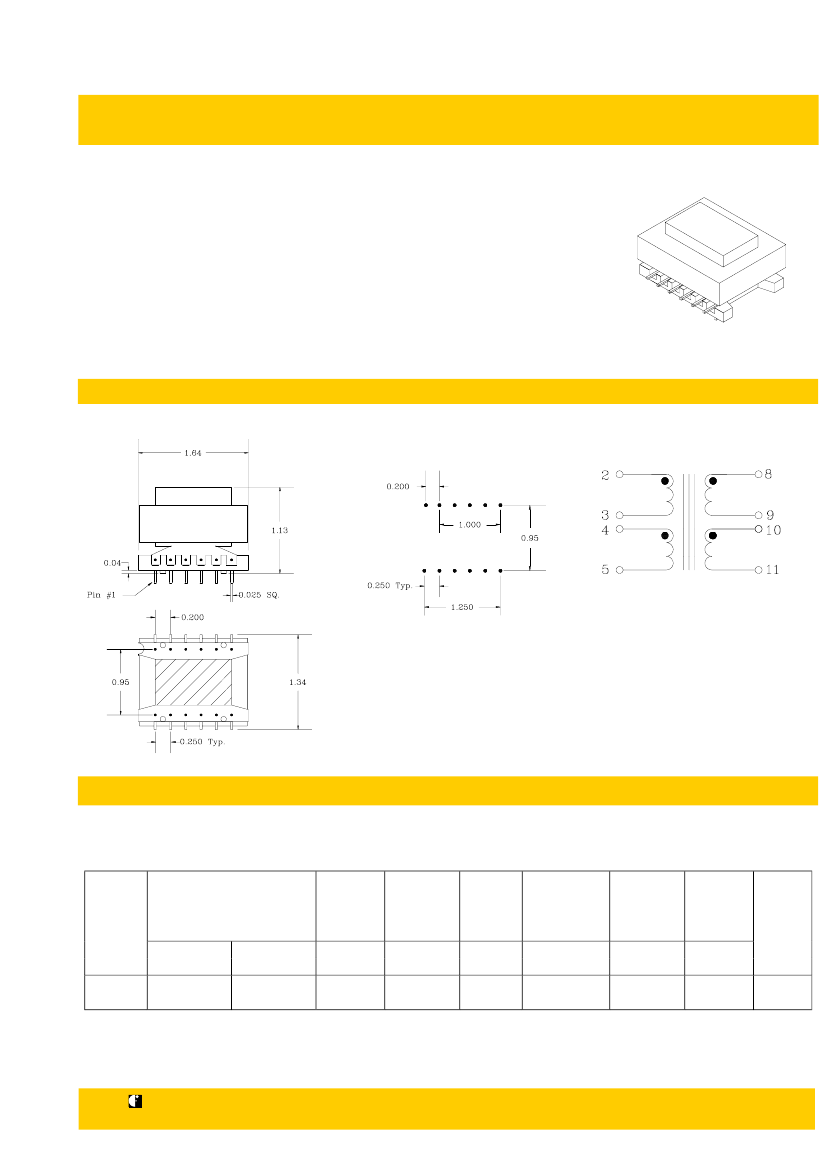

MECHANICAL AND SCHEMATIC

(All dimensions in inches)

SUGGESTED PCB PINOUT

SCHEMATIC

ELECTRICAL SPECIFICATIONS @ 25°C

TLA6821-1 has the following performance when terminated with 600Ω, and up to 100 mA DC in either primary or secondary

windings.

Insertion

Loss

(dB)

@ 1KHz

<0.7

Frequency

Response

(dB)

150 Hz-

3400 Hz

<0.5

Return

Loss

(dB)

300 Hz-

3400Hz

>18

Longitudinal

Balance

(dB)

300 Hz-

3400 Hz

>60

Issue A 13/07/01

Part

Number

2-3 & 4-5

6821-1

17.5 ea

DCR

(Ω)

8-9 & 10-11

20.8 ea

Distortion

@ 200Hz,

0 dBm

<0.5%

Crosstalk

(dB)

@ 1.00”

spacing

Hipot

(Vrms)

1500

Filtran Limited

ISO 9001

Registered Company

229 Colonnade Road, Nepean, Ontario,Canada. K2E 7K3,

Tel: (613) 226-1626

Fax: (613) 226-7124

www.filtran.com
