ZDC RF Coax
Connector Series
50 & 75 Ohm
KEY FEATURES
Bayonet Coupling for
rapid connectivity
Threaded Coupling to
provide secure termination
Multiple PCB mounting
options and styles
INTRODUCTION
The RoHS compliant ZDC Coax Connector series from Tyco Electronics
offers quality cost effective solutions for commercial applications by the
use of precision die-cast components, and thermoplastic dielectrics. This
brochure showcases some of the popular BNC interface part numbers in a
variety of styles. The ZDC line also includes parts with TNC, UHF, M-UHF, F
and SMA interface.
The connector interfaces are compatible with the requirements of
MIL-C-39012 and MIL STD348A, and are therefore intermateable with
products manufactured to these specifications. Available in a range of cable
mounted plugs and jacks, bulkhead and PCB sockets, the Tyco Electronics
ZDC Coax Connector range offers a comprehensive choice of solutions for
cost demanding applications. The crimp connectors utilize standard
hexagonal crimp tools and die-sets avoiding costly retooling.
DESCRIPTION
RoHS compliant coax crimp and PCB styles
Precision die-cast construction
Interface meets MIL STD348A
Available in plug, jack, socket and adaptor types
Standard hexagonal crimp hand tool and dies
Terminates to popular RG coax cables
MECHANICAL
Operating temperature range -55°C to +85°C
Durability 50 cycles minimum
APPLICATIONS
Instrumentation
Medical equipment
Industrial process and control
Transportation
CCTV monitoring
Tyco Electronics
I ZDC RF Coax Connector
Series 50 & 75 Ohm

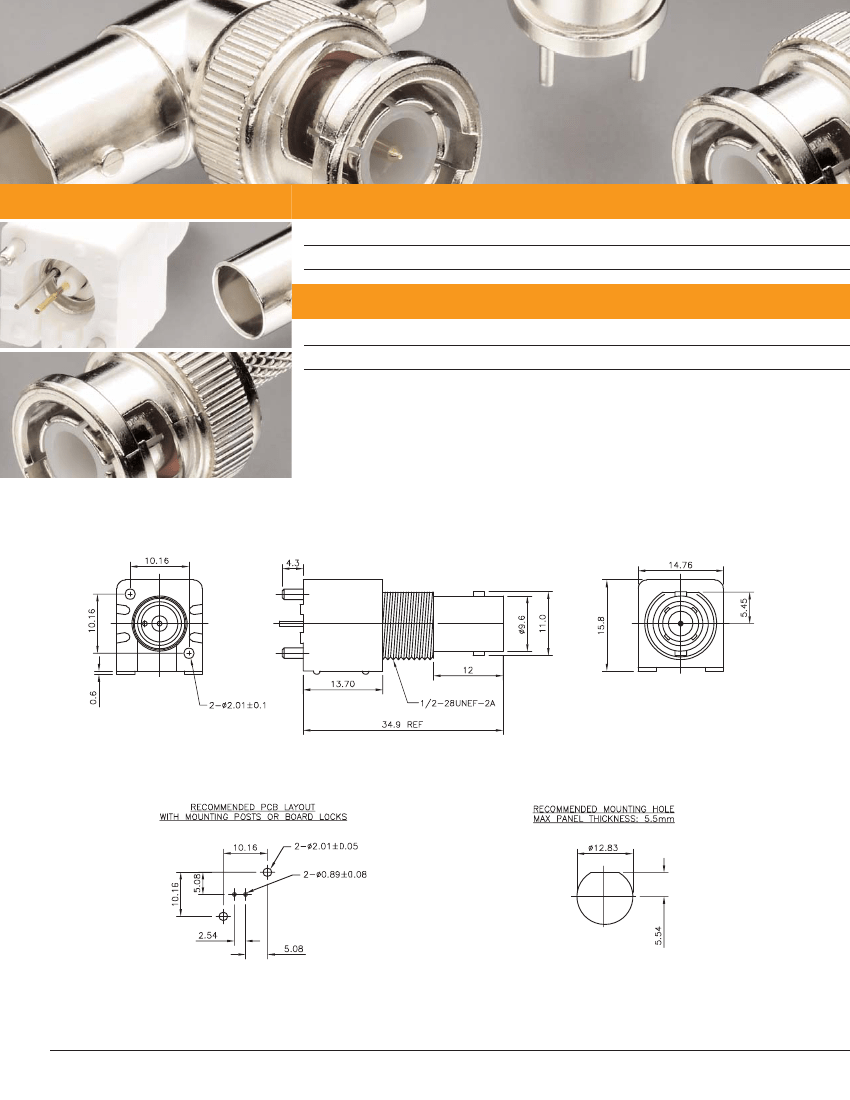

ZDC RF Coax Connector Series
50 & 75 Ohm
ELECTRICAL
50 Ohm and 75 Ohm impedance
DC - 4GHz frequency range
MATERIALS
Nickel plated zinc die cast construction
Gold plated center contact and thermoplastic dielectric
ZDC RF Coax Connector Series 50 & 75 Ohm I
Tyco Electronics
ZDC RF Coax Connector Series
50 & 75 Ohm

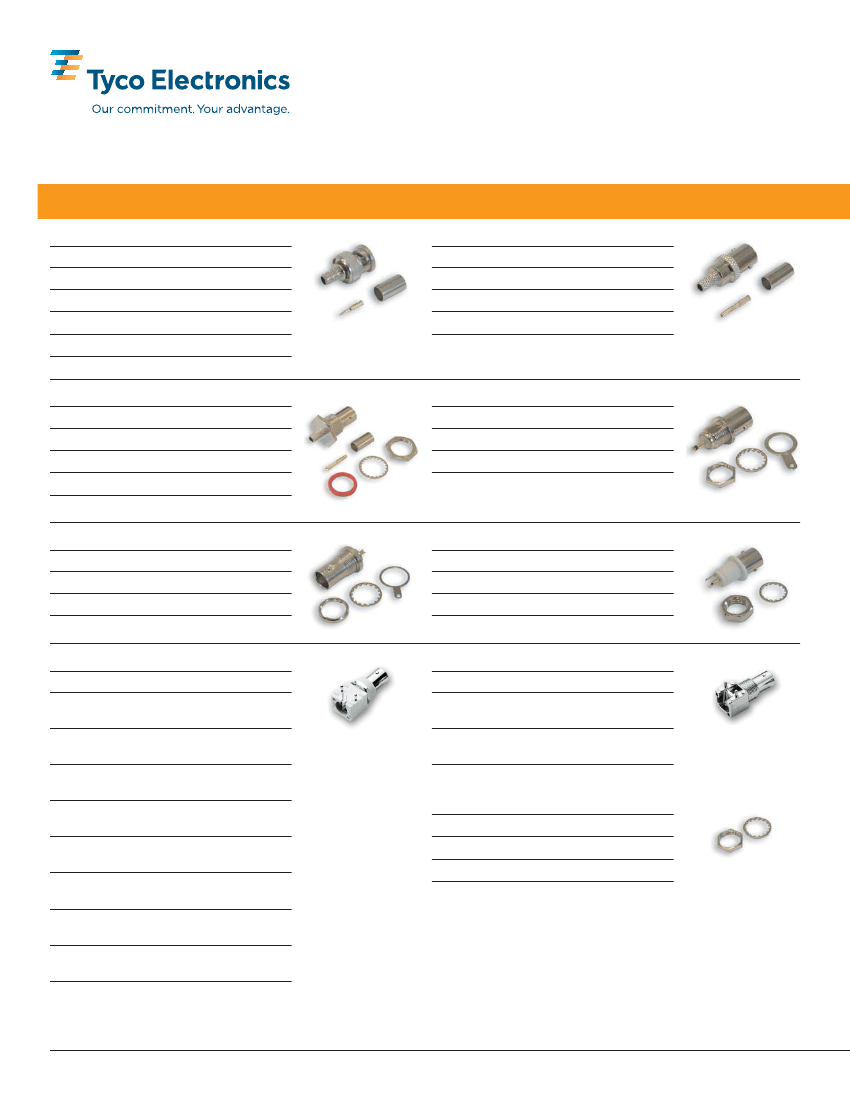

PRODUCT OFFERING & DIMENSIONS
BNC Straight Plug Crimp
TE Part Number
5-1634500-1
5-1634500-2
5-1634502-4
5-1634502-2
Ohms Cable Group
50
50
75
75
RG174
RG58
RG179
RG59
BNC Straight Jack Crimp
TE Part Number
5-1634511-1
5-1634511-2
5-1634514-1
Ohms Cable Group
50
50
75
RG174
RG58
RG59
BNC Bulkhead Jack Rear Mount
TE Part Number
5-1634516-1
5-1624516-3
5-1634516-5
Ohms Cable Group
50
75
75
RG58
RG179
RG59
BNC Bulkhead Socket Front Mount
TE Part Number
5-1634523-1
5-1634523-2
Ohms Cable Group
50
75
–
–
BNC Bulkhead Socket Rear Mount
TE Part Number
5-1634518-1
5-1634518-3
Ohms Cable Group
50
75
–
–
BNC Insulated Bulkhead Socket
TE Part Number
5-1634504-1
5-1634504-2
Ohms Cable Group
50
75
–
–
BNC Elbow PCB Socket - Insulated*
TE Part Number
1-1337542-0
1-1337543-0
1-1634613-0
1-1634612-0
1-1478031-0
1-1478032-0
1-1634624-0
1-1634622-0
Ohms
50
50
50
50
75
75
75
75
Description
White
Low Profile
White
Std Profile
Black
Low Profile
Black
Std Profile
White
Low Profile
White
Std Profile
Black
Low Profile
Black
Std Profile
BNC Elbow PCB Socket - Metal*
TE Part Number
1-1337494-0
1-1634508-0
Ohms
50
75
Description
Metal
Std Profile
Metal
Std Profile
*BNC PCB Accessories for
Noted Series
TE Part Number
1-1634817-0
1-1634816-0
Description
Lockwasher
Hex Nut
Tyco Electronics
I ZDC RF Coax Connector Series 50 & 75 Ohm
ZDC RF Coax Connector Series
50 & 75 Ohm

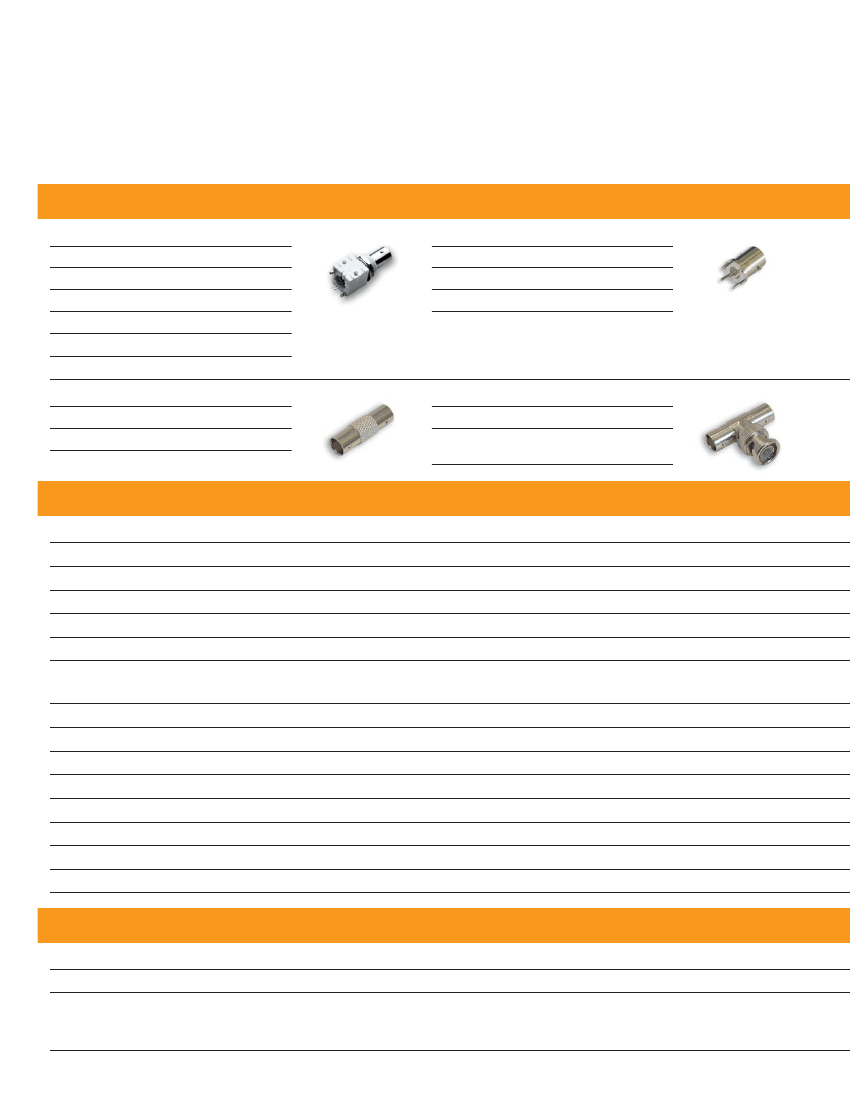

PRODUCT OFFERING & DIMENSIONS
BNC Straight PCB Socket - Insulated*
TE Part Number
1-1337541-0
1-1634505-0
1-1478033-0
1-1634629-0
Ohms
50
50
75
75
Description
White
Black
White
Black
BNC Straight PCB Socket – Metal
TE Part Number
5-1634503-1
5-1634503-3
Ohms
50
75
Description
Metal
Metal
BNC Straight Adaptors
TE Part Number
5-1634534-1
Ohms
50
Description
Jack – Jack
BNC T – Adaptors
TE Part Number
5-1634532-1
Ohms
50
Description
Jack - Plug -
Jack
TECHNICAL SPECIFICATIONS
Nominal Impedance
Working Voltage
Contact Resistance
Insulation Resistance (initial)
Dielectric Withstand Voltage
Frequency Range
VSWR
DC - 2GHz
Durability (Cycles)
Temperature Range
Body Material
Body Plating
Male Contact Material
Female Contact Material
Contact Plating
Insulation
50Ω and 75Ω
500Vrms
1.5mΩ max
5000MΩ min
1500Vrms (sea level)
0-4GHz (50Ω) 0-2GHz (75Ω)
Straight 1.15 max
50
-55°C to +85°C
Zinc
Nickel
Brass
Phosphor Bronze
Gold
Delrin or Polyethylene
TERMINATION TOOLING
Hand Tool
Die sets
9-1478240-0
9-147824X-0
For Tooling see customer drawings at www.tycoelectronics.com
ZDC RF Coax Connector Series 50 & 75 Ohm I
Tyco Electronics
