589R275X2CAT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 589R275X2CAT

589R275X2CAT: DescriptionHCMOS Output Clock Oscillator; CategoryPassive components oscillator; File Size258KB，3 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

589R275X2CAT Overview

HCMOS Output Clock Oscillator

589R275X2CAT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CTS
Reach Compliance Code	unknown
Other features	ENABLE/DISABLE FUNCTION; TR, 7 INCH
Ageing	2.8 PPM/20 YEAR
Maximum control voltage	2.5 V
Minimum control voltage	0.5 V
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	8 ppm
frequency stability	0.28%
Installation features	SURFACE MOUNT
Nominal operating frequency	27.576 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 2.1mm
longest rise time	6 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold Flash (Au) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

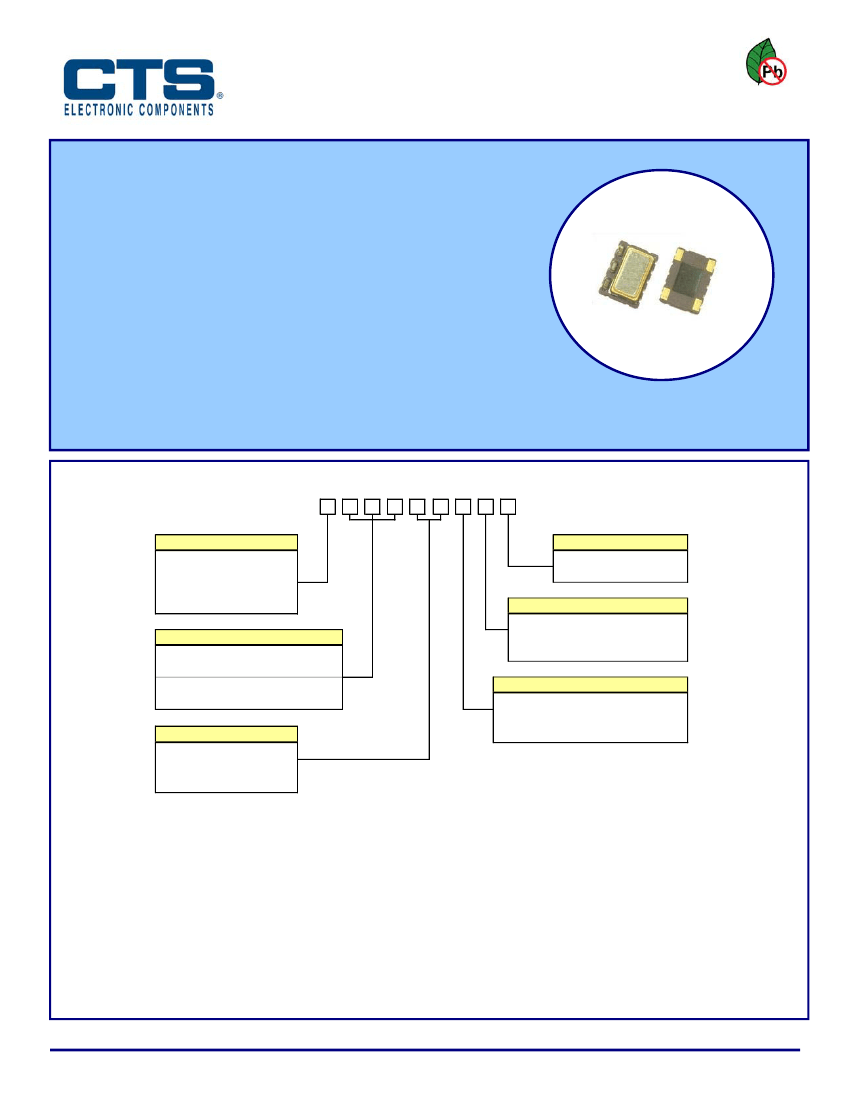

Model 589

Stratum 3

Temperature Compensated Crystal Oscillator

FEATURES



HCMOS Output

Optional Voltage Control for Frequency Tuning [VCTCXO]

7.0mm x 5.0mm Surface Mount Package

Frequency Range 5 – 52 MHz

Fundamental Crystal Design

Operating Voltage, +3.0Vdc, +3.3Vdc or +5.0Vdc

Overall Frequency Stability ±4.6ppm

Operating Temperature to -40°C to +85°C

Tape & Reel Packaging Standard, EIA-418

RoHS/Green Compliant [6/6]

APPLICATIONS

The Model 589, a quartz based analog TCXO with HCMOS output and optional frequency tuning, is suitable for

applications requiring Stratum 3 performance such as base stations, Microcells, Femtocells, 1588 and Synchronous

Ethernet timing, wireless communications, test and measurement.

ORDERING INFORMATION

589

SUPPLY VOLTAGE

R = +3.0Vdc

L = +3.3Vdc

S = +5.0Vdc

PACKAGING OPTIONS

T - 1k pcs./reel

FREQUENCY TUNING [AFC]

T = No AFC [TCXO]

A = ±5ppm - ±8ppm [VCTCXO]

OPERATING TEMPERATURE RANGE

C = -20°C to +70°C

I = -40°C to +85°C

FREQUENCY

Product Frequency Code

[3 digits]

Refer to document 01 454-0,

6-1

Frequency Code Tables.

FREQUENCY STABILITY *

X1 = ±0.14ppm

X2 = ±0.28ppm

* Frequency vs. Temperature Only

1 Only available with temperature range code "C".

]

Not all performance combinations and frequencies may be available.

Contact your local CTS Representative or CTS Customer Service for availability.

Document No. 008-0528-0

Page 1 - 3

Rev. A

www.ctscorp.com
