2-2205132-4

Description
CA MINI IO MINI IO TYPE II
CategoryWire/cable

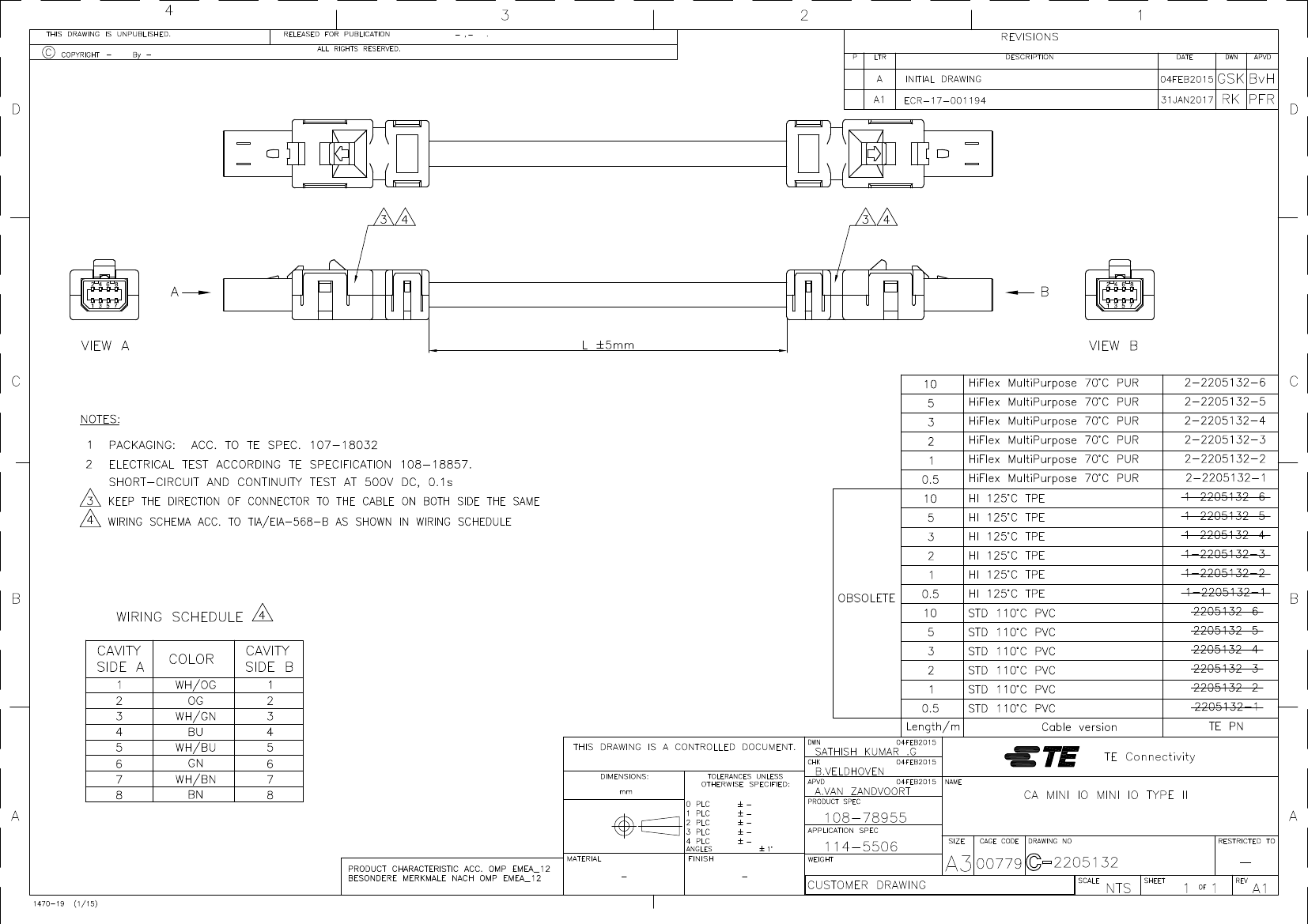

File Size75KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

2-2205132-4 Online Shopping

Suppliers Part Number Price MOQ In stock
2-2205132-4 - - View Buy Now

2-2205132-4 Overview

CA MINI IO MINI IO TYPE II

2-2205132-4 Parametric

Parameter NameAttribute value
Harness categoryIndustry standard
Cable assembly typeSmall I/O
shieldyes
Connector type (A-side)RJ45 plug
Connector type (B side)RJ45 plug
product nameJumper
performance categoryCategory 5E performance for 10/100/1000BASE-T
twisted pairyes
Type of pinsliding pin
Contacts8
Number of signal positions8
ConfigurationDouble ended
Impedance (Ω)100
Data rate (Gb/s)1
Insulating sleeve materialPUR
balancedyes
colorblack
shielding materialcopper alloy
Terminal contact plating materialgold
Terminal contact plating thickness.5 µm, 19.68 µin
locking screwWithout
Shell materialthermoplastic
Wire size (AWG)26
Wire size (mm²).129
Overall cable outer diameter.244 in, 6.2 mm
Halogen-freeyes
Flammability levelUL 444
IEEE 1394no
Cable assembly length3 m [ 9.84 ft ]
CLOUDSPLITTERno

2-2205132-4 Related Products

2-2205132-4 2-2205132-3 2-2205132-6 2-2205132-5 2-2205132-2 2-2205132-1
Description CA MINI IO MINI IO TYPE II CA MINI IO MINI IO TYPE II CA MINI IO MINI IO TYPE II CA MINI IO MINI IO TYPE II CA MINI IO MINI IO TYPE II CA MINI IO MINI IO TYPE II
shield yes NO yes yes yes yes
Harness category Industry standard - Industry standard Industry standard Industry standard Industry standard
Cable assembly type Small I/O - Small I/O Small I/O Small I/O Small I/O
Connector type (A-side) RJ45 plug - RJ45 plug RJ45 plug RJ45 plug RJ45 plug
Connector type (B side) RJ45 plug - RJ45 plug RJ45 plug RJ45 plug RJ45 plug
product name Jumper - Jumper Jumper Jumper Jumper
performance category Category 5E performance for 10/100/1000BASE-T - Category 5E performance for 10/100/1000BASE-T Category 5E performance for 10/100/1000BASE-T Category 5E performance for 10/100/1000BASE-T Category 5E performance for 10/100/1000BASE-T
twisted pair yes - yes yes yes yes
Type of pin sliding pin - sliding pin sliding pin sliding pin sliding pin
Contacts 8 - 8 8 8 8
Number of signal positions 8 - 8 8 8 8
Configuration Double ended - Double ended Double ended Double ended Double ended
Impedance (Ω) 100 - 100 100 100 100
Data rate (Gb/s) 1 - 1 1 1 1
Insulating sleeve material PUR - PUR PUR PUR PUR
balanced yes - yes yes yes yes
color black - black black black black
shielding material copper alloy - copper alloy copper alloy copper alloy copper alloy
Terminal contact plating material gold - gold gold gold gold
Terminal contact plating thickness .5 µm, 19.68 µin - .5 µm, 19.68 µin .5 µm, 19.68 µin .5 µm, 19.68 µin .5 µm, 19.68 µin
locking screw Without - Without Without Without Without
Shell material thermoplastic - thermoplastic thermoplastic thermoplastic thermoplastic
Wire size (AWG) 26 - 26 26 26 26
Wire size (mm²) .129 - .129 .129 .129 .129
Overall cable outer diameter .244 in, 6.2 mm - .244 in, 6.2 mm .244 in, 6.2 mm .244 in, 6.2 mm .244 in, 6.2 mm
Halogen-free yes - yes yes yes yes
Flammability level UL 444 - UL 444 UL 444 UL 444 UL 444
IEEE 1394 no - no no no no
Cable assembly length 3 m [ 9.84 ft ] - 10 m [ 32.8 ft ] 5 m [ 16.4 ft ] 1 m [ 3.28 ft ] .5 m [ 1.64 ft ]
CLOUDSPLITTER no - no no no no
