High Speed Fine Pitch Connectors
(MICTOR, MICTOR SB, Micro-Strip and STEP-Z
Interconnection Systems)
STEP-Z Interconnection System
(Continued)

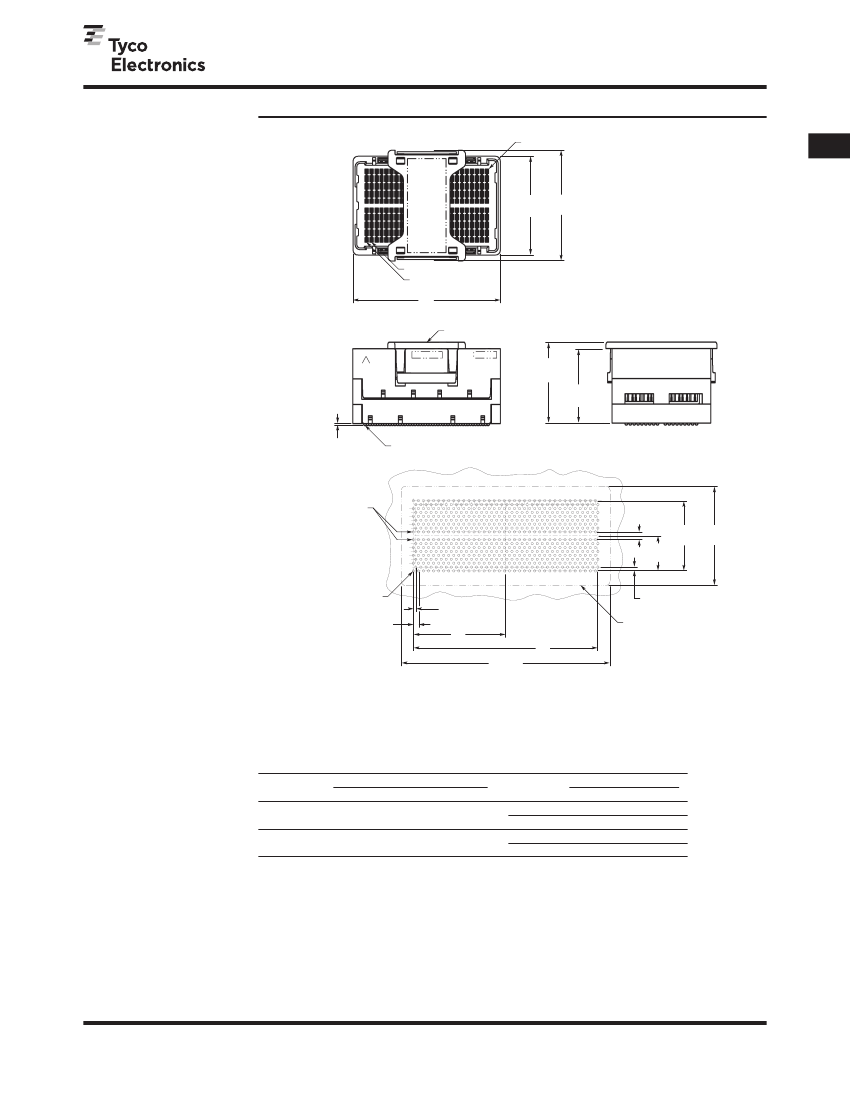

25.00 [.984] Plugs
Position T25
STEP-Z
Interconnection System
25.50 28.60
[1.004] [1.126]
Position A2
Position A1
A
Optional Pick-Up Cap
25.95
±
0.25
[1.022
±
.010
]
24.65
±
0.12
[.970
±
.005
]
0.55
Ref.
[.022]
Ø 0.76
Solder Balls
[.030]
Contacts In
These Rows Are
Tied Together
(Commoned)
2.00
[.079]
18.00 25.50
Ref.
[.709] [1.004]
9.00
[.354]
Ø 0.60–0.55
[.024–.022]
1.30
36x
[.051]
0.65
73x
[.026]
C
B
A
Ref.
1.00
8x
[.039] 2 Plcs.
Stencil Connector Outline
Onto Board
Recommended PC Board Layout
No. of
Pos.*
200
296
A
38.20
1.504
53.75
2.116
Dimensions
B
31.85
1.254
47.45
1.868
C
15.93
.627
23.725
.934
Plating
SnPb
Pb-free
SnPb
Pb-free
Part Numbers
With Pick & Place Cap
2-1761614-5
7-1761614-5
2-1761616-5
7-1761616-5
* Signal contacts only, ground contacts not included.
Tray packaged Part Numbers shown. Contact Tyco Electronics Engineering for Tape and Reel
packaged versions.
Note:
Part Numbers are RoHS compliant except: Indicates non-RoHS compliant;
Indicates “5 of 6 compliant” (lead in solderable interface only).
13
Catalog 65194
Revised 6-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
High Speed Fine Pitch Connectors
(MICTOR, MICTOR SB, Micro-Strip and STEP-Z
Interconnection Systems)

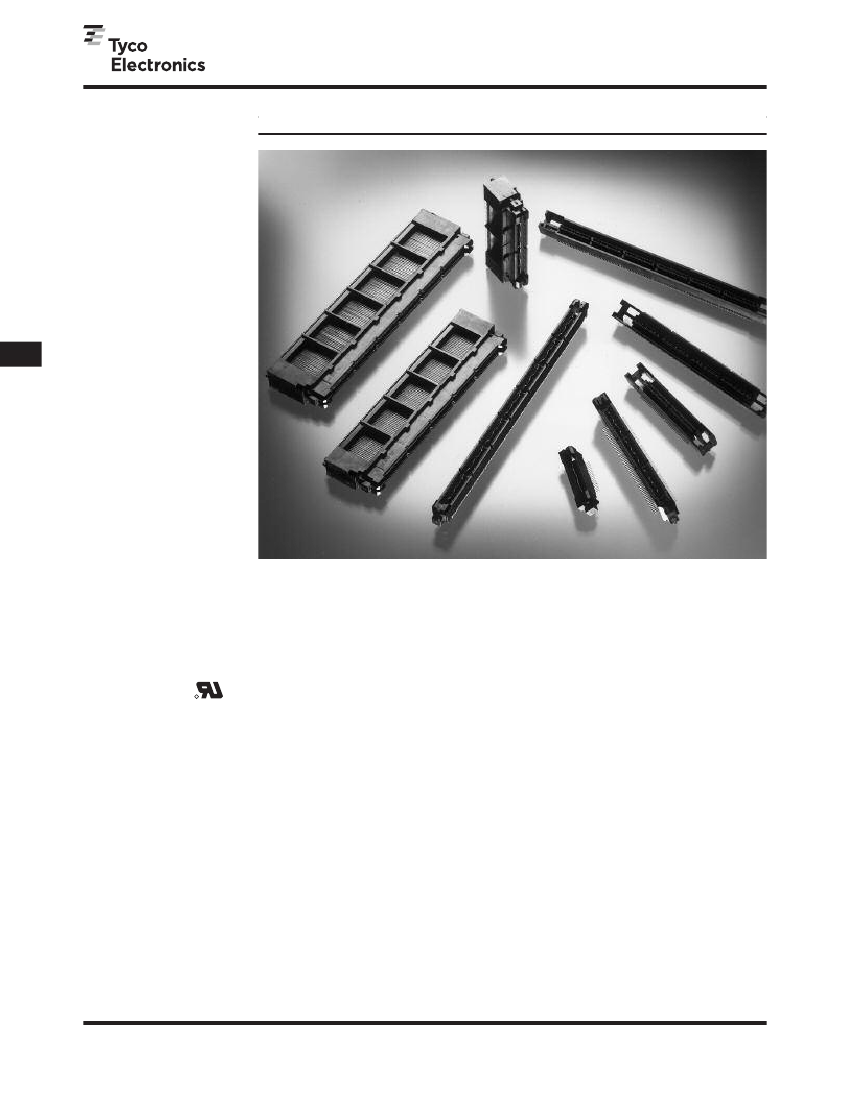

Introduction to the MICTOR Interconnection System
Page_Head
(Continued)
(0.64 [.025] Centerline)
Product Facts
I
76 dedicated signal lines
per linear inch
Surface mount family
designed for parallel and
right-angle board-to-board,
flex-to-board and cable-to-
board configurations
0.64 [.025] centerline
contact spacing
Redundant interfaces on
mated contacts
Fifteen mated stack heights
available ranging from 6.60
[.260] to 31.90 [1.256]
Infrared and forced air
convection compatible
housing materials
Designed for 50-ohm
systems
Connector housings
polarized for correct mating
Built-in connector-to-board
retention feature
Connector can be separated
by peeling from one end to
the other
Various packaging styles
can be made available for
automated assembly
(tape and reel, tubes)
Recognized under the
Component Program of
Underwriter
Laboratories Inc.
File No. E28476
R
I
I
I
I
MICTOR
Interconnection System
I
I
I
I
I
I
I
The MICTOR connector
family is based on the
microstrip concept of two
rows of signal contacts
divided by a center power
ground plane. MICTOR
connectors are mother-
board and daughtercard
compatible and include
designs for cable-to-board
applications.
Various mated heights are
available for parallel board-
to-board systems. Custom
stacking heights can be
provided. The MICTOR
connector family is avail-
able in 0.64 [.025] center-
lines and in sizes ranging
from 38 signal positions to
266 positions (in increments
of 38 positions). There is a
discrete ground bus every
12.7 [.50] of the connector
length, which can be
assigned to either power or
ground in any combination.
Redundant interfaces on
every signal line provide
added reliability. Two plating
options are available to
meet the needs of various
applications.
The housing material is
a liquid crystal polymer,
compatible with infrared
and forced air convection
operations.
The connector system uses
the solid ground bus
between the rows of signals
to provide low crosstalk and
excellent high-speed signal
characteristics.
14
Catalog 65194
Revised 6-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
High Speed Fine Pitch Connectors
(MICTOR, MICTOR SB, Micro-Strip and STEP-Z
Interconnection Systems)

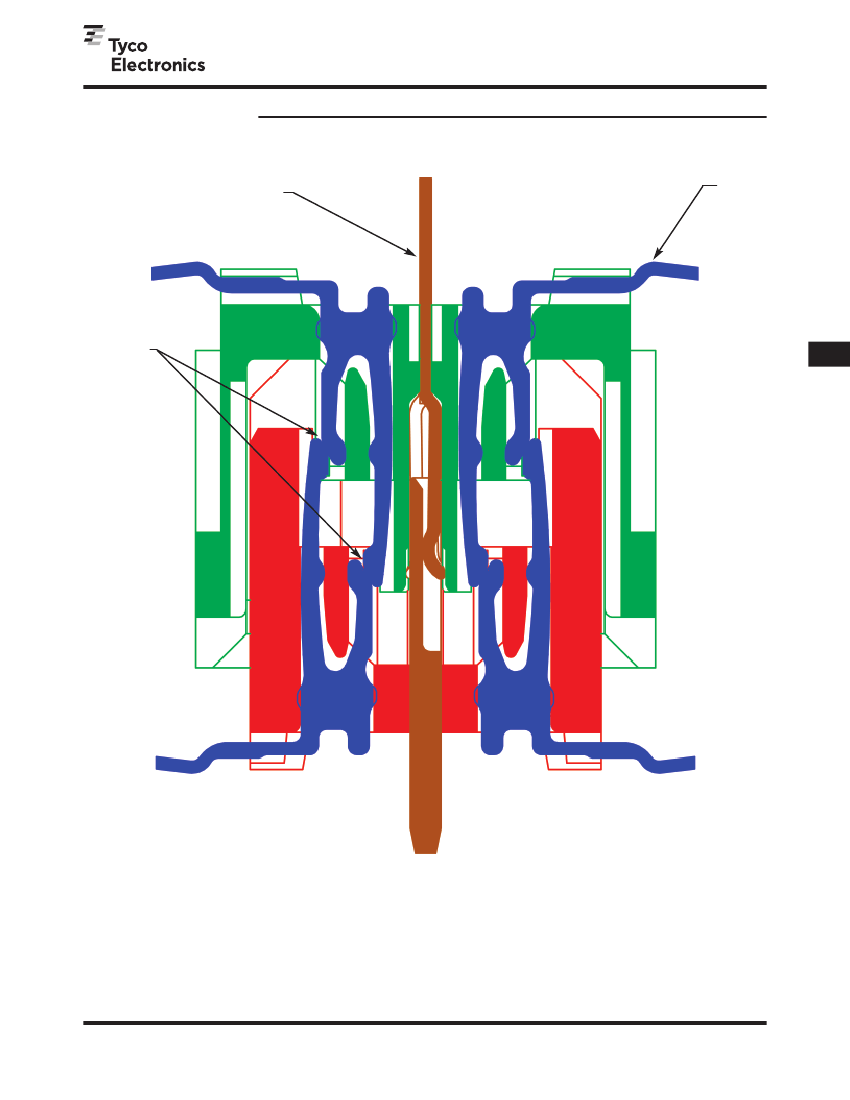

MICTOR Connector Cross Section
Center ground bus for
improved signal integrity
and matched impedance
Compliant
SMT solder
lead design
Redundant
points of
contact for
high reliability
MICTOR
Interconnection System
Connectors are shown at point where signal contact first touch each other.
Connectors are designed to be fully mated when the two “Z” datums meet.
Green
Red
Blue
Brown
=
=
=
=
Receptacle housing
Plug housing
Signal contacts
Ground bus contacts
15
Catalog 65194
Revised 6-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
High Speed Fine Pitch Connectors
(MICTOR, MICTOR SB, Micro-Strip and STEP-Z
Interconnection Systems)
Material and Performance Specifications, MICTOR Connectors
Page_Head
(Continued)
Material Specifications
Material
Housing
— Liquid crystal polymer, black
Contacts
— High reliability copper alloy
Ground Bus
— Phosphor bronze
Finish (Gold Plating)
Contacts and Ground Bus
— Duplex plated 0.00076 [.000030] min. gold in mating area, 0.00381 [.000150] min. tin-lead on
leads, with entire contact and ground bus underplated 0.00178 [.000070] min. nickel
Finish (Palladium-Nickel Plating)
Contacts and Ground Bus
— Duplex plated 0.000013 [.000005] min. gold over 0.00076 [.000030] min. palladium-nickel in
mating area, 0.00381 [.000150] min. tin-lead on leads, with entire contact and ground bus underplated 0.00178 [.000070] min.
nickel
Finish (Lead-Free Plating)
Contacts and Ground Bus
— 0.00076 [.000030] min. gold on contact area, 0.00381-0.00635 [.000150-.000250] matte tin per
ASTM B 545 on leads, all over 0.00177-0.00445 [.000070-.000175] nickel.
Or
0.00013 [.000005] min. gold over, 0.00076 [.000030] min. palladium nickel on contact area, 0.00381-0.00635 [.000150-.000250]
matte tin per ASTM B 545 on leads, all over 0.00191-0.00445 [.000075-.000175] nickel.
MICTOR
Interconnection System
Performance Specifications
Ratings
Voltage
— 30 vac
Current
— Signal; rated 1.0 Amps, fully derated 0.5 Amps
Ground; rated 11.5 Amps, fully derated 7.6 Amps
Temperature
— -55°C to +125°C
Electrical Characteristics
Characteristic Impedance
— 50±5 ohms at 1 ns
Termination Resistance
—
∆R
10 milliohms max.; Specification 109-6-1
Insulation Resistance
— 10,000 megohms min.; Specification 109-208-1
Dielectric Withstanding Voltage
— 500 vac at sea level; Specification 109-29-1
Mechanical Characteristics
Solderability
— Solderable area shall have a 95% min. solder coverage; Specification 109-11-1
Vibration (Random)
— No discontinuities of 1 µs or longer duration; Specification 109-21-5
Physical Shock
— No discontinuities of 1 µs or longer duration; Specification 109-26-1
Durability (Tested to)
— Mate and unmate samples at a rate of 600 cycles max. per hour. 25 cycles, gold plating;
500 cycles, palladium-nickel plating; Specification 109-27
Contact Retention
— 1 lb min.; Specification 109-30
Mating Force
— 152 oz max. per 1/2 inch of connector (1 module). Each module equals 38 signal contacts and 1 ground bus;
Specification 109-42
Unmating Force
— 19 oz min. per 1/2 inch of connector (1 module). Each module equals 38 signal contacts and 1 ground bus;
Specification 109-42
Environmental Characteristics
Thermal Shock
— Subject mated samples to 5 cycles between -55°C and +125°C; Specification 109-22
Humidity - Temperature Cycling
— Subject mated samples to 10 cycles between +25°C and +65°C at 95% RH;
Specification 109-23-3, Condition B
Temperature Cycling
— Subject mated samples to 1024 cycles between -40°C and +60°C at 2 hours per cycle;
Specification 109-75-1
Temperature Life
— Subject mated samples to temperature life at +118°C for 792 hours;
Specification 109-43
Mixed Flowing Gas
— Subject mated samples to environmental class II for 14 days; Specification 109-85-2
16
Catalog 65194
Revised 6-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
High Speed Fine Pitch Connectors
(MICTOR, MICTOR SB, Micro-Strip and STEP-Z
Interconnection Systems)

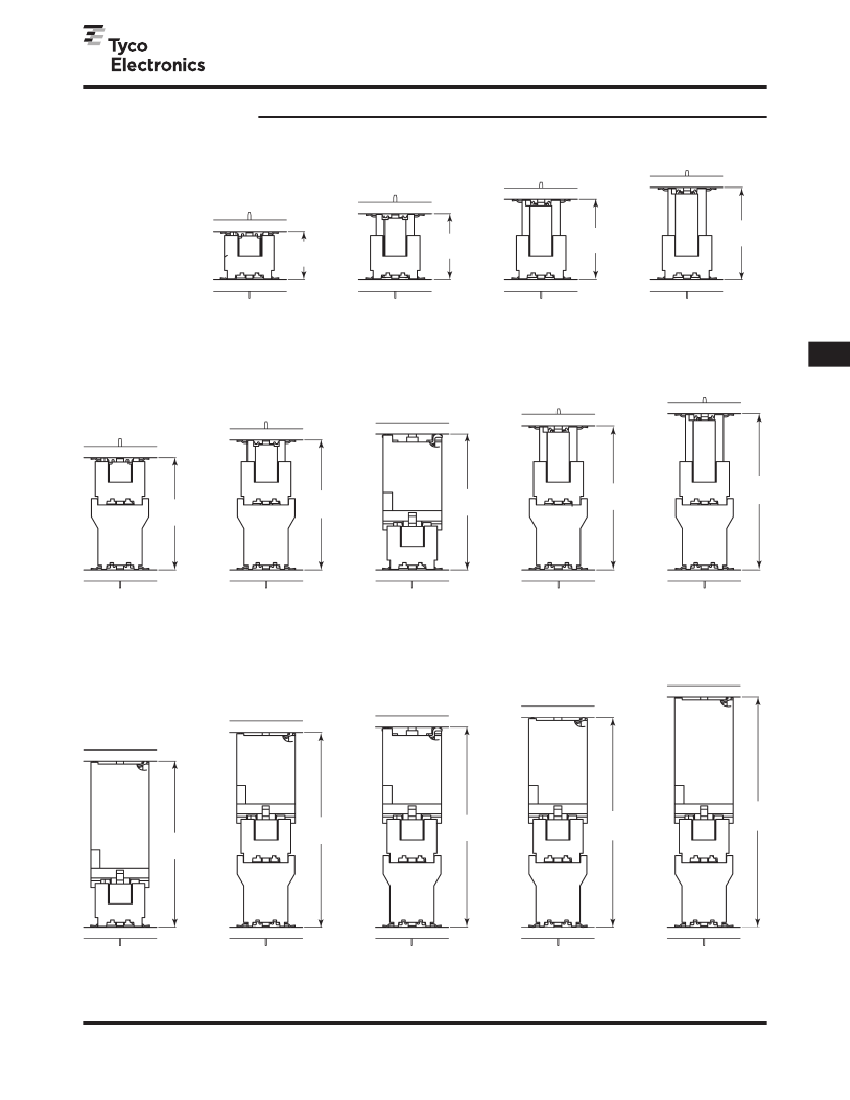

MICTOR Stack Height Combinations
