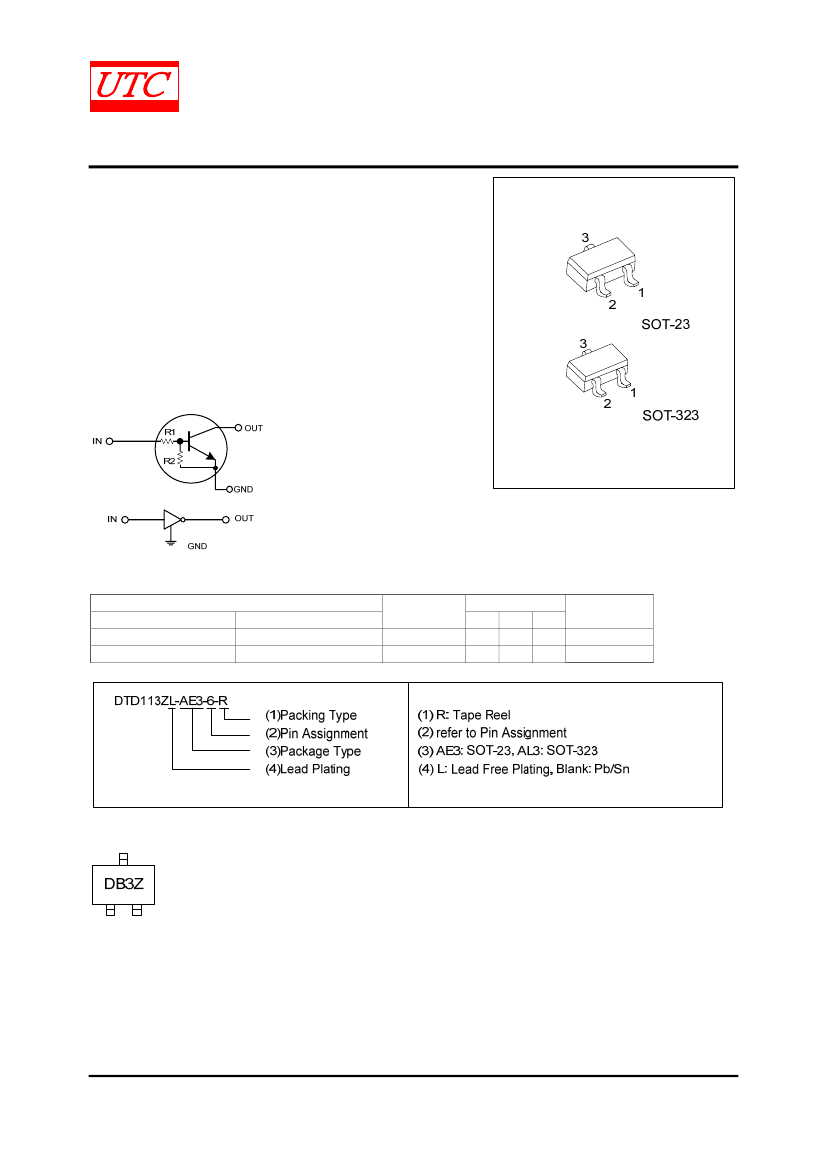

UNISONIC TECHNOLOGIES CO., LTD
DTD113Z
NPN DIGITAL TRANSISTOR
(BUILT- IN BIAS RESISTORS)
FEATURES
* Built-in bias resistors that implies easy ON/OFF applications.
* The bias resistors are thin-film resistors with complete isolation to
allow negative input.
NPN SILICON TRANSISTOR
EQUIVALENT CIRCUIT
*Pb-free plating product number:DTD113ZL
ORDERING INFORMATION
Order Number
Normal
Lead Free Plating
DTD113Z-AE3-6-R
DTD113ZL-AE3-6-R
DTD113Z-AL3-6-R
DTD113ZL-AL3-6-R
Package
SOT-23
SOT-323
Pin Assignment
1
2
3
G
I
O
G
I
O
Packing
Tape Reel
Tape Reel
MARKING
www.unisonic.com.tw
Copyright © 2005 Unisonic Technologies Co., Ltd
1 of 3
QW-R206-082,C
DTD113Z
ABSOLUTE MAXIMUM RATINGS
(Ta=25°C)
PARAMETER
NPN SILICON TRANSISTOR
SYMBOL
RATINGS
UNIT
Supply Voltage
V
CC
50
V
Input Voltage
V
IN
-5 ~ +10
V
Output Current
I
OUT
500
mA
Power Dissipation
P
C
200
mW
Junction Temperature
T
J
+150
°C
Storage Temperature
T
STG
-55 ~ +150
°C
Note Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL SPECIFICATIONS
(Ta=25°C, unless others specified)
SYMBOL
TEST CONDITIONS
V
IN(OFF)
V
CC
=5V, I
OUT
=100μA
Input Voltage
V
IN(ON)
V
OUT
=0.3V, I
OUT
=20mA
Output Voltage
V
OUT(ON)
I
OUT
/I
IN
=50mA/2.5mA
Input Current
I
IN
V
IN
=5V
Output Current
I
OUT(OFF)
V
CC
=50V, V
IN
=0V
DC Current Gain
h
FE
V
OUT
=5V, I
OUT
=50mA
Input Resistance
R
1
Resistor Ratio
R
2
/R
1
Transition Frequency
f
T
V
CE
=10V, I
E
=−50mA, f=100MHz
Note: Transition frequency of the device
PARAMETER
MIN
1.5
0.1
0.3
7.2
0.5
1.3
12
TYP
MAX
0.3
UNIT
V
V
mA
μA
KΩ
MHz
82
0.7
8
1
10
200
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 3
QW-R206-082,C
DTD113Z

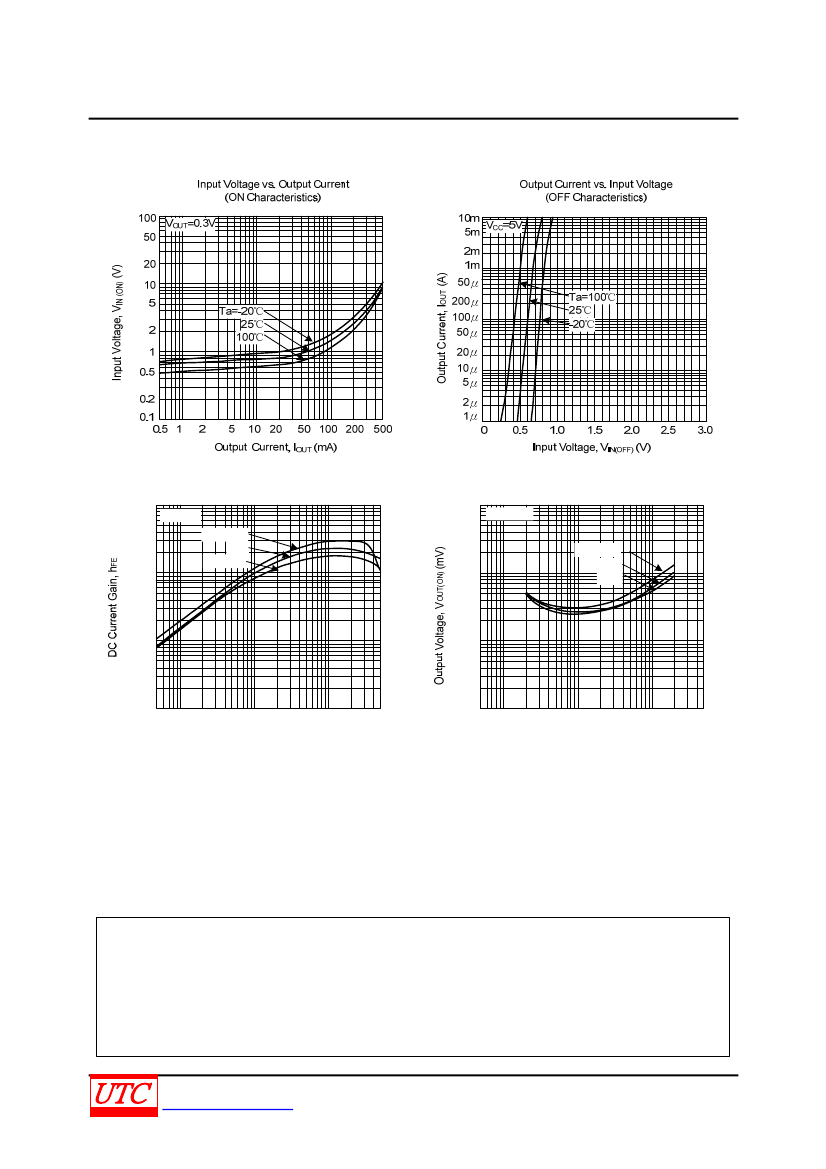

TYPICAL CHARACTERISTICS
NPN SILICON TRANSISTOR
DC Current Gain vs. Output Current
1K
500
200
100
50
20
10
5
2
1
0.5 1
2
5
10 20
50 100 200 500
V
OUT
=5V
Ta=100℃
25℃
-20℃
1000
500
200
100
100
20
10
5
2
1
0.5 1
Output Voltage vs. Output Current
l
OUT
/l
IN
=20
Ta=100℃
25℃
-20℃
2
5
10 20
50 100 200 500
Output Current, I
OUT
(mA)
Output Current, I
OUT
(mA)
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 3
QW-R206-082,C
