Device mounted on ceramic PCB; 7.6mm × 9.4mm × 0.87mm with pad areas 25mm
2
.
Tested with pulses, Tp ≤ 1ms.
Electrical Characteristics @ T
a
= 25°C unless otherwise specified
Zener Voltage Range
Type Number
Type
Code
Nom(V)
MMSZ5242B
H2
12
V
z
@I
ZT
Min(V)
11.4
Max(V)
12.6
Test
Current
I
ZT
mA
20
30
Maximum Zener
Impedance
Z
ZT
@I
ZT
Z
ZK
@I
ZK
= 0.25mA
Ω
600
Maximum Reverse
Leakage Current
I
R
μA
1
@V
R
V
9.1
www.element14.com
www.farnell.com
www.newark.com
Page <1>
25/02/13
V1.0
Surface Mount
Zener Diode

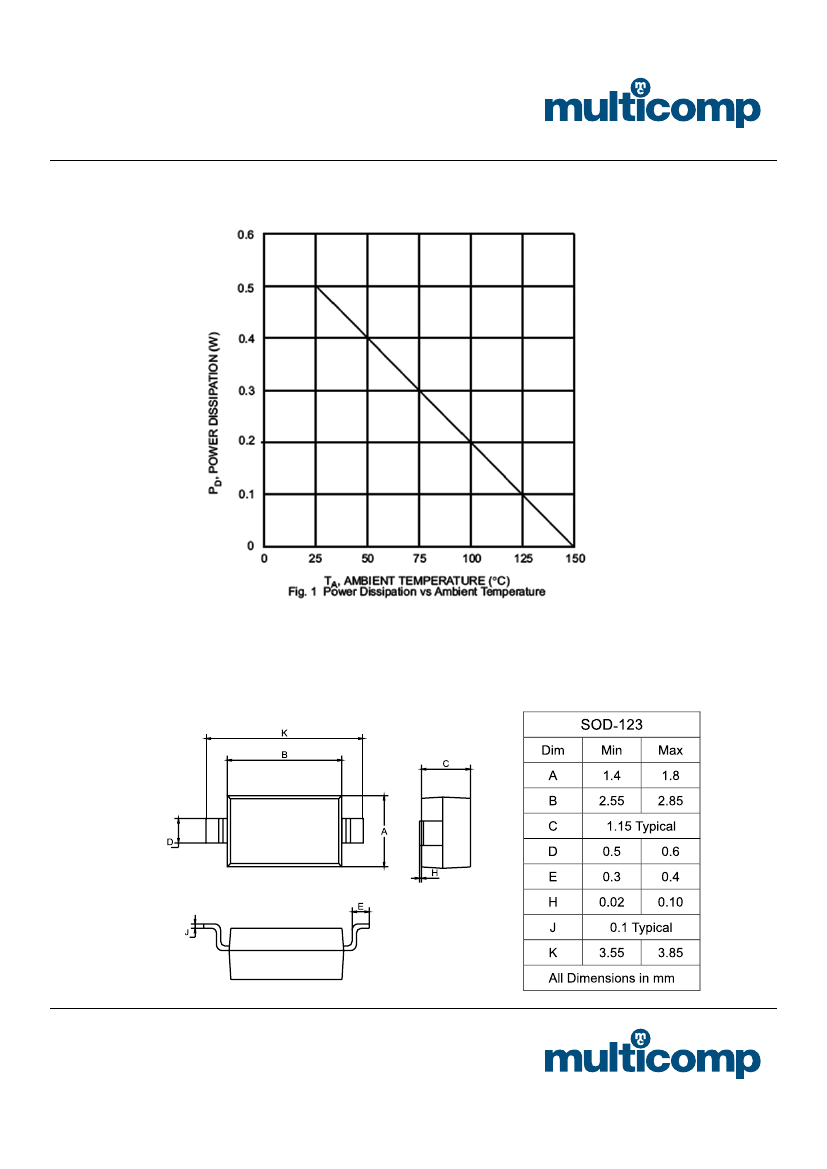

Typical Characteristics @ T
a
= 25°C unless otherwise specified
Package Outline
Plastic surface mounted package
www.element14.com
www.farnell.com
www.newark.com
Page <2>
25/02/13
V1.0
Surface Mount
Zener Diode
Soldering Footprint
Package Information
Device
MMSZ5242B-7-F
Package
SOD-123
Shipping
3,000/Tape & Reel
Dimensions : Millimetres
Part Number Table
Description
Surface Mount Zener Diode
Part Number
MMSZ5242B-7-F
Important Notice :
