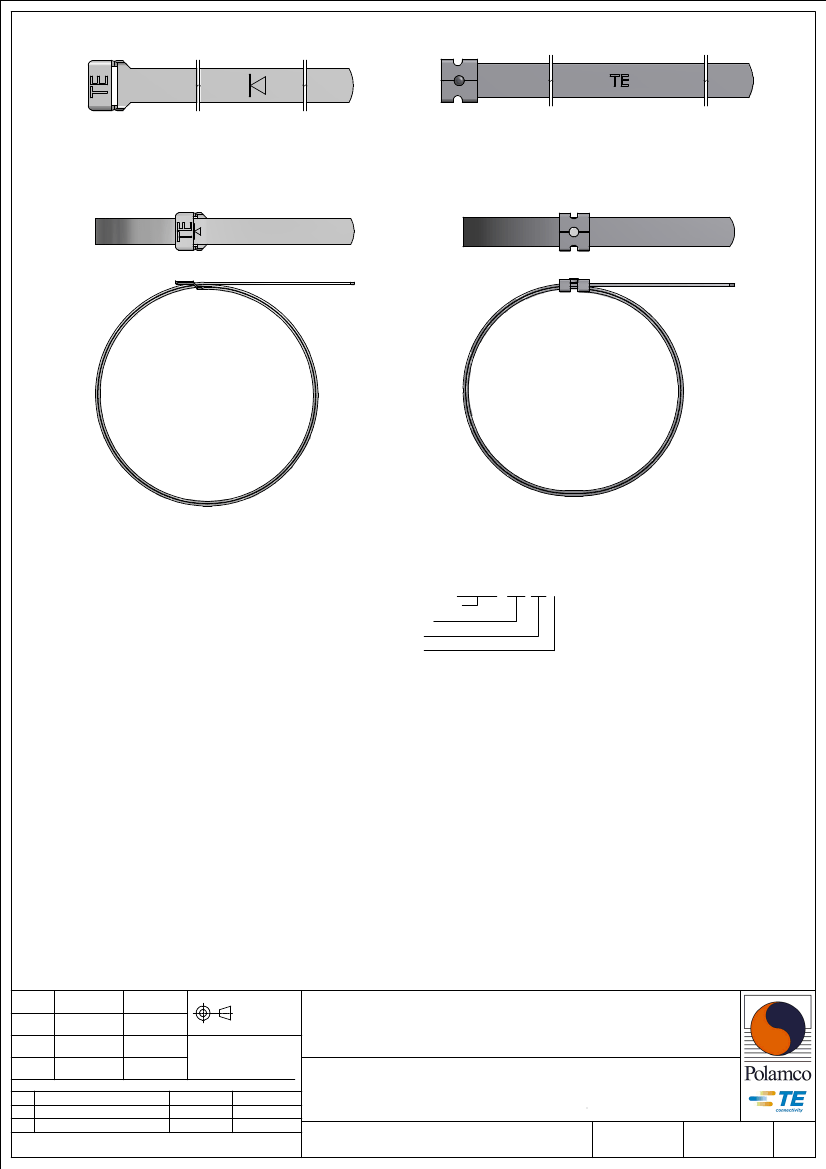

ONE STEP BAND STRAP - STRAIGHT
TWO STEP BAND STRAP - STRAIGHT
ONE STEP BAND STRAP - PRE-COILED
TWO STEP BAND STRAP - PRE-COILED
BND-0812X
SCREEN TERMINATION BAND
BAND LENGTH IN INCHES
BAND WIDTH IN INCHES
BAND CONFIGURATION
S - STRAIGHT (FLAT)
P - PRE-COILED
NOTES:
1. THE BAND STRAPS ARE CONSTRUCTED FROM 300 SERIES PASSIVATED CORROSION RESISTING STEEL.
2. THE PRODUCT SHALL BE IDENTIFIED ON THE PACKAGE LABEL.
3. PART MARKING:
ONE STEP BAND STRAP WILL BE PERMANENTLY MARKED WITH TE LOGO.
TWO STEP BAND STRAP WILL BE PERMANENTLY MARKED WITH TE LOGO.
4. RECOMMENDED INSTALLATION TOOLS:
BND-0812X: M81306/1-02 OR EQUIVALENT.
BND-1412X: TF1700 OR EQUIVALENT.
BND-1425X : M81306/1-01 OR EQUIVALENT.
BND-1225X : M81306/2-01 OR EQUIVALENT.
5. THE INSTALLATION TOOL FOR ONE STEP BAND AND TWO STEP BAND ARE NOT INTERCHANGEABLE.
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
02/06/2016
02/06/2016
30/10/2015
26/07/2016
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
BND-*****
ASSY USED ON:
D.JONES
REVISIONS
LTR
DESCRIPTION
E REVISED PER ECO-16-000290
F
REVISED PER ECO-16-011070
DATE
08/01/2016
26/07/2016
APPROVED
H.SMITH
D.JONES
SCREEN TERMINATION BAND
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
PASSIVATE
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
BND-XXXXX
F
1
TAIL LENGTH INDICATOR MARK
51,60 REF.
[2.031 REF.]
C
B
A
E
A
2,5 REF.
[.098 REF.]
PART
NUMBER

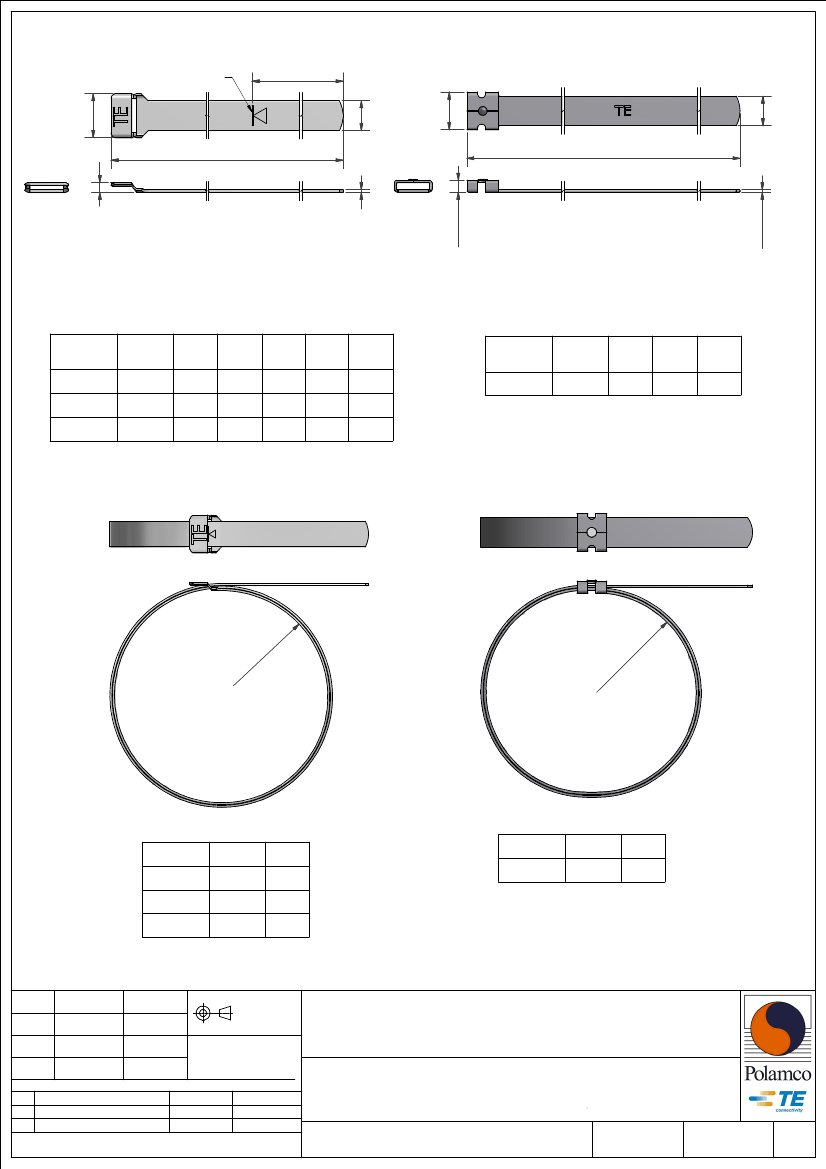

BND-0812S
BND-1412S
BND-1425S
ONE STEP BAND STRAP - STRAIGHT
A
B
C
ENTRY
D
±1,8
±1,0
±0,2
SIZE
REF.
[±.071]
[±.040]
[±.010]
206,3
5,0
2,9
0,4
03 TO 12
[8.120]
[.197]
[.114]
[.016]
362,0
5,0
3,0
0,4
03 TO 24
[14.252]
[.197]
[.118]
[.016]
362,1
8,9
6,2
0,5
03 TO 24
[14.260]
[.350]
[.244]
[.020]
E
REF.
1,8
[.071]
1,8
[.071]
1,9
[.075]
TWO STEP BAND STRAP - STRAIGHT
A
B
C
PART
ENTRY
±1,8
±1,0
±0,2
NUMBER
SIZE
[±.071]
[±.040]
[±.010]
358,8
8,3
6,2
BND-1225S
03 TO 24
[14.126]
[.327]
[.244]
Ø
A
Ø
A
ONE STEP BAND STRAP - PRE-COILED
PART
ENTRY
ØA
NUMBER
SIZE
REF
21.8
BND-0812P
03 TO 12
[.858]
44.5
BND-1412P
03 TO 24
[1.752]
44.5
BND-1425P
03 TO 24
[1.752]
TWO STEP BAND STRAP - PRE-COILED
PART
ENTRY
ØA
NUMBER
SIZE
REF
44,5
BND-1225P
03 TO 24
[1.752]
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
02/06/2016
02/06/2016
30/10/2015
26/07/2016
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
BND-*****
D.JONES
ASSY USED ON:
LTR
E
REVISED PER ECO-16-000290
F
REVISED PER ECO-16-011070
REVISIONS
DESCRIPTION
DATE
08/01/2016
26/07/2016
APPROVED
H.SMITH
D.JONES
SCREEN TERMINATION BAND
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
0,50 REF.
[.020 REF.]
D
C
B
SHT
BND-XXXXX
F
2

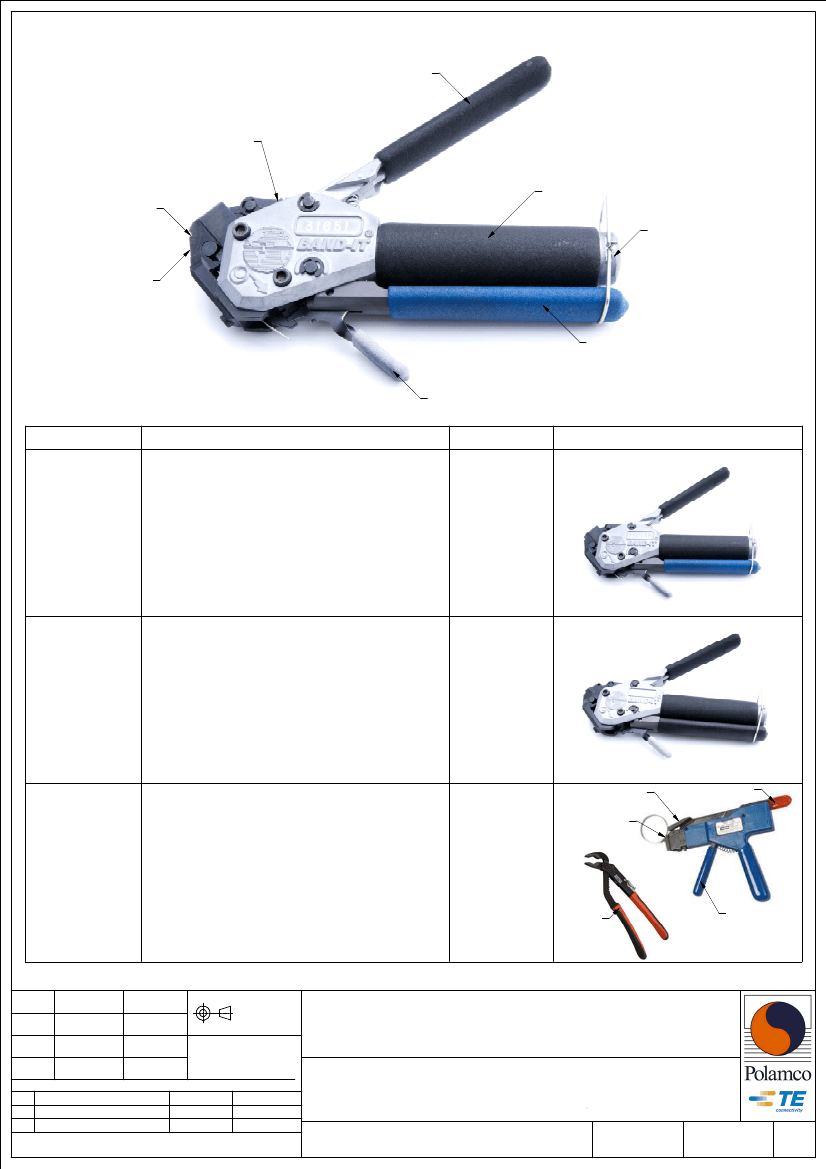

CUT-OFF HANDLE
TENSION RELEASE
LEVER
TOOL BODY
BAND SLOT
CALIBRATION
ACCESS PLUG
CUT-OFF BLADE
PULL-UP HANDLE
GRIPPER RELEASE LEVER
BAND SLOT WIDTH
(MM)
PART NUMBER
DESCRIPTION
VISUALISATION
M81306/1-02
PRE-CALIBRATED HAND TOOL FOR ONE STEP MICRO BAND
BND-0812S
BND-0812P
BND-1412S
BND-1412P
3,18
M81306/1-01
PRE-CALIBRATED HAND TOOL FOR ONE STEP STANDARD
BANDS
BND-1425S
BND-1425P
6,35
TIGHTENING TOOL
M81306/2-01A
BAND SLOT
AND CUT-OFF
MECHANISM
PRE-CALIBRATED HAND TOOL FOR TWO STEP BAND
BND-1225S
BND-1225P
6,65
CUT-OFF HANDLE
TF1700 INCLUDES:
- TIGHTENING TOOL -
M81306/2-01A
- FOLDING TOOL -
TF1696
(SLIP JOINT PLIERS)
FOLDING
TOOL
TF1696
PULL-UP
HANDLE
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
02/06/2016
02/06/2016
30/10/2015
26/07/2016
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
RECOMMENDED TOOLING
ASSY USED ON:
D.JONES
LTR
E
REVISED PER ECO-16-000290
F
REVISED PER ECO-16-011070
REVISIONS
DESCRIPTION
DATE
08/01/2016
26/07/2016
APPROVED
H.SMITH
D.JONES
SCREEN TERMINATION BAND
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
BND-XXXXX
F
3
