59S50E-102A4-M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 59S50E-102A4-M

59S50E-102A4-M: DescriptionRF F Connector, Male, Panel Mount, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size124KB，3 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

59S50E-102A4-M Overview

RF F Connector, Male, Panel Mount, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT

59S50E-102A4-M Parametric

Parameter Name	Attribute value
Maker	Rosenberger
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	APPLICABLE CABLE: RG 174
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF F CONNECTOR
Contact to complete cooperation	GOLD (31) OVER NICKEL
Contact completed and terminated	GOLD (31) OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.24 dB
insulator material	PA12
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	59S50E-102A4
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
voltage standing wave ratio	1.43
Base Number Matches	1

Preview

Download Datasheet

View All

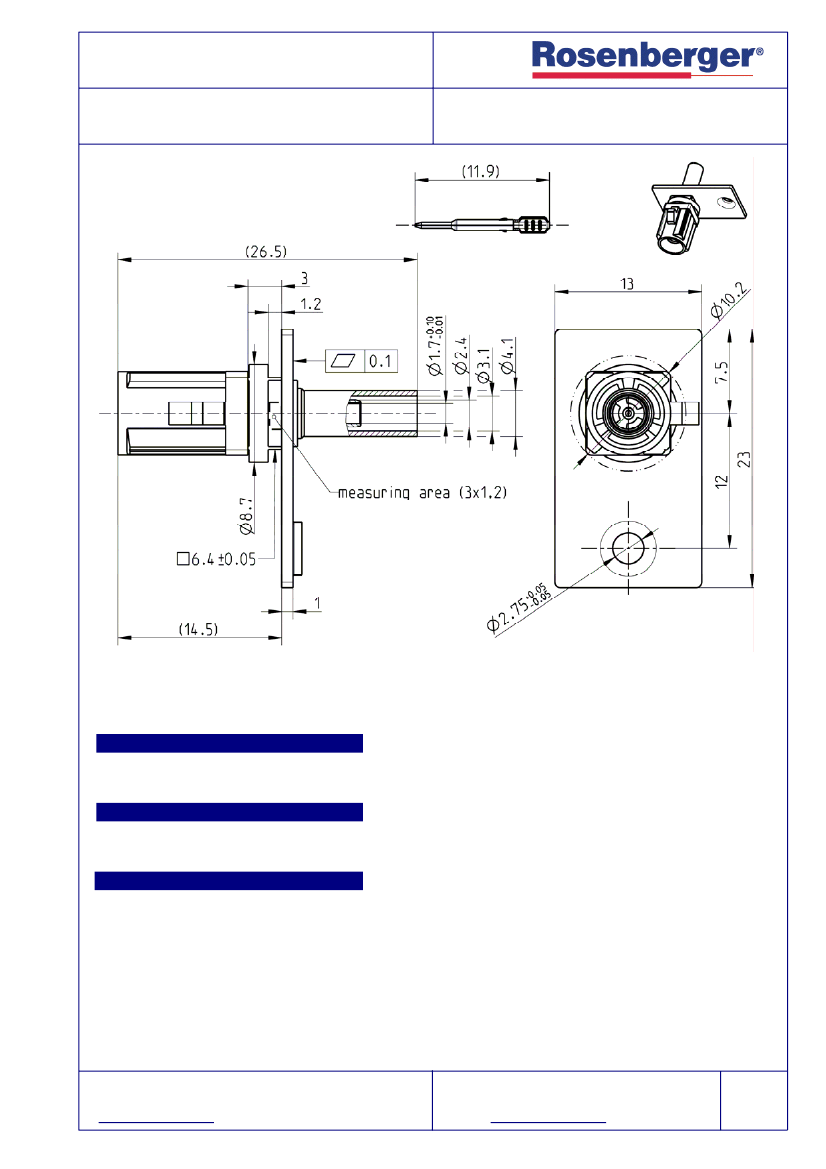

TECHNICAL DATA SHEET

FAKRA - HF

BULKHEAD PLUG

59S50E-102A4-Y

All dimensions are in mm; tolerances according to ISO 2768 m-H

Y = Part number has to be accomplished by codification

Interface

According to

DIN 72594-1

Documents

Assembly instruction

MA_59V068

Material and plating

Connector parts

Center contact

Outer contact

Dielectric

Crimping ferrule

Housing

Sheet metal

RF_35/12.04/3.0

Material

Spring bronze

Brass

PA 12

Copper

PA 6T/66

Steel

Plating

Gold, min. 0.8 µm, over chemical nickel

Nickel, 2.5-5 µm

Pre - tinned

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/3

59S50E-102A4-M Related Products

	59S50E-102A4-M	59S50E-102A4-K	59S50E-102A4-L	59S50E-102A4-N
Description	RF F Connector, Male, Panel Mount, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT	RF F Connector, Male, Panel Mount, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT	RF F Connector, Male, Panel Mount, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT	RF F Connector, Male, Panel Mount, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT
Maker	Rosenberger	Rosenberger	Rosenberger	Rosenberger
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	APPLICABLE CABLE: RG 174	APPLICABLE CABLE: RG 174	APPLICABLE CABLE: RG 174	APPLICABLE CABLE: RG 174
Body/casing type	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF F CONNECTOR	RF F CONNECTOR	RF F CONNECTOR	RF F CONNECTOR
Contact to complete cooperation	GOLD (31) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (31) OVER NICKEL
Contact completed and terminated	GOLD (31) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (31) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Coupling type	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insertion loss	0.24 dB	0.24 dB	0.24 dB	0.24 dB
insulator material	PA12	PA12	PA12	PA12
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	59S50E-102A4	59S50E-102A4	59S50E-102A4	59S50E-102A4
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	6 GHz	6 GHz	6 GHz	6 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	YES
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
voltage standing wave ratio	1.43	1.43	1.43	1.43
Base Number Matches	1	1	1	1
