5-1775443-9 datasheet, PDF - EEWORLD Datasheet

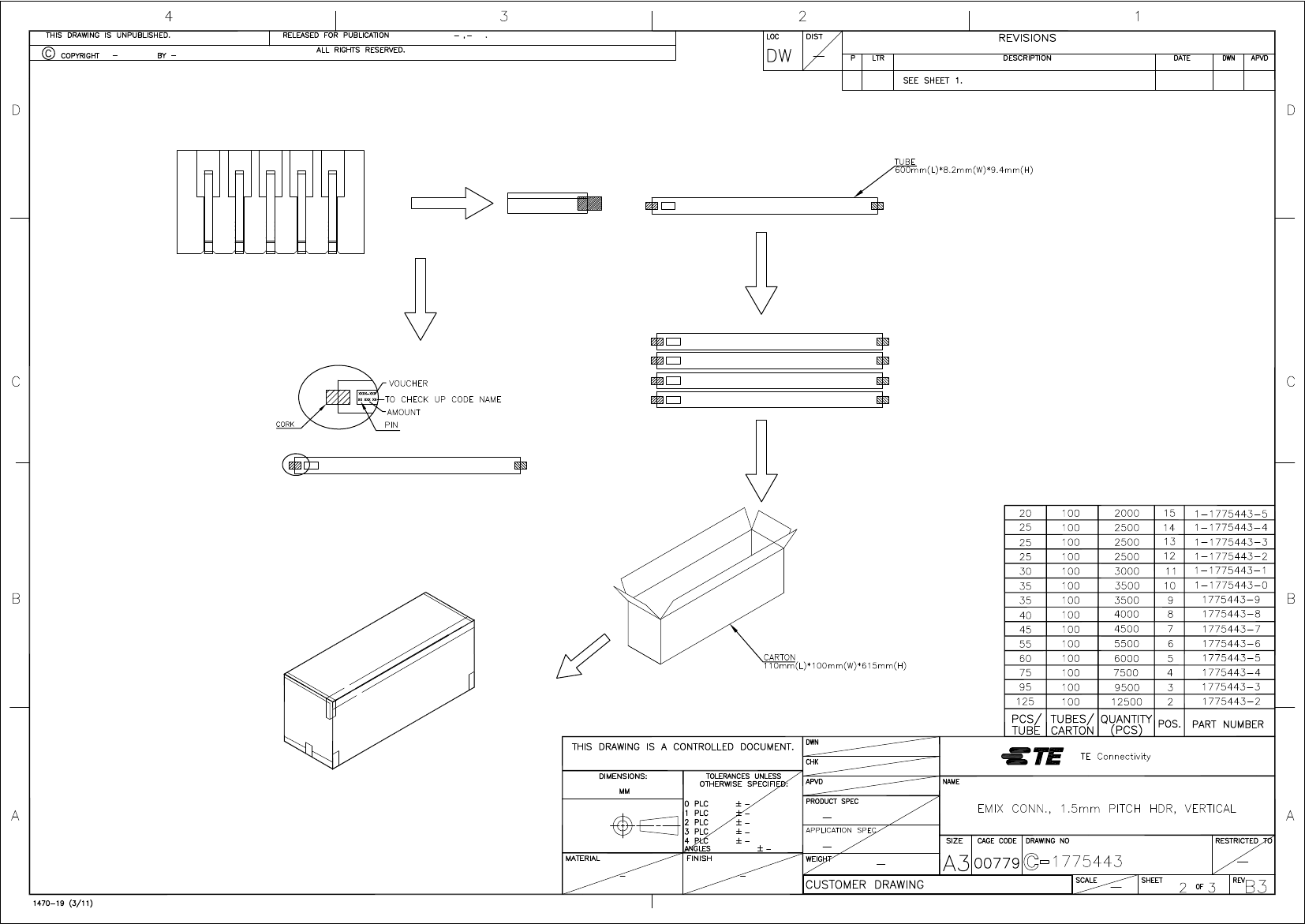

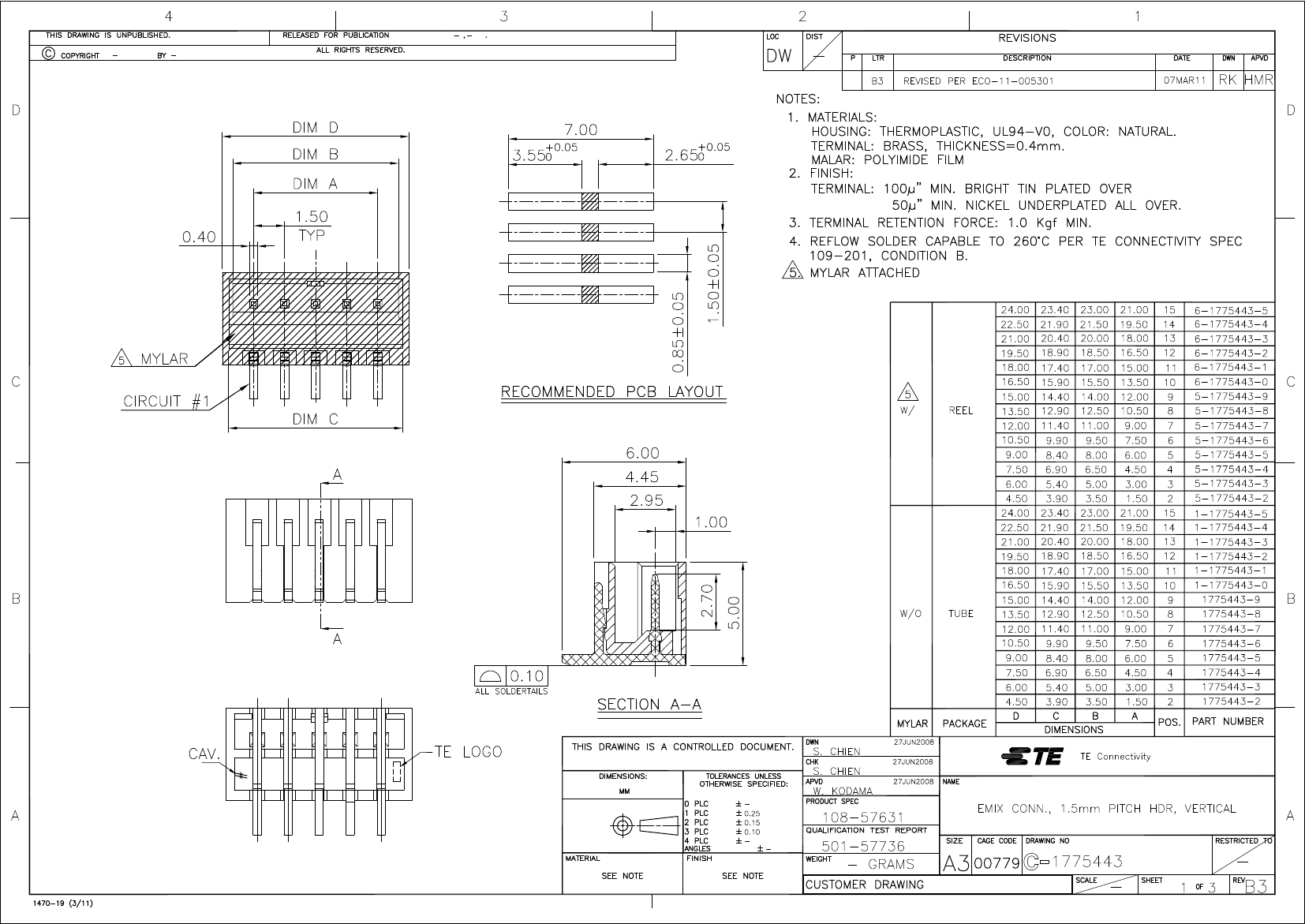

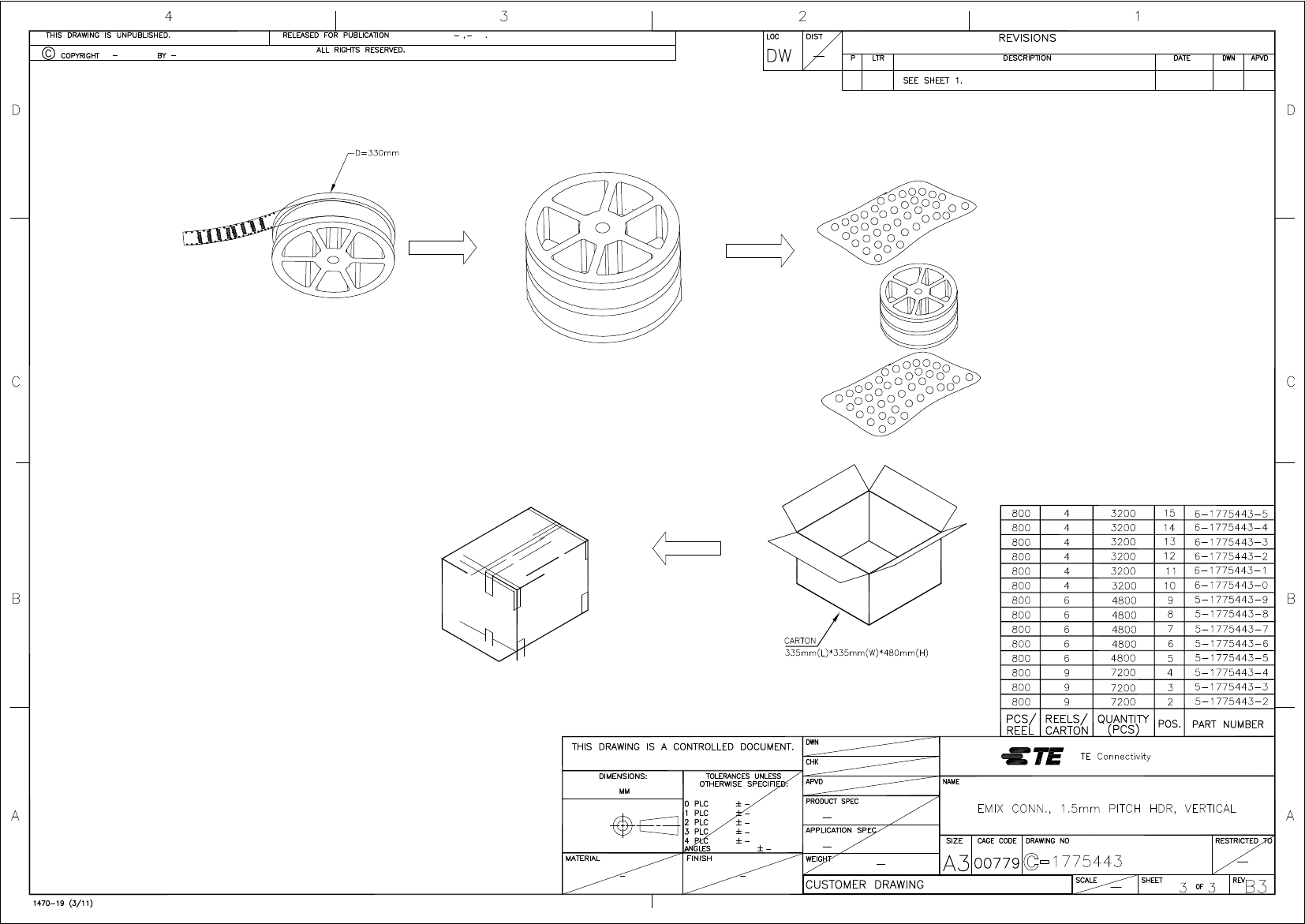

5-1775443-9: DescriptionEMIX CONN., 1.5MM PITCH, HDR, V/T, 9P; CategoryThe connector; File Size193KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-1775443-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1775443-9	-	-	View	Buy Now

EMIX CONN., 1.5MM PITCH, HDR, V/T, 9P

Parameter Name	Attribute value
PCB Connector Component Types	PCB mounting header
Connector System	wire to board
Connector type	Partially hooded
Sealable	no
Connectors and terminals terminate to	A printed circuit board
stress relief	Without
PCB mounting direction	vertical
Number of Positions	9
Rows	1
Backwall/Post Interruptions	Without
Operating voltage (VAC)	250
Terminal base material	brass
PCB terminal termination area plating materials	tin
Terminal shape	square
Terminal contact plating material	tin
Terminal contact part plating material surface coating	bright light
Terminal type	Pin
Contact Current Rating (Max) (A)	3
PCB terminal termination area plating materials	tin
PCB terminal termination area plating material surface coating	bright light
PCB terminal termination area plating thickness	2.54 µm [ 100 µin ]
Terminal layout	Direct plug-in
PCB Termination Methods	surface mount
Termination cylinder length	.061 in, 1.55 mm
PCB installation method	Through hole
PCB mounting alignment	Without
joint fixation	Without
PCB installation and fixation	Without
Connector mounting type	board mounting
joint alignment	with
Joint alignment type	polarization
Terminal positioning force	Without
Centerline (Pitch)	1.5 mm [ .059 in ]
Shell color	nature
Shell material	thermoplastic, thermoplastic
length	15 mm [ .591 in ]
high	5 mm [ .1968 in ]
width	6 mm [ .236 in ]
Joint post length	2.7 mm [ .106 in ]
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]
UL flammability rating	UL 94V-0
Encapsulation method	roll
Package quantity	1000
