6450850-2 datasheet, PDF - EEWORLD Datasheet

6450850-2: Description(6450850-2) MBXLE VERT RCPT 6LP + 24S + 3P; CategoryThe connector The connector; File Size2MB，6 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

6450850-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	6450850-2	-	-	View	Buy Now

(6450850-2) MBXLE VERT RCPT 6LP + 24S + 3P

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1734706628
Reach Compliance Code	compliant
YTEOL	9.1
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options	SPLIT BOARD LOCK
body width	0.47 inch
subject depth	0.5 inch
body length	2.555 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S24P9
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Durability	250 Cycles
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
MIL compliance	NO
Power Connector Ratings	42A
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of ports	1
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Plating thickness	30u inch
Rated current (signal)	42 A
Rated voltage	200 V
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	33
UL Flammability Code	94V-0

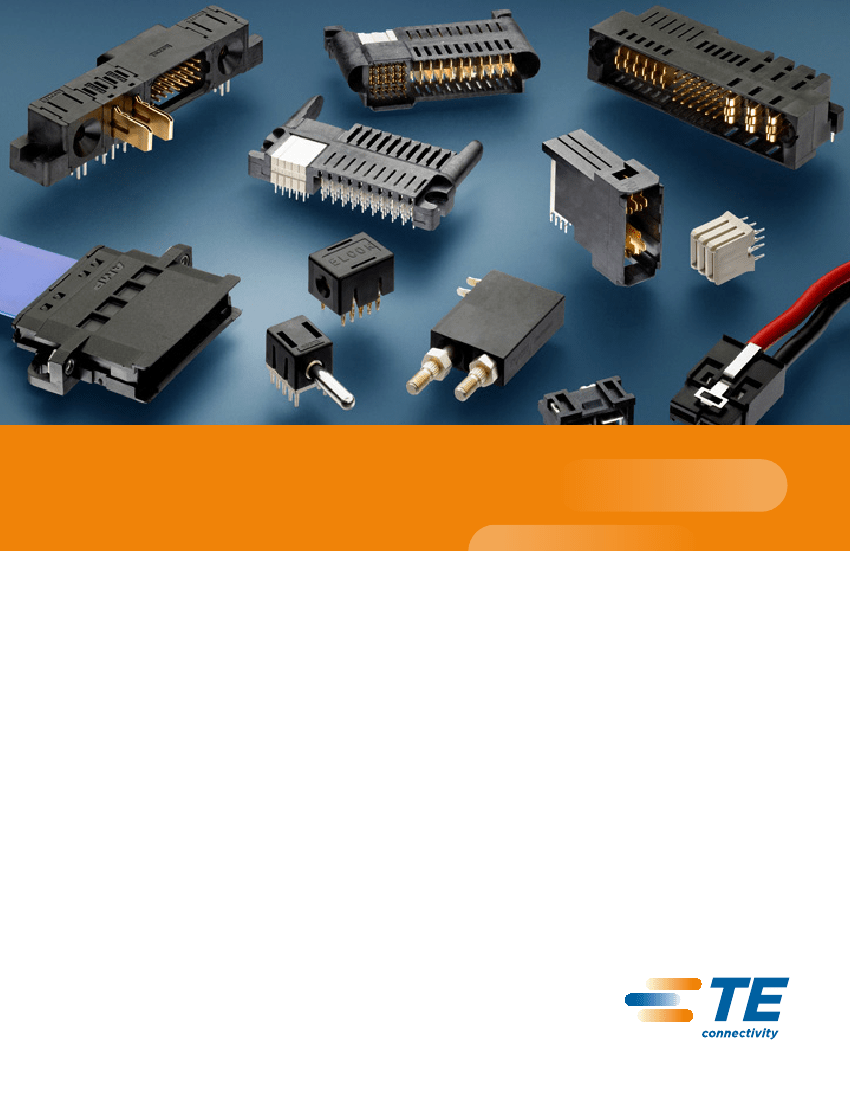

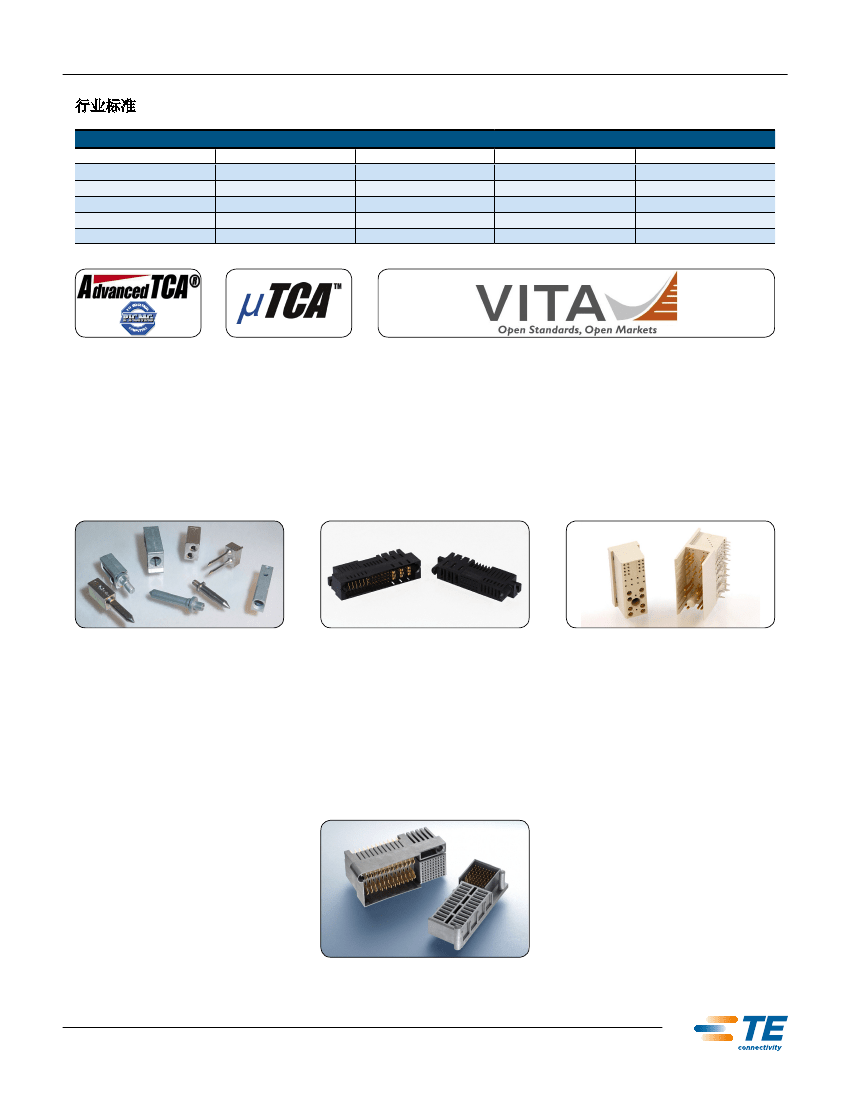

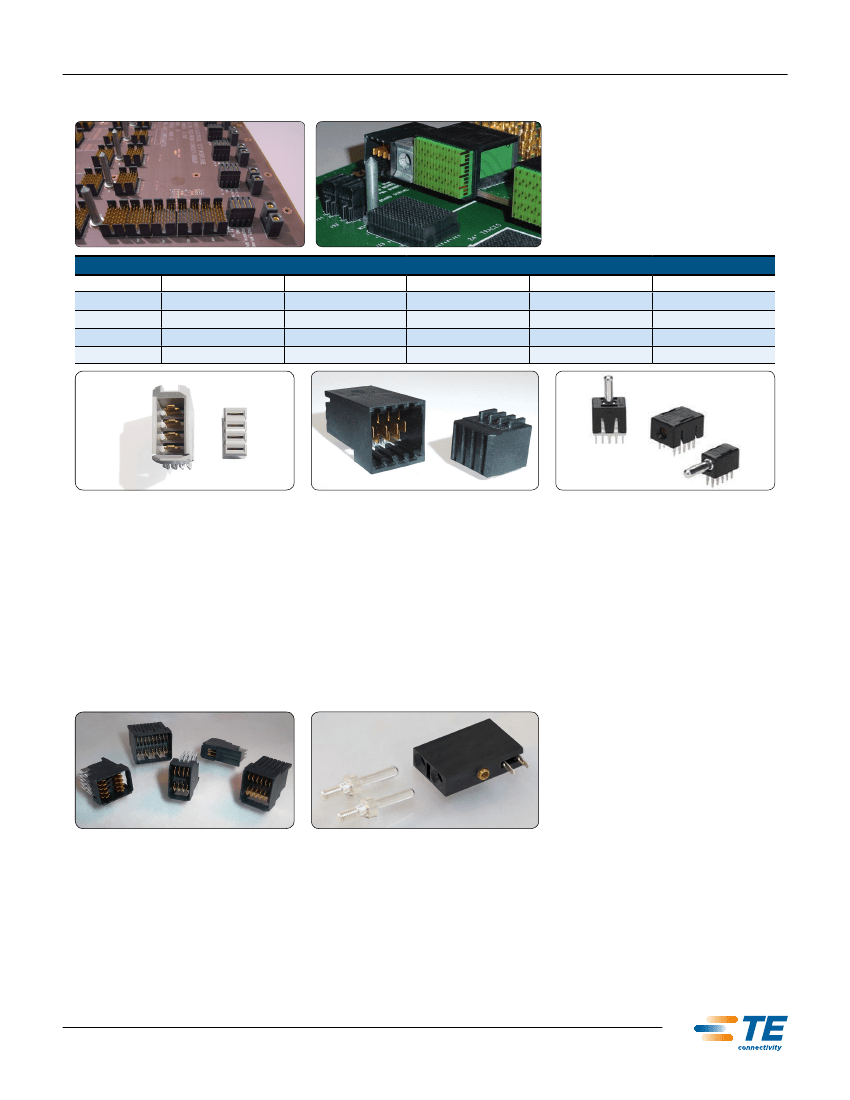

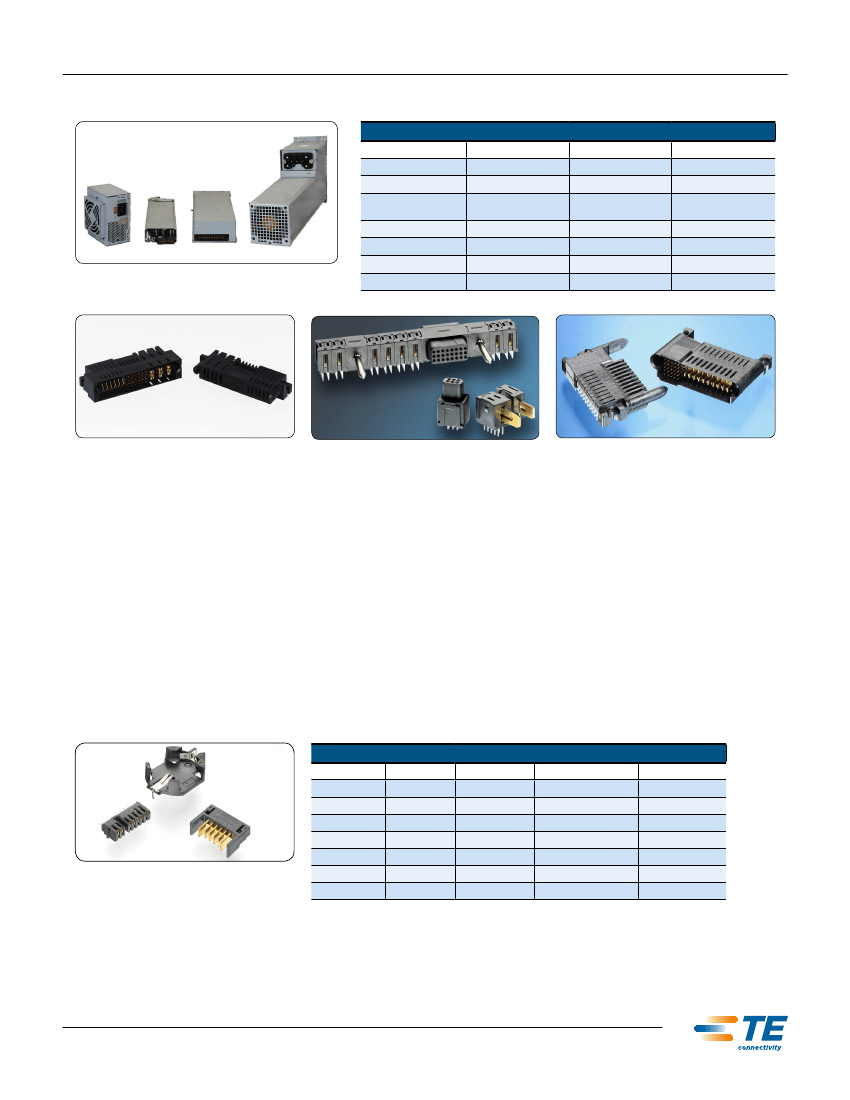

快速参考指南

两件式电源连接器

选择电源连接器时的注意事项

应用。应用需要板对板、线对板、线对线、母线、卡边缘还是这些类型的组合？

电流和电压。连接器仅需要电源还是电源与信号的组合？应用中需要多大的电流？请记½，电源连接器性½通常用安培（或 A）

来衡量。电压也非常重要，因为电压决定了触点之间的间距。

可热插拔性。应用将要在电气负½½下配接？如果是，则需要可热插拔的连接器。本指南中的许多产品经批准可用于热插拔应用。

典型的电源连接器应用

•

AC 对 DC 和 DC 对 DC

•

电源

•

高端计算机

服务器

数据存储设备

电信交换机

•

高密度配电系统

不间断电源 (UPS)

可拆卸电池组

堆叠的电路板

配电系统

te.com/powerconnectors
