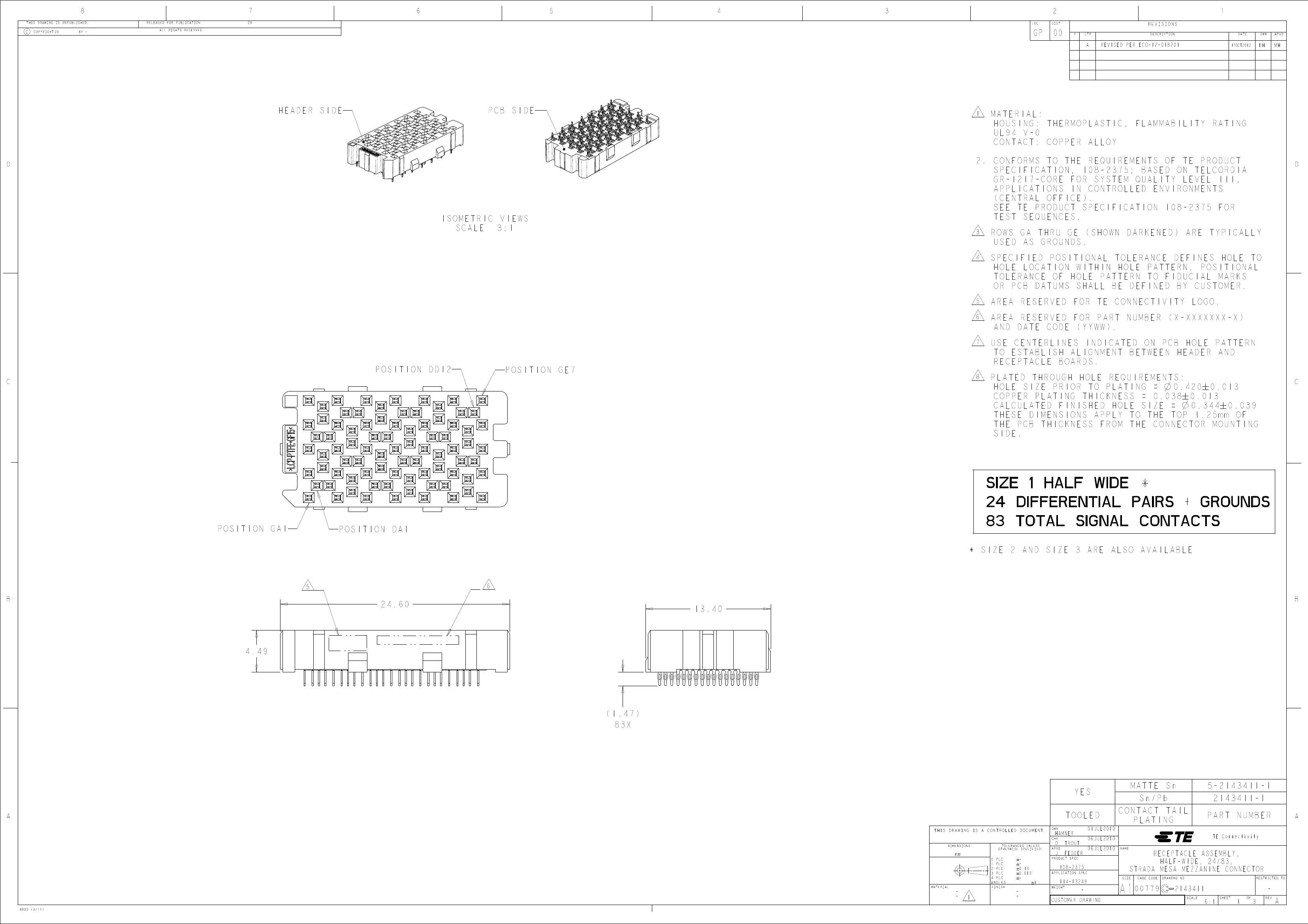

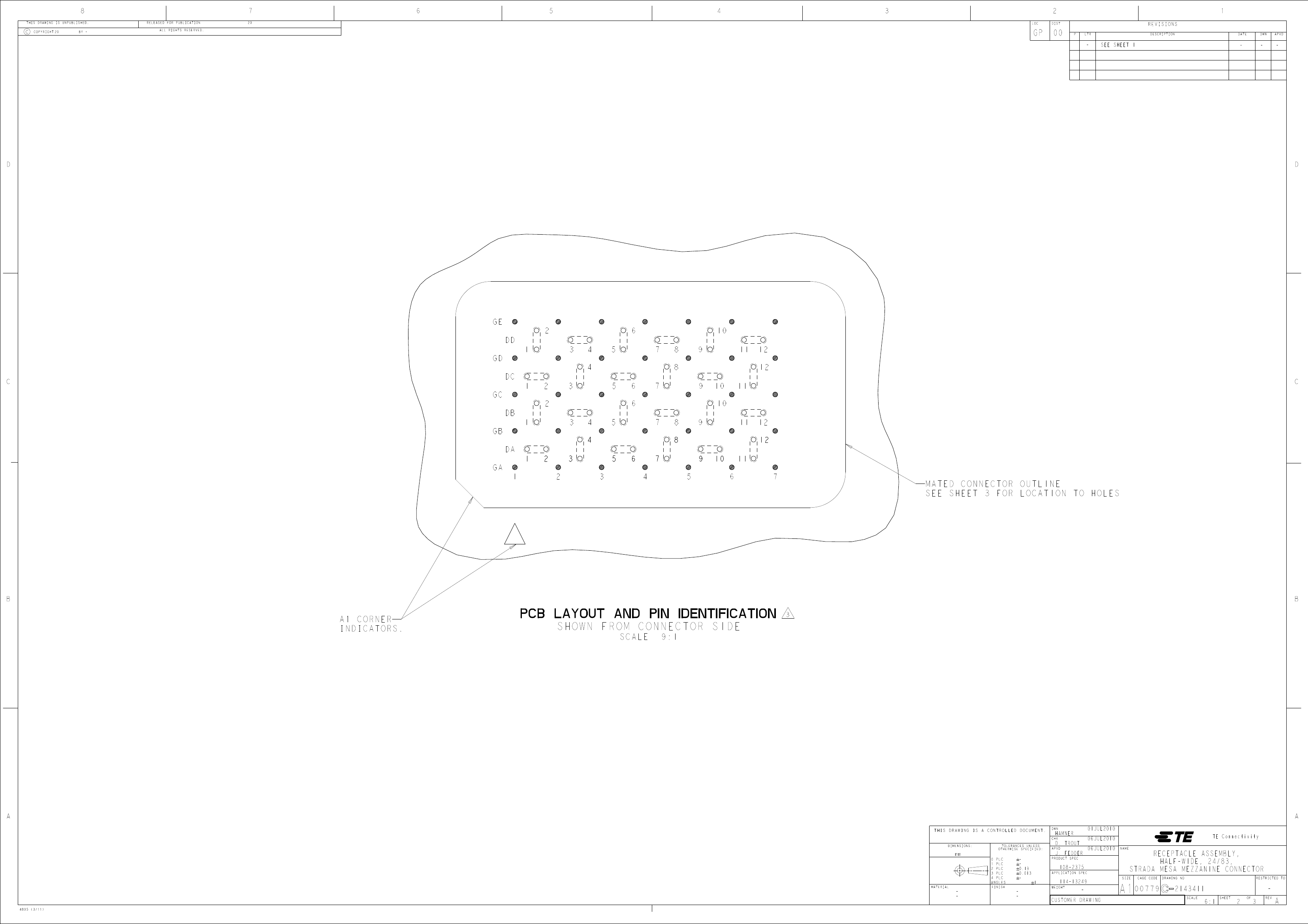

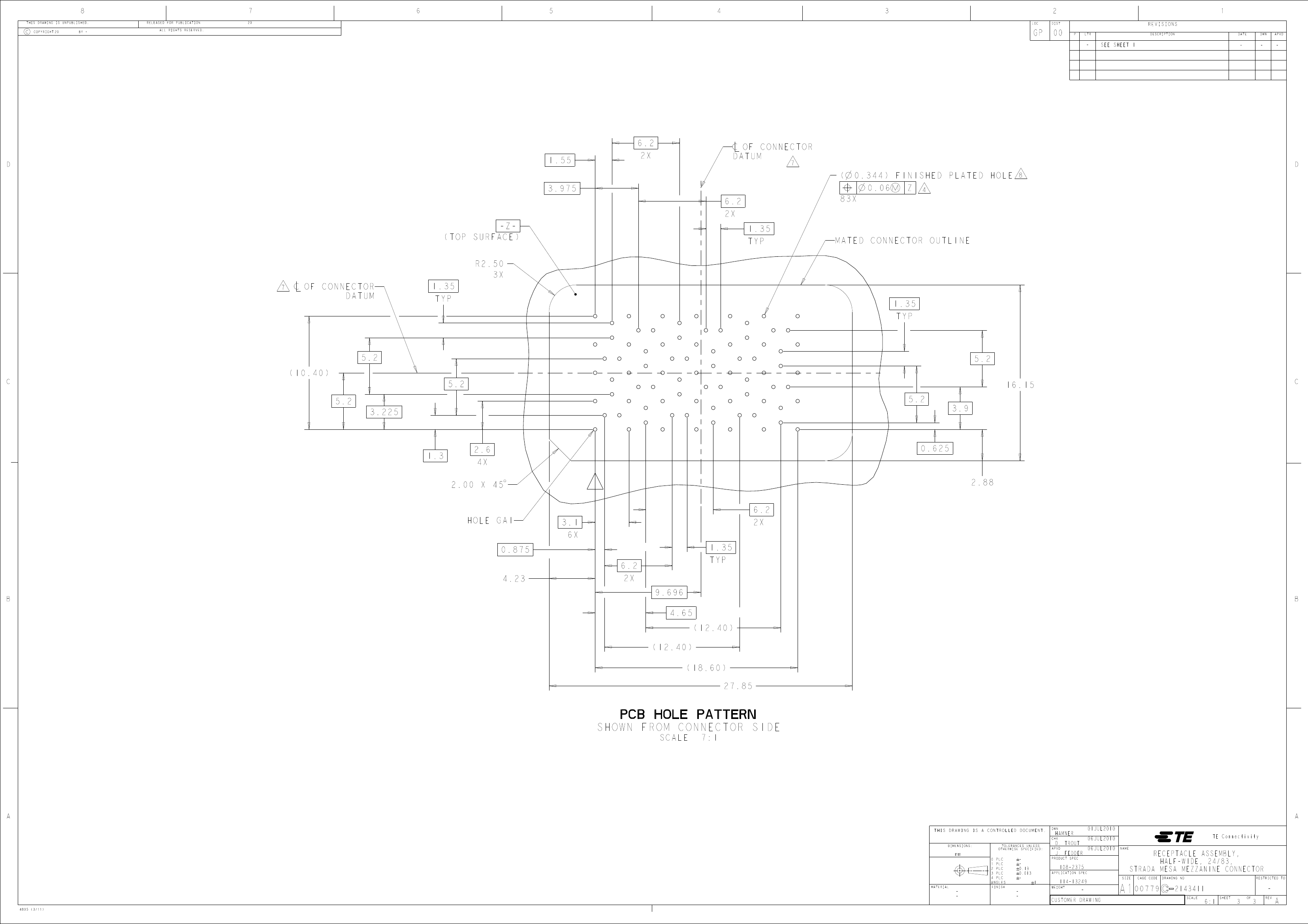

SM,RC,HF,024,000,00,SN,N,NA
| Parameter Name | Attribute value |
| PCB Connector Component Types | PCB mounting female terminal |
| Connector System | Board to Board |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| lugs | no |
| Number of signal positions | 4 |
| Stackable | no |
| Number of terminals | 83 |
| Number of pairs | 24 |
| Number of power supply locations | 0 |
| PCB mounting direction | vertical |
| Number of Positions | 24, 83 |
| Board-to-board configuration | mezzanine |
| Rows | 83 |
| Number of single-ended lines | 0 |
| logarithm of each column | 4 |
| Impedance (Ω) | 100 |
| Voltage (VDC) | 0 |
| Voltage (VAC) | 250 |
| Terminal base material | copper alloy |
| PCB terminal termination area plating materials | tin |
| Solder tail terminal plating material surface coating | matte |
| Terminal contact plating material | gold |
| Terminal contact plating thickness | .076 µm [ 3 µin ] |
| Terminal type | socket |
| Contact Current Rating (Max) (A) | 1.5 |
| PCB terminal termination area plating thickness | .5 – 2.54 µm [ 19.685 – 100 µin ] |
| Terminal layout | staggered |
| PCB Termination Methods | Through hole - solderless connection |
| PCB mounting fixation type | Solder tail (pin) |
| joint alignment | with |
| Joint alignment type | Polarized male terminal |
| PCB installation and fixation | with |
| PCB mounting alignment | with |
| Connector mounting type | board mounting |
| PCB Mount Alignment Type | Cylindrical polarization |
| Centerline (Pitch) (mm) | 3.04, 6.09 |
| Centerline (Pitch) (in) | .12, .24 |
| Shell material | matte |
| Shell entry method | top |
| PCB thickness (recommended) (in) | .076 |
| high | 4.49 mm [ .176 in ] |
| Tail length (in) | .058 |
| Working group temperature range | -55 – 85 °C [ -67 – 185 °F ] |
| pick and place cover | Without |
| Circuit Application | Signal |
| Applicable to | Plug assembly |
| UL flammability rating | UL 94V-0 |
| Encapsulation method | boxes and trays |
