5-1462037-5: DescriptionIM41JR=IM RELAY 100 MW 3 V BIS; CategoryMechanical and electronic products relay; File Size116KB，6 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-1462037-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1462037-5	-	-	View	Buy Now

5-1462037-5 Overview

IM41JR=IM RELAY 100 MW 3 V BIS

5-1462037-5 Parametric

Parameter Name	Attribute value
Brand Name	Axicom
Is it Rohs certified?	conform to
Objectid	2142359943
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	26 weeks
Samacsys Description	IM41JR=IM RELAY 100 MW 3 V BIS
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-04 19:49:56
Other features	LOW PROFILE
body width	6 mm
body height	5.65 mm
Body length or diameter	10 mm
Maximum coil current (DC)	0.033 A
Coil operating voltage (DC)	2.25 V
Coil power	100 mW
Coil release voltage (DC)	-2.25 V
Coil resistance	90 Ω
Maximum coil voltage (DC)	3 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	2A@250VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@220VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	220 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1800 Vrms
Dielectric strength between breaking contacts	750 Vrms
Electrical life	100000 Cycle(s)
End contact material	LEAD RUTHENIUM
Maximum input power	60 W
Maximum insertion loss	-0.03 dB
Insulation resistance	1000000000000 Ω
Maximum isolation	-37 dB
Installation features	PANEL MOUNT
operating hours	8 ms
Maximum operating frequency	900 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TR
physical size	10 X 6 X 5.65
Guideline	CECC; CSA; IEC; UL
Relay action	LATCHED
Relay style	2 FORM C
Relay function	DPDT
Relay type	RF RELAY
release time	8 ms
seal	IP67/RT5
surface mount	NO
switching time	16 ms
Termination type	SOLDER/QUICK CONNECT
voltage standing wave ratio	1.49
weight	0.75 g

Preview

Download Datasheet

View All

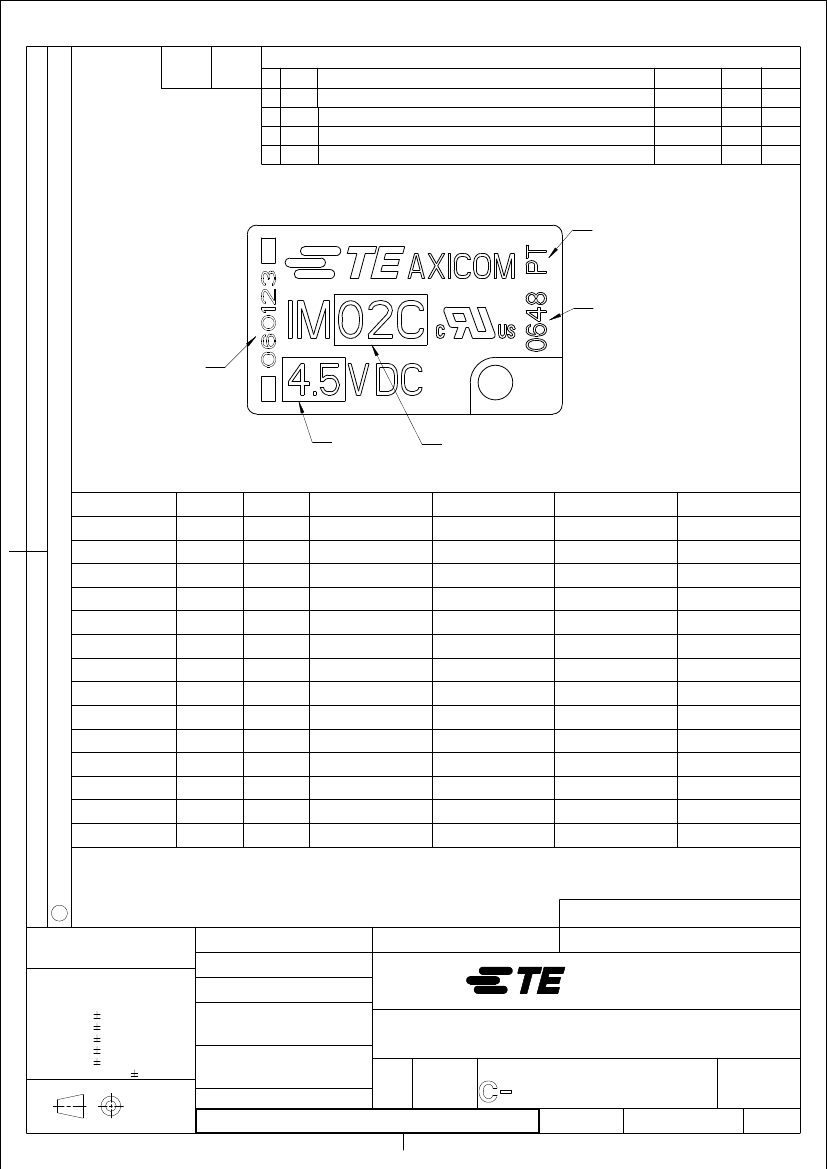

THIS DRAWING IS A CONTROLLED DOCUMENT.

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

B13

B14

ECR-12-014500 (IMD obsolete)

ECR-12-021486 (Marking C to Q)

ECR-13-014508

ECR-14-007162 (Packaging information)

18DEC2012

20DEC2012

13JUN2013

13OCT2015

UKo

H swiss made (until 2013)

PT Portugal made

Q China made

C China made (until 2012)

date code (YYWW)

2000

RELEASED FOR PUBLICATION

Order Number - ABCCCC

Portugal made:

A - Packing day

B - Shift (1=day, 2=night)

C - Lot number (sequential)

Other country made:

A - Year (first digit)

B - Year (second digit)

C - Lot number (sequential)

Packaging data code (Box, bag, reels):

P(YWWDSL)000

Shipping data code:

YYWWD

P - Product code (4 to IM relay)

Y(Y) - Year (last digit for packaging)

WW - calendar week (from date code)

D - Day of the week (1=Sat,.....and 7=Fri)

S - Shift (1=day shift, 2 night shift)

L - Production Line (line A, B, C)

000 - For internal use

Mark 2)

Mark 1)

Relay-Typ

IM00..

Mark 1)

00N

01B

01C

01N

02C

02D

02H

02N

Mark 2)

1.5

4.5

PN (GR)

3-1462037-7

1462037-1

4-1462039-5

1462038-4

PN (JR)

PN (TS)

3-1462037-5

PN (KS/NS)

IM00NS

IM01..

IM01B..

IM01C..

IM01NS

IM01N..L

IM02..

IM02..L

IM02C..

IM02D..

IM02H..

4-1462037-0

1462037-4

1-1462038-1

4-1462039-3

1462037-9

8-1462039-1

2-1462039-3

1462038-1

9-1462038-8

1-1462039-1

1-1462038-2

1-1462037-1

1-1462037-3

6-1462039-4

THIS DRAWING IS UNPUBLISHED.

IM02NS

*obsolete

DIMENSIONS:

DRAWING ALIAS:

DWN

CHK

IM0C-DOK17

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

HD 9121

PRODUCT SPEC

APVD

21FEB2003

MATERIAL

FINISH

DIN 7168-m

TE Connectivity

NAME

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

APPLICATION SPEC

IM-Relay

Marking

CAGE CODE DRAWING NO

RESTRICTED TO

WEIGHT

CUSTOMER DRAWING

SIZE

00779

1462037-1

SCALE

SHEET

10:1

REV

1469-35 (3/11)
