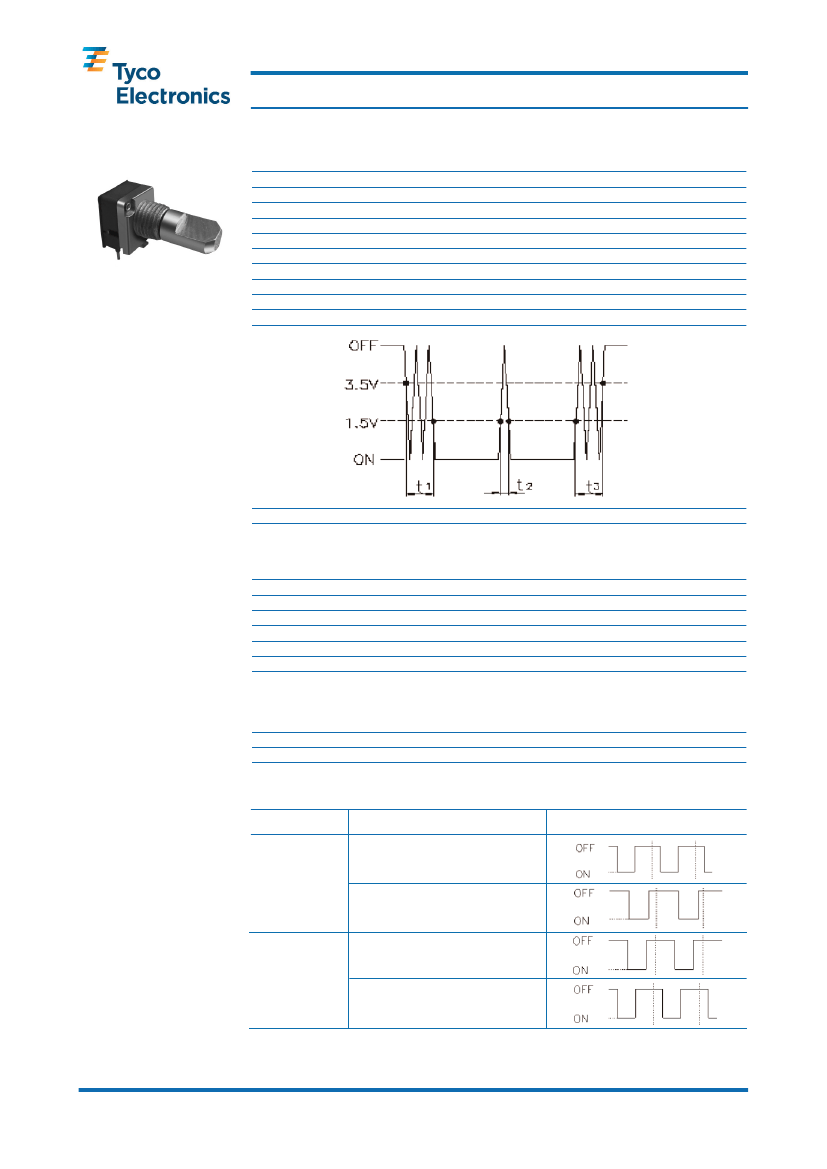

9mm Rotary Encoder
Type DP09 Series
Type DP09 Series
Characteristics -
Electrical
Pulses:
Contact Rating:
Dielectric Strength:
Insulation Resistance (min):
Operating Speed (RPM):
Switch Power Rating (where fitted):
Switch Contact Resistance:
Electrical Travel:
Rotational Noise:
Chattering:
12 & 15
10mA 5VDC
300VAC / 1mA, 1 minute
100M ohms at 250VAC
60 RPM
12VDC, 0.5A
100m ohm
Continuous
t2 = 5.0ms max (see below)
t1 & t3 = 5.0 ms max (see below)
9mm Rotary incremental encoder for
use in electronic equipment. Can be
supplied with or without switch with
customisation to standard options
Key Features
■
■
■
■
■
■
9mm Rotary Encoder
Incremental Type
Push on Switch Option
Various Shaft Lengths
Pulse Options
Detent Options
Code Off area V = 3.5V or more. Code on area V=1.5V or less
Characteristics -
Mechanical
Total Mechanical Travel:
Detents:
Switch Operating Force:
Switch Travel:
Shaft Type:
Shaft Length (from Mounting Surface):
Continuous
0, 12, 24, 30
400 + 400/- 200 gf
1.5mm
F – Flatted, K – Knurled
15, 20, 25, 30
Characteristics -
Environmental
Operating Temperature
Rotational Life
-10 - +65 degrees C
30,000 Cycles
Output Signal Format
Shaft Rotational
Direction
Signal
Format
A (Terminal A-C)
Clockwise
B (Terminal B-C)
A (Terminal A-C)
Anticlockwise
B (Terminal B-C)
Literature No. 6-1773449-8
Issued: 2-08
Dimensions are shown for
reference purposes only.
Dimensions are in
millimetres unless
otherwise specified.
Specifications subject to
change.
tycoelectronics.com
passives.tycoelectronics.com
9mm Rotary Encoder
Type DP09 Series

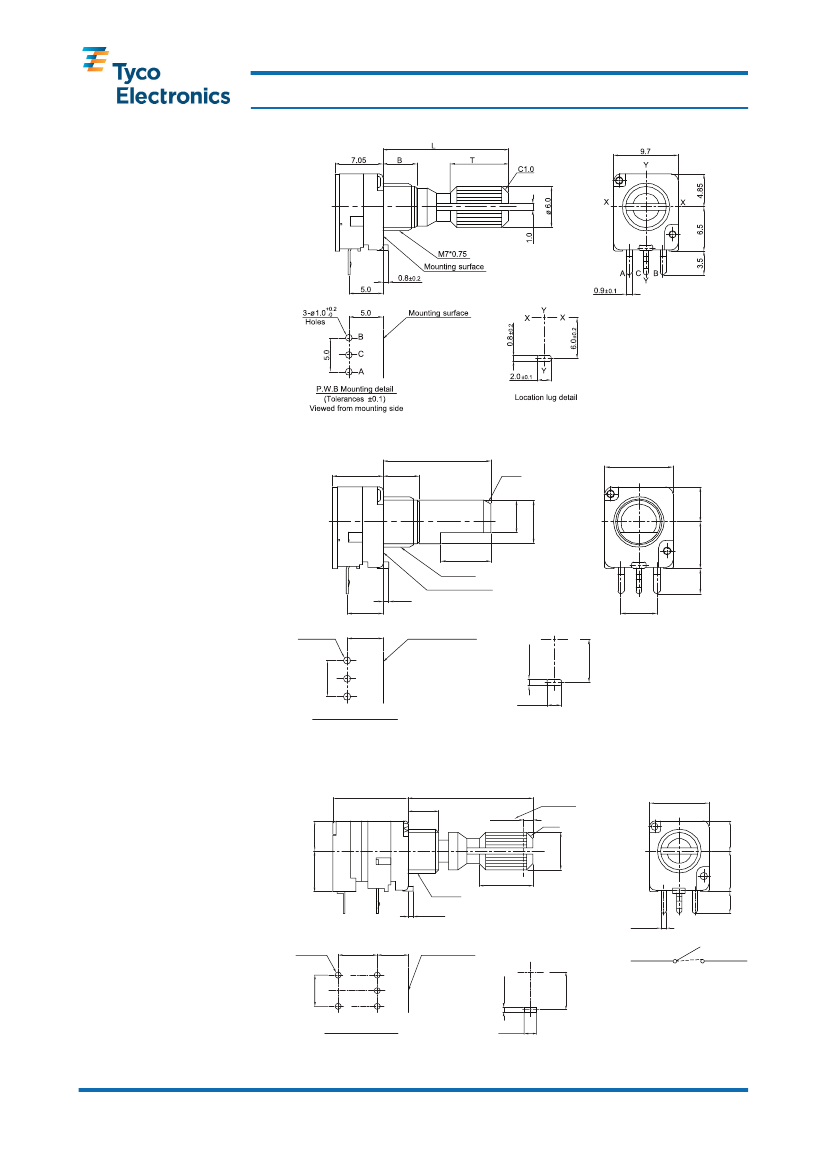

Dimensions
DP09H-K
DP09H-F
L
7.05
B
9.5
C1.0
Y
4.85
X
X
6.5
A
C
Y
5.0
Y
X
0.8
±0.2
X
6.0
±0.2
B
Y
SW Travel
4.5
-0.1
F
Mounting surface
0.8
5.0
3- ø1.0
-0
Holes
+0.2
5.0
Mounting surface
B
5.0
C
A
2.0
±0.1
P.W.B Mounting detail
(Tolerances ±0.1)
Viewed from mounting side
Location lug detail
DP09SH-K
12.05
B
1.5±0.5
C1.0
ø 6.0
X
X
6.5
T
M7*0.75
0.8
±0.2
0.9
±0.1
+0.1
L
9.7
Y
4.8
A
C
B
6.5
4.8
3.5
M7*0.75
ø6.0
-0.05
+0
+0
Y
5- ø1.0
-0
Holes
6.25
E
5.0
B
C
Mounting surface
Y
X
0.8
±0.2
X
6.0
±0.2
Circuit diagram
5.0
D
A
Y
P.W.B Mounting detail
(Tolerances ±0.1)
Viewed from mounting side
2.0
±0.1
Locating lug detail
Literature No. 6-1773449-8
Issued: 2-08
Dimensions are shown for
reference purposes only.
Dimensions are in
millimetres unless
otherwise specified.
Specifications subject to
change.
tycoelectronics.com
passives.tycoelectronics.com
3.5
9mm Rotary Encoder
Type DP09 Series
Dimensions
DP09SH-F
12.05
B
L
1.5±0.5
SW Travel
C1.0
4.5
-0.1
ø6.0
-0.05
+0
Y
4.8
X
X
6.5
A
C
B
6.5
F
M7*0.75
0.8
±0.2
+0
Y
5.0
Y
+0.1
5-ø1.0
-0
B
5.0
C
A
2.0
±0.1
Y
Locating lug detail
P.W.B Mounting detail
(Tolerances ±0.1)
Viewed from mounting side
Shaft Dimensions
Shaft
K
F
B
Dim.
L
T
L
F
B
15
7
15
7
5
20
12
20
12
7
25
12
25
12
–
30
14
30
12
–
How to Order
DP09
Common Part
DP09 – No Switch
DP09S –
With Switch
H - Horizontal
24 – 24 clicks
30 – 30 clicks
15 – 15 Pulses
H
Orientation
24
Detent
N - None
12
Pulses
A
Bush Details
A – M7 x 5mm
6.0
±0.2
Holes
0.8
±0.2
6.25
5.0
Mounting surface
X
X
20
Shaft Length
15 – 15mm FMF
K
Shaft Style
12 – 12 clicks
12 – 12 Pulses
B – M7 x 7mm
(standard)
20 – 20mm FMF
25 – 25mm FMF
30 – 30mm FMF
K - Knurled
F - Flatted
Literature No. 6-1773449-8
Issued: 2-08
Dimensions are shown for
reference purposes only.
Dimensions are in
millimetres unless
otherwise specified.
Specifications subject to
change.
tycoelectronics.com
passives.tycoelectronics.com
