Part Number

Search

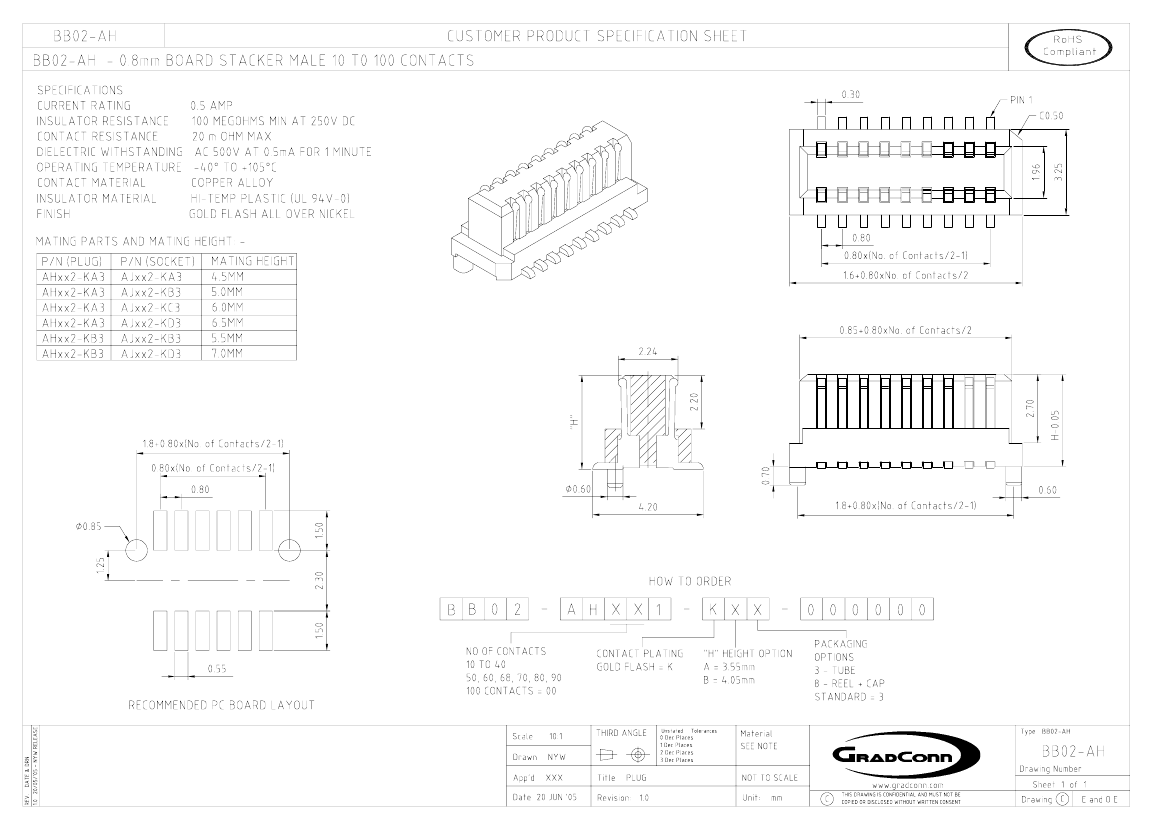

BB02-AH261-KB3-000000

Description
Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Receptacle
CategoryThe connector    The connector
File Size75KB,1 Pages
ManufacturerGradConn Ltd
Download Datasheet Parametric View All

BB02-AH261-KB3-000000 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Receptacle

BB02-AH261-KB3-000000 Parametric

Parameter NameAttribute value
MakerGradConn Ltd
Reach Compliance Codeunknown
Other featuresROHS COMPLIANT, TUBE PACKAGING
Board mount optionsPEG
body width0.128 inch
subject depth0.159 inch
body length0.472 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance20 mΩ
Dielectric withstand voltage500VAC V
Insulation resistance100000000 Ω
insulator materialTHERMOPLASTIC
Manufacturer's serial numberBB02-AH
Plug contact pitch0.031 inch
Match contact row spacing0.087 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing3.81 mm
Plating thicknessFLASH inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.7874 mm
Termination typeSURFACE MOUNT
Total number of contacts26
Base Number Matches1
