6820-4603 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 6820-4603

6820-4603: DescriptionTelecom and Datacom Connector, 18 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size96KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

6820-4603 Overview

Telecom and Datacom Connector, 18 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

6820-4603 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
Board mount options	SPLIT BOARD LOCK
body width	0.606 inch
subject depth	0.63 inch
body length	1.543 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	10 mΩ
Contact style	TELCOM, MODULAR
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	6820
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
PCB contact pattern	STAGGERED
Plating thickness	6u inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	18
Base Number Matches	1

Preview

Download Datasheet

View All

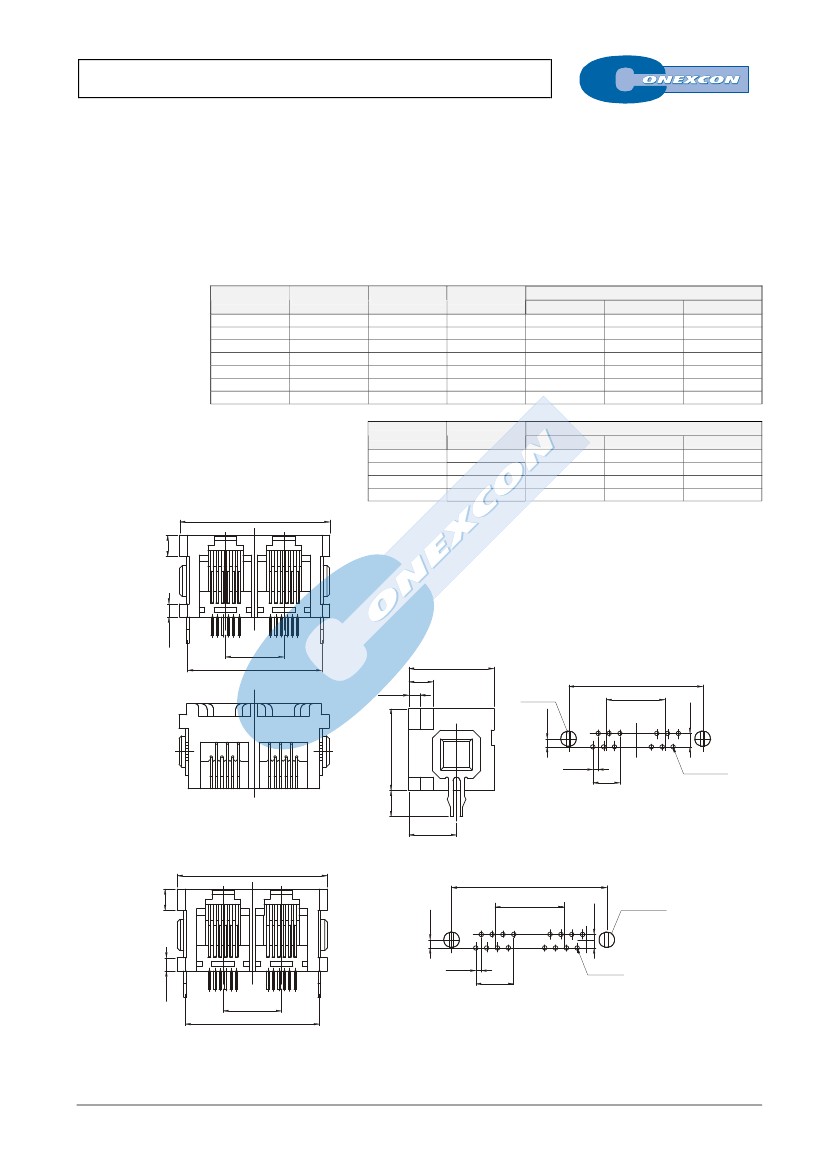

MULTI-PORT SIDE ENTRY PCB JACK FCC-68

6820 SERIES.

For PCB Solder. Multi-Port Side Entry PCB Jack

Features



Available in 6/2, 6/4, 6/6 and 8/8 circuits

Mates with FCC-68 modular plugs

Insulator Material: Glass filled polyester UL 94V-0

Contacts: Golden phosphor bronze 0.45 mm diameter



Gold plating over nickel in Contact Area.

Tin plating over nickel in Solder Area

Insulation Resistance: 500 M min.

Contact Resistance: 10m max.

Ordering and Dimensional Information

Dimensional Information

Ports

6/2 Version

6820 –

T202

6820 –

T203

6820 –

T204

6820 –

T205

6820 –

T206

6820 –

T207

6820 –

T208

6/4 Version

6820 –

T402

6820 –

T403

6820 –

T404

6820 –

T405

6820 –

T406

6820 –

T407

6820 –

T408

6/6 Version

6820 –

T602

6820 –

T603

6820 –

T604

6820 –

T605

6820 –

T606

6820 –

T607

6820 –

T608

Dimensions

11.00 (0.433)

22.00 (0.866)

33.00 (1.299)

44.00 (1.732)

55.00 (2.165)

66.00 (2.598)

77.00 (3.030)

28.20 (1.110)

39.20 (1.543)

50.20 (1.976)

61.20 (2.410)

72.20 (2.842)

83.20 (3.275)

94.20 (3.710)

Dimensions

13.00 (0.512)

54.80 (2.157)

39.00 (1.535)

19.28 (0.759)

32.28 (1.271)

45.28 (1.783)

58.28 (2.294)

15.80 (0.622)

28.80 (1.134)

41.80 (1.646)

54.80 (2.157)

25.20 (0.992)

36.20 (1.425)

47.20 (1.860)

58.20 (2.290)

69.20 (2.724)

80.20 (3.157)

91.20 (3.590)

Ports

8/8 Version

6820 –

T801

6820 –

T802

6820 –

T803

6820 –

T804

6/6 VERSION

4.00

T = Contact Plating



T =

6µ” gold over 50µ” nickel

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

T =

50µ” gold over 50µ” nickel

2.50

4.60

2.10

16.00

2.80*0.80

1.54

2.54

1.02

5.10

4.90

12- ø 0.80

15.40

RECOMMENDED HOLE PATTERN

8.97

8/8 VERSION

4.00

1.54

2.54

2.80 x 0.80

1.02

7.00

2.50

ø 0.80

RECOMMENDED HOLE PATTERN

FULL LINE CATALOGUE

I-XX

6820-4603 Related Products

	6820-4603	6820-4604	6820-4606	6820-4602
Description	Telecom and Datacom Connector, 18 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 24 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 36 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 12 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Maker	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group
Reach Compliance Code	unknown	unknown	unknown	unknown
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.606 inch	0.606 inch	0.606 inch	0.606 inch
subject depth	0.63 inch	0.63 inch	0.63 inch	0.63 inch
body length	1.543 inch	1.976 inch	2.842 inch	1.11 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	6820	6820	6820	6820
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	6u inch	6u inch	6u inch	6u inch
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.032 mm	2.032 mm	2.032 mm	2.032 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	18	24	36	12
Base Number Matches	1	1	1	1
