MC10114

Triple Line Receiver

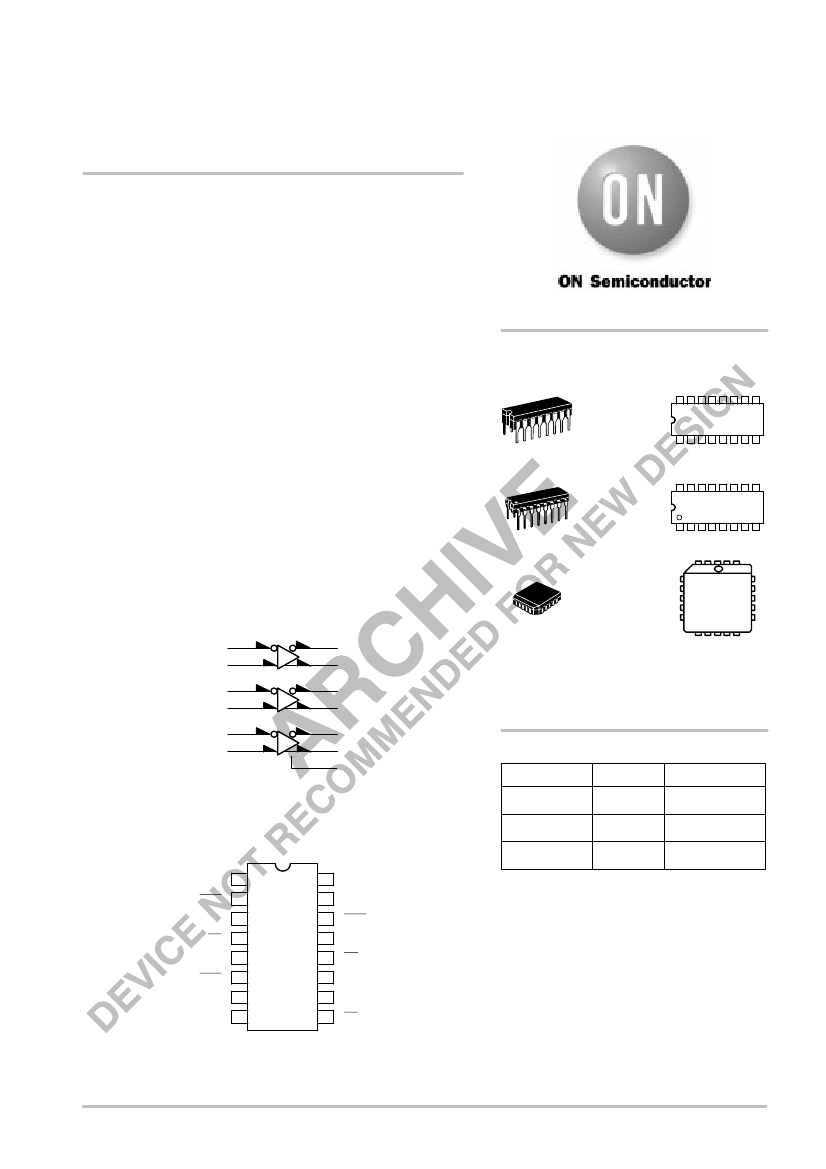

The MC10114 is a triple line receiver designed for use in sensing

differential signals over long lines. An active current source and

translated emitter follower inputs provide the line receiver with a

common mode noise rejection limit of one volt in either the positive or

the negative direction. This allows a large amount of common mode

noise immunity for extra long lines.

Another feature of the MC10114 is that the OR outputs go to a logic

low level whenever the inputs are left floating. The outputs are each

capable of driving 50 ohm transmission lines.

This device is useful in high speed central processors,

minicomputers, peripheral controllers, digital communication

systems, testing and instrumen– tation systems. The MC10114 can

also be used for MOS to MECL interfacing and it is ideal as a sense

amplifier for MOS RAM’s.

A V

reference is provided which is useful in making the

MC10114 a Schmit trigger, allowing single–ended driving of the

inputs, or other applications where a stable reference voltage is

necessary. See MECL Design Handbook (HB205) pages 226 and 228.

•

= 145 mW typ/pkg

•

= 2.4 ns typ (Single Ended Input)

•

= 2.0 ns typ (Differential Input)

•

, t

= 2.1 ns typ (20%–80%)

LOGIC DIAGRAM

CC1

= PIN 1

CC2

= PIN 16

= PIN 8

= Assembly Location

= Wafer Lot

= Year

= Work Week

http://onsemi.com

MARKING

DIAGRAMS

CDIP–16

L SUFFIX

CASE 620

PDIP–16

P SUFFIX

CASE 648

PLCC–20

FN SUFFIX

CASE 775

10114

AWLYYWW

MC10114P

AWLYYWW

MC10114L

AWLYYWW

ORDERING INFORMATION

Device

MC10114L

MC10114P

MC10114FN

Package

CDIP–16

PDIP–16

PLCC–20

Shipping

25 Units / Rail

46 Units / Rail

to be used to supply bias to the MC10114 only and bypassed (when used) with

0.01

F to 0.1

F capacitor to ground (0 V). V

can source < 1.0 mA.

When the input pin with the bubble goes positive, its respective output pin with

bubble goes positive.

DIP PIN ASSIGNMENT

CC1

OUT

CC2

OUT

Pin assignment is for Dual–in–Line Package.

For PLCC pin assignment, see the Pin Conversion Tables on page 18

of the ON Semiconductor MECL Data Book (DL122/D).

Semiconductor Components Industries, LLC, 2002

January, 2002 – Rev. 7

Publication Order Number:

MC10114/D

MC10114 Related Products

	MC10114	MC10114P	MC10114L	MC10114_02	MC10114FN
Description	Triple Line Receiver	Triple Line Receiver	Triple Line Receiver	Triple Line Receiver	Triple Line Receiver
Parts packaging code	-	DIP	DIP	-	QLCC
package instruction	-	PLASTIC, DIP-16	CERAMIC, DIP-16	-	PLASTIC, LCC-20
Contacts	-	16	16	-	20
Reach Compliance Code	-	_compli	_compli	-	_compli
ECCN code	-	EAR99	EAR99	-	EAR99
Differential output	-	YES	YES	-	YES
Input properties	-	DIFFERENTIAL	DIFFERENTIAL	-	DIFFERENTIAL
Interface integrated circuit type	-	LINE RECEIVER	LINE RECEIVER	-	LINE RECEIVER
Interface standards	-	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
JESD-30 code	-	R-PDIP-T16	R-CDIP-T16	-	S-PQCC-J20
JESD-609 code	-	e0	e0	-	e0
length	-	19.175 mm	19.49 mm	-	8.965 mm
Nominal negative supply voltage	-	-5.2 V	-5.2 V	-	-5.2 V
Number of functions	-	3	3	-	3
Number of terminals	-	16	16	-	20
Maximum operating temperature	-	85 °C	85 °C	-	85 °C
Minimum operating temperature	-	-30 °C	-30 °C	-	-30 °C
Package body material	-	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	-	PLASTIC/EPOXY
encapsulated code	-	DIP	DIP	-	QCCJ
Encapsulate equivalent code	-	DIP16,.3	DIP16,.3	-	LDCC20,.4SQ
Package shape	-	RECTANGULAR	RECTANGULAR	-	SQUARE
Package form	-	IN-LINE	IN-LINE	-	CHIP CARRIER
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
power supply	-	-5.2 V	-5.2 V	-	-5.2 V
Certification status	-	Not Qualified	Not Qualified	-	Not Qualified
Maximum receive delay	-	4 ns	4 ns	-	4 ns
Number of receiver bits	-	3	3	-	3
Maximum seat height	-	4.44 mm	5.08 mm	-	4.57 mm
Maximum slew rate	-	39 mA	39 mA	-	39 mA
surface mount	-	NO	NO	-	YES
technology	-	ECL	ECL	-	ECL
Temperature level	-	OTHER	OTHER	-	OTHER
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn80Pb20)
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	-	J BEND
Terminal pitch	-	2.54 mm	2.54 mm	-	1.27 mm
Terminal location	-	DUAL	DUAL	-	QUAD
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
width	-	7.62 mm	7.62 mm	-	8.965 mm
