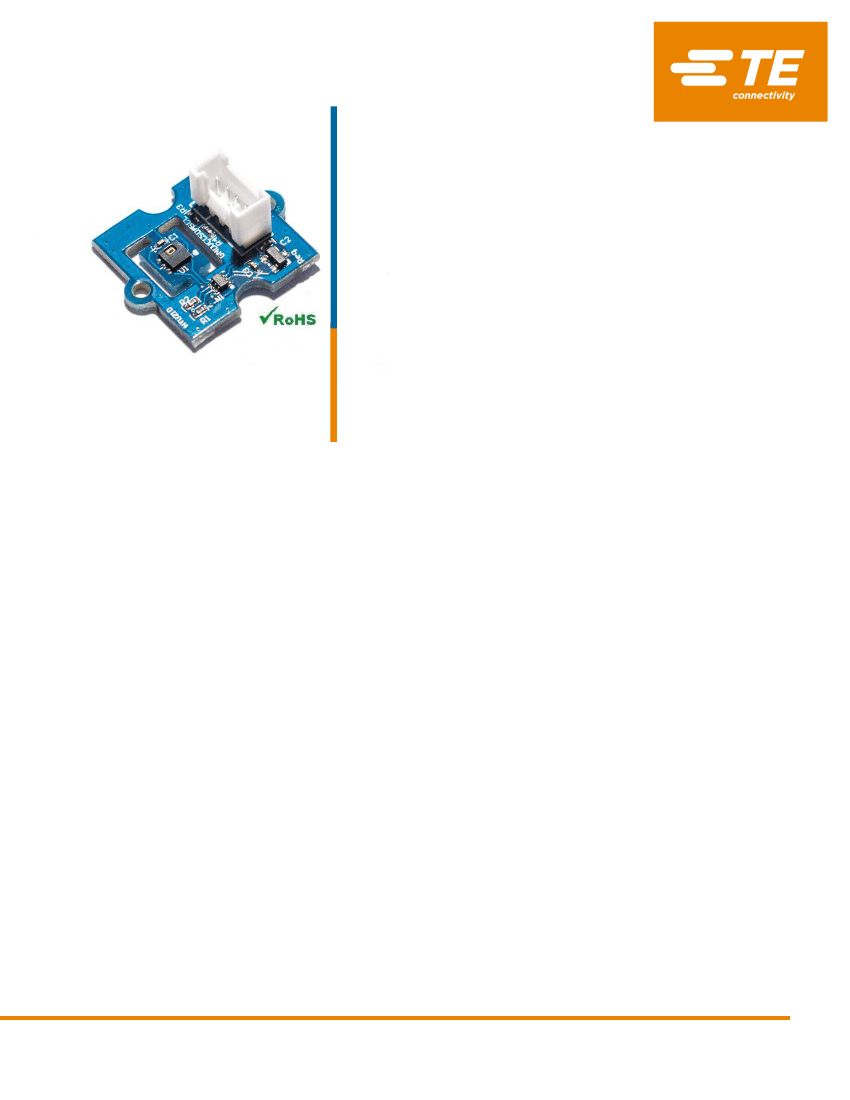

MEAS HTU21D SENSOR FOR
GROVE SYSTEM
Digital Humidity and Temperature Sensor
The HTU21D provides the necessary hardware to interface the
HTU21D digital relative humidity and temperature sensor to any system
that utilizes Grove compatible expansion ports configurable for I
2
C
communication. The HTU21D sensor is a self-contained humidity and
temperature sensor that is fully calibrated during manufacturing. The
sensor module works in 5V external, and the sensor has selectable
resolution, low battery detection, and checksum capability. The
HTU21D has a low power stand-by mode for power-sensitive
applications.
Performance
•
•
•
•
•
•
•
•
0% to 100% relative humidity range
-40°C to 125°C temperature range
Very low power consumption
Operates in 5V.
Fast response time
–
5 seconds typical
Built-in heater for fast recovery from saturation
Recovers fully from condensation
Fast conversion time
–
14ms typical
Specifications
•
•
•
•
•
•
•
Measures relative humidity from 0% to 100%
Measures temperature from -40°C to 125°C
I
2
C communication
Fully calibrated
Fast response time
Selectable resolution
Very low power consumption
Features
•
•
•
•
4-pin Grove compatible connector
I
2
C interface
Selectable 8-12 bits resolution for humidity
Selectable 11-14 bits resolution for temperature
SENSOR SOLUTIONS
/// MEAS HTU21D FOR GROVE SYSTEM
06/2017
Page 1
MEAS HTU21D FOR GROVE SYSTEM
Digital Humidity and Temperature Sensor
Detailed Description
I
2
C Interface:
The HTU21D Grove compliant module can interface to the host in I
2
C model with 5V supply, it has a Grove compatible four
pins port connector configured for I
2
C.

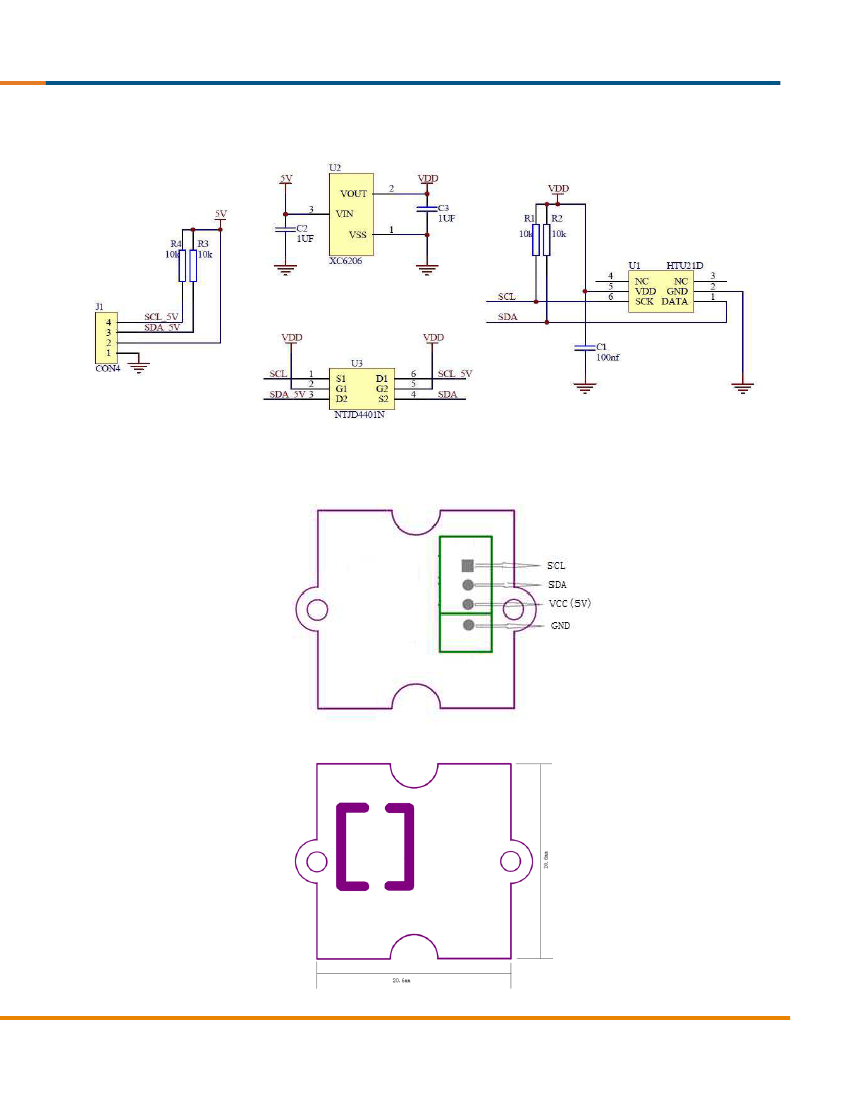

External Control Signals 5V supply:
The IC operates as an I
2
C slave using the standard 2-wire I
2
C connection scheme. As IC is power rated at 3.6V, the board
integrates necessary fixture such as a regulator and electrical level shift so that the SCL and SDA signals could be driven
directly from an external 5V I2C lines and power supply.
Reference
Material
Detailed information regarding operation of the IC:
•
HTU21D Datasheet
Ordering Information
Description
HTU21D GROVE BOARD
Part Number
DPP301G000
PRODUCT SHEET
MEAS France SAS,
a TE Connectivity company.
Tel:+33 (0) 800-440-5100
Email:
customercare.tlse@te.com
te.com/sensorsolutions
MEAS, TE Connectivity and TE connectivity (logo) are trademarks. All other logos, products and/or company names
referred to herein might be trademarks of their respective owners.
The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes
only, is believed to be reliable. However, TE Connectivity makes no warranties as to its accuracy or completeness and
disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth in TE
Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any
incidental, indirect or consequential damages arising out of the sale, resale, use or misuse of the product. Users of TE
Connectivity products should make their own evaluation to determine the suitability of each such product for the specific
application.
© 2016
TE Connectivity Ltd. family of companies
All Rights Reserved.
SENSOR SOLUTIONS
/// MEAS HTU21D FOR GROVE SYSTEM
06/2017
Page 3
