TECHNICAL DATA SHEET
TE Document:
Issue:
TTDS-094
3
March 2014
Date:
STD and STB Markers
STD and STB markers are individual snap on markers used to
identify wires and small cables permanently. STD markers are white
and yellow. STB markers are colour coded.

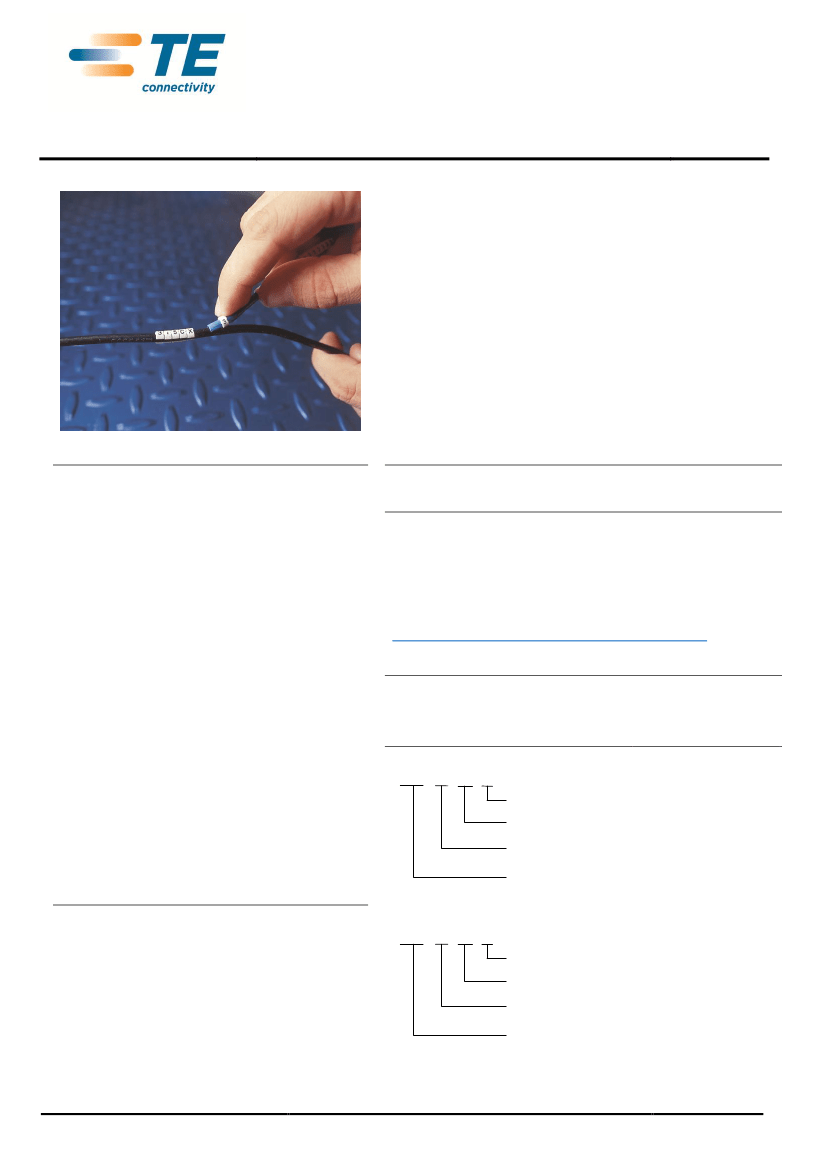

Markers are side-entry installed using an applicator wand, so
allowing identification after termination and/or installation. These
markers have an expanding profile which enable markers to
accommodate a wide range of wire and small cable sizes. Markers
are supplied chevron cut to ensure the legend remains aligned.
Manufactured using a zero halogen polyoxymethylene (POM)
compound, this marker lends itself to installations where a
permanent solution is required. Ideally suited for use in Energy
projects including power stations, oil refineries and offshore
platforms.
KEY FEATURES
Zero Halogen
Excellent Resistance to Burning
-
UL94 HB rated
UV stabilised material
-
On black marker with white legends
Resistant to key fluids, including those used
in Energy, Oil refineries, Aviation and Military
(defined by RW-2538)
Ten sizes for cable diameters 1.0 to 19.0mm
(0.04 to 0.75 inches)
Secure grip for positive fixing to cable
Applicator wands available for easy marker
installation
Applicator has a patented slit to prevent
over-expansion of the marker during
application
The high elasticity of the marker enables
material to be installed without damaging the
substrate
TEMPERATURE RATING
Operating Temperature Range -40°C to 106°C (-40°F to 223°F)
ENVIRONMENTAL
No Halogens, Sulphur, Nitrogen, Phosphorus and Cadmium sources
above trace level
Information and a downloadable declaration covering RoHS and
REACH compliance can be found at the ‘TE Product Compliance
Support Centre’:
http://www.te.com/en/resources/product-compliance.html
SPECIFICATIONS / APPROVALS
TE Connectivity Standard
RW-2538
PART DESCRIPTION
STD - Standard marker
STD 06 W -4
Legend code
Color code
Size
Product family
APPLICATIONS
STB - Color coded marker
Post termination cable identification
Identification of small wires and cables,
including optical fibres.
Ideally suited for use in Energy projects
including power stations, oil refineries and
offshore platforms.
STB 06 -4
-2
Color code
Legend code
Size
Product family
Where possible, TE have tested product as a finished item, including the print. Operational tests are followed by an
assessment of mark adherence to validate fit form and function. Further details can be found in TE standard RW-2538.
©2014 Tyco Electronics Corporation, a TE Connectivity Ltd.
Company. All Rights Reserved
| Indicates Change
Class I Data Classification - See Policy TEC-02-04
Page 1 of 3
TECHNICAL DATA SHEET
TE Document:
Issue:
TTDS-094
3
March 2014
Date:
STD and STB Markers
ORDERING INFORMATION
White/ Yellow
marker
size code
STD 01
STD 02
STD 03
STD 05
STD 06
STD 09
STD 12
STD 15
STD 17
STD 21
STD 24
Color
marker
size code
STB 01
STB 02
STB 03
STB 05
STB 06
STB 09
STB 12
STB 15
STB 17
STB 21
STB 24
Cable diameter
mm
inches
1.00 – 1.40
1.40 – 1.80
1.90 – 2.65
2.30 – 3.00
2.60 – 3.50
3.25 – 4.50
4.50 – 6.00
5.80 – 8.50
8.50 – 11.50
11.00 – 15.50
15.00 – 19.00
0.040 – 0.055
0.055 – 0.071
0.075 – 0.104
0.091 – 0.118
0.102 – 0.138
0.128 – 0.177
0.177 – 0.236
0.228 – 0.335
0.335 – 0.452
0.433 – 0.610
0.590 – 0.750
Color of
applicator
wand
Brown
Grey
Green
Natural
Red
Blue
Yellow
Orange
Orange
Grey
Grey
Packed box
10 wands with 30 identical markers
10 wands with 30 identical markers
10 wands with 30 identical markers
10 wands with 30 identical markers
10 wands with 30 identical markers
10 wands with 30 identical markers
10 wands with 30 identical markers
50 identical markers. Applicator available separately*
50 identical markers. Applicator available separately*
50 identical markers. Applicator available separately*
50 identical markers. Applicator available separately*
APPLICATORS*
Order code
Marker size
Color of applicator
Number of applicators per pack
STD15-Applicator
STD17-Applicator
STD21-Applicator
STD24-Applicator
15
17
21
24
Orange
Orange
Grey
Grey
5
5
2
2
STD COLOR CODE
Y
Yellow
W
White
STB COLOR CODE
Legend
0
1
2
3
Marker color
Black
Brown
Red
Orange
Ink color
White
White
White
Black
Legend
4
5
6
7
Marker color
Yellow
Green
Blue
Violet
Ink color
Black
White
White
White
Legend
8
9
Marker color
Grey
White
Ink color
Black
Black
©2014 Tyco Electronics Corporation, a TE Connectivity Ltd.
Company. All Rights Reserved
| Indicates Change
Class I Data Classification - See Policy TEC-02-04
Page 2 of 3
TECHNICAL DATA SHEET
TE Document:
Issue:
TTDS-094
3
March 2014
Date:
STD and STB Markers
LEGEND CODE
Legend
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
G
H
I
Code
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
G
H
I
Legend
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
+
-
Code
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
Plus
Minus
Legend
/
Earth
Blank
:
=
Code
Slash
Earth
Blank
Colon
Equals
Dot
.
While TE has made every reasonable effort to ensure the accuracy of the information in this document, TE does not guarantee that it is error-free, nor does TE
make any other representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any
adjustments to the information contained herein at any time without notice. TE expressly disclaims all implied warranties regarding the information contained
herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. The dimensions in this document are for
reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions and
design specifications.
*Trademark. TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or company names may be trademarks of their
respective owners.
