42-13479 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 42-13479

42-13479: DescriptionCircular Connector, RoHS compliant; CategoryThe connector The connector; File Size252KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric View All

42-13479 Overview

Circular Connector, RoHS compliant

42-13479 Parametric

Parameter Name	Attribute value
Maker	CONEC
package instruction	RoHS compliant
Reach Compliance Code	compliant
Connector type	CIRCULAR CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

10,1

Technical specification:

Technische Daten:

Rated Voltage/

Bemessungsspannung:

30 V

M8x1

IEC 61076-2-104

Current rating/

Strombelastbarkeit:

3 A / 40°C

IEC 61076-2-104

Insulation resistance/

>=100 M

3/2

IP 67, in mated condition/

im verschraubten Zustand

Isolationswiderstand:

IEC 60512

Pollution degree/

Verschmutzungsgrad:

SW 9

IEC 60664-1

Degree of protection/

Schutzart:

IEC 60529

Temperature range/

Umgebungstemperatur:

-30°C ... +70°C

-40°C

-40°C ... +85°C

>=100

EN 60512-11-10

EN 60512-11-4

Mating cycles/

Steckzyklen:

IEC 60512-9a

Cable specification:

Kabeleigenschaften:

Temperatur range/

Umgebungstemperatur:

static/

fest verlegt

flexible/

bewegt

-40°C ... +70°C

-20°C ... +60°C

>= 3 Mio. / 4 m/s

Numbers of cycles/

Biegezyklen:

Materials/

Werkstoffe:

Contact/

Kontakt:

CuZn, Ni b / Au 0,2 gal.

PA, UL 94 V-0

GD-Zn, Ni

TPU, UL 94 HB, grey/

grau

Contact carrier/

Kontaktträger:

SW 9

Coupling screw

Überwurfschraube:

Moulding body

Griffkörper:

Installation specification/

Montagedaten:

Recommended torque/

The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization is prohibited. Offenders will be held liable for the payment of damages.

Weitergabe sowie Vervielfältigung dieses Dokuments, Verwertung und Mitteilung seines Inhalts sind verboten, soweit nicht ausdrücklich gestattet. Zuwiderhandlungen verpflichten zu Schadenersatz.

Alle Rechte für den Fall der Patent-, Gebrauchsmuster- oder Geschmacksmustereintragung vorbehalten.

0,4 Nm

Torque wrench/

Drehmomentschlüssel:

M8x1

10,1

empfohlenes Drehmoment:

Conec

Installation tool/

Montagewerkzeug:

36-000200

Insert across flats 9/

Steckeinsatz SW9

36-000210

Kontaktbelegung/

Contact assignment:

yellow/

gelb

white/

weiß

orange/

orange

blue/

blau

Shielding coupling screw/

Schirmauflage Überwurfschraube

Part no./

Art.-Nr.:

Description/

Bezeichnung:

Length L/ Cable/

Länge L:

Kabel:

42-13477

42-13478

42-13479

42-13480

42-xxxxx

tolerance of cable/

Kabeltoleranz:

SAL -8S - RS4.2 - RS4.2 - 1 / G6 / 034

SAL -8S - RS4.2 - RS4.2 - 2 / G6 / 034

SAL -8S - RS4.2 - RS4.2 - 5 / G6 / 034

SAL -8S - RS4.2 - RS4.2 - 10 / G6 / 034

SAL -8S - RS4.2 - RS4.2 - ... / G6 / 034

dim. in mm

10m

TPU, UL,

grün/

green

, 4xAWG22,

2YH(ST)C11Y

Cable/

Kabel

: 781-G63400

L <= 4m: L + 40mm

L > 4m: L + 1%

0,0

0,00

∢

0,50mm

0,25mm

0,10mm

5°

Date/

Datum

drawn

gez.

Name

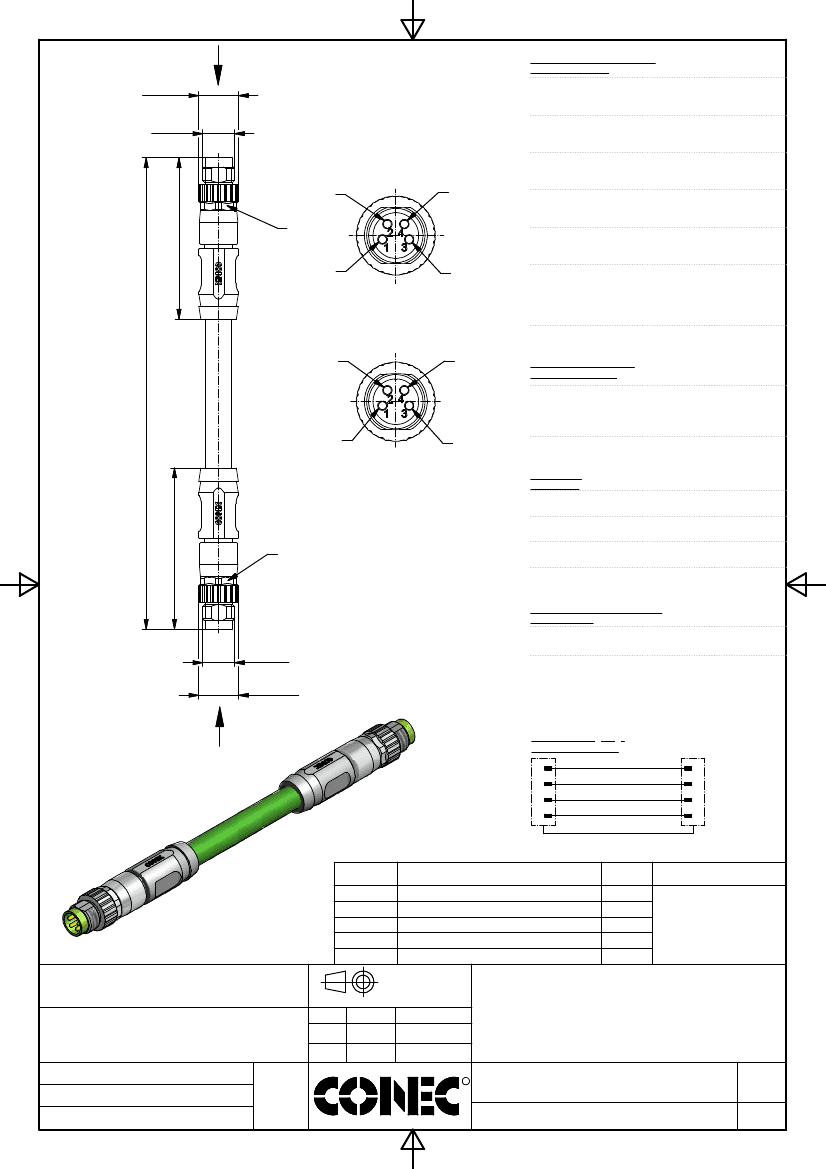

Connecting cable M8x1, 360°-shielding,

male connector axial - male connector axial

Verbindungsleitung M8x1, 360°-Schirmung,

Stecker axial - Stecker axial, schraub

general tolerance/

Allgemeintoleranz:

29.03.16

Fromm

Christen

appd./

gepr..

Index:

Status:

b 19.07.16 MG Ä6242

Freigegeben

scale

Maßstab

dwg no /

Z.-nr.:

42K1A1384

DIN-

RoHS & REACH complient/

konform

1/1
