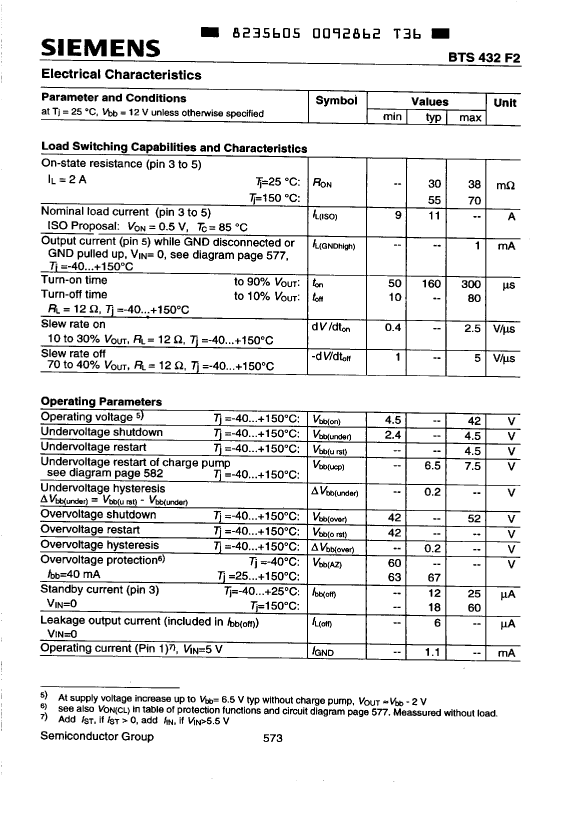

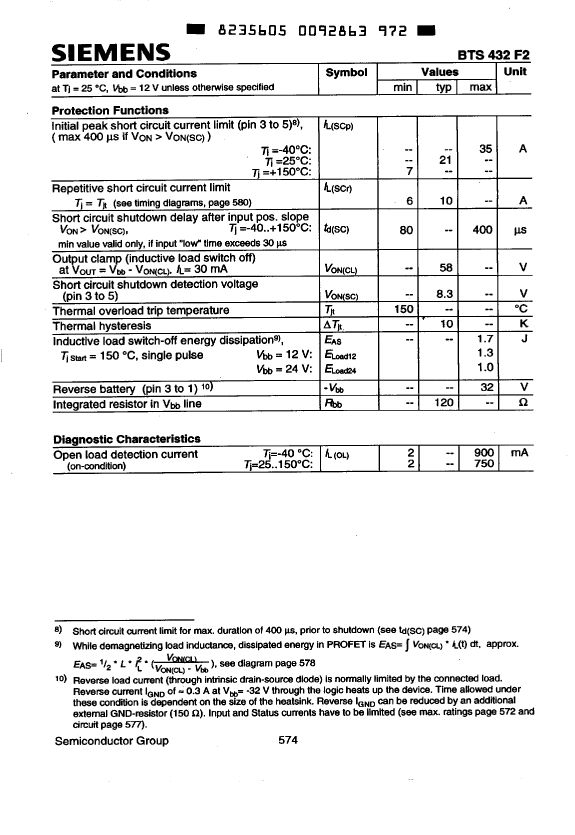

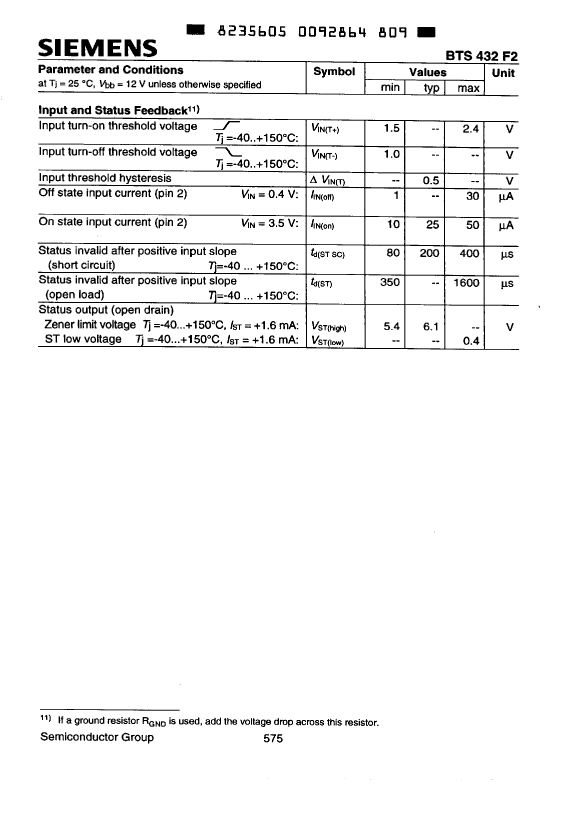

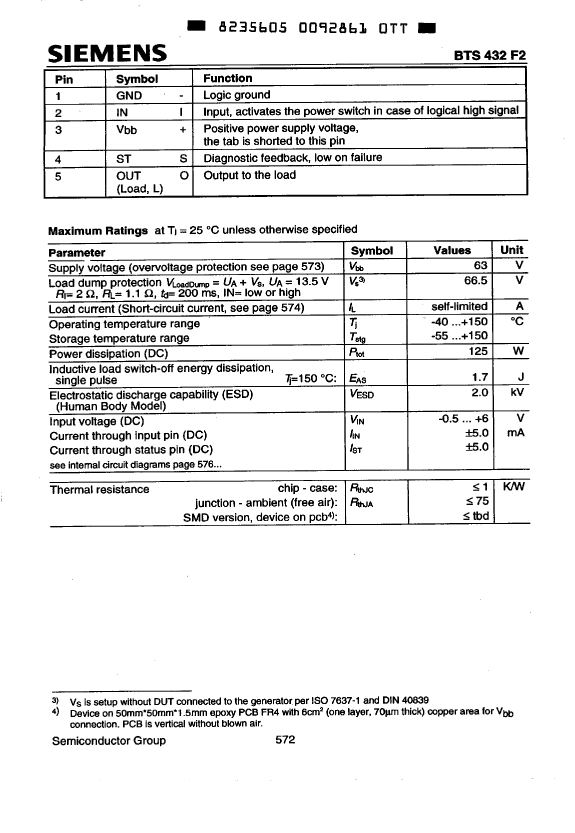

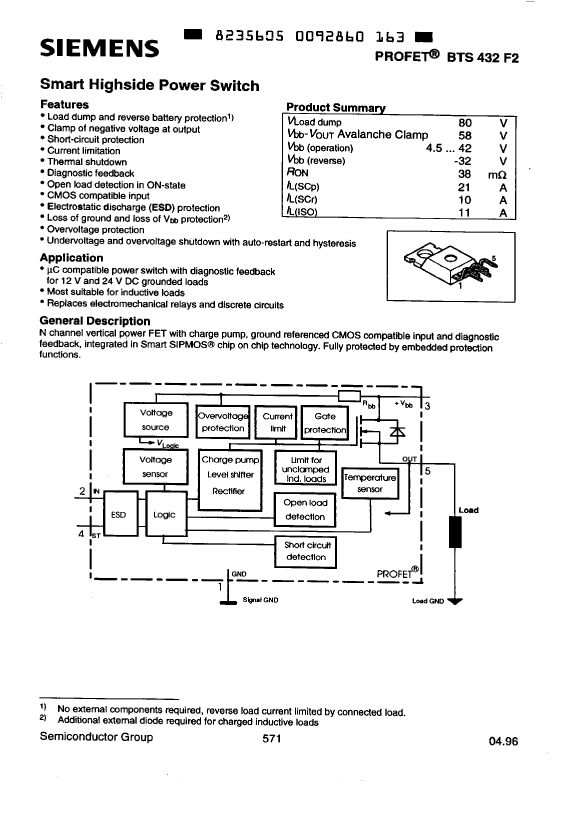

Preview

BTS432F2E3043: Description21A BUF OR INV BASED PRPHL DRVR, PSFM5; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size271KB，13 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/; Related ProductsFound19parts with similar functions to BTS432F2E3043

Download Datasheet Parametric Compare View All

BTS432F2E3043 Overview

21A BUF OR INV BASED PRPHL DRVR, PSFM5

BTS432F2E3043 Parametric

Parameter Name	Attribute value
Maker	SIEMENS
Reach Compliance Code	unknown
Built-in protection	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PSFM-T5
Number of functions	1
Number of terminals	5
Output characteristics	OPEN-SOURCE
Output current flow direction	SOURCE
Nominal output peak current	21 A
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
surface mount	NO
technology	MOS
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Disconnect time	80 µs
connection time	300 µs
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

BTS432F2E3043 Related Products

	BTS432F2E3043	BTS432F2E3062A
Description	21A BUF OR INV BASED PRPHL DRVR, PSFM5	21A BUF OR INV BASED PRPHL DRVR, PSSO4
Maker	SIEMENS	SIEMENS
Reach Compliance Code	unknown	unknown
Built-in protection	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PSFM-T5	R-PSSO-G4
Number of functions	1	1
Number of terminals	5	4
Output characteristics	OPEN-SOURCE	OPEN-SOURCE
Output current flow direction	SOURCE	SOURCE
Nominal output peak current	21 A	21 A
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
surface mount	NO	YES
technology	MOS	MOS
Terminal form	THROUGH-HOLE	GULL WING
Terminal location	SINGLE	SINGLE
Disconnect time	80 µs	80 µs
connection time	300 µs	300 µs
Base Number Matches	1	1
