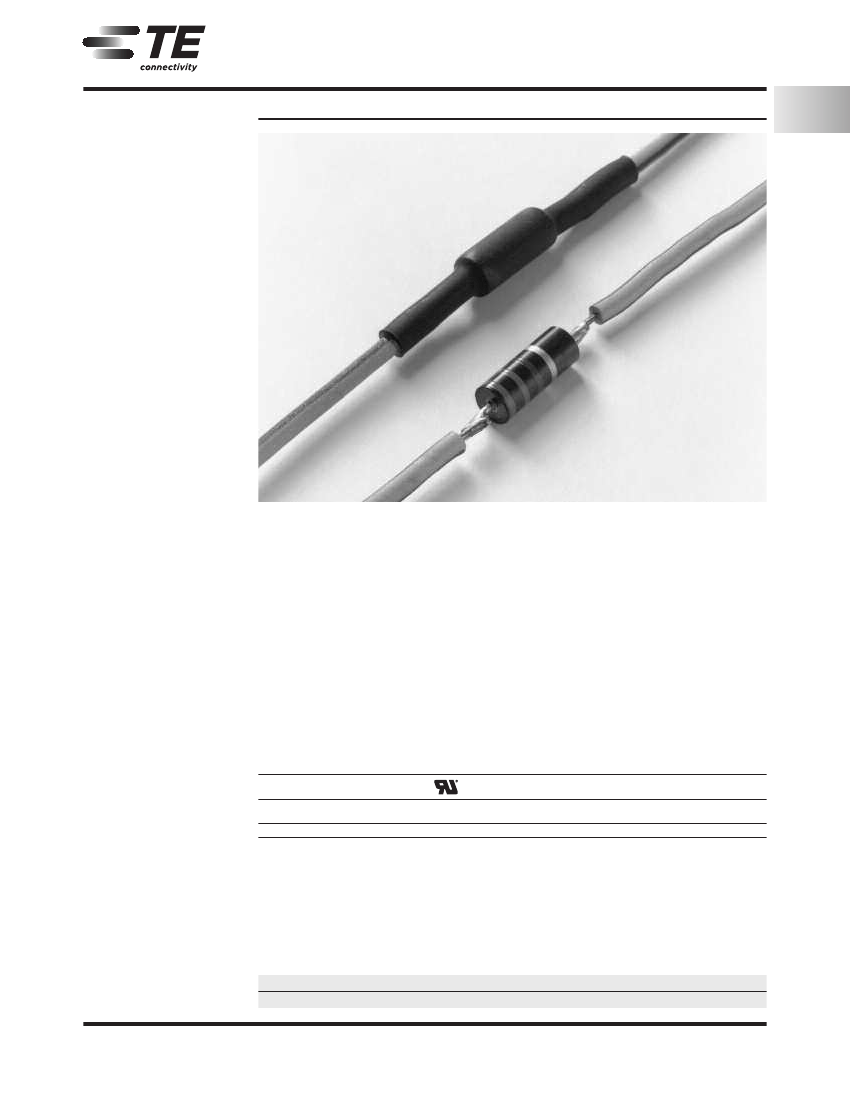

RAYCHEM Tubing Products
TAT-125
Adhesive-Lined,
Flexible,
Polyolefin Tubing
Product Facts
2:1 shrink ratio
I
Thin adhesive lining that
bonds to outer tubing and
surface below, forming a
positive environmental seal
I
Flexibility of both tubing and
adhesive
I
Moisture seal that is
resistant to bending of the
substrate
I
Good mechanical strength
and cut-through resistance
I
Adhesive that bonds to a
wide variety of plastics,
rubbers, and metals,
including polyethylene,
neoprene, lead, and steel
I
RoHS compliant
I
1
Heat-shrinkable Tubing
Applications
Seals and protects simple
in-line splices, bimetallic
joints, and components
from fluids, moisture, and
corrosion. Repairs
damaged wire insulation,
especially where flexibility
is required. Provides one-
step electrical insulation
and moisture sealing.
Installation
Minimum shrink
temperature: 95°C [203°F]
Minimum full recovery
temperature: 121°C [250°F]
Operating Temperature Range
-55°C to 110°C
[-67°F to 230°F]
Specifications/Approvals
Series
TAT-125 Type 1 (colors)
TAT-125 Type 2 (clear)
UL*
E85381
600 V, 125°C
—
Military
AMS-DTL-23053/4*, Class 2
—
Raychem
RW-3032
RW-3032
*Formerly MIL-I-23053/4 and MIL-DTL-23053/4. Sizes 1/4" through 1 1/2" only.
Available in:
Americas
I
Europe
Asia Pacific
I
1-119
9-1773447-9
CIS WR 08/2011
te.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 52-55-1106-0800
L. & S. America: 54-11-4733-2200
Germany: 49-6251-133-1999
China: 86-400-820-6015
Japan: 81-44-844-8013
UK: 44-800-267-666
RAYCHEM Tubing Products
TAT-125
(Continued)
Product Dimensions
Size
1/8
3/16
1/4
3/8
1/2
3/4
1
1 1/2
Inside Diameter
Maximum
Minimum
Expanded
Recovered
After Heating
as Supplied
3.2 [0.125]
1.6 [0.062]
4.8 [0.187]
2.4 [0.093]
6.4 [0.250]
3.2 [0.125]
9.5 [0.375]
4.8 [0.187]
12.7 [0.500]
6.4 [0.250]
19.1 [0.750]
9.5 [0.375]
25.4 [1.000]
12.7 [0.500]
38.1 [1.500]
19.1 [0.750]
Recovered Wall Thickness**
Total Wall
Adhesive Wall
After Heating
After Heating
(Nominal)
(Nominal)
0.69 [0.027]
0.23 [0.009]
0.71 [0.028]
0.25 [0.010]
0.74 [0.029]
0.13 [0.005]
0.74 [0.029]
0.13 [0.005]
0.76 [0.030]
0.15 [0.006]
0.89 [0.035]
0.15 [0.006]
1.07 [0.042]
0.20 [0.008]
1.19 [0.047]
0.28 [0.011]
**Wall thickness will be less if tubing recovery is restricted during shrinkage.
Ordering Information
Color
Standard
Nonstandard
Size selection
Standard packaging
Ordering description
Black (-0)
White (-9), red (-2), blue (-6), yellow (-4), green (-5), brown (-1),
orange (-3), violet (-7), gray (-8), clear (-X , not flame-retardant)
Always order the largest size that will shrink snugly over the component to be covered.
Special order sizes are available upon request.
In 1.2-meter [4-foot] lengths.
Specify product name, size and color (for example, TAT-125 1/4-0).
1-120
9-1773447-9
CIS WR 08/2011
te.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 52-55-1106-0800
L. & S. America: 54-11-4733-2200
Germany: 49-6251-133-1999
China: 86-400-820-6015
Japan: 81-44-844-8013
UK: 44-800-267-666
