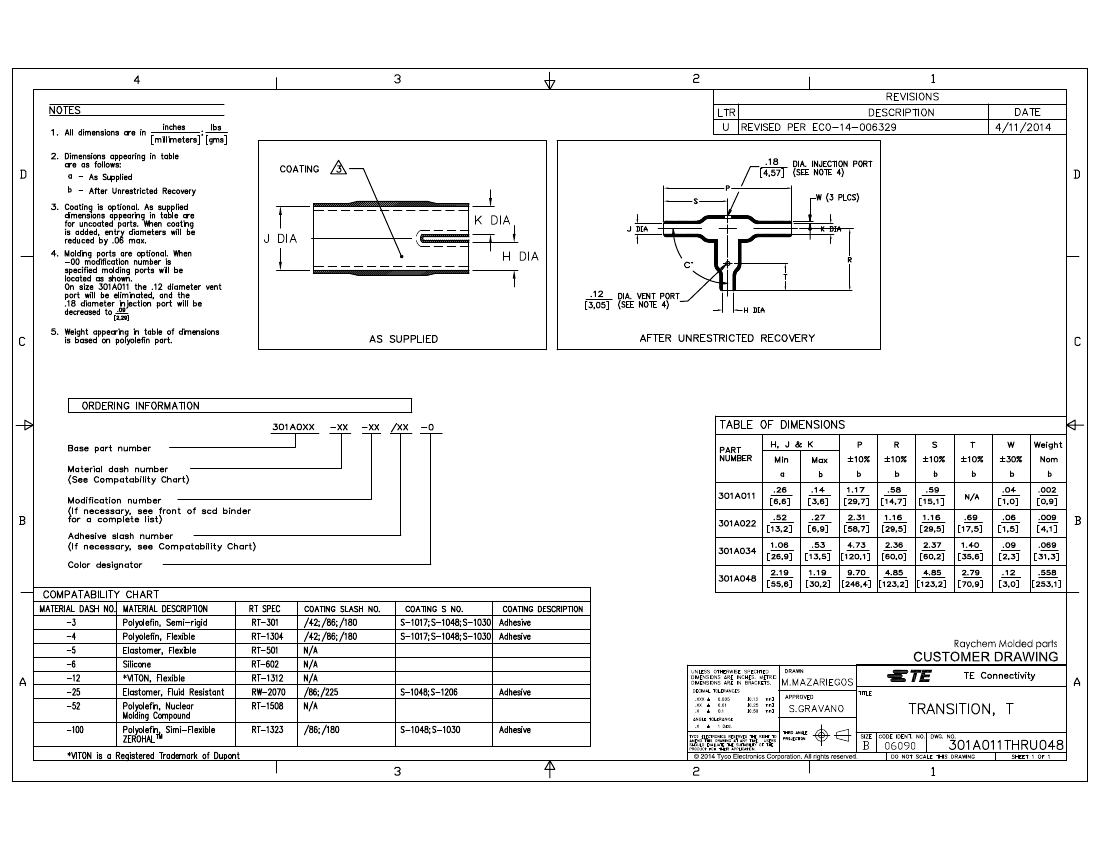

301A034-3-0

Parameter Name	Attribute value
Molded part shape	T shape
Molded Part Type	transfer
size code	34
Number of branches/legs	2
Material system code	10
Adhesive pre-coated	no
color	black
Transfer type	T-junction
Material	Semi-rigid modified polyolefin
Softness	semi-rigid
Material code	3
Inner diameter range (main body)	13.5 – 26.9 mm [ .53 – 1.06 in ]
Inner diameter range (foot 1)	13.5 – 26.9 mm [ .53 – 1.06 in ]
Inner diameter range (foot 2)	13.5 – 26.9 mm [ .27 – .52 in ]
range of working temperature	-55 – 135 °C [ -67 – 275 °F ]
Power cable accessories	no
Meet government qualifications	no
Cable outer diameter (mm)	16, 18, 20, 22, 24, 26
Cable outer diameter (in)	.63, .71, .79, .87, .93, 1.02
Cable main branch outer diameter (mm)	16, 18, 20
Cable main branch outer diameter (in)	.63, .71, .79
Cable small branch outer diameter (mm)	16, 18, 20
Cable small branch outer diameter (in)	.63, .71, .79
Fluid/Chemical Resistance	occasional exposure to liquids
special requirements	flame retardant
Adhesive options	S1017 separate application adhesive, S1048 separate application adhesive
Adhesive type	Adhesive purchased separately
tap angle	90
Comment	Please contact Raychem for more information on adhesives and/or cut-off guard lengths
Adhesive code	S1125
