B-040-26-N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> B-040-26-N

B-040-26-N: DescriptionB-040-26-N; CategoryWire/cable; File Size106KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

B-040-26-N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B-040-26-N	-	-	View	Buy Now

B-040-26-N Overview

B-040-26-N

B-040-26-N Parametric

Parameter Name	Attribute value
Suitable	coaxial cable
Temperature identification	no
Connector type	welded casing
Temperature identification type	no
Preassembled lead types	55A0111
Cable shielding materials	silver, tin
Shield outer diameter (maximum value)	2.8 mm
Lead splitting	Stranded wire
Lead plating materials	tin
Lead color	White Blue
Termination method	welding
Insulating sleeve outer diameter	4.4 mm [ .173 in ]
Conductor outer diameter	.3 – 1.6 mm [ .012 – .06 in ]
Dielectric outer diameter	2.5 mm [ .098 in ]
Dielectric outer diameter	2.5 mm [ .098 in ]
Preassembled lead size (mm²)	.15
total length	30 mm [ 1.181 in ]
Preassembled lead size (AWG)	26
Resistance properties	Splash protection
Operating temperature (max) (°C)	150
Meet government qualifications	no
MIL/NAS specifications (MIL-S-83519, NAS-1747)	no

Preview

Download Datasheet

View All

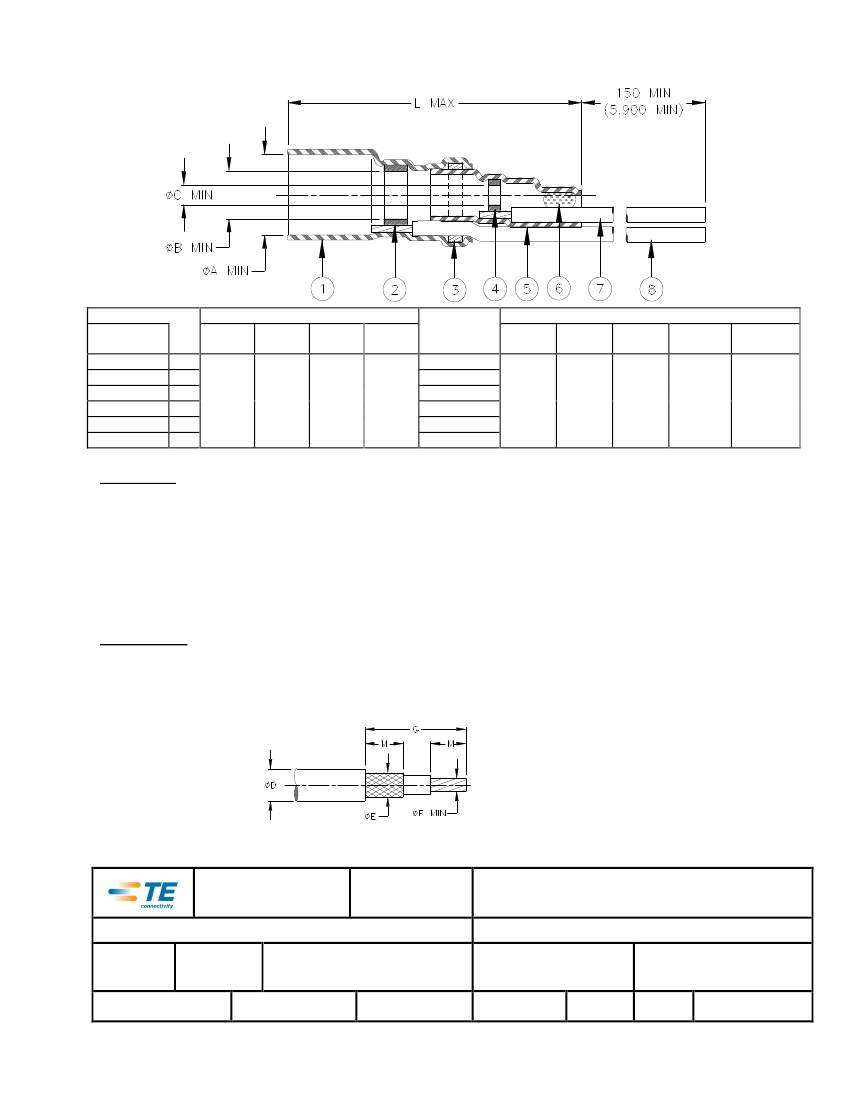

SPECIFICATION CONTROL DRAWING

Product Revision

Product

Name

B-040-20-N

B-040-22-N

B-040-24-N

B-040-26-N

B-040-28-N

B-040-30-N

max

Component Dimensions

øA

øB

øC

min

30.0

(1.180)

4.40

(0.175)

2.80

(0.110)

1.60

(0.060)

“GA”

Wire Gauge

(AWG)

øD

1.70

(0.065)

4.40

(0.175)

øE

1.50

(0.060)

2.80

(0.110)

Cable Dimensions

øF

G±0.5

min

(G±0.02)

M±0.5

(M±0.02)

0.30

(0.012)

16.0

(0.630)

6.0

(0.235)

MATERIALS

1. & 5. INSULATION SLEEVE: Heat-shrinkable, radiation cross-linked modified polyvinylidene fluoride. Transparent blue.

2. & 4. SOLDER PREFORMS WITH FLUX:

SOLDER: TYPE Sn63 per ANSI J-STD-006.

FLUX:

TYPE ROL1 per ANSI J-STD-004.

3. & 6. MELTABLE RINGS: Thermally stabilized thermoplastic.

7. CONDUCTOR LEAD: MIL-W-22759/32-GA-9, AWG “GA” (see table). ETFE insulated, stranded tin plated copper.

Color: white.

8. GROUND LEAD: MIL-W-22759/32-GA-6, AWG “GA” (see table). ETFE insulated, stranded tin plated copper.

Color: blue.

APPLICATION

1. The parts covered by this SCD are for use in terminating the primary conductor and the braided shield of a coaxial cable

having tin or silver plated conductor and shield, rated for at least 125° C and meeting the dimensional requirements listed.

2. Parts will meet the requirements of Raychem Specification RT-1404 when installed per Raychem RPIP-500-03.

3. Temperature range: -55°C to +150°C.

For best results, prepare

the cable as shown:

TE Connectivity

305 Constitution Drive

Menlo Park, CA 94025, USA

Raychem

Products

TITLE:

COAXIAL SOLDERSLEEVE DEVICE

WITH PRE-INSTALLED STRANDED WIRES

DOCUMENT NO.:

DATE:

UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.

INCHES DIMENSIONS ARE BETWEEN BRACKETS.

TOLERANCES:

ANGLES: N/A

TE Connectivity reserves the right to amend this

0.00 N/A

drawing at any time. Users should evaluate the

0.0 N/A

ROUGHNESS IN

suitability of the product for their application.

0 N/A

MICRON

DRAWN BY:

REPLACES:

DCR NUMBER:

B-040-GA-N

DOC ISSUE:

15-Apr-11

PROD. REV.

SCALE:

SIZE:

SHEET:

M. FORONDA

D000433

D000581

SEE TABLE

None

1 of 1

Print Date: 9-May-11

If this document is printed it becomes uncontrolled. Check for the latest revision.

B-040-26-N Related Products

	B-040-26-N	005299-000	B-040-28-N
Description	B-040-26-N	B-040-22-N	B-040-28-N
Suitable	coaxial cable	coaxial cable	coaxial cable
Temperature identification	no	no	no
Connector type	welded casing	welded casing	welded casing
Temperature identification type	no	no	no
Preassembled lead types	55A0111	55A0111	55A0111
Cable shielding materials	silver, tin	silver, tin	silver, tin
Shield outer diameter (maximum value)	2.8 mm	2.8 mm	2.8 mm
Lead splitting	Stranded wire	Stranded wire	Stranded wire
Lead plating materials	tin	tin	tin
Lead color	White Blue	White Blue	White Blue
Termination method	welding	welding	welding
Insulating sleeve outer diameter	4.4 mm [ .173 in ]	4.4 mm [ .173 in ]	4.4 mm [ .173 in ]
Conductor outer diameter	.3 – 1.6 mm [ .012 – .06 in ]	.3 – 1.6 mm [ .012 – .06 in ]	.3 – 1.6 mm [ .012 – .06 in ]
Preassembled lead size (mm²)	.15	.38	.09
total length	30 mm [ 1.181 in ]	30 mm [ 1.181 in ]	30 mm [ 1.181 in ]
Preassembled lead size (AWG)	26	22	28
Resistance properties	Splash protection	Splash protection	Splash protection
Operating temperature (max) (°C)	150	150	150
Meet government qualifications	no	no	no
MIL/NAS specifications (MIL-S-83519, NAS-1747)	no	no	no
Dielectric outer diameter	2.5 mm [ .098 in ]	2.5 mm [ .098 in ]	2.5 mm [ .098 in ]
