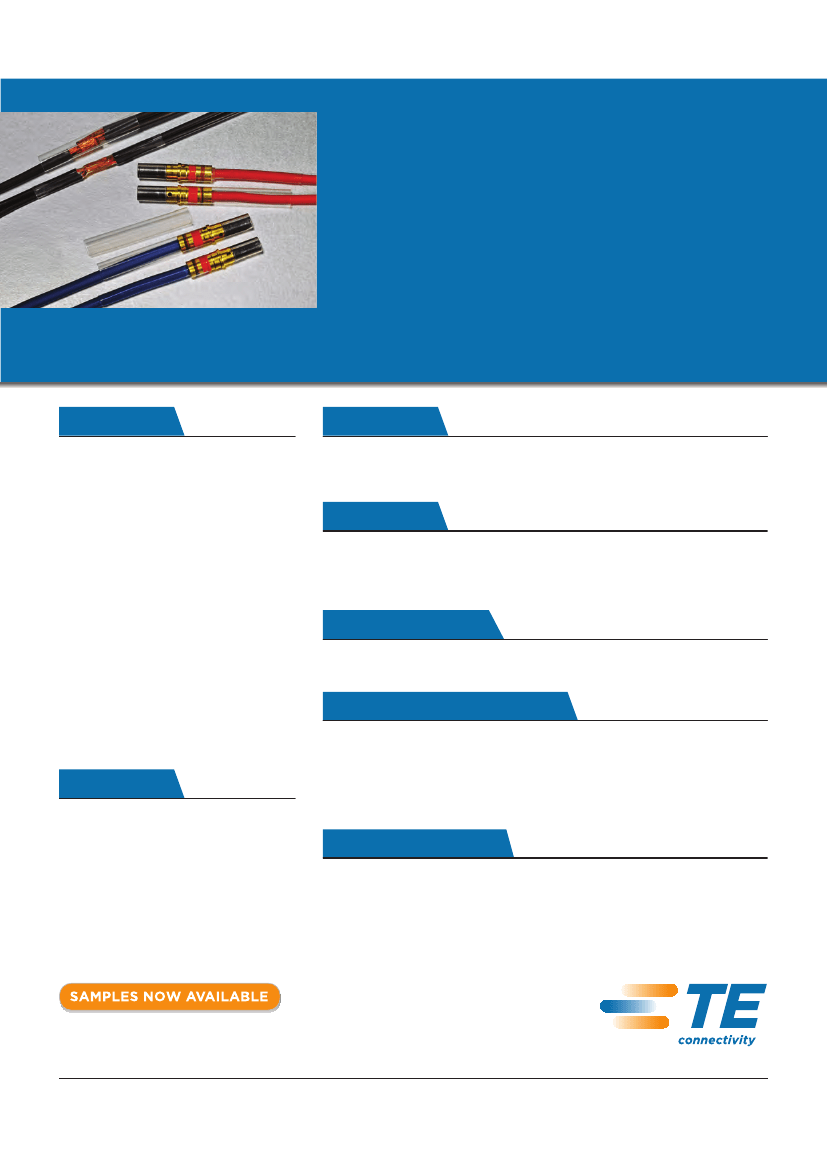

provides tough, semirigid, very-thin-wall insulation and strain relief of multipin
connectors, solder joints and other delicate electrical connections and
terminations. It is well-suited for applications that require dense packing
of components or visual inspection of covered components. It is especially
suitable for applications requiring outstanding abrasion and cut-through
resistance and superior chemical and solvent resistance. Its high temperature
performance meets or exceeds military and industrial standards. RW-175 meets
NASA outgassing requirements making it suitable for use in space applications
such as satellites.
KEY FEATURES
•
2:1 shrink ratio for all standard sizes
•
Tough, semirigid, very-thin-wall insulation
•
High flame-resistance, meeting the require-
ELECTRICAL
•
Provides excellent electrical insulation
•
Not recommended for use as a primary insulator at temperatures exceeding 135°C
[275°F]
ments of AMS-DTL-23053, Test C, with UL
and CSA VW-1 flammability rating
•
High temperature performance that meets
MECHANICAL
•
Tough modified polyvinylidene fluoride material provides outstanding abrasion and
or exceeds military and industrial standards
•
Protection from most industrial solvents,
cut-through resistance
•
Excellent for strain relief when installed on delicate electrical connections and termi-
fuels, and chemicals
•
Available in several “microtubing” sizes for
nations
applications requiring recovered I.D.’s as
small as .007” (0.178mm)
•
Meets NASA outgassing requirements
•
Offers improved clarity (clear version) and
TEMPERATURE RATING
•
Full recovery temperature: 175°C [347°F]
•
Operating Temperature range: -55°C to 175°C [-67°F to 347°F]
increased resistance to crazing when com-
pared to previously offered solutions
STANDARDS AND SPECIFICATIONS
•
RW-3029/2
•
RW-175 Microtubing SCD
APPLICATIONS
•
Appliances
•
Military and commercial aircraft
•
Satellites
•
Commercial electronics and communication
•
Industrial equipment
•
SAE-AMS-DTL-23053/8
•
UL 224 VW-1
•
CSA C22.2 No. 198.1-98 VW-1
ORDERING INFORMATION
•
Color: Clear (-X) (standard); Black (-0) (nonstandard)
•
Standard packaging (-STK): 1.2m [4 ft.] lengths
Optional packaging (-SP): Spool, varying lengths (consult TE for details)
•
Ordering description: Specify product name, size, and color; for example, RW-
175-3/16-X.
te.com/products/RW-175
1-1773729-9 APP 2/2014
USA: 1-800-522-6752
Canada: +1-905-475-6222
Mexico: +52 (0) 55-1106-0800
Latin/S. America: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
TE Connectivity
RW-175 DIMENSIONS
RW-175
Expanded as supplied
W
Fully recovered after heating
D
d
Size
3/64
1/16
3/32
1/8
3/16
1/4
3/8
1/2
3/4
1
1-1/2
2
Minimum
Expanded I.D. (D)
in.
.046
.063
.093
.125
.187
.250
.375
.500
.750
1.000
1.500
2.000
mm.
1.17
1.60
2.36
3.18
4.75
6.35
9.53
12.70
19.05
25.40
38.10
50.80
Maximum
Recovered I.D. (d)
in.
.023
.031
.046
.062
.093
.125
.187
.250
.375
.500
.750
1.000
mm.
.58
.79
1.17
1.58
2.36
3.18
4.75
6.35
9.53
12.70
19.05
25.40
Nominal Recovered
Jacket Wall (W)
in.
.010 ± .002
.010 ± .002
.010 ± .002
.010 ± .002
.010 ± .002
.013 ± .002
.013 ± .002
.013 ± .002
.017 ± .003
.019 ± .003
.020 ± .003
.020 ± .003
mm.
.25 ± .051
.25 ± .051
.25 ± .051
.25 ± .051
.25 ± .051
.33 ± .051
.33 ± .051
.33 ± .051
.43 ± .076
.48 ± .076
.51 ± .076
.51 ± .076
RW-175 ORDERING DESCRIPTION
Example 1:
RW-175-3/8-X-STK
1.2m [4 ft.] Length
Color is Clear
Size
Semirigid, Very Thin Wall Product
Example 2:
RW-175-3/4-0-SP
Spool Packaging
Color is Black
Size
Semirigid, Very Thin Wall Product
te.com/products/RW-175
1-1773729-9 APP 2/2014
USA: 1-800-522-6752
Canada: +1-905-475-6222
Mexico: +52 (0) 55-1106-0800
Latin/S. America: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
TE Connectivity
PRODUCT OFFERING
RW-175
Material Description
RW-175-3/64-X-STK
RW-175-3/64-X-SP
RW-175-3/64-0-STK
RW-175-3/64-0-SP
RW-175-1/16-X-STK
RW-175-1/16-X-SP
RW-175-1/16-0-STK
RW-175-1/16-0-SP
RW-175-3/32-X-STK
RW-175-3/32-X-SP
RW-175-3/32-0-STK
RW-175-3/32-0-SP
RW-175-1/8-X-STK
RW-175-1/8-X-SP
RW-175-1/8-0-STK
RW-175-1/8-0-SP
RW-175-3/16-X-STK
RW-175-3/16-X-SP
RW-175-3/16-0-STK
RW-175-3/16-0-SP
RW-175-1/4-X-STK
RW-175-1/4-X-SP
RW-175-1/4-0-STK
RW-175-1/4-0-SP
RW-175-3/8-X-STK
Material Number
CV3299-000
CV3270-000
CV3331-000
CV3269-000
CV3300-000
CV3257-000
CV3322-000
CV3256-000
CV3301-000
CV3267-000
CV3329-000
CV3266-000
CV3302-000
CV3262-000
CV3325-000
CV3261-000
CV3303-000
CV3265-000
CV3328-000
CV3264-000
CV3304-000
CV3260-000
CV3324-000
CV3259-000
CV3305-000
Material Description
RW-175-3/8-X-SP
RW-175-3/8-0-STK
RW-175-3/8-0-SP
RW-175-1/2-X-STK
RW-175-1/2-X-SP
RW-175-1/2-0-STK
RW-175-3/4-X-STK
RW-175-3/4-X-SP
RW-175-3/4-0-STK
RW-175-1-X-STK
RW-175-1-X-SP
RW-175-1-0-STK
RW-175-1-1/2-X-STK
RW-175-1-1/2-0-STK
RW-175-2-X-STK
RW-175-030-X-SP†
RW-175-NO.1-X-SP†
RW-175-NO.2-X-SP†
RW-175-NO.13-X-SP†
RW-175-NO.14-X-SP†
RW-175-NO.33-X-SP†
RW-175-NO.33-0-SP†
RW-175-NO.65-X-SP†
RW-175-NO.65-0-SP†
Material Number
CV3272-000
CV3332-000
CV3271-000
CV3306-000
CV3258-000
CV3323-000
CV3307-000
CV3268-000
CV3330-000
CV3308-000
CV3263-000
CV3326-000
CV3309-000
CV3327-000
CV3310-000
CV3281-000
CV3293-000
CV3294-000
CV3291-000
CV3292-000
CV3296-000
CV3295-000
CV3298-000
CV3297-000
† RW-175 microtubing is available in 0.014-0.045 in. (.356-1.143 mm) dia.
Consult TE for complete details.
SAMPLE INVENTORY
RW-175-3/64-X-STK
RW-175-1/16-X-STK
RW-175-3/32-X-STK
RW-175-1/8-X-STK
RW-175-3/16-X-STK
RW-175-1/4-X-STK
RW-175-3/8-X-STK
RW-175-1/2-X-STK
RW-175-3/4-X-STK
RW-175-1-X-STK
RW-175-1-1/2-X-STK
RW-175-NO.1-X-SP
RW-175-NO.33-X-SP
te.com/products/RW-175
1-1773729-9 APP 2/2014
USA: 1-800-522-6752
Canada: +1-905-475-6222
Mexico: +52 (0) 55-1106-0800
Latin/S. America: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
TE Connectivity
PROPERTY REQUIREMENTS
RW-175
Property
PHYSICAL
Dimensions
Longitudinal Change
Tensile Strength
Ultimate Elongation
Secant Modulus (expanded)
Specific Gravity
Low Temperature Flexibility
4 hours at -55°C ± 2°C (-67 ±4°F)
Heat Shock
4 hours at 300 ± 5°C (572 ± 9°F)
Heat Resistance
168 hours at 250 ± 5°C (482 ± 9°F)
Followed by test for:
Ultimate elongation
Vacuum Outgasing
TML (Total Mass Loss)
VCM (Volatile Condensible Material)
ELECTRICAL
Dielectric Strength
Sizes 3/64 through 12
Sizes 3/4 through 2
Volume Resistivity
CHEMICAL
Corrosive Effect Copper Mirror
16 hours at 150°C
Copper Contact
168 hours at 175 ± 3°C (347 ± 5°F)
Followed by test for:
Ultimate Elongation
Flammability
Average Time of Burning
Fungus Resistance
Followed by tests for:
Tensile Strength
Ultimate Elongation
Dielectric Strength
Sizes 3/64 through 1/2
Sizes 3/4 through 2
Water Absorption
24 hours at 23 ± 3°C (73 ± 5°F)
Fluid Resistance
24 hours at 23 ± 3°C (73 ± 5°F)
JP-4 Fuel (MIL-T-5624)
SKYDROL 500 Hydraulic Fluid (MIL-H-5606)
Aviation Gasoline 100/130 (MIL-G-5572)
Salt Water (5% salt)
Anti-icing Fluid (MIL-A-8243)
Lubricating Oil (MIL-L-7808)
Followed by tests for:
Dielectric Strength
Sizes 3/64 through 1/2
Sizes 3/4 through 2
Tensile Strength
Unit
Inch (mm)
Percent
psi (MPa)
Percent
psi (MPa)
Requirement
Table 1
+0, -10 maximum
5000 minimum (34.5)
150 minimum
1 x 10
5
minimum (690)
1.8 maximum
No cracking
No dripping, flowing or
cracking
Test Method
RW-3029/2, Section 4.3.1
ASTM D 2671
RW-3029/2, Section 4.3.2
ASTM D 2671
ASTM D 2671
ASTM D 2671
RW-3029/2, Section 4.3.3
RW-3029/2, Section 4.3.4
RW-3029/2, Section 4.3.5
Percent
Percent
Percent
V/mil (kV/mm)
Ohm-cm
50 minimum
1.0 maximum
0.1 maximum
ASTM D 2671
ASTM E 595
800 minimum (31,500)
600 minimum (2,600)
1 X 10
13
minimum
Noncorrosive
No pitting or blackening of
copper
ASTM D 2671
ASTM D 2671
RW-3029/2, Section 4.3.6.1
ASTM D 2671, Proc. A
RW-3029/2, Section 4.3.6.2
ASTM D 2671, Proc. B
RW-3029/2, Section 4.3.2
ASTM D 2671, Proc. A
ISO 846, Method B
Percent
Seconds
psi (Mpa)
Percent
Volts/mil (volts/mm)
Percent
100 minimum
15 maximum
5000 minimum (34.5)
150 minimum
800 minimum (31,500)
600 minimum (23,600)
0.5 maximum
RW-3029/2, Section 4.3.2
ASTM D 2671
ASTM D 2671
ASTM D 2671
RW-3029/2, Section 4.3.7
Volts/mil (Volts/mm)
psi (MPa)
700 minimum (27,600)
500 minimum (19,700)
5000 minimum (34.5)
ASTM D 2671
RW-3029/2, Section 4.3.2
ASTM D 2671
While TE has made every reasonable effort to ensure the accuracy of the information in this flyer, TE does not guarantee that it is error-free, nor does TE make any other representation, warranty
or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein at any time without notice. TE expressly
disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. The dimensions
in this flyer are for reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions and design specifications.
We copy the QT file system we made before to Ubuntu, and then create a new folder named root, unzip the QT file system we copied to Ubuntu in this folder or put the unpacked file system into it. Becau...
The Qsys system and Linux applications exchange hardware information through a file called hps_0.h, such as which peripherals are added to the bus, the offset address of each peripheral relative to th...
As the title says, I need to get a TXT document in the SD card, which contains the time, temperature, and humidity titles, and the data below. I am a student who has just come into contact with this a...
Criminals usually use the bank's off-hours to commit crimes, so cardholders should be extra vigilant when entering the self-service bank to use the ATM after the bank is off-hours, especially at night...
I want to purchase the existing handheld embedded or single-chip RFID data acquisition products at a high price. I have a project that requires handheld data acquisition products. The requirements are...
The launchpad main control of TM4 has been changed from LM4F120H5Q to TM4C123GH6PM, with enhanced performance, and added PWM, QEI and USB host/OTG. It will probably take 10 weeks to get the board. Wil...
With the rapid development of technology, automotive intelligence is increasing at an unprecedented rate. This not only enhances vehicle functionality and comfort, but also places higher deman...[Details]
introduction
As “energy conservation and emission reduction” has become an indicator of the National Economic Development Outline of the 11th Five-Year Plan, people’s awareness of green enviro...[Details]
In the scorching summer, electric fans are a must-have for cooling down people's homes. However, I believe most people have encountered this situation: the fan is plugged in, the switch is pressed,...[Details]
One of the most core components of electric vehicles is the motor. The power supply provides electrical energy to the motor, which converts this electrical energy into mechanical energy, which in t...[Details]
China, August 21, 2025 – STMicroelectronics (NYSE: STM), a world-leading semiconductor company serving a wide range of electronics applications, has published its IFRS 2025 semi-annual financial re...[Details]
introduction
The rapid adoption of computers has led to a growing number of tasks being performed on them. People from all walks of life, especially programmers and writers, are spending incre...[Details]
When we pick up an unfamiliar object, the first thing we want to know is what it actually does. A drive shaft, as the name suggests, is a shaft that transmits power. It's the transmission medium th...[Details]
With the global number of new energy vehicles expected to exceed 45 million by 2025, the performance boundaries of battery management systems are being reshaped.
Infineon Technologies
'
...[Details]
According to the latest financial report data, thanks to its leading position in advanced technology, TSMC's profit performance in the second quarter of 2025 was extremely impressive, with net prof...[Details]
Relying on Zena CSS and Arm's complete partner ecosystem, we will accelerate the implementation of autonomous driving.
Close your eyes and imagine yourself getting into your car, rea...[Details]
introduction
With the continuous development of electronic technology and the continuous upgrading of medical equipment, the demand for medical liquid infusion precision is becoming increasing...[Details]
introduction
As the concept of "low-carbon travel and green environmental protection" becomes more and more popular, bicycles have become a crucial means of transportation. Currently, urban pu...[Details]
On August 14th, Zhiyuan
Robotics
officially
open-sourced
its world model, GenieEnvisioner (GE), unveiled in July
, and once again promoted the concept of "the industry's first world ...[Details]
The working principle of a frequency converter is to process input fixed-frequency AC power through circuits such as rectification, filtering, and inversion, and then output AC power with variable ...[Details]
Today, we'll discuss why contactors shouldn't be connected to the output terminals of VFDs. This is because if the contactor at the VFD output isn't engaged, it will only engage when the VFD starts...[Details]
ARM Technology
京公网安备 11010802033920号
EEWORLD
