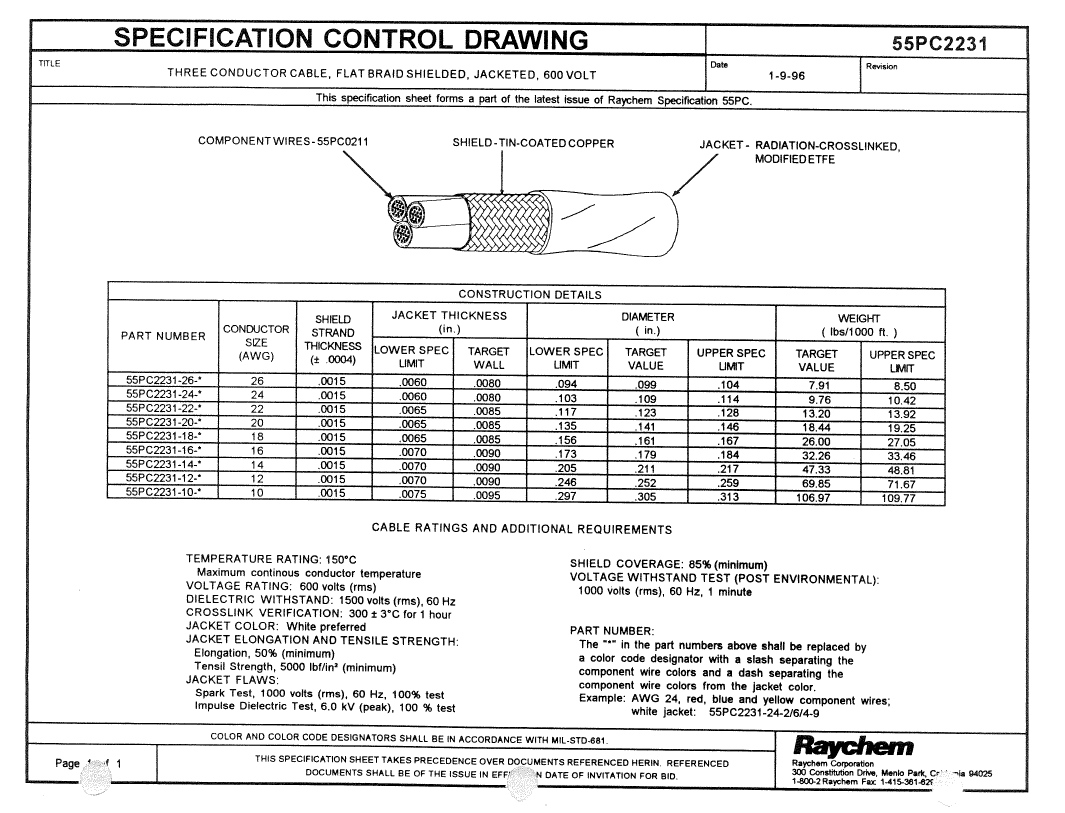

55PC2231-20-9/9/9-9 datasheet, PDF

55PC2231-20-9/9/9-9: Description55PC2231-20-9/9/9-9; CategoryWire/cable; File Size110KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

55PC2231-20-9/9/9-9 Overview

55PC2231-20-9/9/9-9

Parameter Name	Attribute value
Cable type	Spec 55
Cable type	Flat braided shielding and jacketing
Product Categories	High Performance - Sizes 44, 55 and RCW
Number of shares	19
Number of conductors	3
Rated voltage (V)	600
shielding material	tinned copper, tinned copper
Insulating sleeve color	White
Wire color	White
conductor material	tinned copper, tinned copper
Conductor diameter (in)	.038
Stock size (AWG)	32
Overall outside diameter (in)	.141
Wire size (AWG)	20
Wire diameter	1.37 mm [ .054 in ]
Operating temperature range (°C)	-65 – 150

	55PC2231-20-9/9/9-9	55PC2224-24-2/6-9CS2502	55PC2231-22-9/9/9-9
Description	55PC2231-20-9/9/9-9	55PC2224-24-2/6-9CS2502 Cable Type:Spec 55PC;Voltage Rating:600 V;Insulation Material:Radiation Crosslinked Modified ETFE;Conductor Material:Silver-Coated High Strength Copper Alloy;Wire Size:24 AWG Spec 55PC 600 V Radiation Crosslinked Modified ETFE Silver-Coated High Strength Copper Alloy \| Part# 55PC2224-24-2/6-9CS2502 \| 24 AWG	55PC2231-22-9/9/9-9
conductor material	tinned copper, tinned copper	COPPER ALLOY	tinned copper, tinned copper
Cable type	Flat braided shielding and jacketing	-	Flat braided shielding and jacketing
Product Categories	High Performance - Sizes 44, 55 and RCW	-	High Performance - Sizes 44, 55 and RCW
Number of shares	19	-	19
Number of conductors	3	-	3
Rated voltage (V)	600	-	600
shielding material	tinned copper, tinned copper	-	tinned copper, tinned copper
Insulating sleeve color	White	-	White
Wire color	White	-	White
Conductor diameter (in)	.038	-	.029
Stock size (AWG)	32	-	34
Overall outside diameter (in)	.141	-	.123
Wire size (AWG)	20	-	22
Wire diameter	1.37 mm [ .054 in ]	-	1.16 mm [ .0456 in ]
Operating temperature range (°C)	-65 – 150	-	-65 – 150
