82/0112-20-0: Description82/0112-20-0; CategoryWire/cable; File Size87KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

82/0112-20-0 Overview

82/0112-20-0

82/0112-20-0 Parametric

Parameter Name	Attribute value
Cable type	Spec 80
Product Categories	Wire - Spec 80 (FlexLine)
Cable type	primary
Wall type	single
Number of shares	154
Number of conductors	1
Rated voltage (V)	600
Insulation Materials	Irradiation cross-linked modified flexible ETFE
conductor material	silver coated copper, silver coated copper
conductor split	Highly stranded conductor
Wire color	black
Stock size (AWG)	42
Wire size (AWG)	20
Wire size (mm²)	.52
Wire diameter (in)	.053
Overall outside diameter (in)	.053
Conductor diameter (in)	.037
Operating temperature range (°C)	-65 – 150
Wires	external space

Preview

Download Datasheet

View All

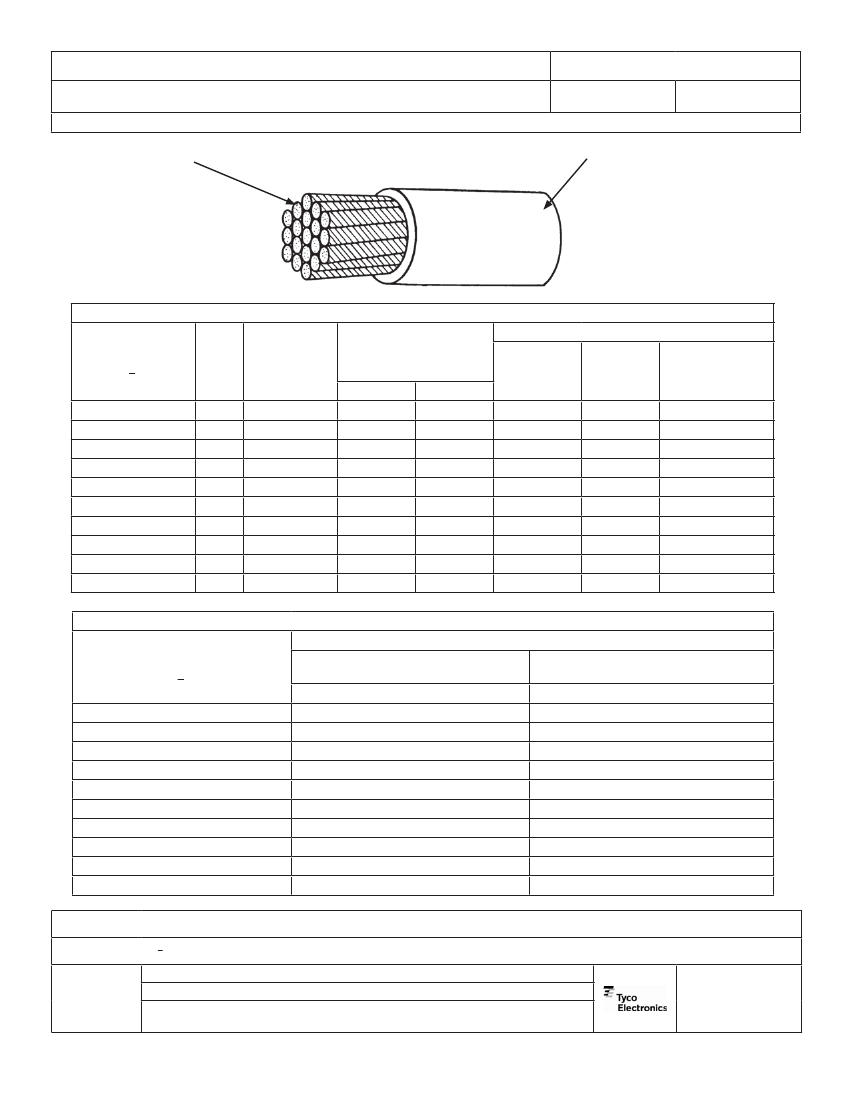

SPECIFICATION CONTROL DRAWING

TITLE

82/0112

Date

WIRE, RADIATION-CROSSLINKED, MODIFIED FLEXIBLE ETFE-INSULATED,

LIGHTWEIGHT, OUTER SPACE, 600 VOLT

1-6-11

Revision

C

This specification sheet forms a part of the latest issue of Raychem Specification 80.

CONDUCTOR - SILVER-COATED COPPER

INSULATION - RADIATION-CROSSLINKED,

MODIFIED FLEXIBLE ETFE

TABLE I. CONSTRUCTION DETAILS

PART NUMBER

1/

WIRE

SIZE

(AWG)

28

26

24

22

20

18

16

14

12

10

CONDUCTOR

STRANDING

(number x AWG)

42 x 44

63 x 44

105 x 44

154 x 44

154 x 42

259 x 42

259 x 40

665 x 42

665 x 40

665 x 38

DIAMETER OF

STRANDED

CONDUCTOR

(in.)

MINIMUM

82/0112-28-*

82/0112-26-*

82/0112-24-*

82/0112-22-*

82/0112-20-*

82/0112-18-*

82/0112-16-*

82/0112-14-*

82/0112-12-*

82/0112-10-*

.013

.017

.023

.029

.037

.047

.061

.078

.096

.126

MAXIMUM

.017

.021

.027

.033

.043

.053

.067

.086

.106

.140

FINISHED WIRE

MAXIMUM

RESISTANCE

AT 20°C

(ohms/1000 ft.)

75.5

46.9

28.2

19.2

11.7

7.14

4.62

2.96

1.89

1.12

DIAMETER

(in.)

.029 ± .003

.033 ± .003

.037 ± .003

.043 ± .003

.053 ± .004

.064 ± .004

.079 ± .004

.099 ± .005

.121 ± .006

.157 ± .009

MAXIMUM

WEIGHT

(lbs/1000 ft.)

1.2

1.4

2.1

2.9

4.2

6.7

10.2

16.5

24.8

42.2

TABLE II. PERFORMANCE DETAILS

BEND TESTING

PART NUMBER

1/

82/0112-28-*

82/0112-26-*

82/0112-24-*

82/0112-22-*

82/0112-20-*

82/0112-18-*

82/0112-16-*

82/0112-14-*

82/0112-12-*

82/0112-10-*

MANDREL DIAMETER

(inch) (± 3%)

CROSSLINKING PROOF TEST

.250

.375

.500

.750

1.00

1.50

2.00

WEIGHT

(lb) (± 3%)

CROSSLINKING PROOF TEST

.125

.250

.375

.500

.750

1.00

1.50

Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.

Tyco Electronics also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.

1/

COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. OTHER CODES AND SUFFIXES MAY BE

ADDED TO THE PART NUMBER. AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.

The TE logo, Tyco Electronics and Raychem are trademarks.

Raychem Wire & Cable

501 Oakside Avenue

Redwood City, CA 94063-3800

Phone: 1-800-227-8816

Fax: 1-650-361-6297

Page 1 of 2

DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL.

THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.

REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.

82/0112-20-0 Related Products

	82/0112-20-0	82/0112-22-9	82/0112-18-9	82/0112-24-9	82/0112-28-9	82/0112-20-2
Description	82/0112-20-0	82/0112-22-9	82/0112-18-9	82/0112-24-9	82/0112-28-9	82/0112-20-2
Product Categories	Wire - Spec 80 (FlexLine)	Wire - Spec 80 (FlexLine)	Wire - Spec 80 (FlexLine)	Wire - Spec 80 (FlexLine)	Wire - Spec 80 (FlexLine)	Wire - Spec 80 (FlexLine)
Wall type	single	single	single	single	single	single
Number of conductors	1	1	1	1	1	1
Rated voltage (V)	600	600	600	600	600	600
Insulation Materials	Irradiation cross-linked modified flexible ETFE	Irradiation cross-linked modified flexible ETFE	Irradiation cross-linked modified flexible ETFE	Irradiation cross-linked modified flexible ETFE	Irradiation cross-linked modified flexible ETFE	Irradiation cross-linked modified flexible ETFE
conductor material	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper
conductor split	Highly stranded conductor	Highly stranded conductor	Highly stranded conductor	Highly stranded conductor	Highly stranded conductor	Highly stranded conductor
Wire color	black	White	White	White	White	red
Wire size (AWG)	20	22	18	24	28	20
Wire size (mm²)	.52	.33	.82	.2	.08	.52
Operating temperature range (°C)	-65 – 150	-65 – 150	-65 – 150	-65 – 150	-65 – 150	-65 – 150
Wires	external space	external space	external space	external space	external space	external space
Cable type	primary	primary	primary	primary	primary	primary
Number of shares	154	154	-	-	42	154
Stock size (AWG)	42	44	-	-	44	42
Wire diameter (in)	.053	.043	-	-	.029	.053
Overall outside diameter (in)	.053	.043	-	-	.029	.053
Conductor diameter (in)	.037	.029	-	-	.013	.037
