BTS442D2E3043 datasheet, PDF - EEWORLD Datasheet

BTS442D2E3043: Description95A BUF OR INV BASED PRPHL DRVR, PSFM5; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size281KB，13 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

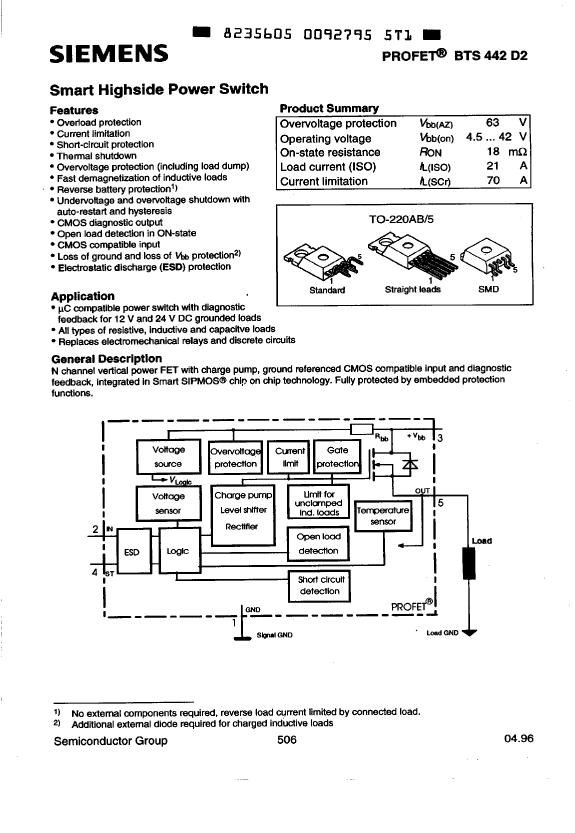

BTS442D2E3043 Overview

95A BUF OR INV BASED PRPHL DRVR, PSFM5

Parameter Name	Attribute value
Maker	SIEMENS
package instruction	,
Reach Compliance Code	unknown

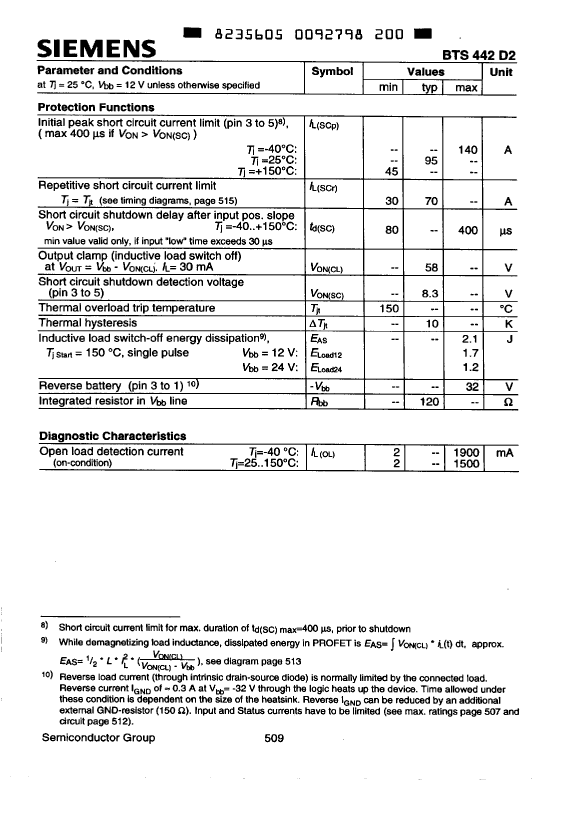

Built-in protection	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

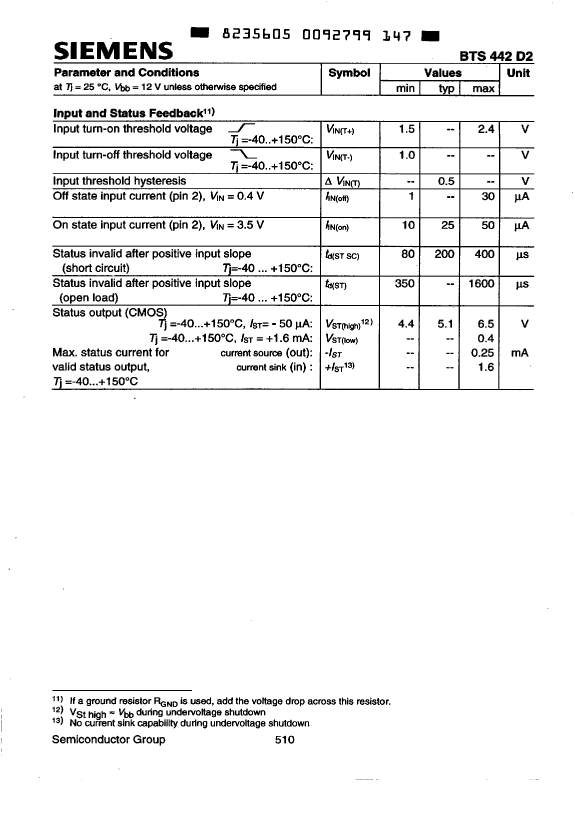

Input properties	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PSFM-T5
Number of functions	1

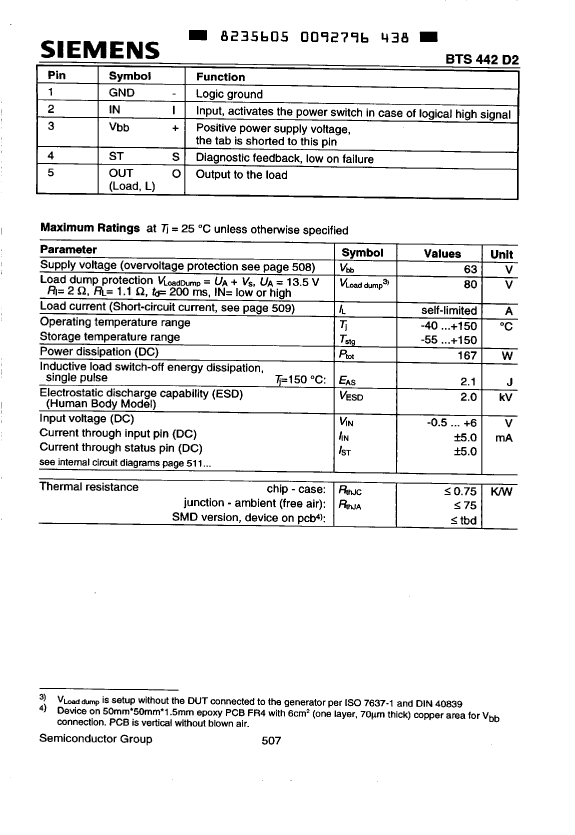

Number of terminals	5
Output characteristics	OPEN-SOURCE
Output current flow direction	SOURCE
Nominal output peak current	95 A
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
surface mount	NO
technology	MOS
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

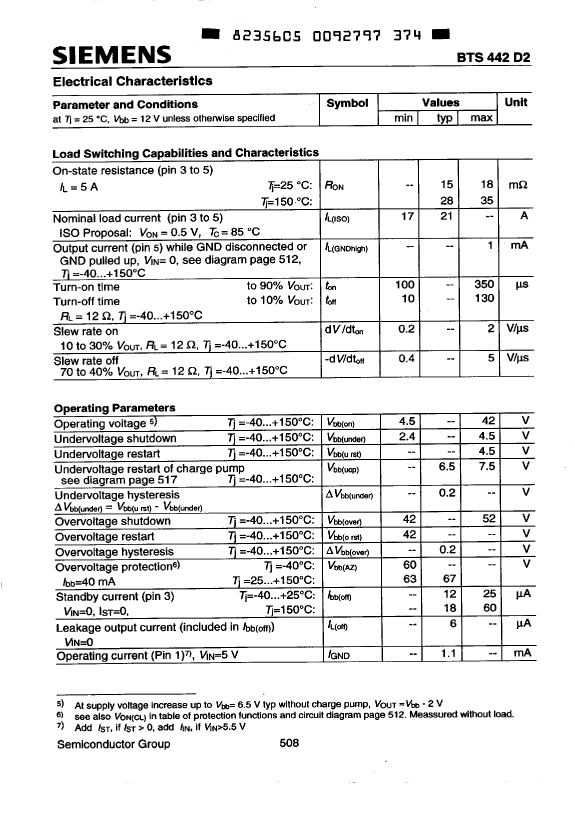

Disconnect time	130 µs
connection time	350 µs
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	BTS442D2E3043	BTS442D2E3062A
Description	95A BUF OR INV BASED PRPHL DRVR, PSFM5	95A BUF OR INV BASED PRPHL DRVR, PSSO4
Maker	SIEMENS	SIEMENS
Reach Compliance Code	unknown	unknown
Built-in protection	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PSFM-T5	R-PSSO-G4
Number of functions	1	1
Number of terminals	5	4
Output characteristics	OPEN-SOURCE	OPEN-SOURCE
Output current flow direction	SOURCE	SOURCE
Nominal output peak current	95 A	95 A
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
surface mount	NO	YES
technology	MOS	MOS
Terminal form	THROUGH-HOLE	GULL WING
Terminal location	SINGLE	SINGLE
Disconnect time	130 µs	130 µs
connection time	350 µs	350 µs
