530776-4 datasheet, PDF - EEWORLD Datasheet

530776-4: Description2 ROW BOX RECP 60 POS STAG; CategoryThe connector The connector; File Size397KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

530776-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	530776-4	-	-	View	Buy Now

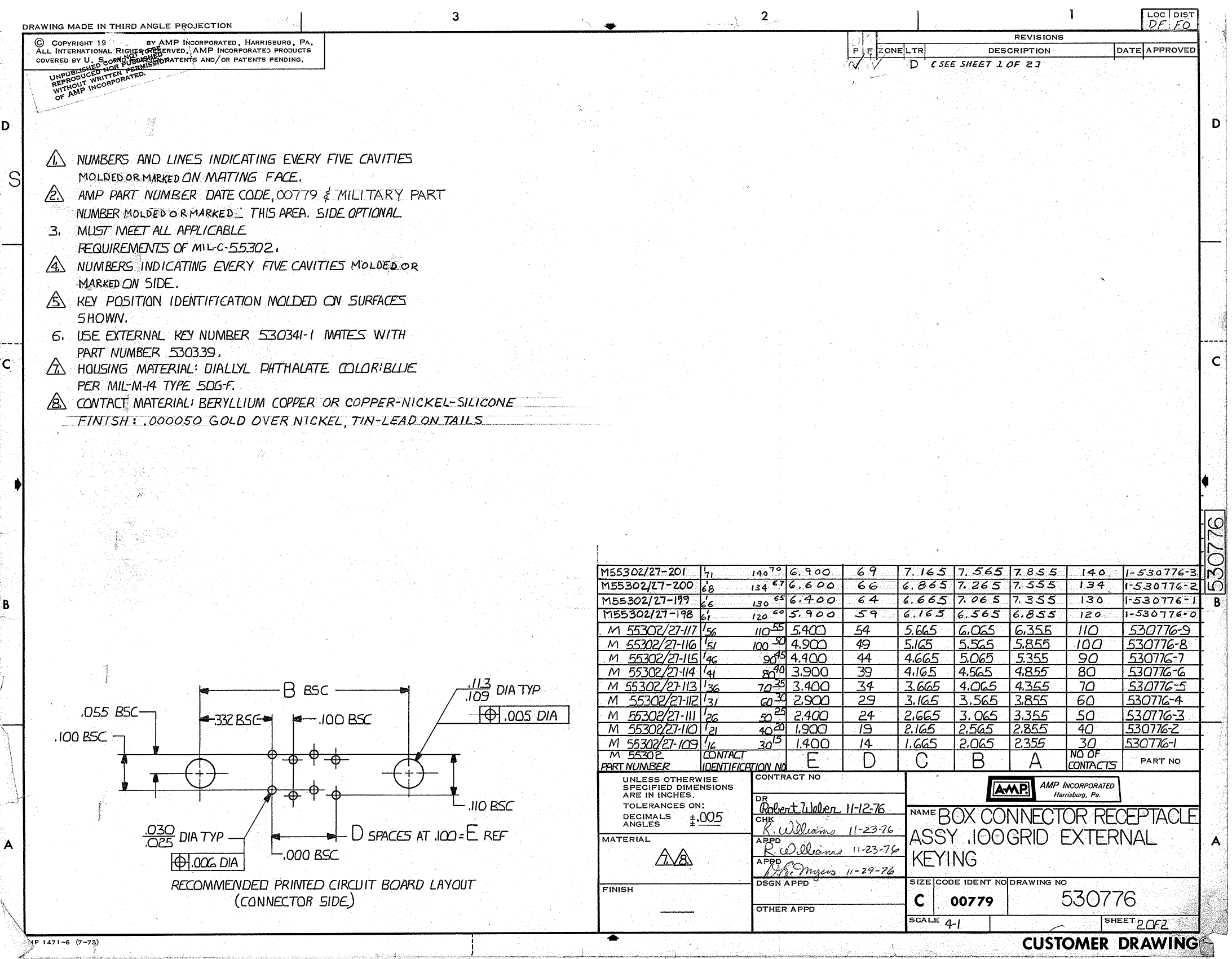

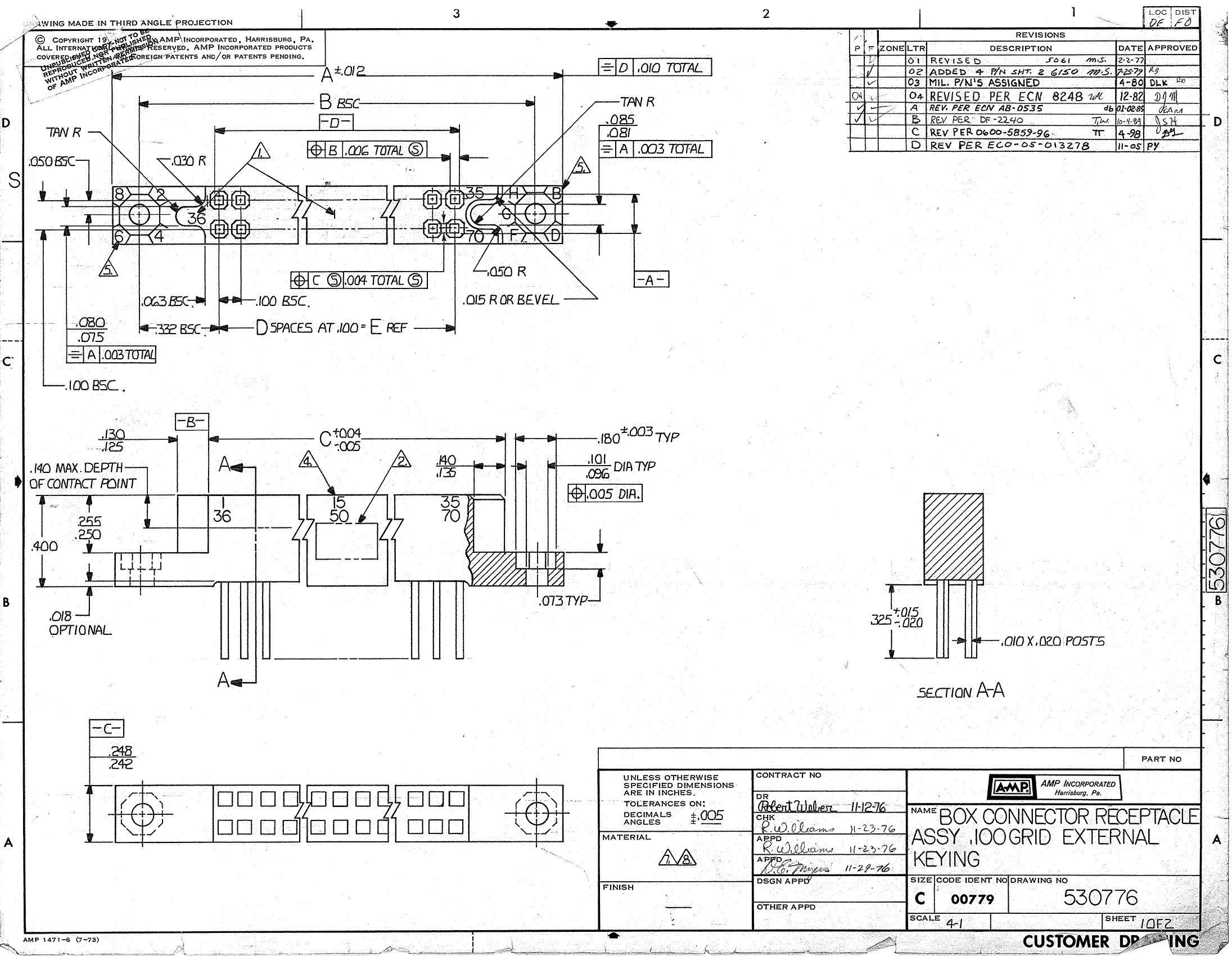

2 ROW BOX RECP 60 POS STAG

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-C-55302, STAGGERED CONFIGURATION
body width	0.248 inch
subject depth	0.4 inch
body length	3.855 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (50)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	YES
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#2-56
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	50u inch
polarization key	ENDS
reliability	COMMERCIAL
Terminal length	0.325 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	60
Base Number Matches	1
