ILBB-0603
Vishay Dale
Multilayer Ferrite Beads
FEATURES
•
High reliability.
•
Surface mountable.
•
Magnetically self shielded.
•
Nickel barrier plating virtually eliminates silver migration.
MECHANICAL SPECIFICATIONS*
Solderability:
90% coverage after 5 second dip in 235°C
solder following 60 second preheat at 120°C to 150°C and
type R flux dip.
Resistance To Solder Heat:
10 seconds in 260°C solder
after preheat and flux per above.
Terminal Strength:
0.3 kilograms (0.66 pounds) minimum
for 30 seconds.
Beam Strength:
0.3 kilogram (0.66 pounds) minimum.
ENVIRONMENTAL SPECIFICATIONS*
Operating Temperature:
- 55°C to + 125°C.
Thermal Shock:
100 cycles, - 40°C to + 125°C.
Biased Humidity:
85% RH at 85°C, 1000 hours at full
rated current.
STANDARD ELECTRICAL SPECIFICATIONS
Z @ 100MHz
(
±
25%)
10
30
40
60
68
80
120
150
180
220
300
420
450
600
750
1000
1500
2000
DCR MAX.
(Ohms)
0.05
0.09
0.10
0.10
0.10
0.20
0.20
0.30
0.30
0.30
0.35
0.40
0.40
0.45
0.60
0.60
0.70
0.80
RATED DC CURRENT
(mA)
500
500
400
400
200
150
150
150
150
150
150
150
100
100
100
100
50
50
DIMENSIONS
in inches [millimeters]
Dimensional Outline
B
Ferrite
Body
A
D
C
A
0.063
±
.006
[1.6
±
0.15]
B
0.032
±
.006
[0.8
±
0.15]
C
0.014
±
.006
[0.36
±
0.15]
D
0.032
±
.006
[0.8
±
0.15]
Suggested Pad Layout
PACKAGING OPTIONS
• Tape and Reel:
Embossed plastic carrier tape
Per EIA481-1
4000 pieces on a 7" [178mm] reel
F
G
H
E
DESCRIPTION
ILBB-0603
MODEL
30
IMPEDANCE VALUE
±
25%
IMPEDANCE TOLERANCE
E
0.102
[2.6]
F
0.031
[0.8]
G
0.023
[0.6]
H
0.039
[1.0]
SAP PART NUMBERING GUIDELINES (INTERNAL)
I
L
B
B
0
6
SIZE
0
3
R
K
3
0
IMPEDANCE
VALUE
0
V
TOL.
PRODUCT FAMILY
See the end of this data book for conversion tables
PACKAGE
CODE
www.vishay.com
76
For technical questions, contact Magnetics@vishay.com
Document Number 34024
Revision 15-Jan-03
ILBB-0603
Multilayer Ferrite Beads

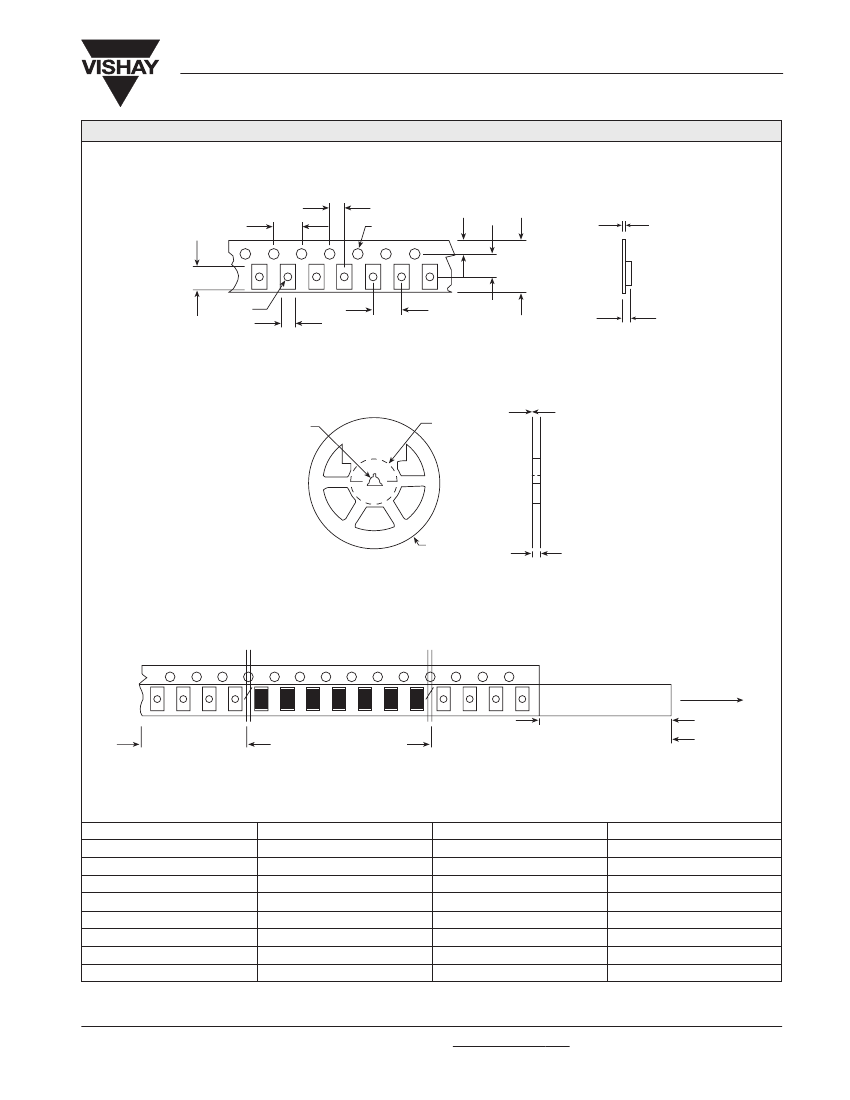

TAPE AND REEL SPECIFICATIONS 0603 SIZE PER EIA-481-1
in inches [millimeters]
Vishay Dale
P
2
P
0
ØD
0
E
1
F
W
T
B
0
ØD
1
A
0
P
1
K
0
T
1
ØC
ØN
ØA
W
1
Empty Trailer
Components
Empty Tape
Cover Tape Leader
Unreel
Direction
160mm Minimum
160mm Minimum
390mm Minimum
A
0
B
0
D
0
D
1
E
1
F
K
0
P
0
P
1
0.045
±
.004 [1.14
±
0.1]
0.071
±
.008 [1.80
±
0.2]
0.059 + .004/- 0.000 [1.5 + 0.1]
0.039 Min. [1.0 Min.]
0.069
±
.004 [1.75
±
0.1]
0.138
±
.002 [3.50
±
0.05]
0.045
±
.002 [1.15
±
0.05]
0.157
±
.004 [4.00
±
0.1]
0.157
±
.004 [4.00
±
0.1]
P
2
W
T
A
N
C
W
1
T
1
0.079
±
.002 [2.00
±
0.05]
0.327 Max. [8.3 Max.]
0.008
±
.002 [0.2
±
0.05]
7.000
±
.079 [178.0
±
2.0]
2.500 [63.5] Min.
0.51 + 0.02/- 0.008 [13 + 0.5]
0.315 + 0.059/- 0.00 [8.00
±
1.50]
0.079
±
.002 [2.00
±
0.05]
Document Number 34024
Revision 15-Jan-03
For technical questions, contact Magnetics@vishay.com
www.vishay.com
77
ILBB-0603
Vishay Dale
Multilayer Ferrite Beads

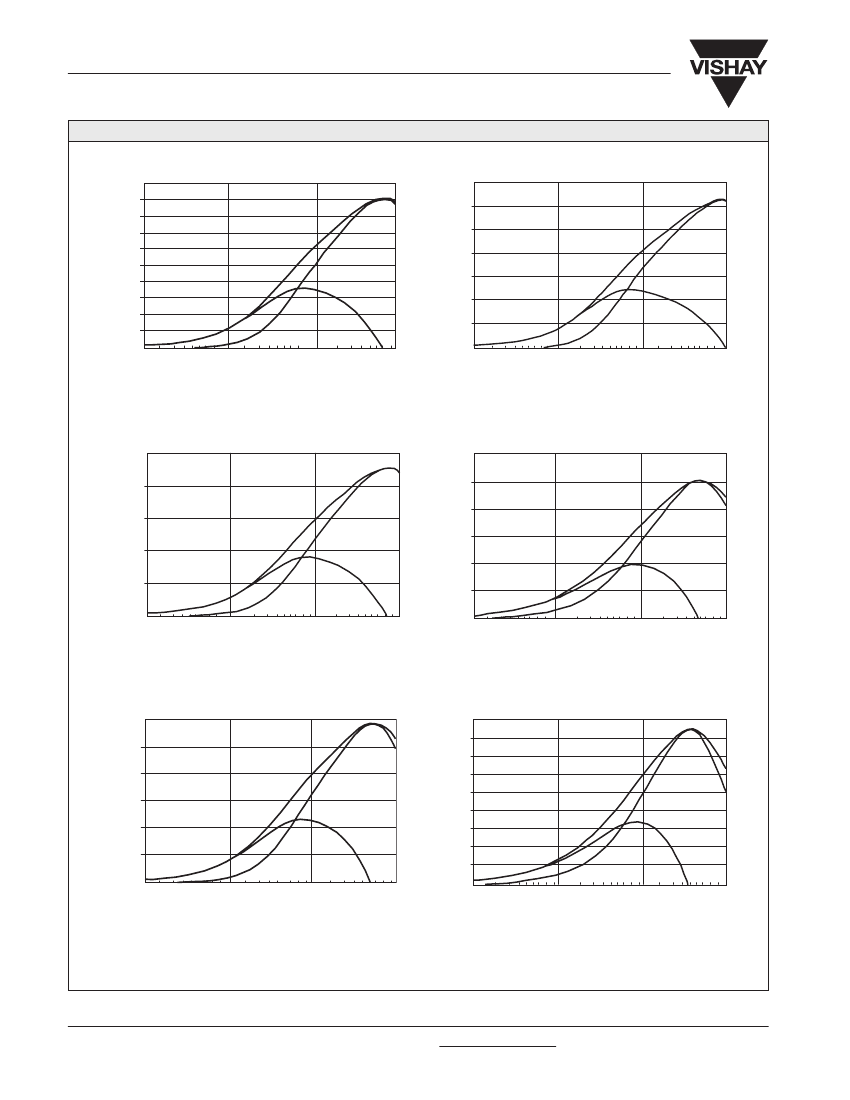

TYPICAL CURVES - FREQUENCY CHARACTERISTICS OF R, X AND Z
ILBB-0603 30
Ω
50
45
Z
70
60
ILBB-0603 40
Ω
Z
R
50
40
30
20
10
X
0
1
10
100
FREQUENCY (MHz)
1000
1
10
100
1000
FREQUENCY (MHz)
IMPEDANCE (Ohms)
35
30
25
20
15
10
5
0
X
ILBB-0603 60
Ω
IMPEDANCE (Ohms)
40
R
ILBB-0603 68
Ω
Z
120
100
R
Z
R
80
60
40
20
0
X
1
10
100
FREQUENCY (MHz)
1000
100
80
60
40
20
X
IMPEDANCE (Ohms)
0
1
10
100
FREQUENCY (MHz)
1000
ILBB-0603 80
Ω
120
100
Z
180
160
IMPEDANCE (Ohms)
ILBB-0603 120
Ω
Z
R
IMPEDANCE (Ohms)
80
60
40
20
X
0
1
10
100
FREQUENCY (MHz)
1000
IMPEDANCE (Ohms)
R
140
120
100
80
60
40
20
0
1
10
100
FREQUENCY (MHz)
X
1000
www.vishay.com
78
For technical questions, contact Magnetics@vishay.com
Document Number 34024
Revision 15-Jan-03
ILBB-0603
Multilayer Ferrite Beads

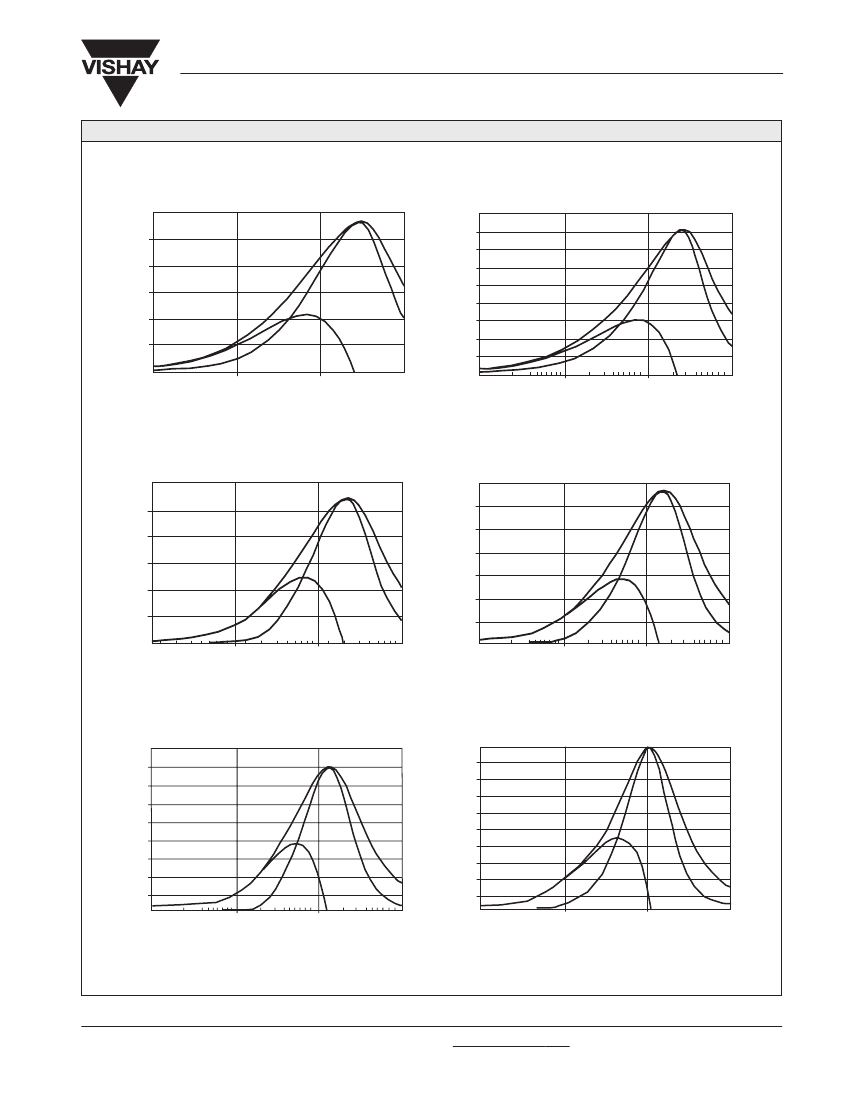

TYPICAL CURVES - FREQUENCY CHARACTERISTICS OF R, X AND Z
Vishay Dale
ILBB-0603 220
Ω
300
Z
250
450
400
ILBB-0603 300
Ω
IMPEDANCE (Ohms)
IMPEDANCE (Ohms)
R
200
150
100
50
X
0
1
10
100
FREQUENCY (MHz)
1000
350
300
250
200
150
100
50
0
1
X
10
100
FREQUENCY (MHz)
R
Z
1000
ILBB-0603 450
Ω
600
500
400
300
200
100
0
1
X
0
10
100
FREQUENCY (MHz)
1000
1
R
Z
700
ILBB-0603 600
Ω
Z
600
R
IMPEDANCE (Ohms)
IMPEDANCE (Ohms)
500
400
300
200
X
100
10
100
FREQUENCY (MHz)
1000
ILBB-0603 750
Ω
900
800
1000
900
ILBB-0603 1000
Ω
Z
R
Z
R
IMPEDANCE (Ohms)
IMPEDANCE (Ohms)
700
600
500
400
300
200
800
700
600
500
400
300
200
100
0
X
100
0
X
1
10
100
FREQUENCY (MHz)
1000
1
10
100
FREQUENCY (MHz)
1000
Document Number 34024
Revision 15-Jan-03
For technical questions, contact Magnetics@vishay.com
www.vishay.com
79
