3215172112

Description
Dry Reed Relay, SPST, Momentary, 0.008A (Coil), 15VDC (Coil), 113mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
CategoryMechanical and electronic products    relay
File Size130KB，2 Pages
ManufacturerStandex
Download Datasheet Parametric View All

3215172112 Overview

Dry Reed Relay, SPST, Momentary, 0.008A (Coil), 15VDC (Coil), 113mW (Coil), 0.5A (Contact), 200VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

3215172112 Parametric

Parameter NameAttribute value
MakerStandex
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
ECCN codeEAR99
body width6.4 mm
body height5.1 mm
Body length or diameter19.3 mm
Maximum coil current (DC)0.008 A
Coil operating voltage (DC)10.5 V
Coil power113 mW
Coil release voltage (DC)2.2 V
Coil resistance2200 Ω
Maximum coil voltage (DC)15 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load.5A@200VAC
Maximum contact current (AC)0.5 A
Maximum contact current (DC)0.5 A
Contact (DC) maximum rated R load.5A@200VDC
Maximum contact voltage (AC)200 V
Maximum contact voltage (DC)200 V
Contact/Output Power TypeAC/DC
JESD-609 codee3
Manufacturer's serial number3215172112
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
operating hours0.5 ms
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
method of packingTUBE
physical size19.3mm x 6.4mm x 5.1mm
GuidelineUL
Relay actionMOMENTARY
Relay functionSPST
Relay typeDRY REED RELAY
release time0.1 ms
sealWATER PROOF
surface mountNO
Terminal surfaceTIN
Termination typeSOLDER
Base Number Matches1

Preview

Download Datasheet
Europe: +49 / 7731 8399 0
USA:
Asia:
+1 / 508 295 0771
+852 / 2955 1682
| Email: info@meder.com
| Email: salesusa@meder.com
| Email: salesasia@meder.com

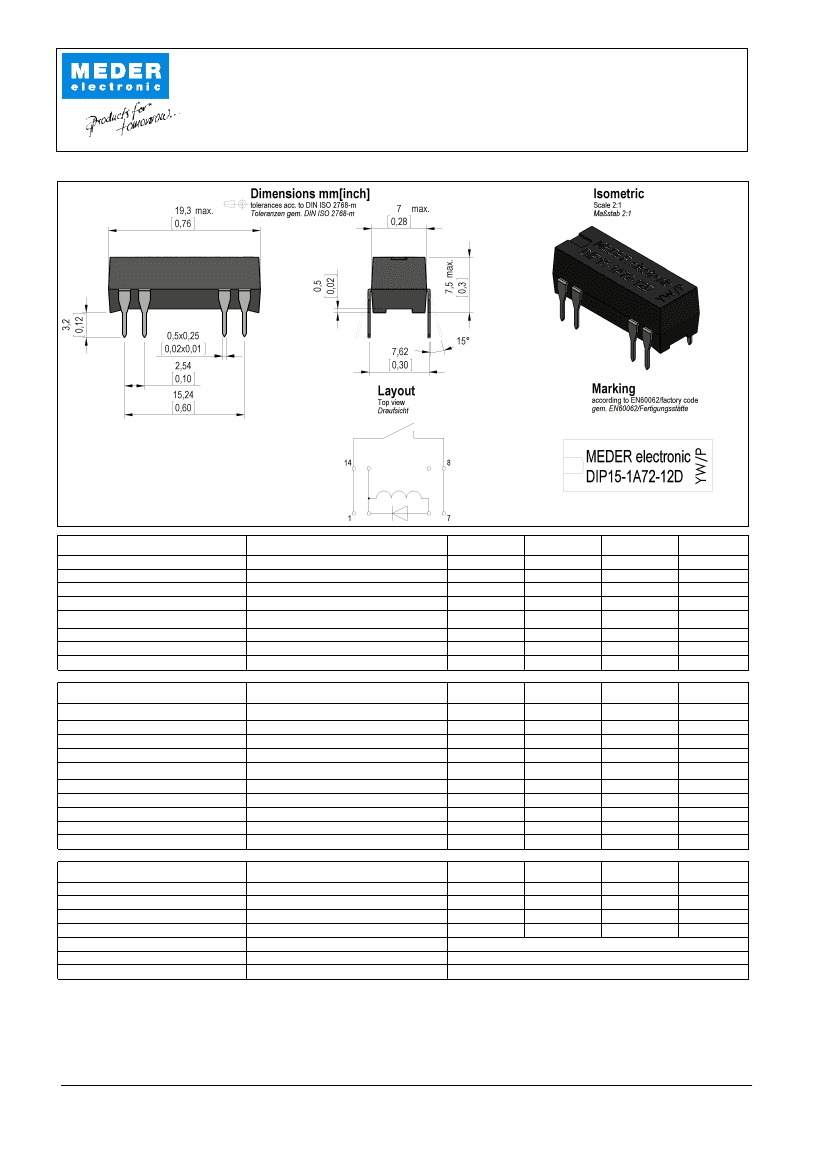

Item No.:
3215172112
Item:
DIP15-1A72-12D
Preliminary Datasheet
Coil Data at 20 °
C
Coil resistance
Coil voltage
Rated power
Coil current
Thermal resistance
Inductance
Pull-In voltage
Drop-Out voltage
Conditions
Min
Typ
Max
Unit
=
operating temperature + self heating
Contact data 66/3
Contact rating
Switching voltage
Switching current
Carry current
Contact resistance static
Insulation resistance
Breakdown voltage
Operate time incl. bounce
Release time
Capacity
Conditions
!
"# $%! %#! #& '
not to exceed their individual max.'s
Min
Typ
Max
Unit
DC or Peak AC
DC or Peak AC
DC or Peak AC
( ) * +%
Start Value
, - #. * %.
RH <45 %, 100 V test voltage
according to EN 60255-5
measured with 40% overdrive
measured with no coil excitation
@ 10 kHz across open switch
/
)
)
0
Special Product Data
Dielectric Strength Coil/Contact
Insulation resistance Coil/Contact
Dielectric Strength Coil/Shield
Capacity Coil/Contact
Housing material
Connection pins
Reach / RoHS conformity
Conditions
according to EN 60255-5
RH <45%, 200 VDC measuring voltage
according to EN 60255-5
@ 10 kHz
Min
Typ
Max
1
/
Unit
0
epoxy resin
CuFe2P, tin plated
yes
Modifications in the sense of technical progress are reserved
Designed at:
Last Change at:
28.04.04
22.12.11
Designed by:
Last Change by:
SCHELLHORN
THAUKE
Approval at:
Approval at:
26.08.09
Approval by:
Approval by:
KOLBRICH
Version:
4
